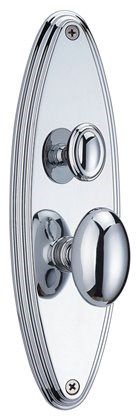

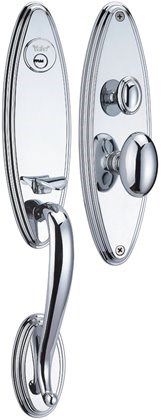

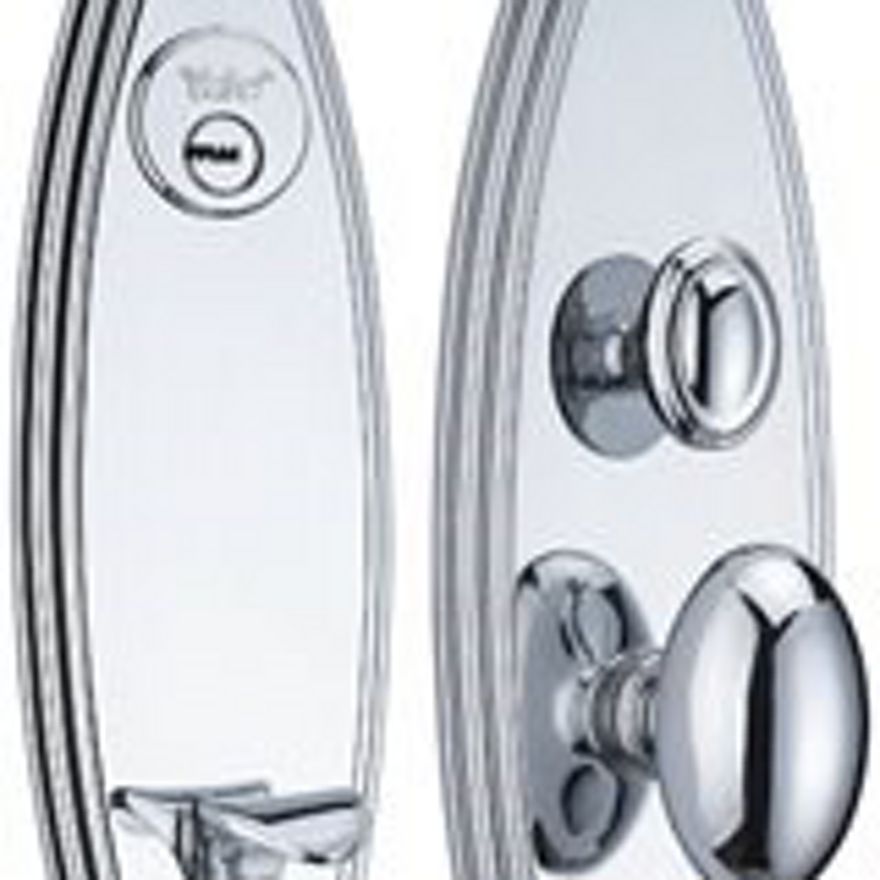

M8733 BB - Yale M8700 series Classic Style Entrance Door Handle Set 2

Features

• ANSI Grade 2 Enrance Handleset is forged solid brass with stylish design
• Stainless steel mortise lock case provides highest level of key operated security and represent the industry standard of quality
• Ideal for doors with thickness of 45-55mm and backset 70mm (2-3/4")
• More than 800,000 times lifecycle tested.

Patented Anti-panic Function
The latchbolt & deadbolt will retract simultaneously by turning the interior lever (patented).

Available Finishes
Physical Vapor Deposition - PVD
Chrome Plated - CP
Satin Nickel - SN

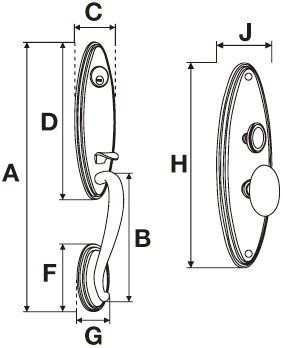

Dimension for Front Plate and Back Plate Diagram (mm)
A-440, B-210, C-72, D-112, E-137,
F-112, G-60, H-255, J-75
