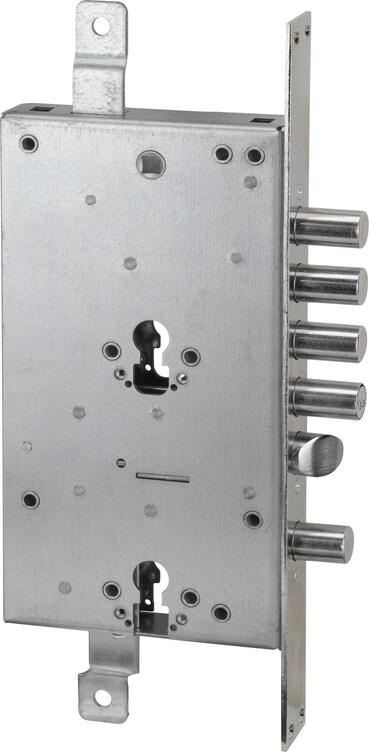

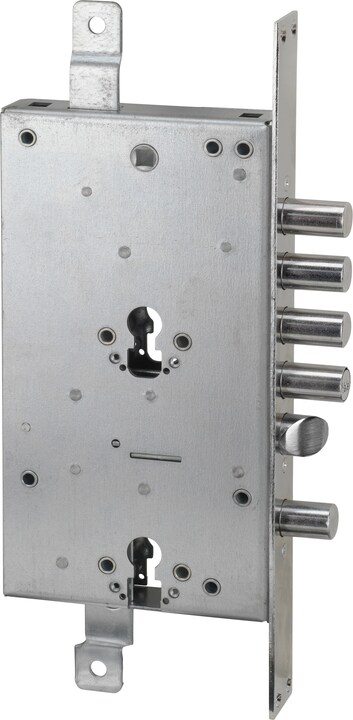

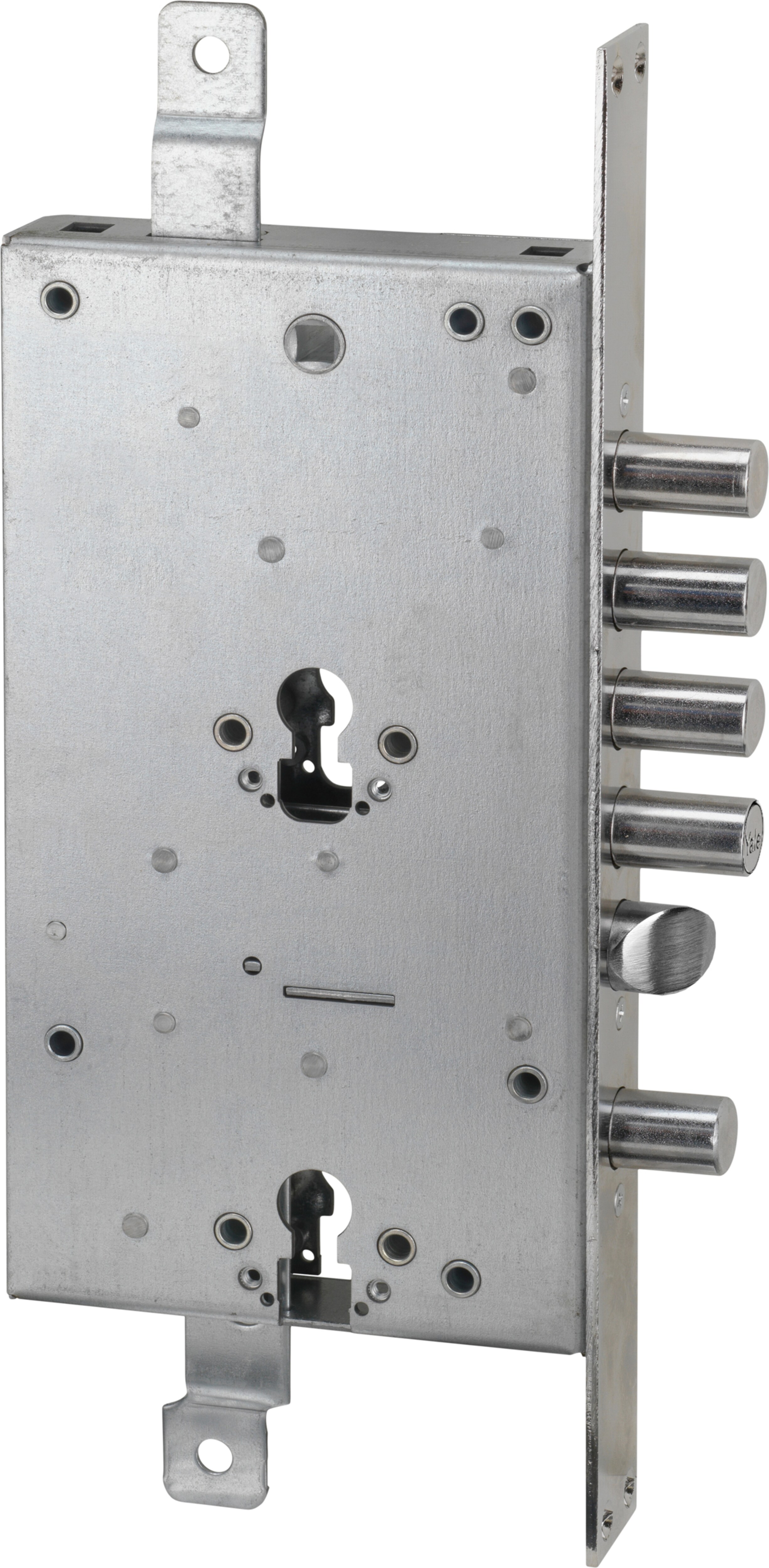

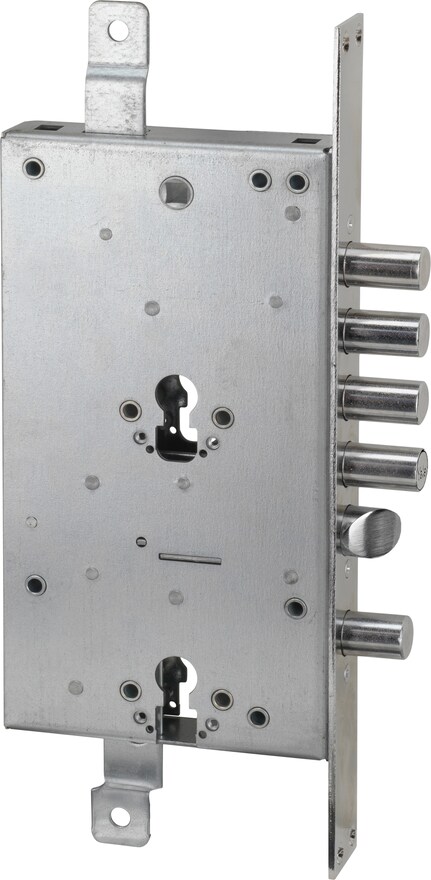

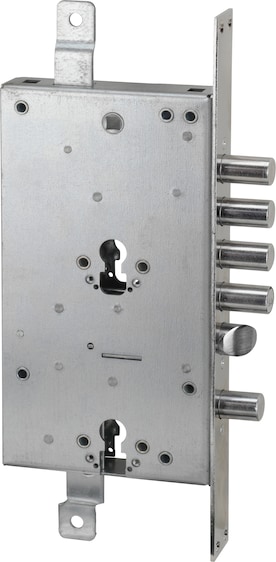

Series D

Specifications:

• Latch operated by both key and handle
• Key operated bolt

Features:

• Double anti-tampering device supplied as standard on "TR" items
• Upper and lower rods block
• Backset 73mm
• Bolt interspace 28mm and 37mm
• Pivot bolt diameter 18mm
• Reversible latch diameter 20mm
• With locked device handle doesn't work
• Axial bolt resistance> 6kN

Supplied with:

• 2 cylinders support
• 4 fixing cylinders support screws
• 2 fixing cylinders screw
