Smart Door Locks

YDR3110 rim lock is a smart solution for residential & light commercial applications. 2 access solutions to open your door: RF Card key & PIN code. The innovative features, such as alarms, fake code or automatic locking will provide comfort and will increase your feeling of security.

Specifications:

• Type: rim lock
• Credentials:
• Pin code (4 to 12 digits)
• RF Card key: 4 (up to 20 users)
• Backset: 60-90mm
• Colour: black
• Door thickness: 35-45mm
• Dimensions: front body 19(D)x 65 (W)x160(H); Back body 36(D)x158 (W)x 85(H) mm
• Integration: available upon request-RF link
• Options: extra remote controls & card keys
• Suitable for left or right opening

Features:

• Various access (PIN code & RF Card key)
• Smart touchpad
• Operation status notification
• Missing key invalidation
• Automatic locking
• Alarm (break-in/damage)
• Low battery alarm & emergency power with 9v battery

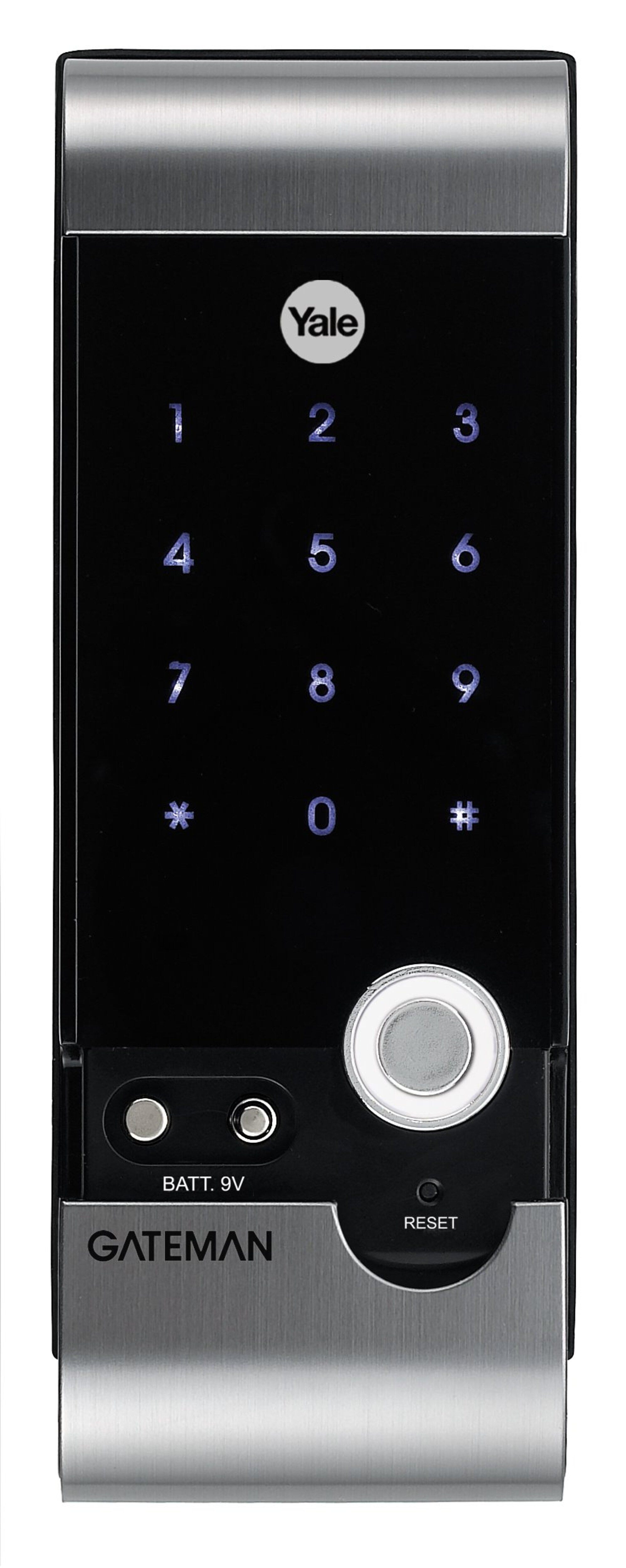

YDR4110 rim lock is a smart solution for residential & light commercial applications. It offers two access solutions to open your door: fingerprint & PIN code. The innovative features, such as alarms, fake code or automatic locking provide secure access and peace of mind.

Specifications:

• Type: rim lock
• Credentials:
• Pin code (4 to 12 digits)
• Fingerprint reader (up to 20 users)
• Mechanical key: no
• Backset: 60-90mm
• Colours: black
• Door thickness: 35-45mm
• Dimensions: front body 19(D)x 65 (W)x163(H); Back body 36(D)x158 (W)x 85(H)
• Integration: available upon request-RF link
• Options: extra remote controls
• Suitable for left or right opening

Features:

• Various access (PIN code & fingerprint)
• Smart touchpad
• Operation status notification
• Voice guide feature
• Automatic locking
• Alarm (break-in/damage)
• Low battery alarm & emergency power with 9v battery

The Yale Digital Door Lock Collection offers Smarter Keyless Access Solutions for residential and commercial applications.

Specifications:

• Motorized Rim Lock
• Backset: 70mm to 90mm
• Door Thickness: 35 to 45mm
• 4 x AA batteries
• Operation Temperature: -15 to +55C


Features:

• PIN Code: 4 -12 digits
• Promixity Cards: up to 20 users
• Optional remote control
• Elegant mirror style touch pad
• Easy installation
• Available in silver finish

YDG313 is a Digital Door Lock product designed for glass doors, with a patented touchpad called "Magic mirror" which gives the product a very modern look and feel.

Features:

• Pin code: 4-12 digits
• Proximity cards: up to 20 users
• Elegant mirror style touch pad
• Clip type bracket - no drilling required
• Easy installation
• Available in silver finish
• Low battery alarm & emergency power with 9v battery
• Automatic locking

Specifications

• Type: rim lock
• Door thickness: 10 to 12mm
• Door Gap: 2.5 to 5mm
• 4x AA batteries
• Automatic lock mode
• Suitable for left or right opening

The Yale Keyless Connected smart lock gives you freedom to
secure your home without the need for a key. Simple to use, you now have complete control on how you unlock your door.

Convenience:  There's no need to worry if your children arrive home early, or if you're stuck at work with friends on your doorstep. You control who and when people have access to your home. For example, you can set a PIN code that works for 24 hours for a family member or your cleaning person.

Simple to use:  You choose how you want to open your door. PIN code, key card, key tag, remote fob and even from your smartphone when connected to a smart home system. It is also easy to add and remove users if you need to.

Security as standard:  Feeling safe and secure is a must for any homeowner. The smart lock has a tamper alarm and incorrect PIN code feature.

Always On:  Don't worry if the electricity goes down as the smart lock is powered by 4 AA batteries. It will even warn you when the batteries are running low.

Connectivity:  Complete your smart home system. The Keyless Connected smart lock can connect to leading smart home systems when the appropriate module is fitted. It also connects to the Yale SmartPhone Alarm and CCTV systems when you use the Yale module.

Features

• Replaces existing rim cylinder used on a 60mm backset nightlatch

• Touchscreen with backlit keypad

• Battery operated

• Credentials: PIN code (4-12 digits) & RF Card

• Remotely add user credentials

• Remote control (optional)

• Low battery indicator with emergency battery connection

• User schedules

• Audit trails

• 3 minute lock out if code is entered incorrectly 5 times

• Tamper alarm

• Cycle tested to 120,000 cycles

• Low power consumption - unlocks up to 10,000 times with one set of 4 x AA batteries

• 2 year guarantee

• Optional Accessories: Remote Fob Module (includes one fob)
  Additional Remote Fobs
  Yale^® Module
  Z-Wave^® Module
  Key Card
  Key Tag

• Connectivity:
  Connects to Yale^® Smart Alarm and CCTV range (Yale Module).
  Connects to Z-Wave^® compatible smart home systems (Z-wave Module)

Specifications

• Type: rim lock
• Credentials: Pin code (4-12 digits) & RFID card
• Backset: 60mm
• Colour: silver
• IP 55 weather resistant
• Door thickness: 40-57mm
• Dimensions: front body 64(W)x153(H)x51(D)mm; Battery pack 68(W)x120(H)x21(D)mm
• Operating temperature -15oC to 55oC

YDM3168 is a digital door lock, suitable for steel and wooden doors (40 to 105mm). Its a 3 deadbolts motorized lock featuring 2 access options: RF card key & PIN code. Other features include alarm, fake code, automatic locking and integration.

Features

• PIN code: 6-12 digits
• Proximity cards up to 40 users
• Zigbee and Zwave integration module available (optional)
• Mechanical keys override
• Voice guidance available
• Built-in 80db burglar alarm
• Easy installation
• Scramble code
• Available in silver finish
• Smart touchpad
• Anti-panic egress with safe handle
• Fake PIN Code
• Automatic locking
• Low battery alarm
• Emergency power with 9V battery
• Remote control (optional)

Specifications

• Motorized mortice lock
• Backset: 60mm
• Door Thickness: 40 to 105mm
• 4 x AA batteries
• Available for wooden and steel doors
• Automatic lock mode
• Operation temperature: -15 to +55C
• Suitable for left or right opening
• Dimensions: front body 311 (D) x 64 (W) x 26 (H) mm; back body 311 (D) x 72(W) x 31 (H)mm
• Compatiable for both Left and Right side door opening.

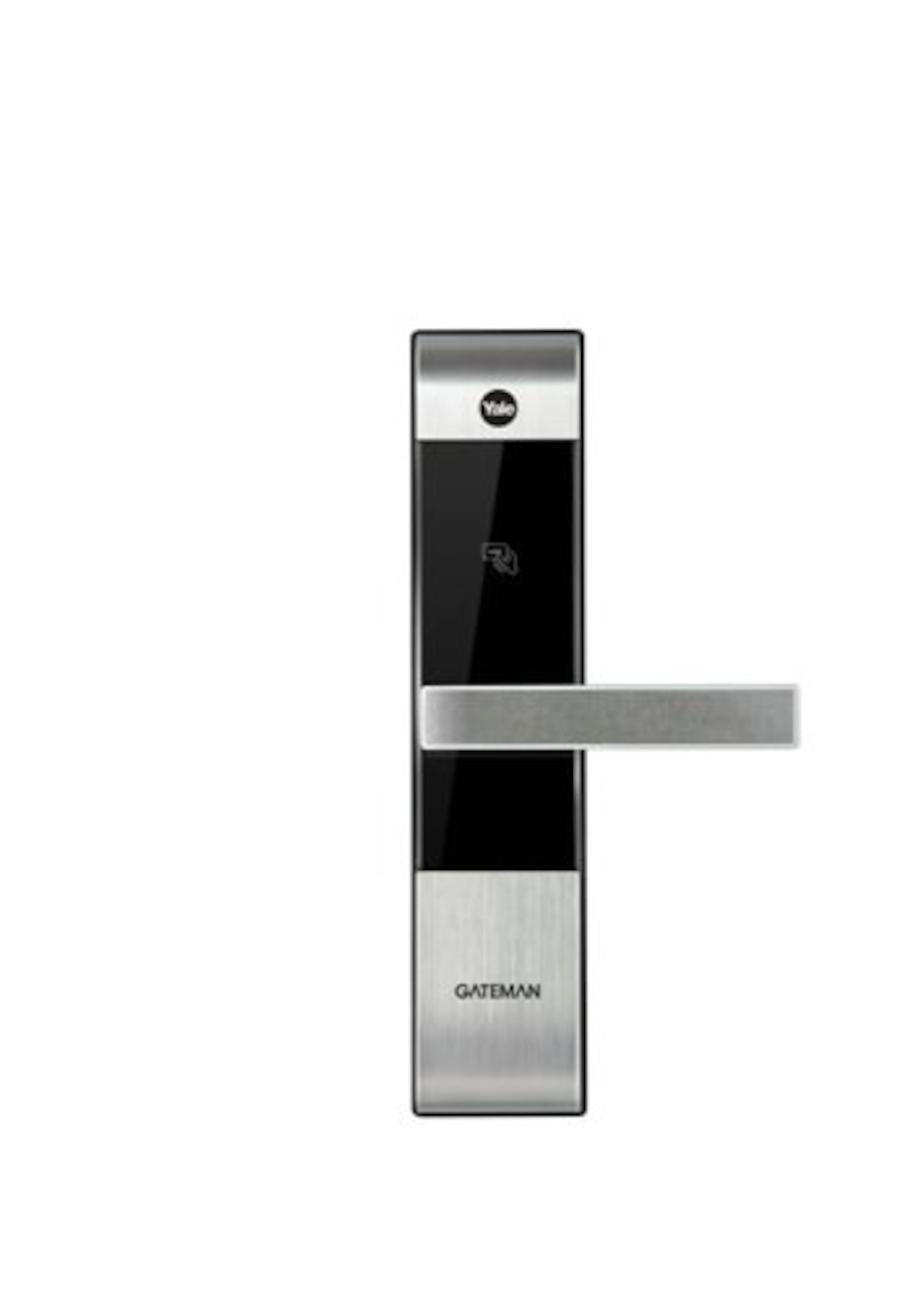

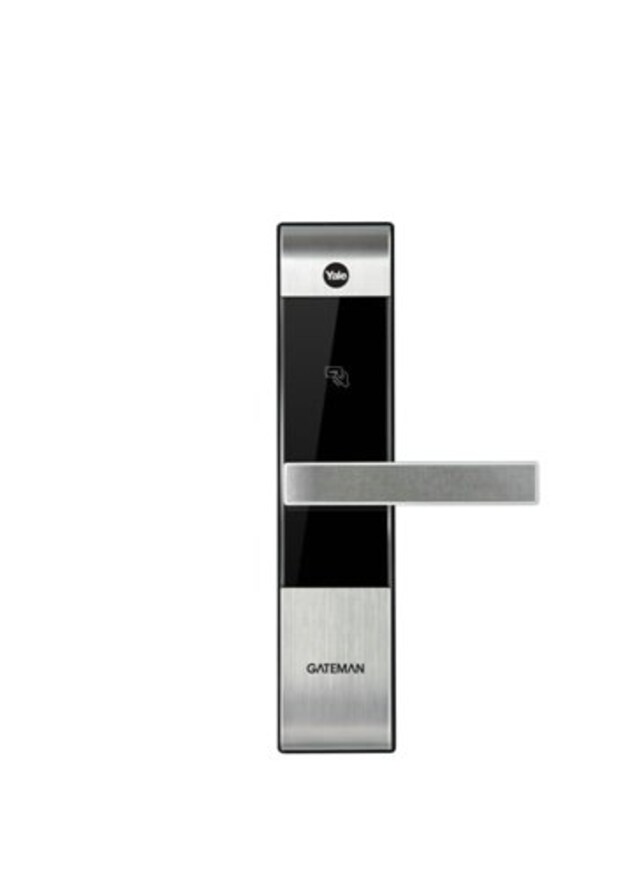

YDM3109 mortice lock is a smart solution for residential & light commercial applications. 2 access solutions to open your door: RF Card key & PIN code. With innovative features such as alarm, fake code detection and automatic locking, YDM3109 offers you secure access and peace of mind.

• Various access options - Yale YDM3109 has two access solutions, PIN code or proximity card key for your convenience.
• Fake PIN code - You can make an instant PIN code for security.
• Operation status notification - Whenever any operation is made, the keypad informs you what has happened through different alignment of the numbers.
• Mechanical key override - For emergency, it can also be unlocked with a mechanical key.
• Missing key invalidation - Once you lose your key, it has no validation as long as you re-register your keys.
• Automatic locking - The Yale Digital Door Locks series automatically locks the door after checking it is properly closed. (Manual operation is also available.)
• Anti-panic egress with Safe handle - For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used. And also safe handle will protect from any break-in attempts.
• Alarm (Break-in/ Damage) - 80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects.
• Low battery and emergency power - It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9V battery.
• Remote Control (Optional) - Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50 m.

Specifications

• Type: Mortice lock
• Proximity Card keys: 4 (Max 40)
• Mechanical keys: 2
• PIN Code: 6-12 digits
• Finish: Silver
• Suitable for left or right opening

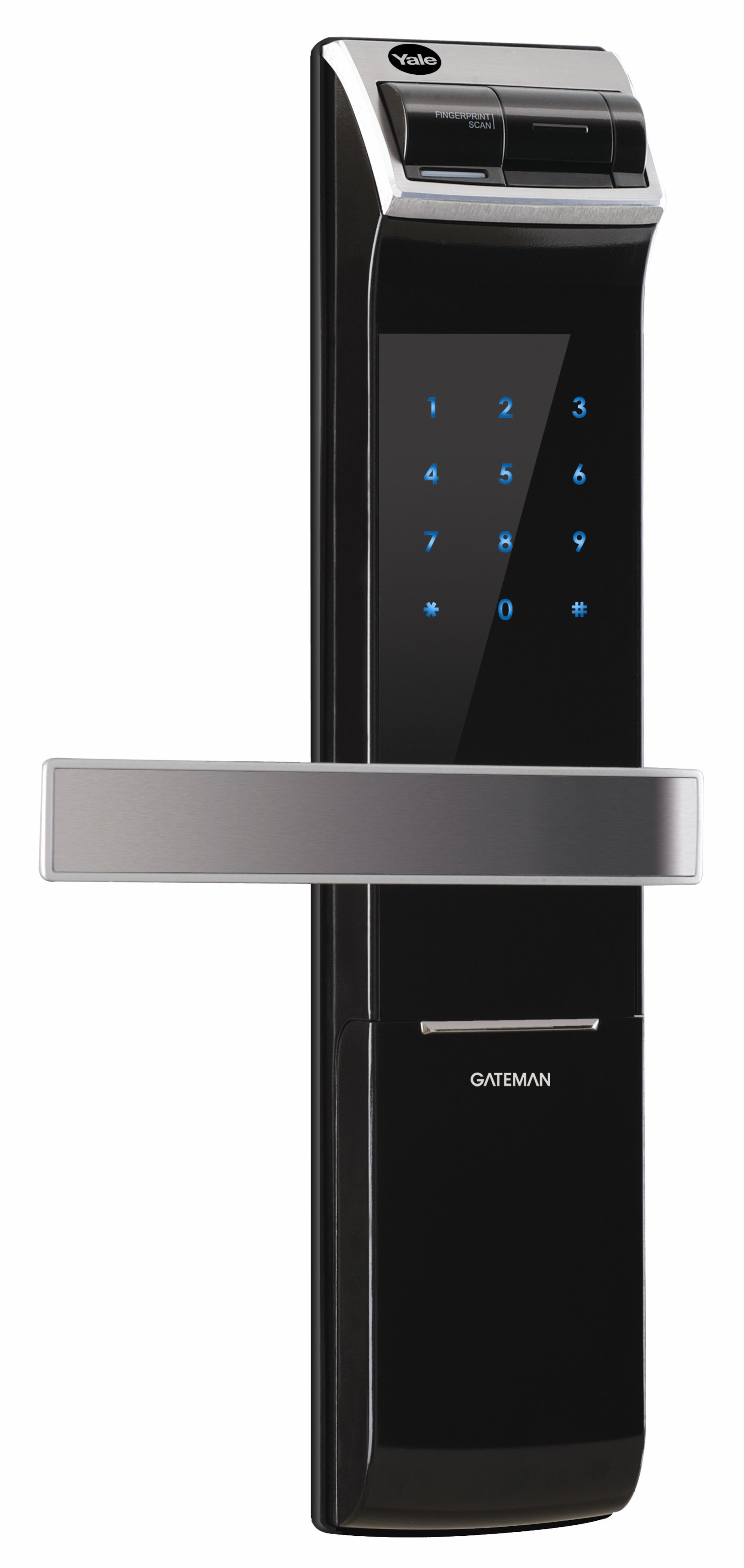

YDM4109 mortice lock is a smart solution for residential & light commercial applications. It offers 2 access solutions to open your door: fingerprint & PIN code. It's innovative features such as alarm, fake code detection and automatic locking provide secure access and peace of mind.

• One-touch Fingerprint Verification Method (Easy Scan) - Easy scan technology has been applied to coveniently read a fingerprint in one shot without the need to open or close the cover to enter a fingerprint.
• Voice Guide Feature - This feature lets you kknow the operation status and how to set each feature and mode for easier and more convenient use.
• Smart Touchpad - To prevent the password from being exposed due to residual fingerprints after opening a door, a new technology has been adopted to complete the door opening process by touching the keypad with a palm after entering the password.
• Anti-panic egress with Safe handle - For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used. Safe handle will also protect from any break-in attempts.
• Scramble code - You can add meaningless number prior to or after the right code when there is a chance of exposing is to others.
• Alarm (Break-in/Damage) - 80dB alarm goes off if anyone attemptsto damage the lock or force the door open, of if the lock detects.
• Security/Normal mode - For multi-use environment, YDM4109 can be turned to Security (Master) mode that the master can register and delete each user while Normal mode controls all the users at one time.
• Operation Status Notification - Whenever any operation is made, the keypad informs you what has happened through different alignment of the numbers.
• Low battery alarm and emergency power supply terminal - It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with the standard 9V battery.

Specifications

• Type: DIN type mortise lock
• Pin code (6-12 digits)
• Fingerprint reader (up to 20 users)
• Mechanical key: 2
• Center distance: 72mm
• Backset: 60mm
• Door thickness: 40-80mm
• IP 55
• Operating temperature: -15 to +55 °C
• Suitable for left or right opening

YDME70 is a mortice digital door lock with multiple modes of access ideal for wooden or metal doors.ideal for wooden or metal doors.

Features

• Touchscreen keypad
• 6 digits user pin code and master pin code
• Ways to unlock:
  - PIN code
  - RF card
  - Mechanical key
• Electronic lock
• English voice guide
• Fake PIN code
• Break-in and damage alarm
• Low battery indicator & emergency power with 9v battery
• Anti-panic egress with safe handle

Specifications

• Mortice: five latch
• Door thickness: 35-55 mm
• Credentials:
  - PIN code (up to 32 PIN codes)
  - RF card (up to 32 RF cards)
• Keys 3pcs.
• MF1 cards 4pcs.
• 8 pcs. batteries

YDME90 is an advanced 4 in 1access digital door lock with strong security features, ideal for wooden doors.

Features

• 8 digits user pin code and master pin code
• Ways to unlock
  - Biometric
  - PIN Code
  - RF Card
  - Mechanical Key
• Electronic lock
• LCD screen with date and time
• Audit trail can be viewed on the LCD screen
• Integration with VDP/ HA
• Fake PIN code
• Break-in and damage alarm
• Anti-panic egress with safe handle

Specifications

• Mortice: five latch

• Door thickness: 40 -50 mm

• Credentials:
  - Biometric (up to 37 fingerprints)
  - PIN code (up to 78 PIN codes)
  - RF card (up to 30 RF cards)

• 3pcs keys

• 4pcs MF1 cards

• 8pcs batteries

YDME50 is a digital lock for internal and external wooden and metal doors.

Features

• Touchscreen keypad
• 6 digits user PIN code and master pin code
• Ways to unlock:
  - PIN code
  - RF card
  - Mechanical key
• Low battery indicator & emergency power with 9v battery
• Anti-panic egress with safe handle

Specifications

• Mortice: single latch
• Door thickness: 35 - 55 mm
• Credentials:
  - PIN code (up to 78 PIN codes)
  - RF card (up to 30 RF Cards)
• 3pcs keys
• 4pcs MF1 cards
• 4pcs batteries

ENTR^™ is a smart lock solution that allows you to control your door lock from your smartphone, tablet and other Bluetooth enabled devices.

Features

• Provides users with mobile connectivity - meaning they can control and monitor the ENTR^® lock from their smartphone or any other Bluetooth device
• Ideal for any door type or size with euro profile cylinder. Internal cylinder dimension: minimum 35 mm up to 78 mm (gaps of 5 mm)
• Automatic locking - shut the door and it will automatically lock
• Secure, encrypted wireless communication between system elements
• Wire-free and wireless - ENTR^™ is a battery-operated system
• Wired charger included in the kit (for the European 2 pin plug please order the product replacing the last 2 digits of the kit part number with the digits: 1S)
• Receive notifications - locked / unlocked door and battery power level
• Create virtual keys
• Program scheduled access authorizations with your fingerprint

Specifications

• Automatic locking

• Easy to install - no drilling or wiring

• Front body measures 150 mm x 55 mm x 54 mm

• Operating temperature -10°C ~ +50°C

• IP44 weather resistant - do not splash water on the device

• Communication frequency between door unit and credentials: 2.4 GHz

• Battery type & power: rechargeable Lithium-ion, 7.4V 2600mAh

• Bluetooth Smart Technology between ENTR^® lock and smartphone: Bluetooth 4.0

• Transforms any door into a smart one with a simple and affordable cylinder retrofit solution

• Mechanical key override - backup solution

• ENTR^® consumes 300% less energy than common wired locks

• LED indications:

  - Low battery
  - Fault during lock/unlock operation
  - Mute
  - Door opened/closed
  - Auto/manual locking mode
