Yale

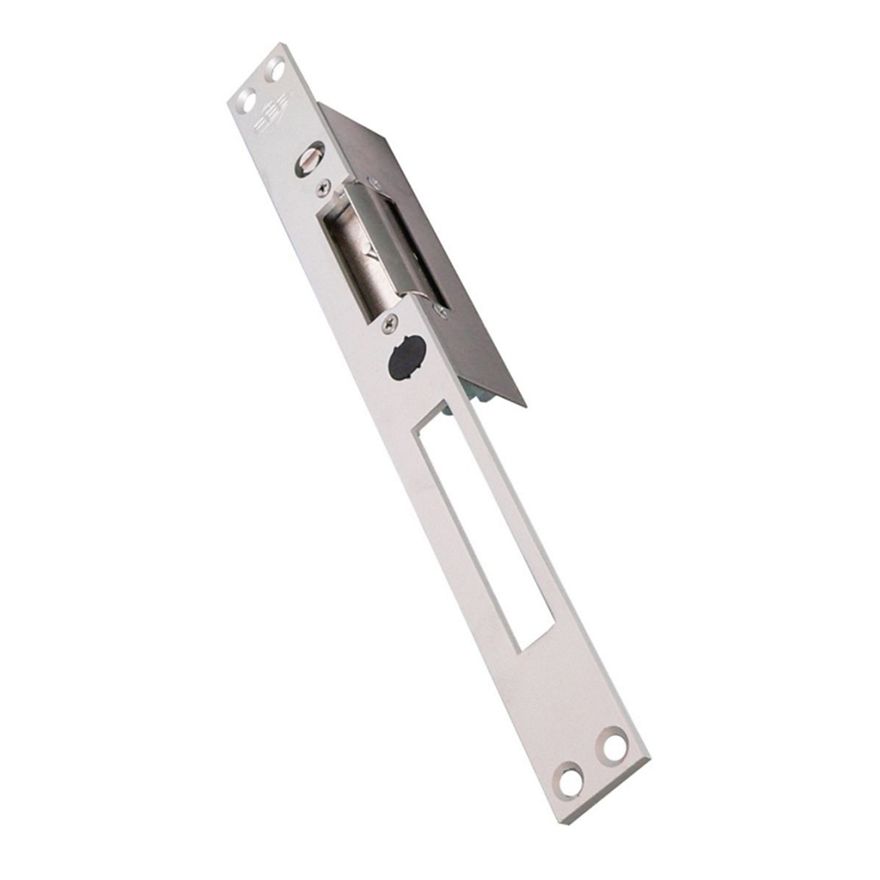

Electric strike YF6200

YALE ELECTRIC STRIKE WITH FRONT PLATE; HOLD-OPEN FUNCTION (memory), MECHANICAL UNLOCKING, FAFIX 4 mm, 8-12V AC

Electric strike is permanently released upon electrical contact.

Locking function is restored upon the door being open and closed again.

With hold open screw.
    • CODE: YF6200/1
    • YALE ELECTRIC STRIKE - SET
    • HOLD-OPEN FUNCTION - memory
    • MECHANICAL UNLOCKING – screw for mechanical unlocking
    • FAFIX – adjustable keeper 4 mm
    • FAIL-SECURE or NC (Normally Closed) – Fail-locked, locked without power, unlocked with power signal
    • Power supply 8-12 V AC
    • Input 0,3 - 0,5 A

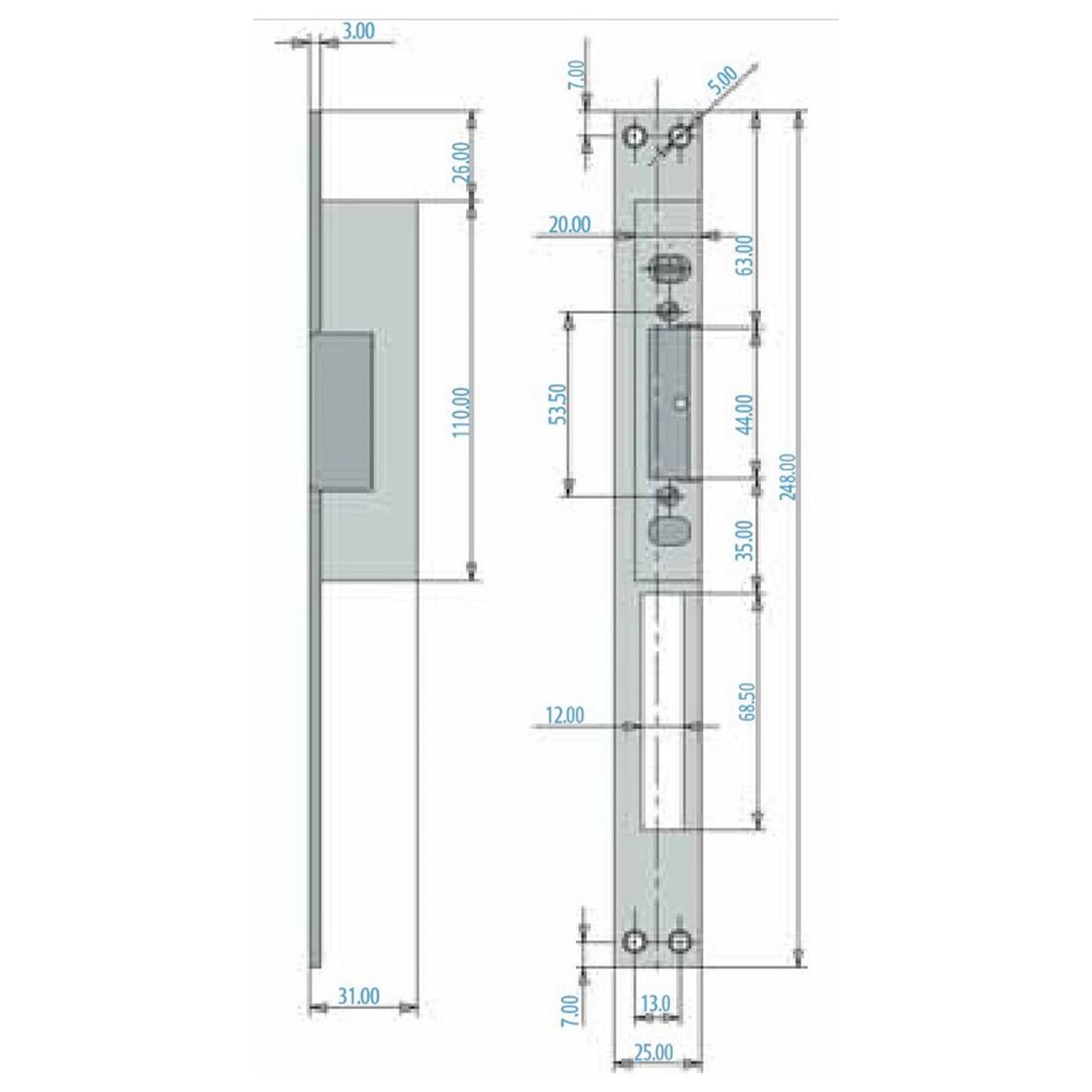

    • Front plate dim.: 248(Length) x 25(Width) x 3(Thickness) mm, aluminum anodized, finish: silver, left and right usable
    • Packaging: Card box with EAN code
    • Weight: 264 g
    • 12 pcs in transport box
    • Universal use for aluminum, PVC or wooden doors

Similar products

  • Electric strike YF6204

    Without hold open screw
