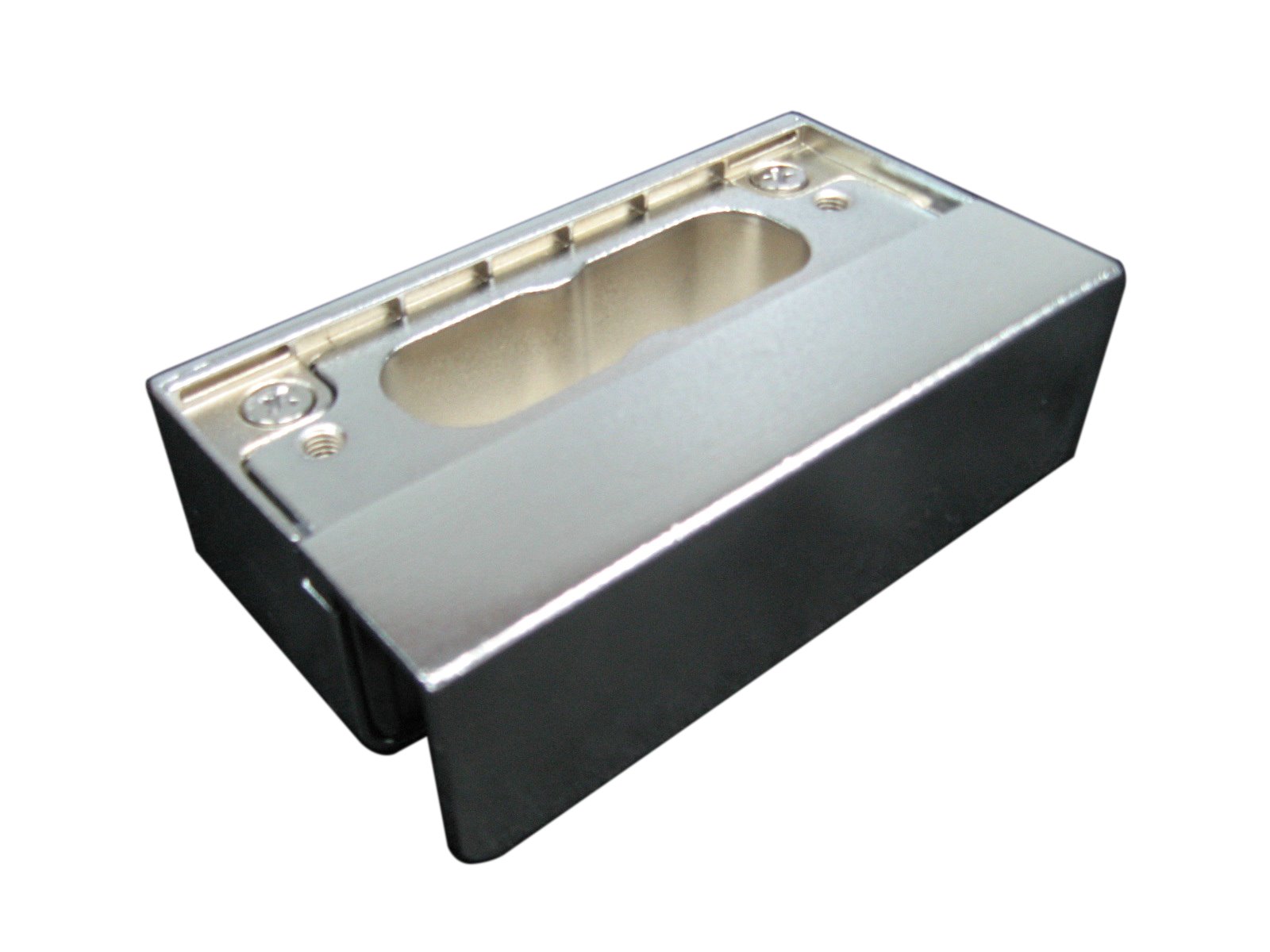

• Fail-safe (locked when energised)
• Monitored lock status with LED indicator
• Door open/closed status with N/C relay output
• Time Delay Feature - 0/3/6/9 seconds
• Can be used on single / double leaf frame-less glass doors when installed in conjunction with the applicable brackets (available separately)
• CE compliant
• 12V DC
• Anodized aluminium housing
• Current requirement: 650mA ±10% @12V DC
• Lock case dimensions: 200 x 35 x 38mm (HxWxD)
• Strike plate dimensions: 100 x 30mm (HxW)

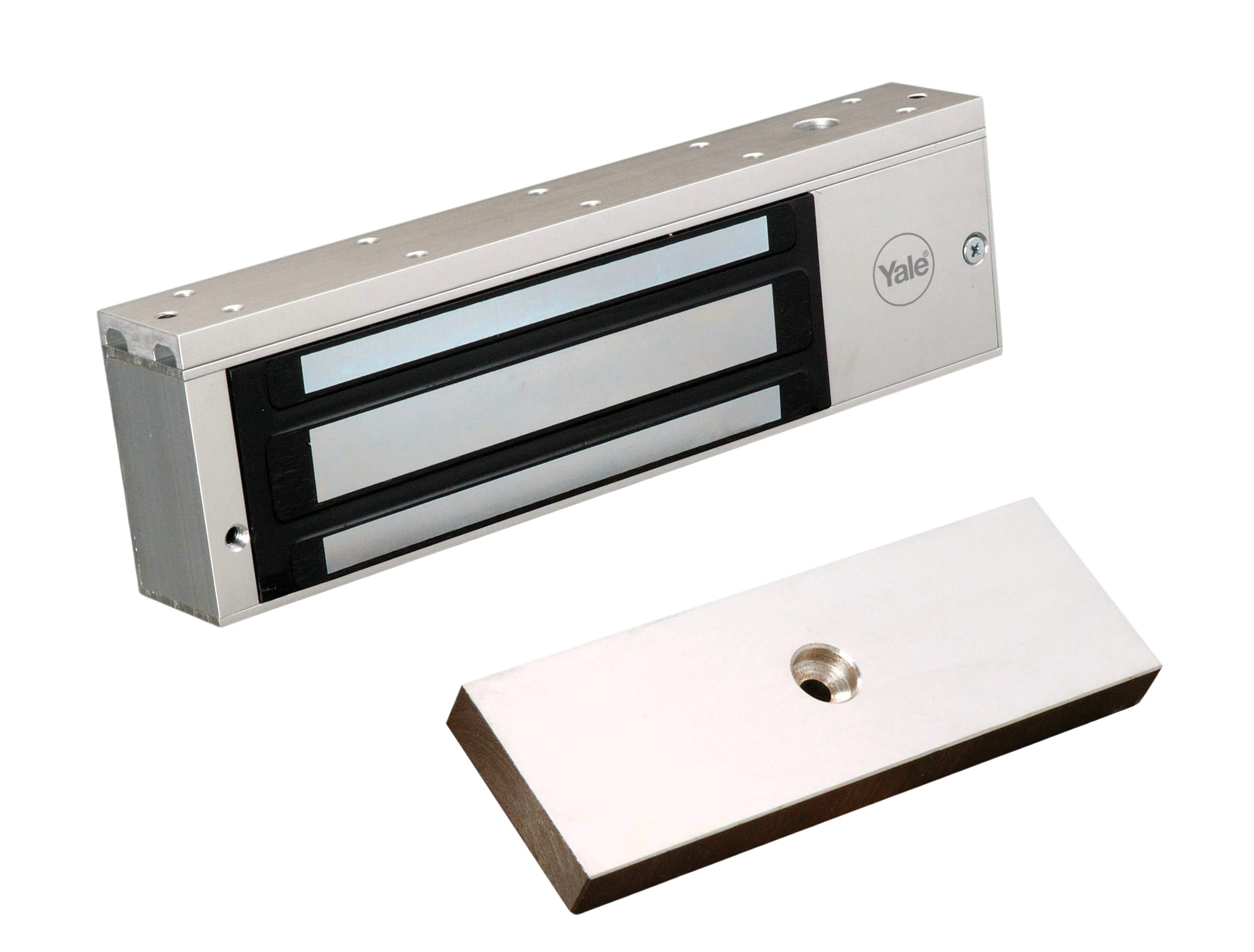

• Fail-safe (locked when energised)
• Monitored lock status with relay output

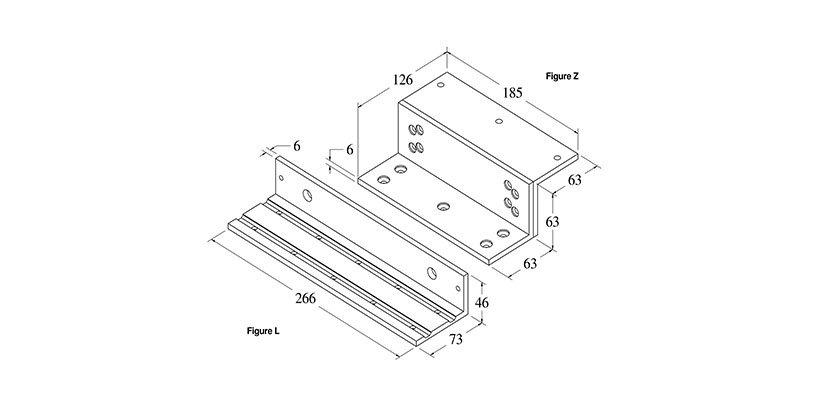

• ZL bracket available for inward swinging doors (SKU: 45B012LZ006080)
• CE compliant
• 12/24V DC selectable (power supply not included)
• Anodized aluminium housing
• Holding force: up to 1200lbs (540kg)
• Current drain: 420mA ±10% @ 12V DC / 210mA ±10% @ 24V DC
• Dimensions: Magnet: 266 x 67 x 40mm | Armature:185 x 61 x 16.5mm
• Electro-less nickel plated armature plate for zero residual magnetism

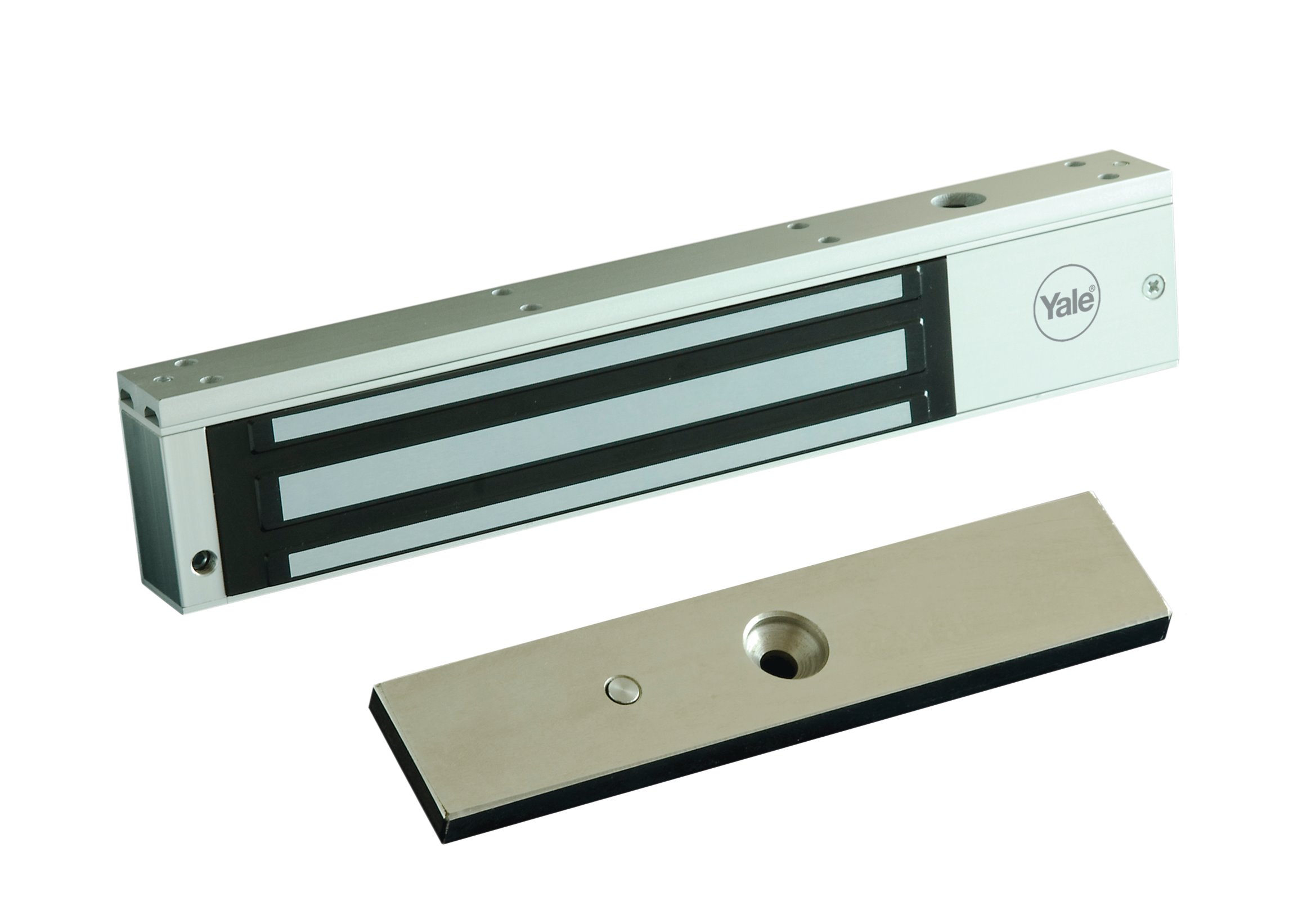

• Fail-safe (locked when energised)
• Monitored lock status with relay output
• ZL bracket available for inward swinging doors (SKU: 45B006LZ006080)
• CE compliant
• 12/24V DC selectable (power supply not included)
• Anodized aluminium housing
• Holding force: up to 600lbs (270kg)
• Current drain: 480mA ±10% @ 12V DC / 240mA ±10% @ 24V DC
• Dimensions: Magnet: 250 x 42 x 26mm | Armature: 180 x 38 x 11mm
• Electro-less nickel plated armature plate for zero residual magnetism

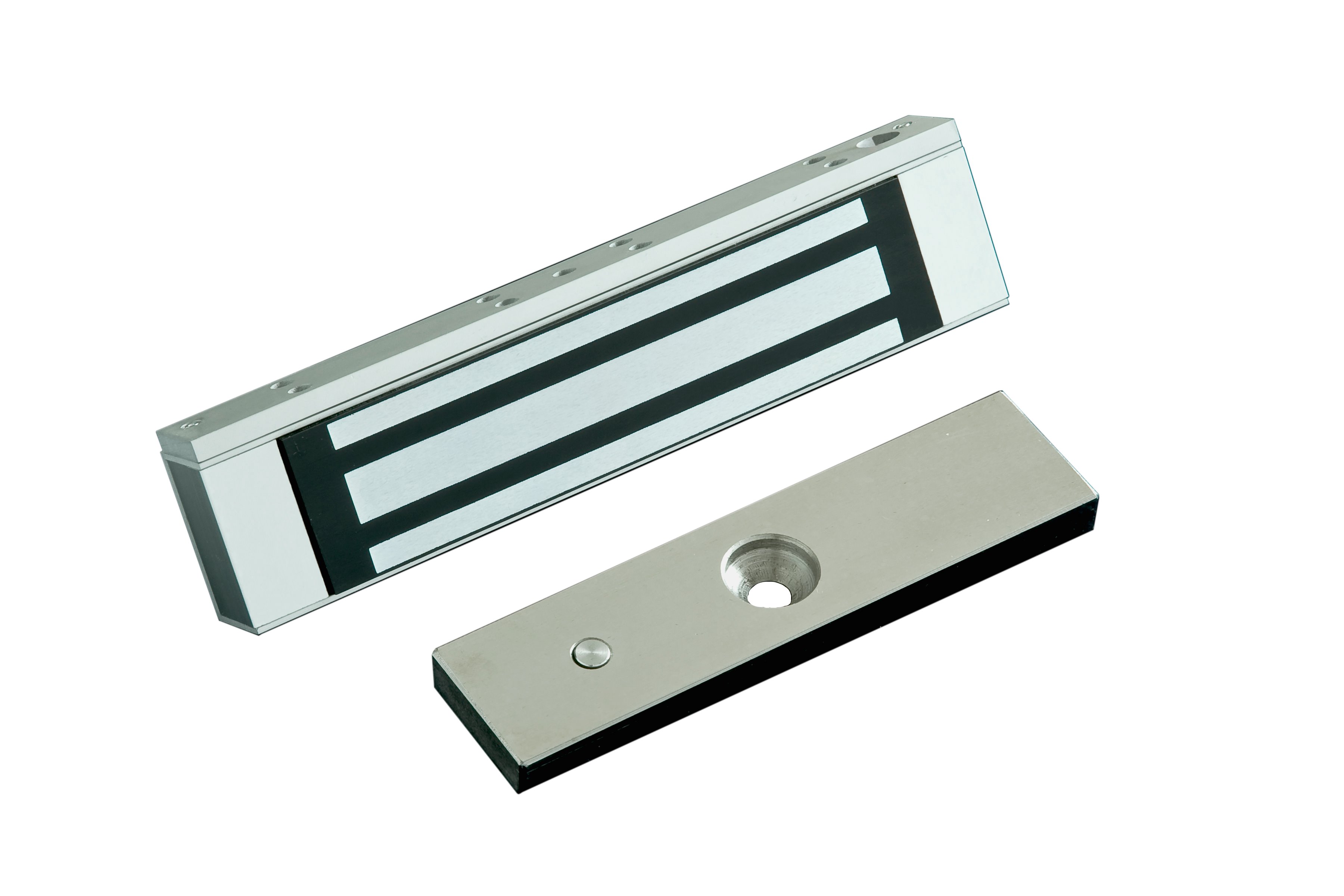

• Fail-safe (locked when energised)
• Non-monitored

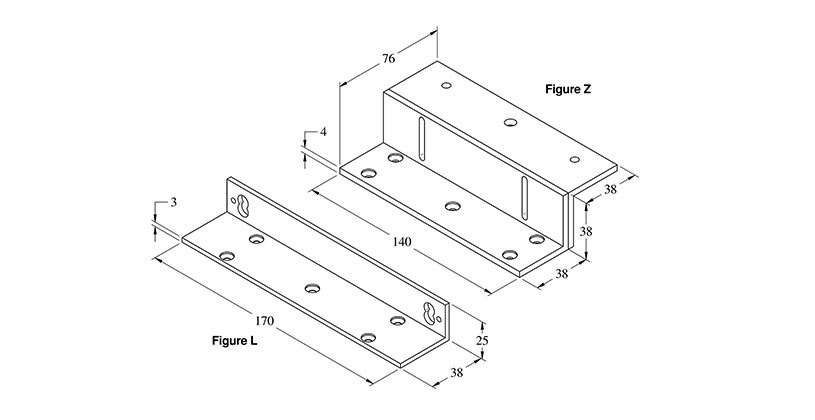

• ZL bracket available for inward swinging doors (SKU: 45B003LZ006080)
• CE compliant
• 12V DC (power supply not included)
• Anodized aluminium housing
• Holding force: up to 300lbs (135kg)
• Current drain: 300mA ±10% @ 12V DC
• Dimensions: Magnet: 170 x 35 x 23mm | Armature: 130 x 33 x 11mm
• Suitable for outdoor use | Operating temperature: (-10 to 55)°C
• Zero residual magnetism

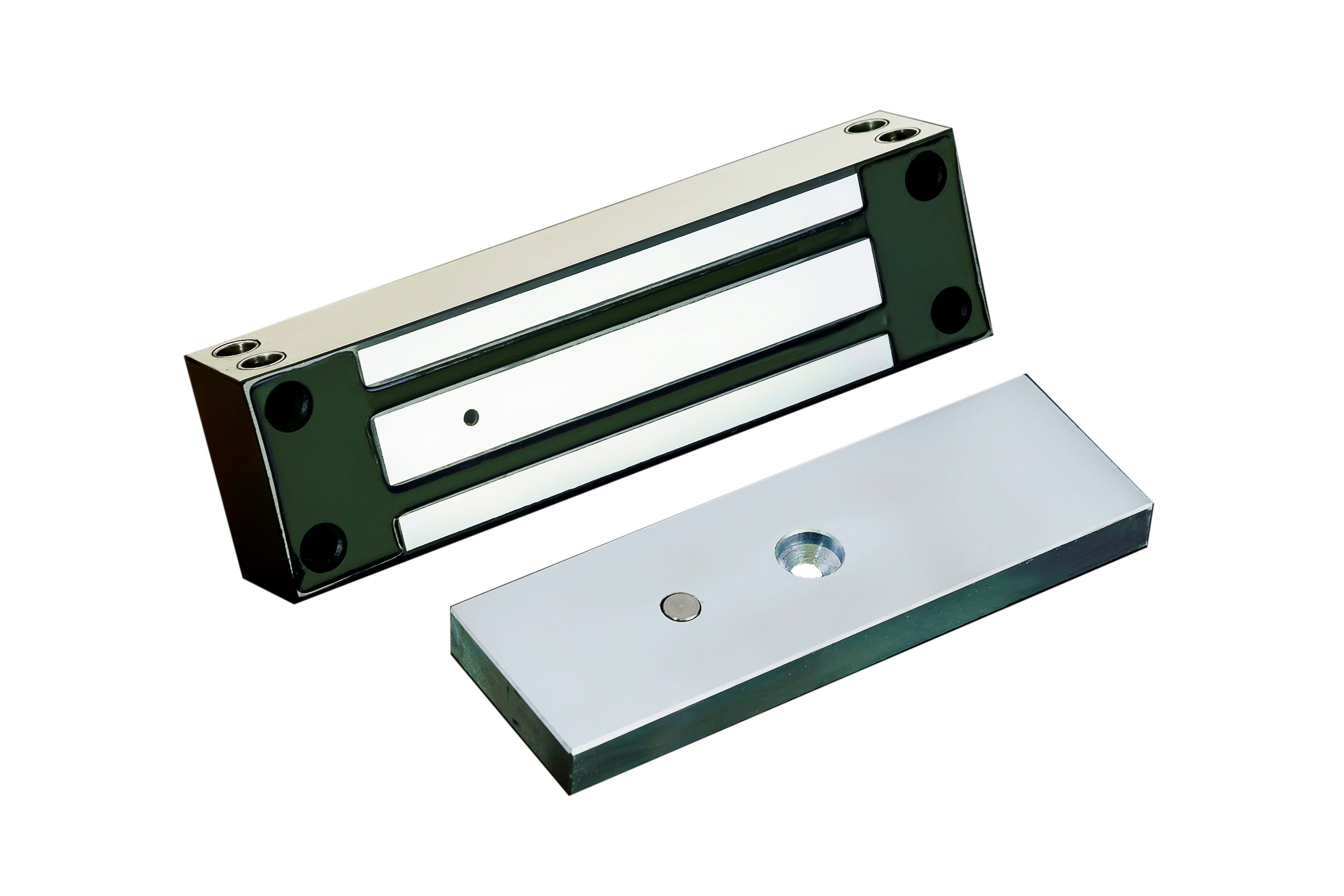

• Fail-safe (locked when energised)
• Monitored lock status with reed sensor
• Low energy consumption
• CE compliant
• 12/24V DC selectable (power supply not included)
• Stainless steel housing
• Holding force: up to 1200lbs (540kg)
• Current drain: 420mA ±10% @ 12V DC / 210mA ±10% @ 24V DC
• Magnet dimensions: 222 x 62 x 42mm
• Armature dimensions: 185 x 61 x 16.5mm
• Suitable for outdoor use | Operating temperature: (-10 to 55)°C
• Zero residual magnetism

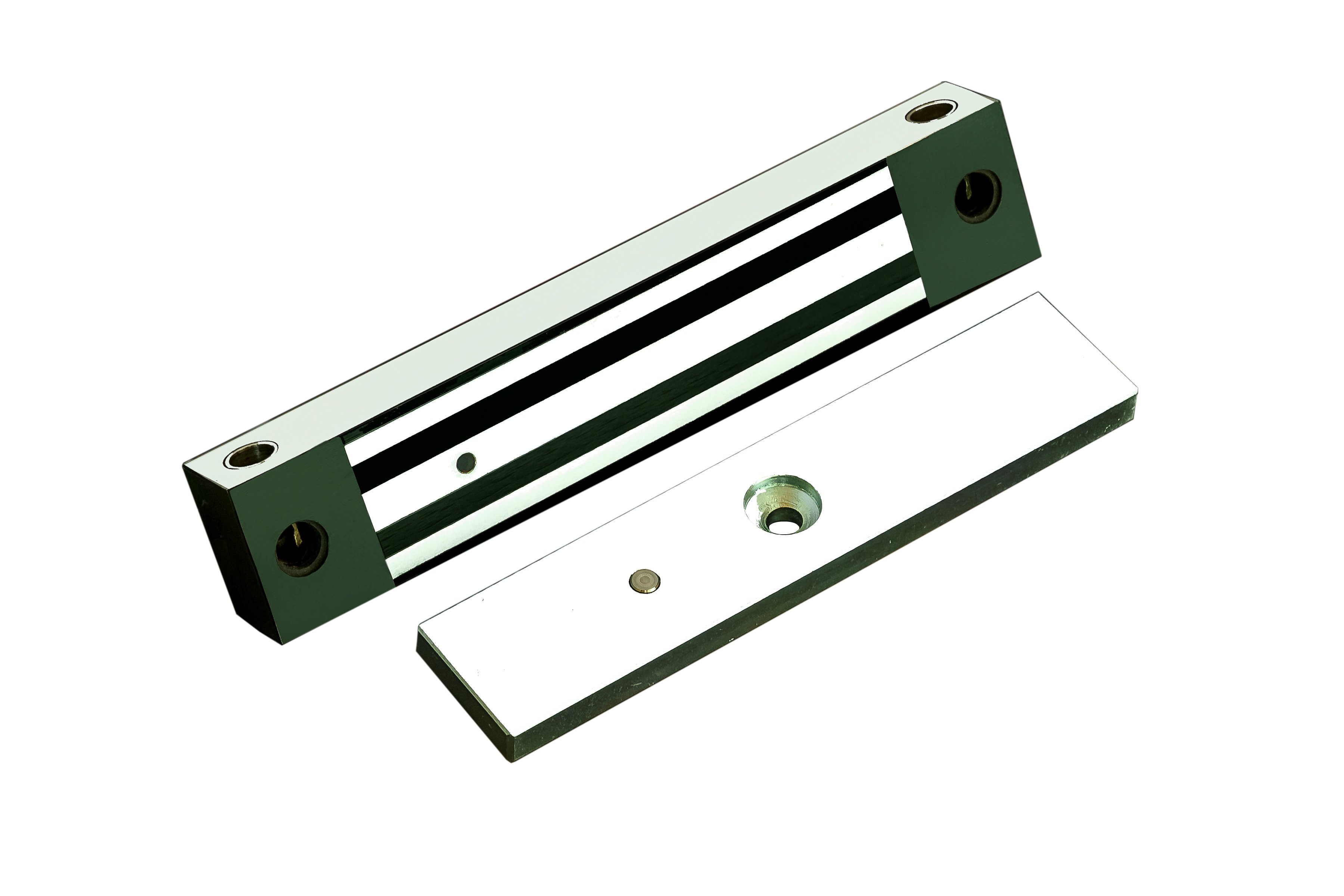

• Fail-safe (locked when energised)
• Monitored lock status with reed sensor
• Low energy consumption
• CE compliant
• 12/24V DC selectable (power supply not included)
• Stainless steel housing
• Holding force: up to 600lbs (270kg)
• Current drain: 480mA ±10% @ 12V DC / 240mA ±10% @ 24V DC
• Magnet dimensions: 266 x 67 x 40mm
• Armature dimensions: 185 x 61 x 16.5mm
• Electro-less nickel plated armature plate for zero residual magnetism
• Fail-safe (locked when energised)
• Monitored lock status with reed sensor
• Morticed for flush mounting
• CE compliant
• 12/24V DC selectable (power supply not included)
• Anodized aluminium housing
• Holding force: up to 600lbs (270kg)
• Current drain: 480mA ±10% @ 12V DC / 240mA ±10% @ 24V DC
• Dimensions: Magnet: 228 x 38 x 27mm | Armature: 180 x 38 x 11mm
