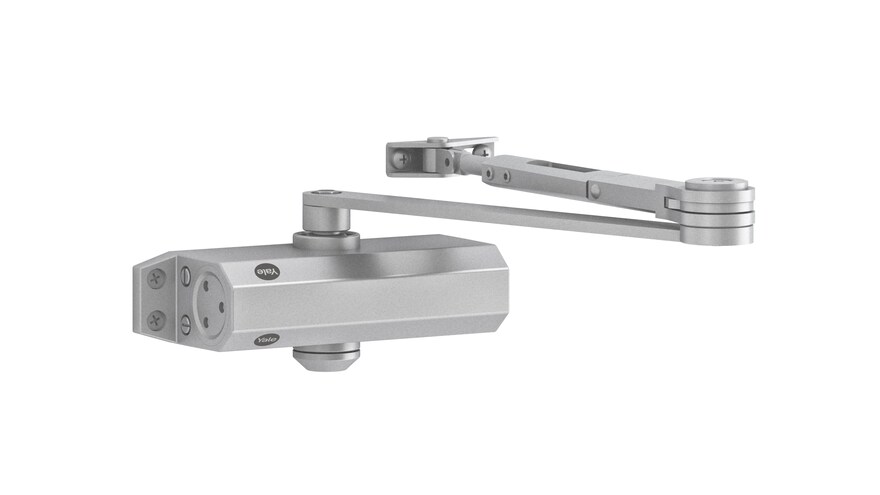

Yale

3500 series

Specifications

  • CE marked
  • Casted aluminium body
  • Closing and latch speed adjustable by regulating valves

Features

  • Tested up to 500,000 cycles for closing and opening of the door closer for extreme durability
  • Suitable for left or right handed doors
  • Maximum door width: 1100mm
  • Maximum door weight: 80kg
  • Fire resistant
  • Available in silver, white, brown, black & gold finishes





  • ProductProduct ID
    3500 Series overhead door closer, Standard arm, CE, Aluminium, Silver, Box30-3500-0001-60-11

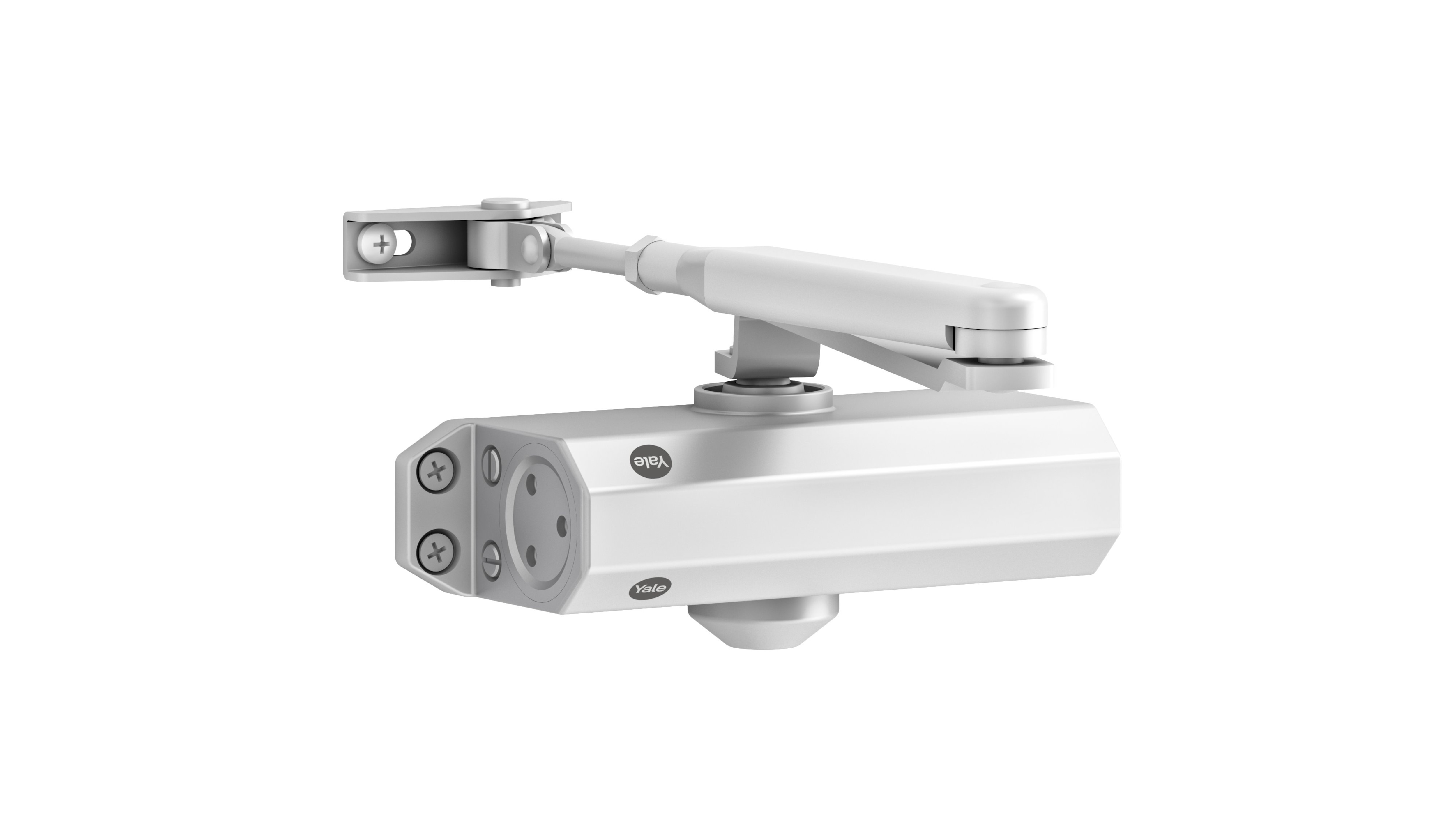

    3500 Series overhead door closer, Standard arm, CE, Aluminium, White, Box30-3500-0001-50-11
    3500 Series overhead door closer, Standard arm, CE, Aluminium, Brown, Box30-3500-0001-75-11

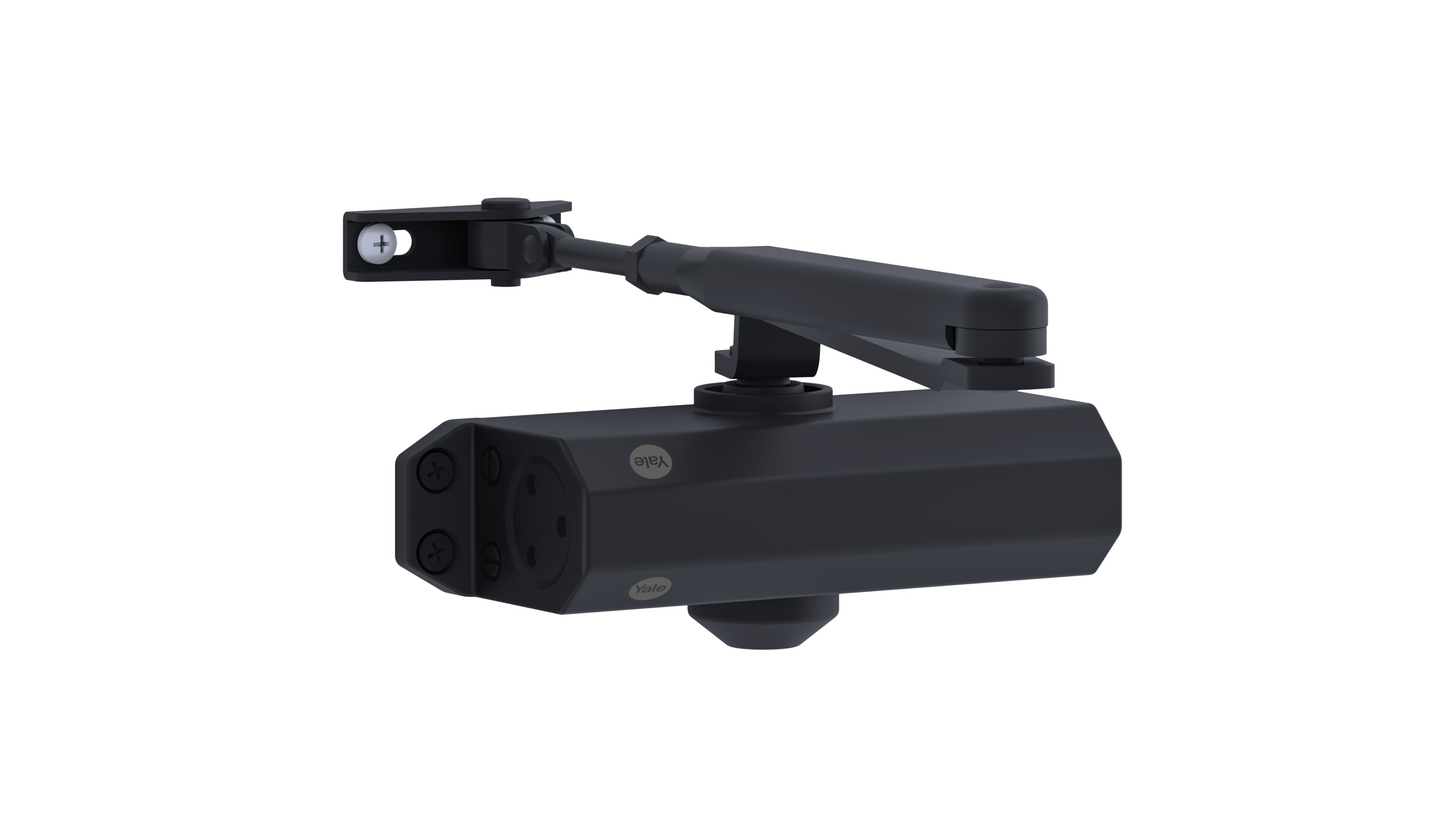

    3500 Series overhead door closer, Standard arm, CE, Aluminium, Black, Box30-3500-0001-55-11

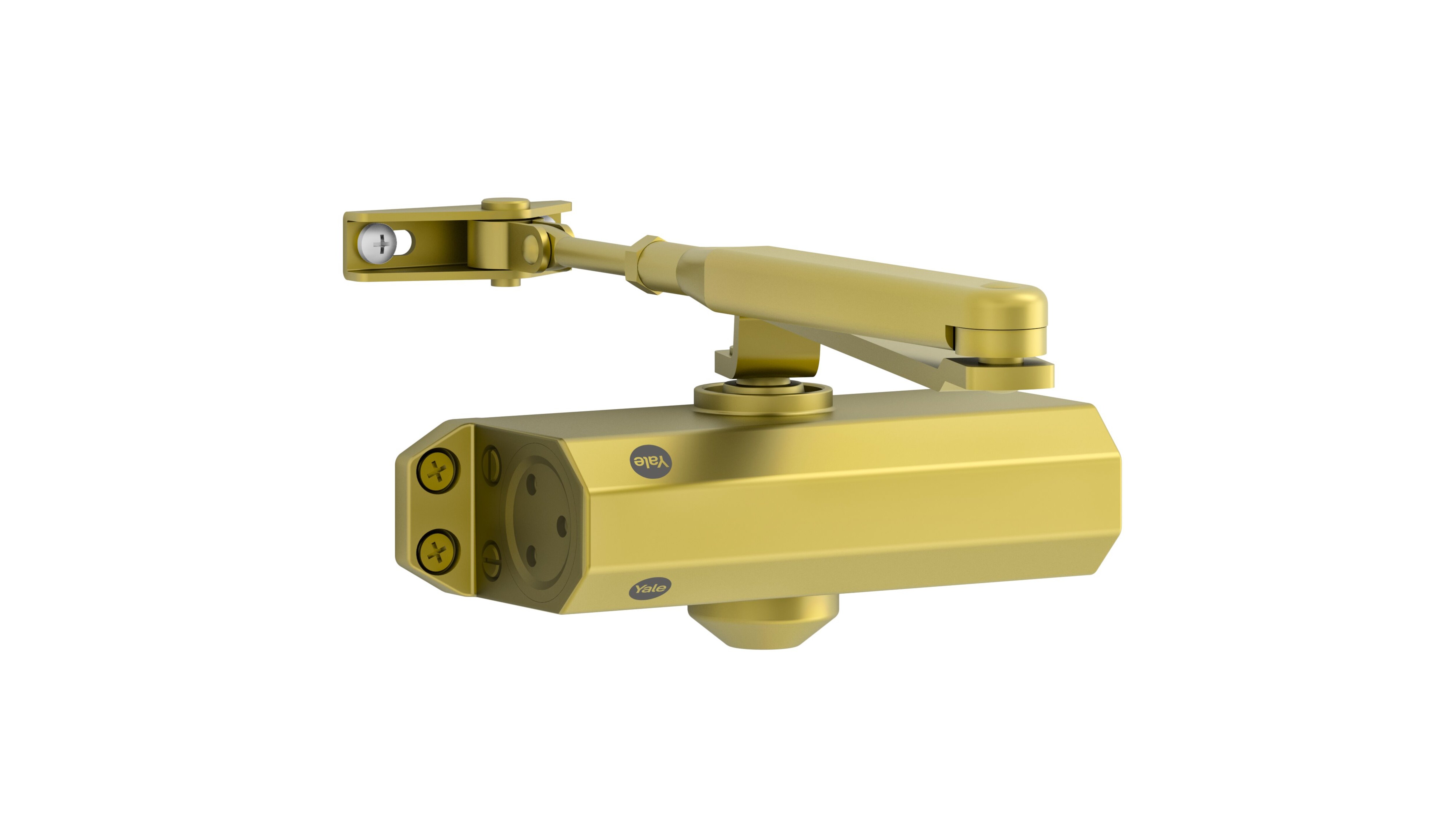

    3500 Series overhead door closer, Standard arm, CE, Aluminium, Gold, Box30-3500-0001-65-11
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Silver, Box30-3500-0004-60-11
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, White, Box30-3500-0004-50-11
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Brown, Box30-3500-0004-75-11
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Black, Box30-3500-0004-55-11
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Gold, Box30-3500-0004-65-11
    3500 Series overhead door closer, Parallel arm, CE, Aluminium, Silver, Box30-3500-0003-60-11
    3500 Series overhead door closer, Parallel arm, CE, Aluminium, White, Box30-3500-0003-50-11
    3500 Series overhead door closer, Parallel arm, CE, Aluminium, Brown, Box30-3500-0003-75-11
    3500 Series overhead door closer, Parallel arm, CE, Aluminium, Black, Box30-3500-0003-55-11
    3500 Series overhead door closer, Parallel arm, CE, Aluminium, Gold, Box30-3500-0003-65-11
    3500 Series overhead door closer, Standard arm, CE, Aluminium, Silver, Blister30-3500-0001-60-01
    3500 Series overhead door closer, Standard arm, CE, Aluminium, White, Blister30-3500-0001-50-01
    3500 Series overhead door closer, Standard arm, CE, Aluminium, Brown, Blister30-3500-0001-75-01
    3500 Series overhead door closer, Standard arm, CE, Aluminium, Black, Blister30-3500-0001-55-01
    3500 Series overhead door closer, Standard arm, CE, Aluminium, Gold, Blister30-3500-0001-65-01
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Silver, Blister30-3500-0004-60-01
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, White, Blister30-3500-0004-50-01
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Brown, Blister30-3500-0004-75-01
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Black, Blister30-3500-0004-55-01
    3500 Series overhead door closer, Hold Open arm, CE, Aluminium, Gold, Blister30-3500-0004-65-01

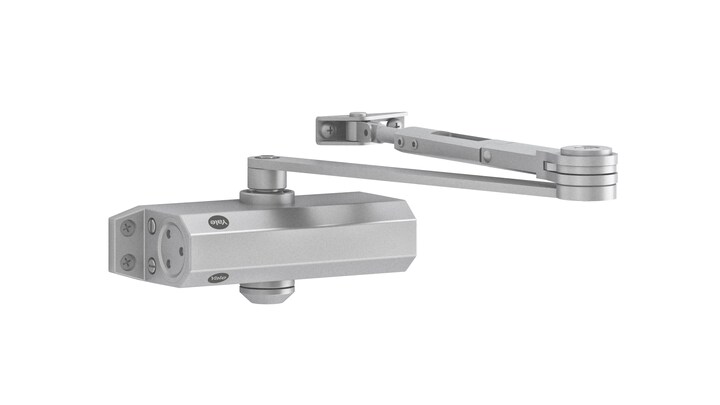

  • 722 Pro series

    Specifications

    • Tested up to 500,000 cycles
    • Up to 120 mins fire rated for timber doors
    • Up to 240 mins fire rated for steel doors
    • Adjustable latching speed





    Features

    • Rack and Pinion mechanism
    • Maximum door width: 1100mm
    • Maximum door weight: 80kg
    • EN 1154 Classification: 3 8 4/2 1 1 3
    • Die cast aluminium body
    • Anti-freeze and fire-proof, suitable for working at -42⁰C to 55⁰C
    • Available in black, white, brown, silver & gold
    • Corrosion resistance: EN1670 Grade 3
    • ​Max. opening angle is 180⁰ (EN2/EN3) and 130⁰ (EN4)

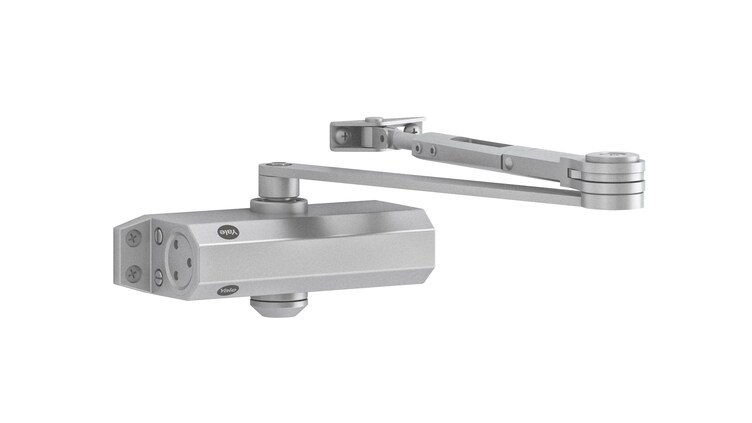

  • 300 series

    Light duty power selectable door closer.


    Specifications

    • Casted aluminum body
    • UL listed
    • Non handed installation



     Features

    • Rack and pinion mechanism
    • Selectable class 2,3 & 4
    • Adjustable closing and latching speed
    • Max door width: 1100mm
    • Max door weight: 80 kg
    • Can be installed with standard or hold open arm and PA bracket
    • Hold open type should not be installed on fire doors
    • Available in silver, white, brown, black & gold
