Mortice Lockcases

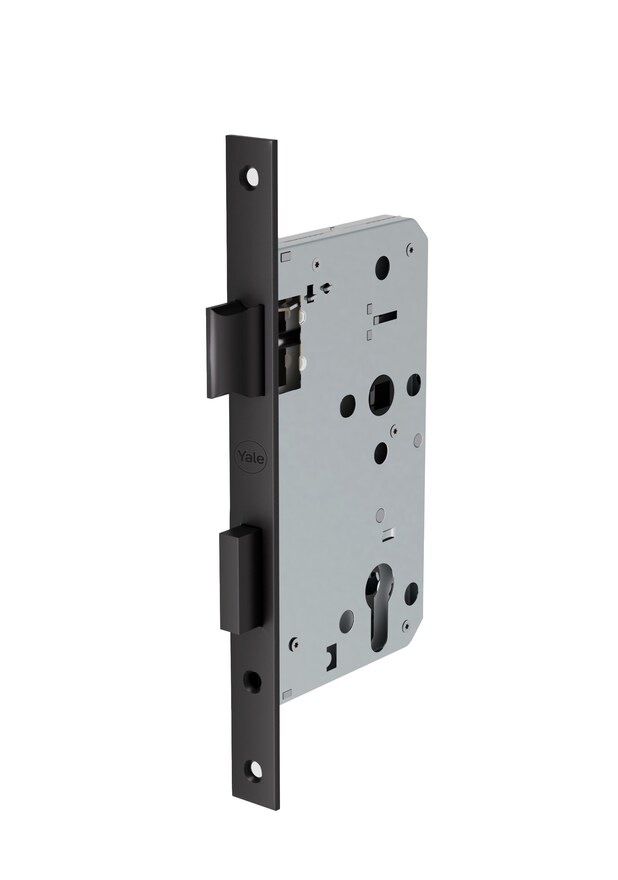

Designed with precision and durability in mind, the Yale Essential Mortice Lockcase delivers reliable security and smooth integration into tailored locking systems.

Features:

• Latch operated by handle or cylinder
• Reversible for left or right hand doors
• Forend available in SS201/304/316 grades

Specifications:

• Mortice sash lock with 55mm backset & 72mm centres
• Square front & strike plate
• Forend available in SS 201, 304 & 316 grades
• Latch & deadbolt available in Zamak, Steel & SS 304

Features:

• Reversible latch
• Available in different finishes: Satin Nickel, Polished Brass, Matt Black & Stainless Steel

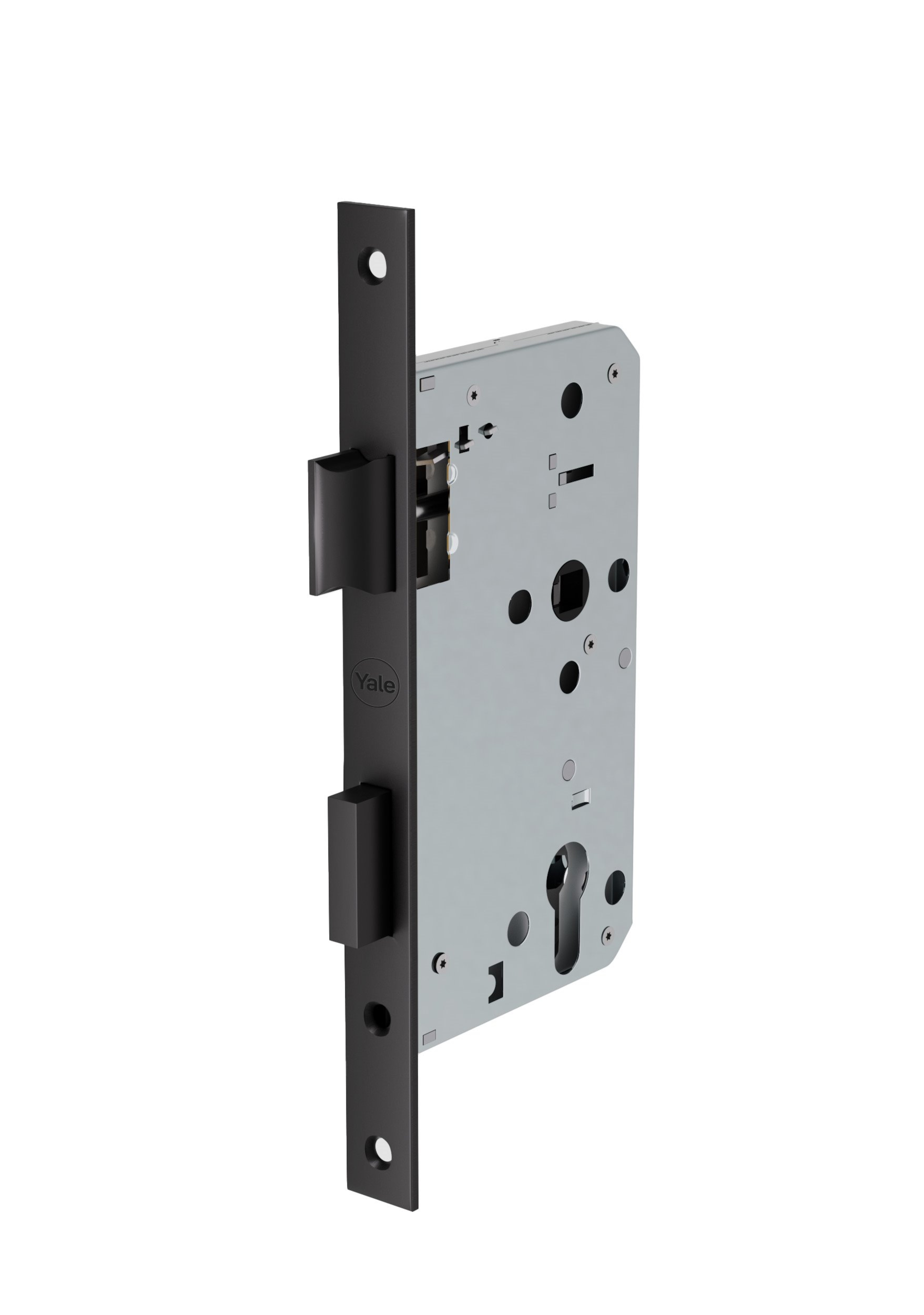

Crafted to deliver top-tier protection, the Essential Mortice Lockcase features a precision-engineered mechanism that guarantees both reliability and ease of use.

Features:

• Latch operated by handle or cylinder
• Reversible for left or right hand doors
• Forend available in SS201/304/316 grades

Specifications:

• Mortice sash lock with 85 mm centres
• Backset 45 mm
• Follower 8 x 8 mm
• Reversible latch
• Through fixing holes with 38 mm centres
• Square front and strike plate
• 20mm double throw deadbolt (double throw)

Specifications:

• Heavy-duty mortice sash lock with 55/60mm backset & 72mm centres
• Reversible latch
• Square front and strike plate
• Latch & deadbolt available in SS 304
• 20mm double throw deadbolt
• Certified to EN12209
• CE marked (fire-rated steel & timber)

Features:

• Available in Satin Stainless Steel finish

Specifications:

• Medium duty mortice sash lock with 55/60mm backset & 72mm centres
• Conforms to EN12209
• CE marked (fire-rated)
• Follower 8x8mm
• Square front and strike plate
• Latch available in SS 304 & deadbolt in steel
• 20mm double throw deadbolt
• Reversible latch for left or right hand doors

Features:

• Available in Stainless Steel Matt finish
