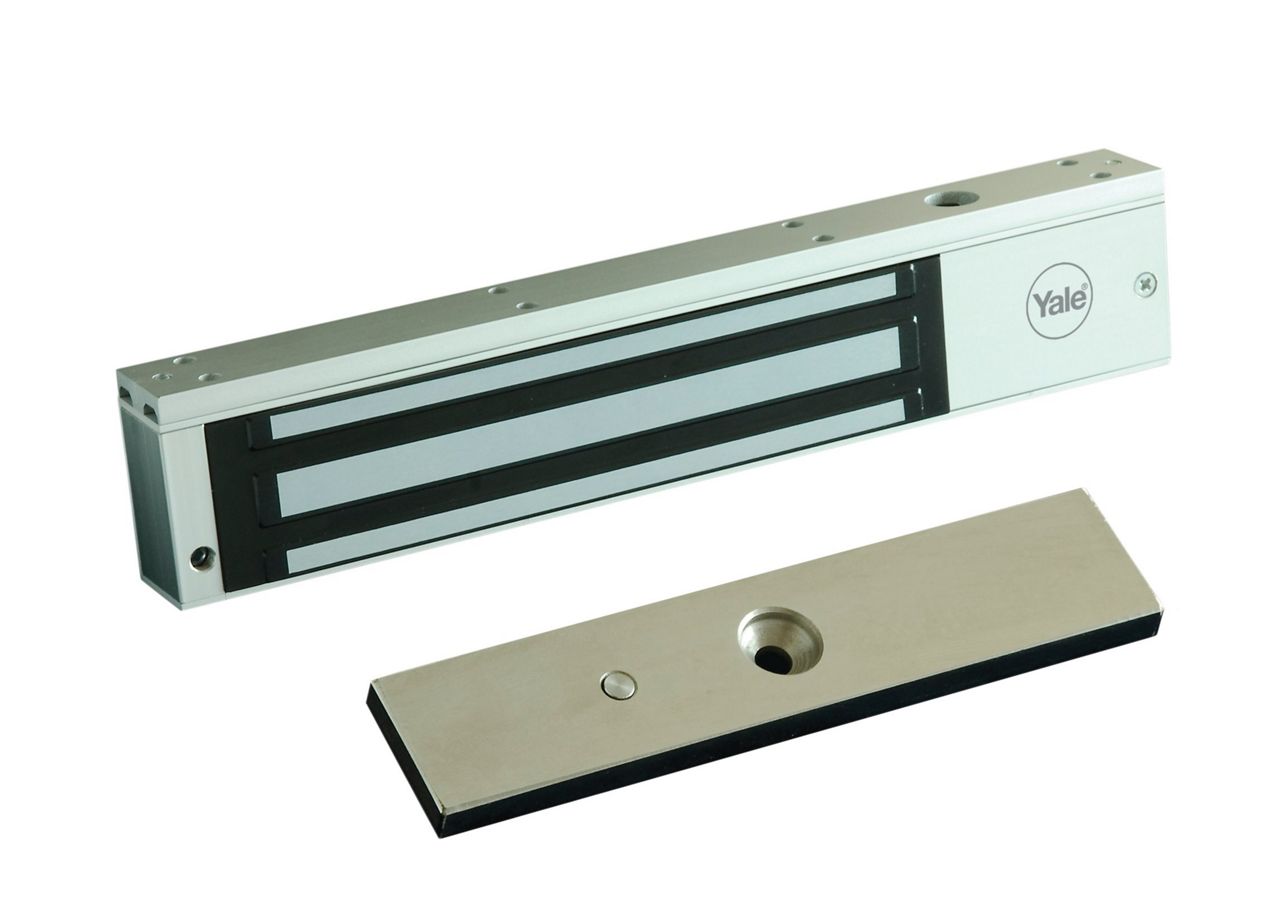

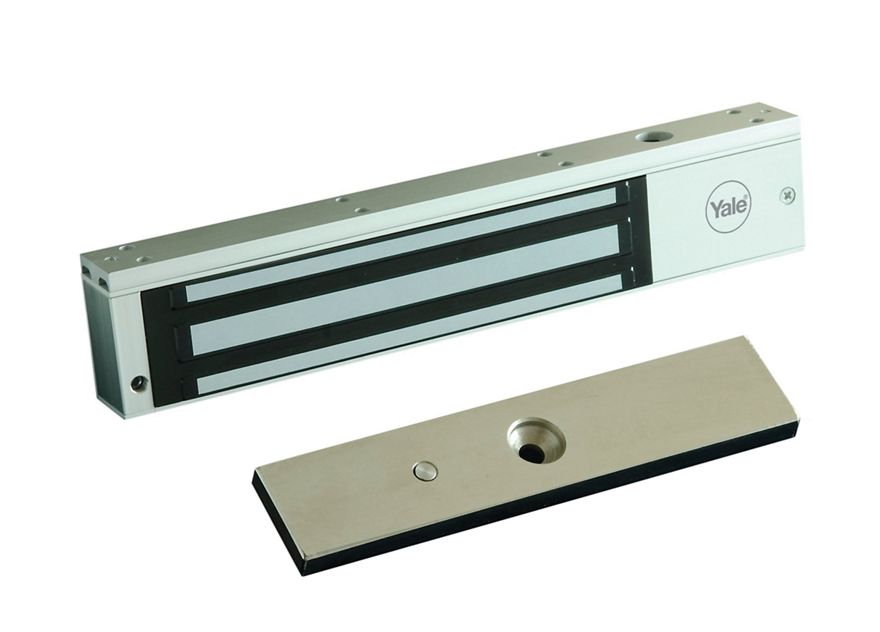

• Electro-less nickel plated armature plate for zero residual magnetism
• Fail-safe (locked when energised)
• Monitored lock status with relay output
• ZL bracket available for inward swinging doors (SKU: 45B006LZ006080)
• CE compliant
• 12/24V DC selectable (power supply not included)
• Anodized aluminium housing
• Holding force: up to 600lbs (270kg)
• Current drain: 480mA ±10% @ 12V DC / 240mA ±10% @ 24V DC
• Dimensions: Magnet: 250 x 42 x 26mm | Armature: 180 x 38 x 11mm
