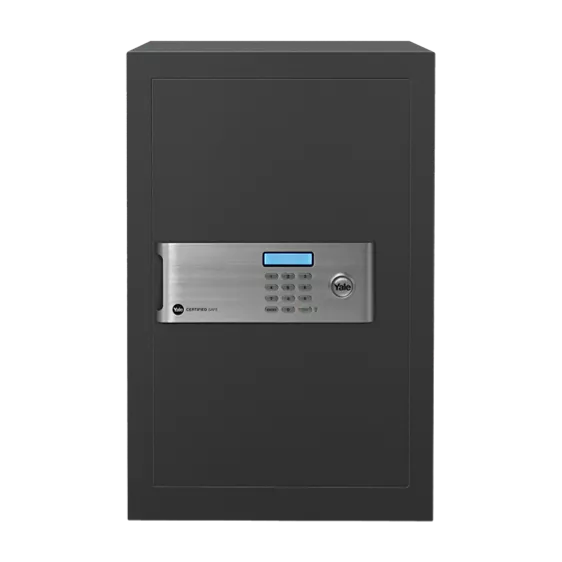

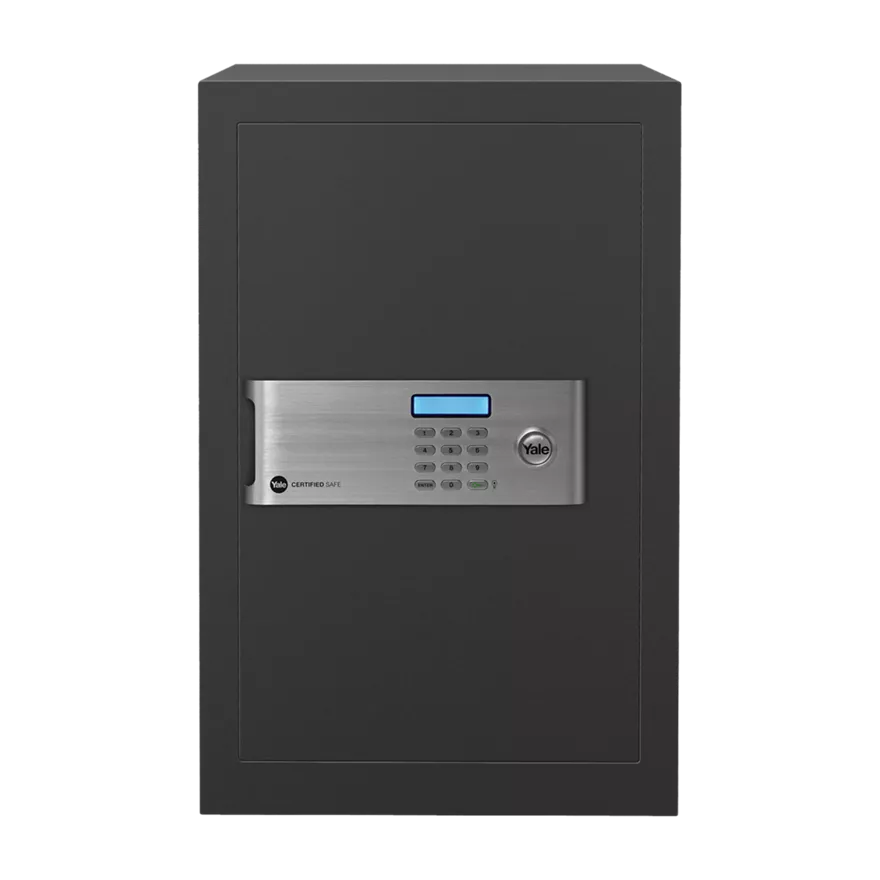

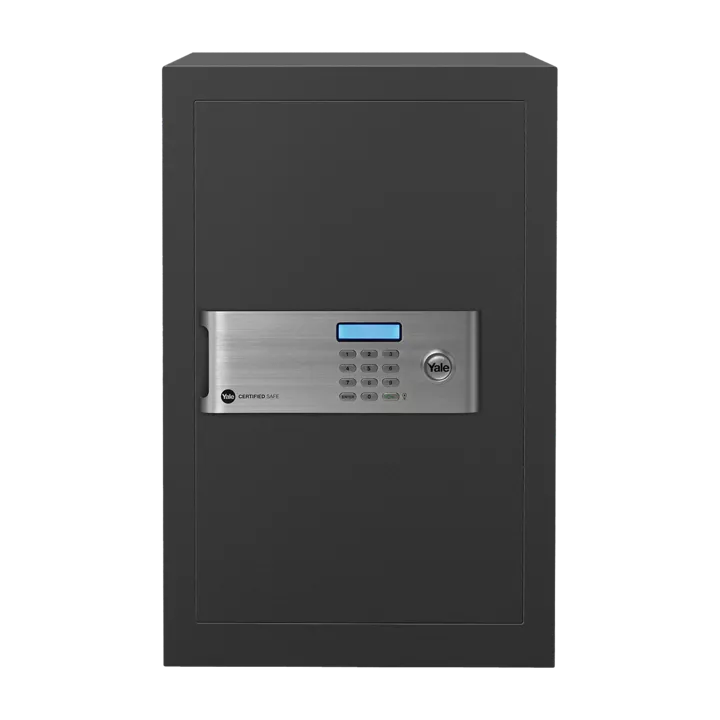

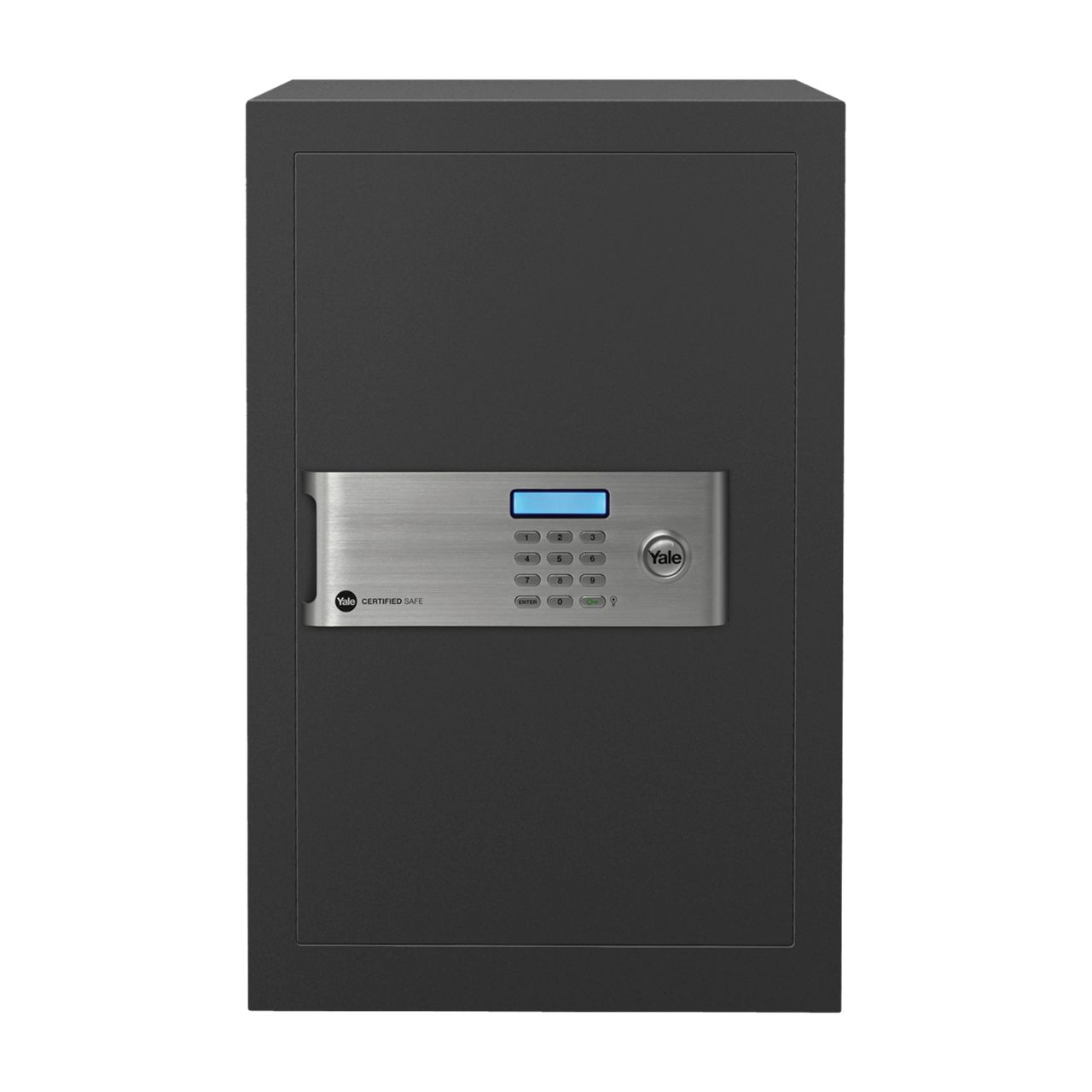

YSM/520/EG1
- Electronic lock with digital keypad
- Blue backlight display
- Laser cut steel door, with auto-opening function (when Correct code is entered)
- Reinforced steel hinge
- Brushed aluminum face plate
- Interior finish with full felt lining
- Internal light source
- Armored steel plates protecting locking mechanism
- Concealed fixing points and mounting bolts included
Model No.
YSM/520/EG1
Fire Protection
No
Exterior Dimensions
520 (H) x 350 (W) x 360 (D) mm
Interior Dimensions
210 (H) x 377 (W) x 290 (D) mm
Net Weight (kg)
30
Volume (litres)
49.8
Passcodes Entries
3 to 8 Digits
Battery
4 x AA Size (1.5V x 4)
Others
22mm Motorized Drive Switch Door Latch
6 Piece Double-Blade Mechanical Lock
Pre-drilled holes with fixing bolts and felt feet pads
Certified - Sold Secure "Silver", Secure by Design
Safe Fitting Guide
