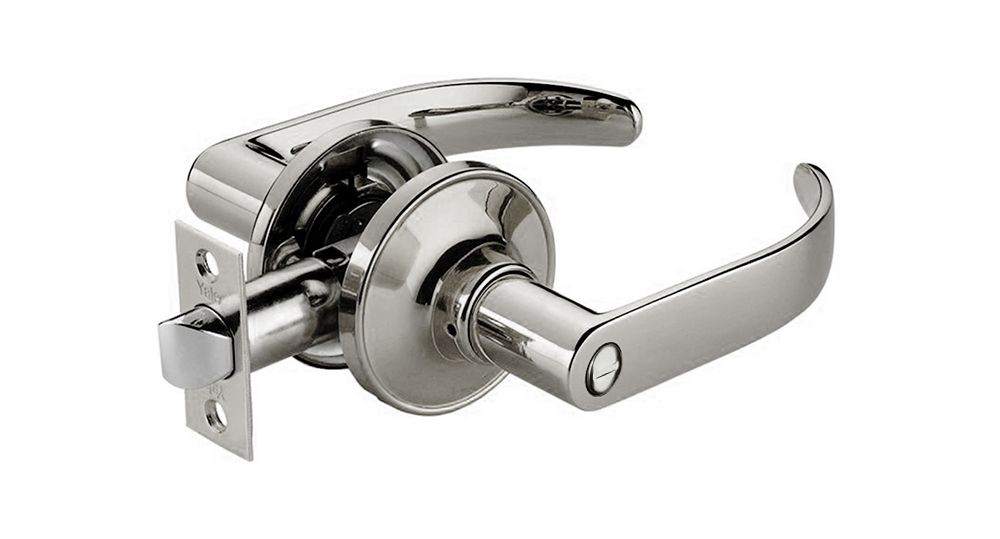

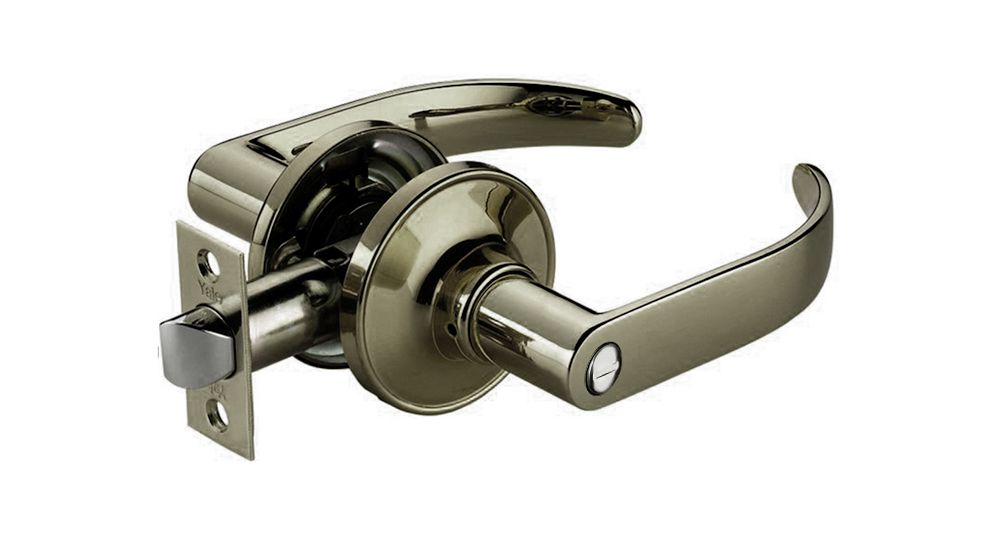

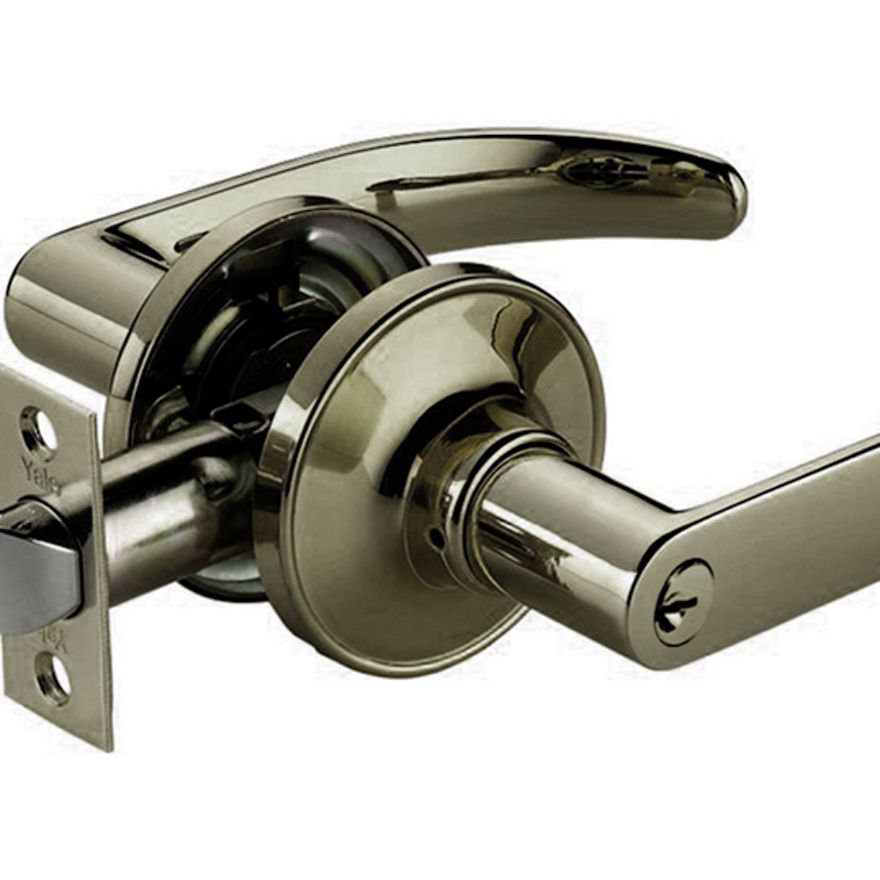

Yale Leverset - VL5350 Series

Standard ANSI/BHMA A 156.2 2003
Testing Cycles Tested up to  200,000 cycles

Materials

Chassis: Steel

Latch and Bolt: Zinc

Strike: Steel

Knob: Zinc

Rose: Brass
Backset

60mm/70mm

Door Thickness

 35mm - 45mm
Application Residential Application
Function codes

1 Passage

2 Bathroom Function

7 Entrance Function

No. Keys

 3 pcs of nickel keys - plated brass key

Finishes

Antique Brass (US5)

Satin Stainless Steel (US32D)




Series
Name		 Function Finish
VL5350 7 Entrance

2 Bathroom

1 Passage		 US5 Antique Brass

US32D Satin Stainless Steel
