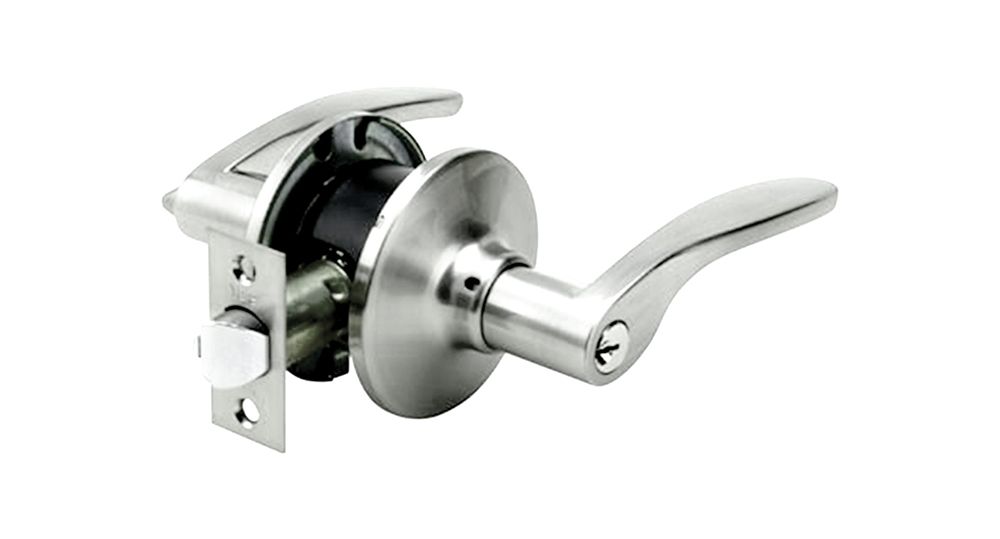

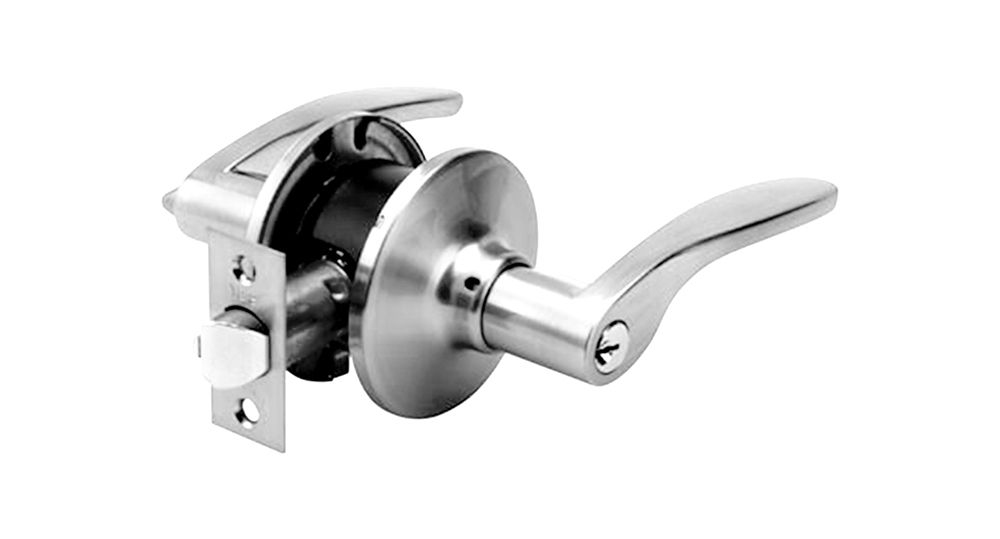

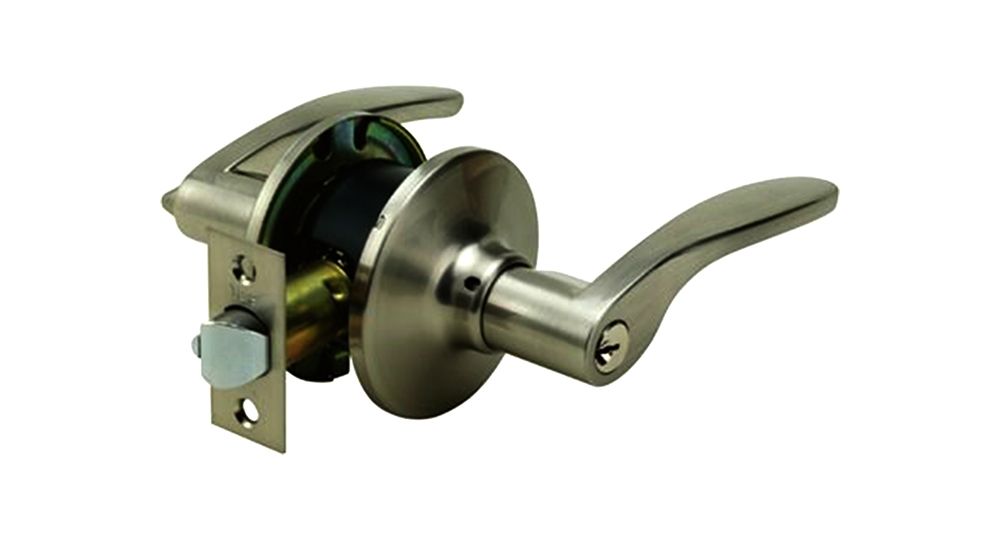

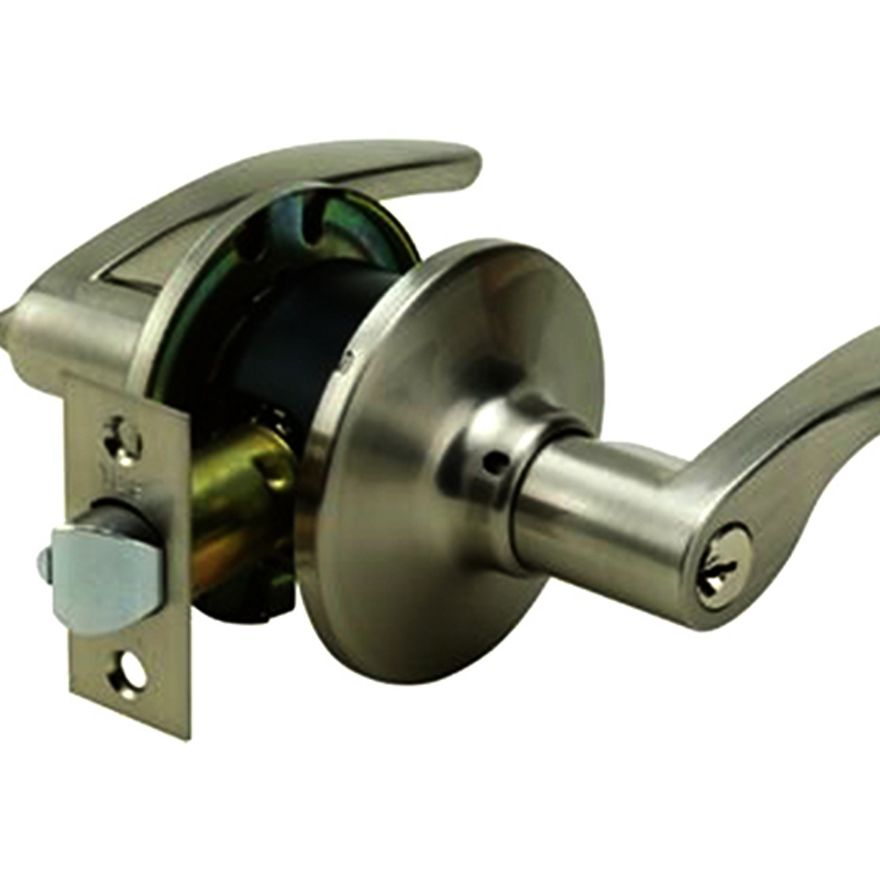

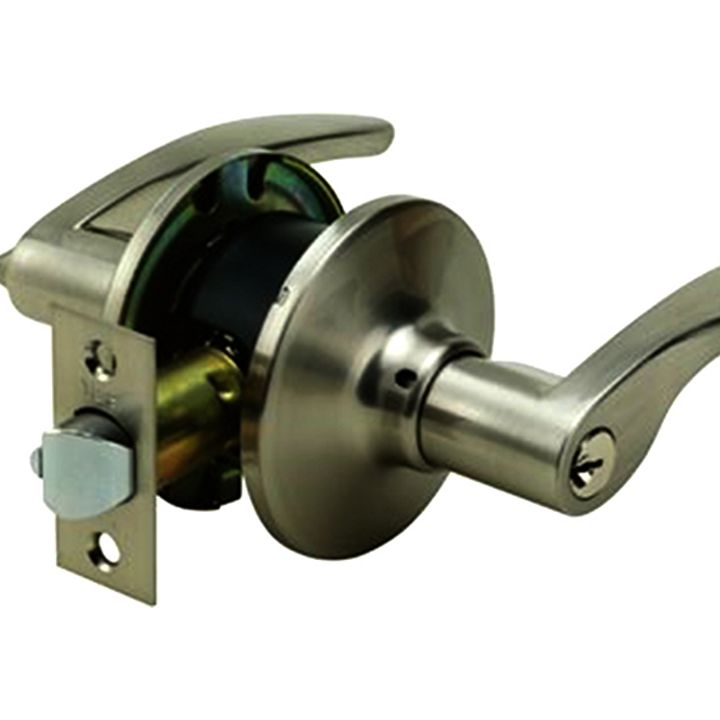

Yale Leverset - VL6260 Series
| Standard | ANSI/BHMA A 156.2 2003 |
| Testing Cycles | Tested up to 200,000 cycles |
| Materials | Chassis: Steel Latch and Bolt: Zinc Strike: Steel Knob: Zinc Rose: Brass |
| Backset | 60mm/70mm |
| Door Thickness | 35mm - 45mm |
| Application | Residential and Light Commercial Application |
| Function codes | 1 Passage 2 Bathroom Function 7 Entrance Function |
| No. Keys | 3 pcs of nickel keys - plated brass key |
| Finishes | Antique Brass (US5) Chrome Plated (US26) Satin Chrome (US26D) |
| Series Name | Function | Finish |
| VL6260 | 7 Entrance 2 Bathroom 1 Passage | US5 Antique Brass |
| US26 Chrome Plated | ||
| US26D Satin Chrome |
