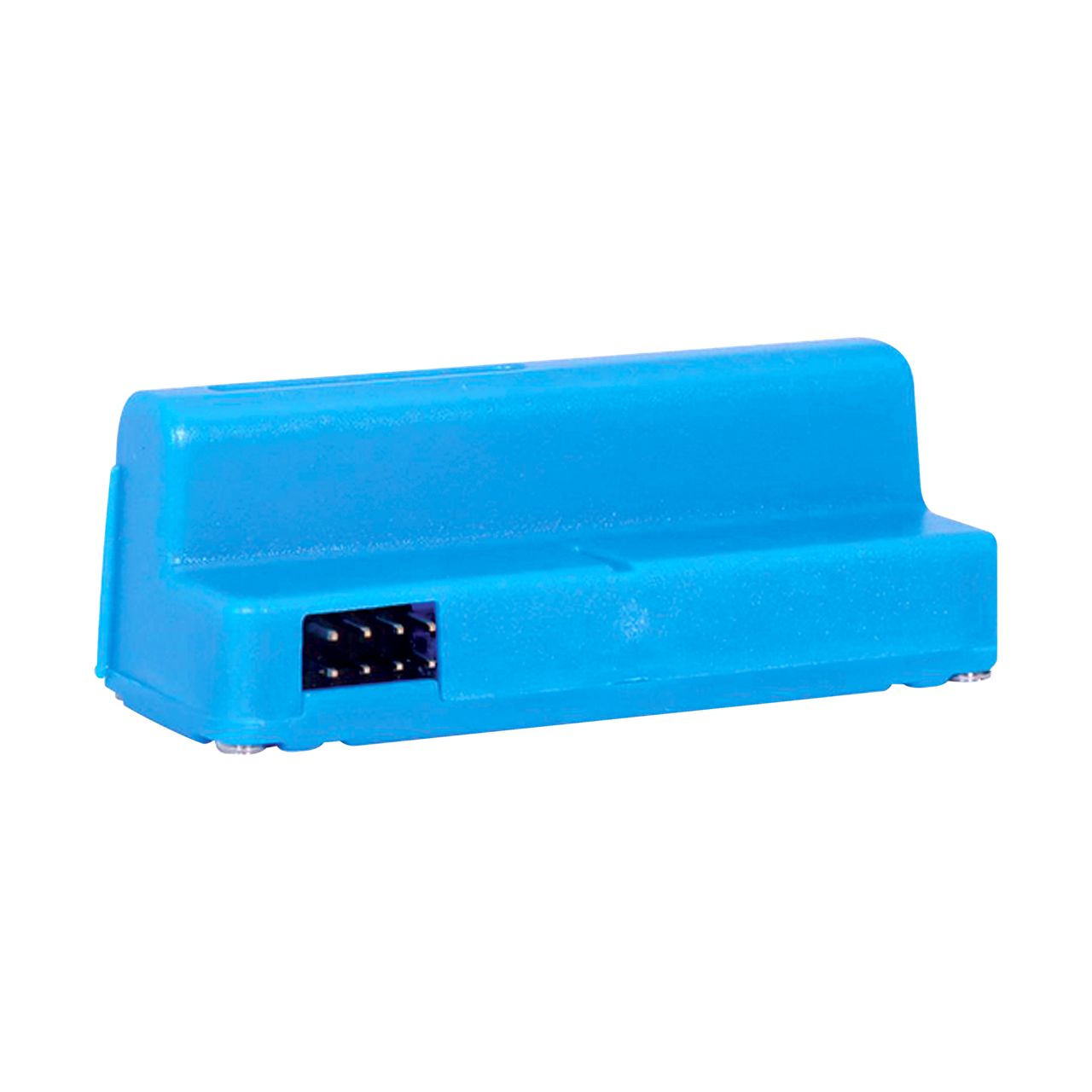

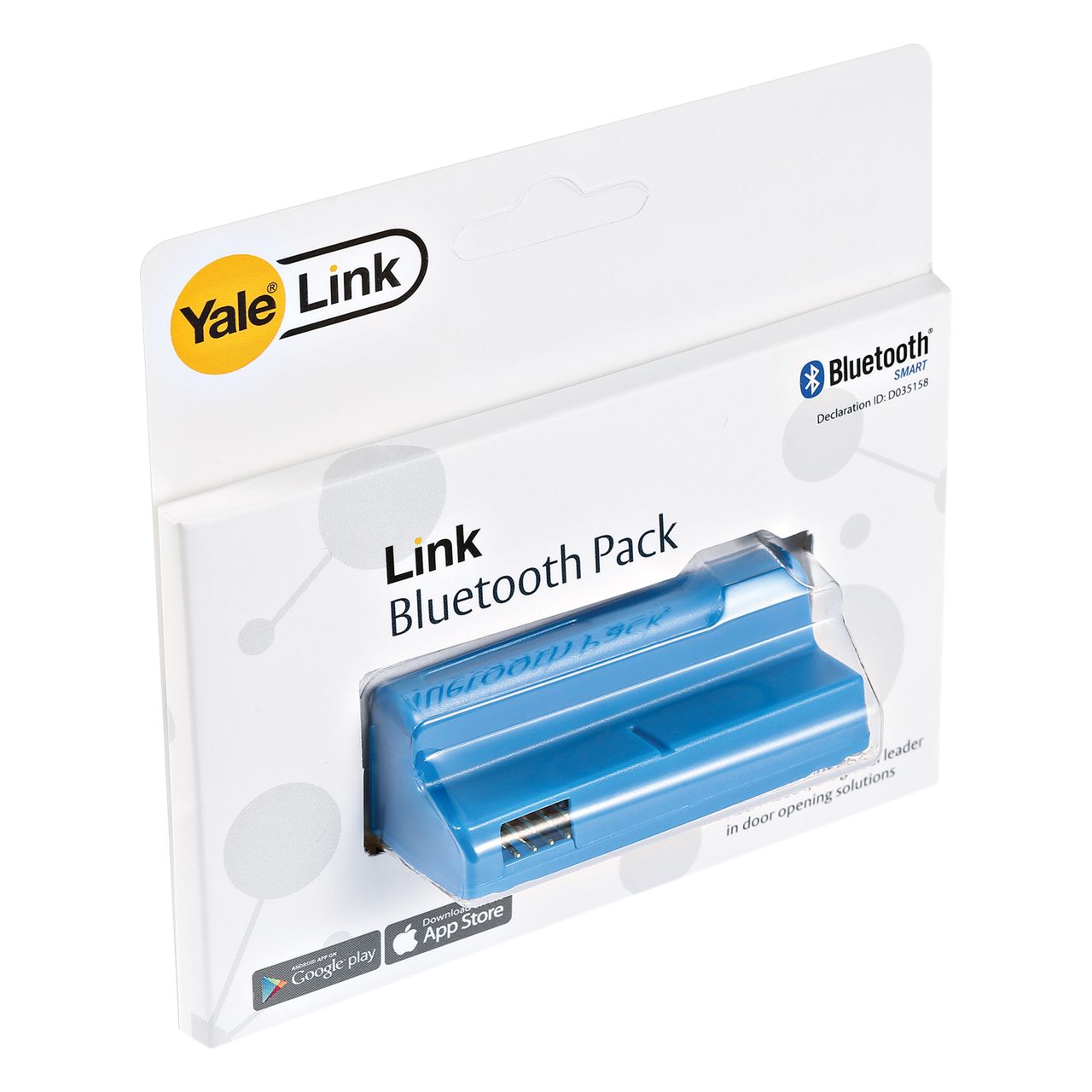

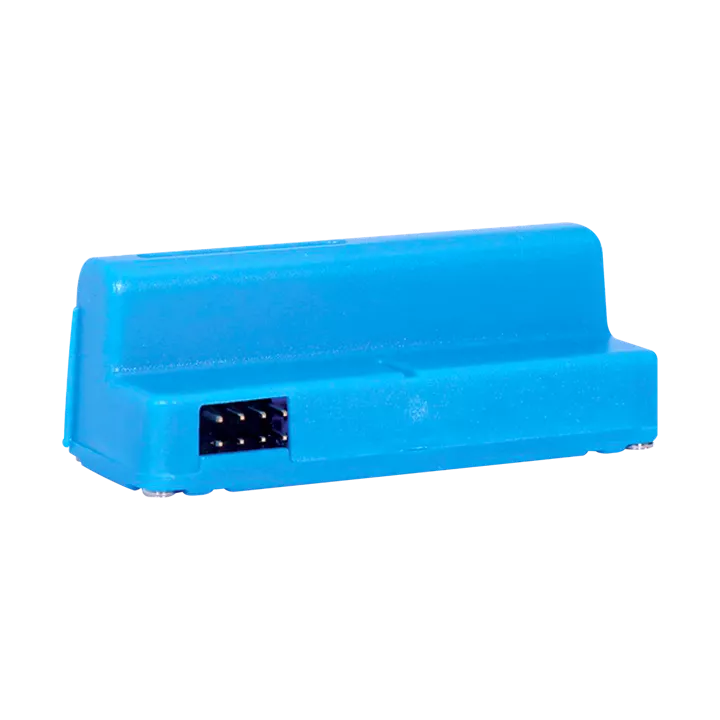

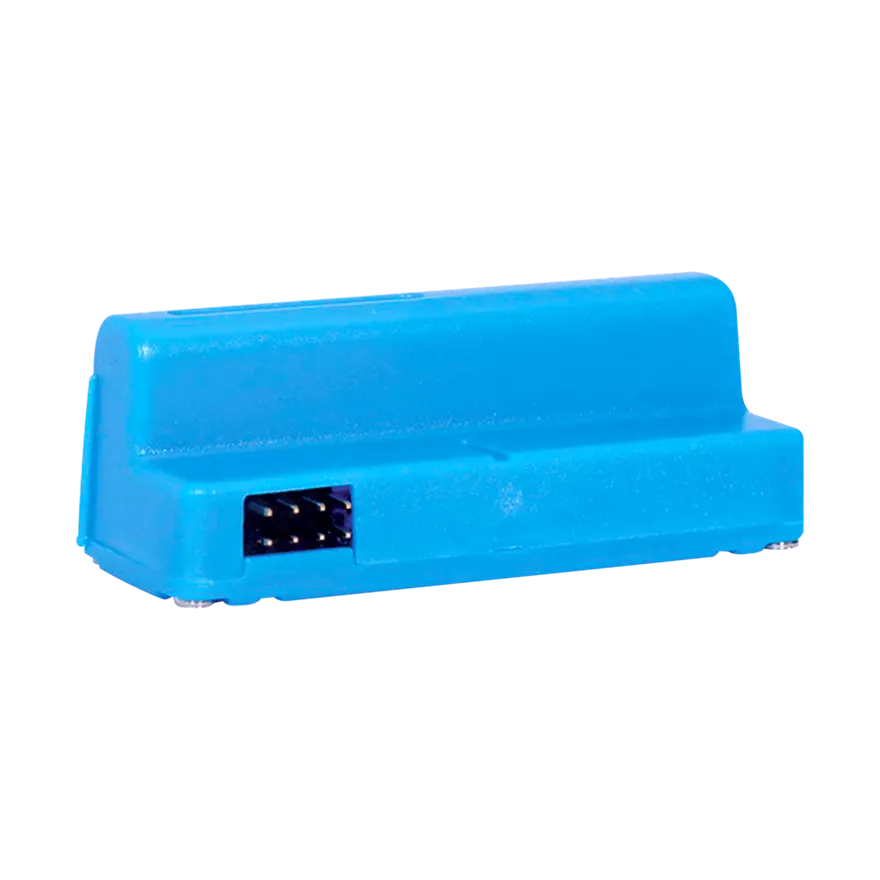

Yale Link Bluetooth Pack

Yale Bluetooth communication module allows lock to communicate and be controlled via a Smart Phone (within Bluetooth range of the lock) using the Yale Link App.

Manage Lock Settings
Manage your lock settings from your phone.
Enales Access From Anywhere
The module allows smart lock to works with the Yale Connect Wi-Fi Bridge (for away from home access)
Control Who Has Access
The module also makes short term rental and cleaning or house sitting more accessible for you.

1 of 3

Model No.	RFHX-YB3H0-01
Communication	Bluetooth Ver 2.0
Item Dimensions	12(L) x 12(W) x 30(H) mm
Item Weight	20g

◆ Can be paired with Yale Link Bridge to operate lock remotely from anywhere

◆ Compatible with YMI70, YDM4109+, YDM3109+, YDR4110+, YDD424, YDR50G, YDR41, YDM4109RL, YMF40.

◆ Set your locks location with the Yale Link App and phone will prompt you to unlock your door when you approach it.

◆ Add or delete codes, cards or fingerprints (depending on your model) without using the lock keypad.

◆ Manage authorization including user codes and set up visitor/ one time codes from your phone

◆ Monitor the entrance, alarm and register history of the lock from your phone

◆ Requirement: Mobile devices with Bluetooth 4.0 or higher version iPhone 5 or later version/ iOS 8.0 or higher version Android 5.0 or higher version

Yale Link Bluetooth Pack

Specifications

Downloads

Catalogue

User Guide
