5100
Yale 5100

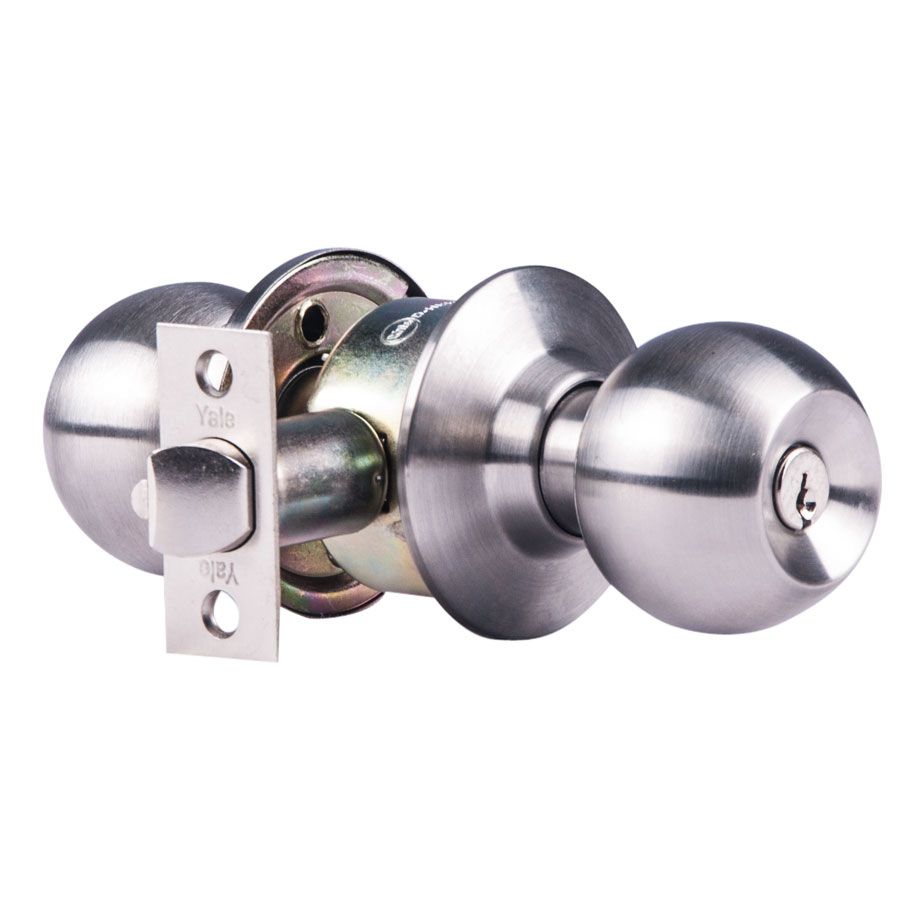

5120
5120 series is the economic choice for standard residential purpose. Recomended for use on internal doors.
| Knob Style | Model No. | Function | Finish |
| BR | 512 | 1 Passage or Closet 2 Privacy, Bedroom, or Bathroom 5 Storeroom or Clsoet 7 Enterance | US3 Polished Brass |
| CA | US5 Antique Brass | ||
| CN | US11 Antique Copper | ||
| OV | US15 Satin Nickel | ||
| MY | US32D Satin Stainless Steel |
| Dimension | 385 x 300 x 430mm |
| Backset | 60mm or 70mm |
| Door thickness | 35-45mm |
| Material for strike plate and face plate | US32D, US3, US5, US11-steel |
| Material for knob and rose | US32D-SS, US3, US5, US11-brass |
| Nickel plated brass key | 3 pcs |
| Material for cylinder plug | Zinc alloy |
| Material for cylinder housing | Zinc alloy |
| Rose diameter | 65mm |
| No of Pin | 5 |
| Strike plate | T shape |
