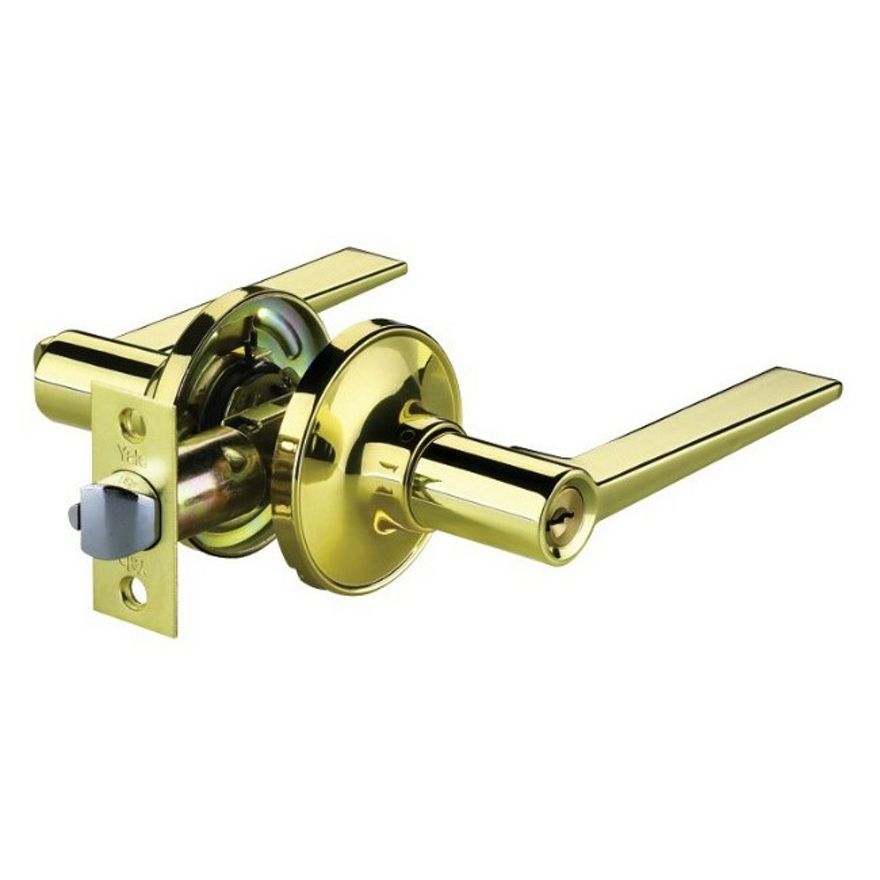

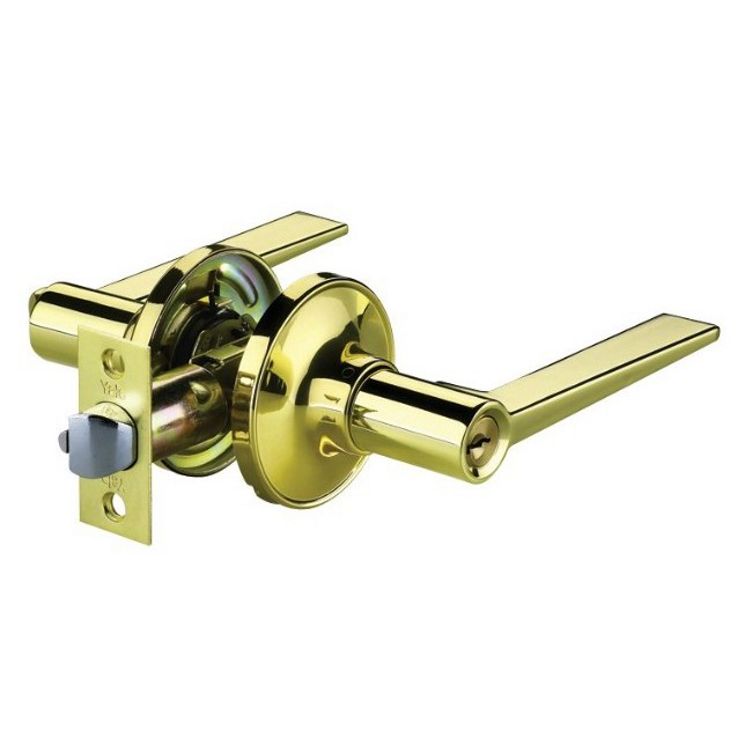

L5397/L5392/L5391

Dimension	415 x 380 x 440mm
Backset	60mm - 70mm
Door thickness	35 - 45mm
Roses diameter	65mm
Material for strike plate & face plate	Steel
Material for lever	Zinc alloy
Material for rose	Brass
No. of keys	3 pcs of nickel kesys - per keyed enterance
Material for cylinder housing	Zinc alloy
Steel radius or square corner faceplate and strike plate.
Grade 3 standard leverset, tested to 200k cycles, 96 hrs neutral salt spray test for exterior parts.
Unlock lever torque at 20 Nm and locked lever torque at 25Nm.
Levers turn angles 45 deg. to unlock except L531x and L532x turns 75 degree to unlock.



Series Name	Function	Finish
L539	7 Enterance 2 Bathroom 1 Passage	US15 Satin Nickel
		US3 Polished Brass
		US5 Antique Brass
		US11 Antique Copper
