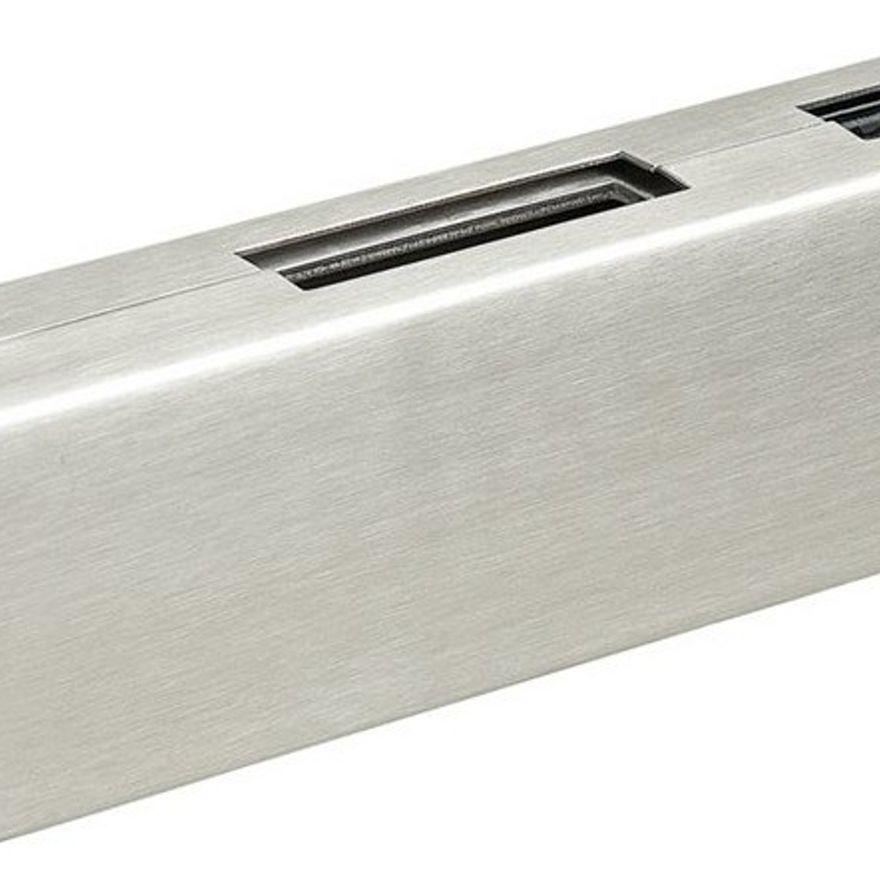

S050

Universal strike box. Suits L020.

Models
S050SSS
S050PSS
S050NA

Door Specifications
- Maximum Door Weight 80kg
- Maximum Door Width 1100mm

Recommended Torque for Fixing Screws
M6 - 10 Nm
M6 - 15 Nm (with 5mm hex drive)
M8 - 20 Nm

Available Finishes
Satin Stainless Steel - SSS
Polished Stainless Steel - PSS
Natural Aluminium - NA
