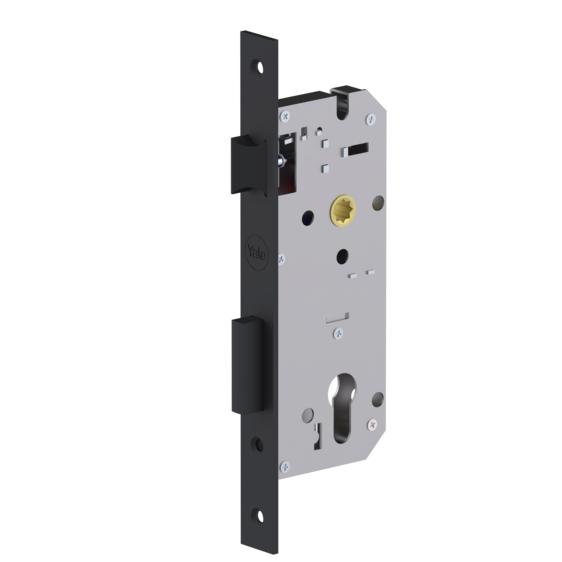

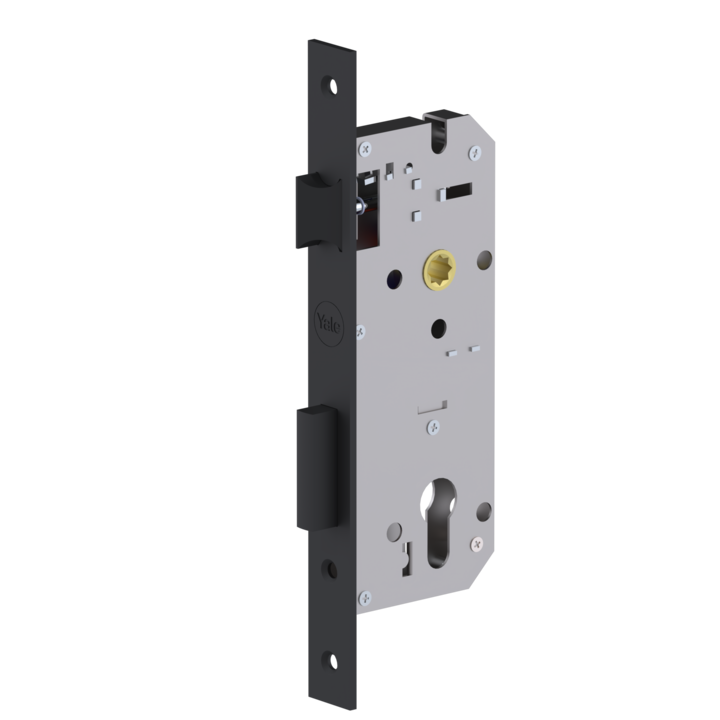

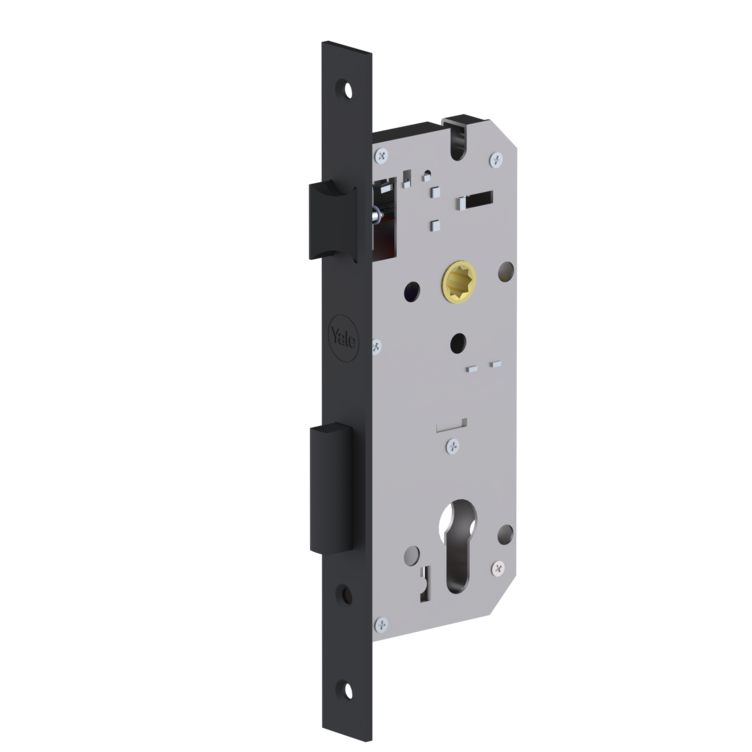

Essential Mortice Lockcase (85mm centre)
Crafted to deliver top-tier protection, the Essential Mortice Lockcase features a precision-engineered mechanism that guarantees both reliability and ease of use.
Features:
- Latch operated by handle or cylinder
- Reversible for left or right hand doors
- Forend available in SS201/304/316 grades
Specifications:
- Mortice sash lock with 85 mm centres
- Backset 45 mm
- Follower 8 x 8 mm
- Reversible latch
- Through fixing holes with 38 mm centres
- Square front and strike plate
- 20mm double throw deadbolt (double throw)

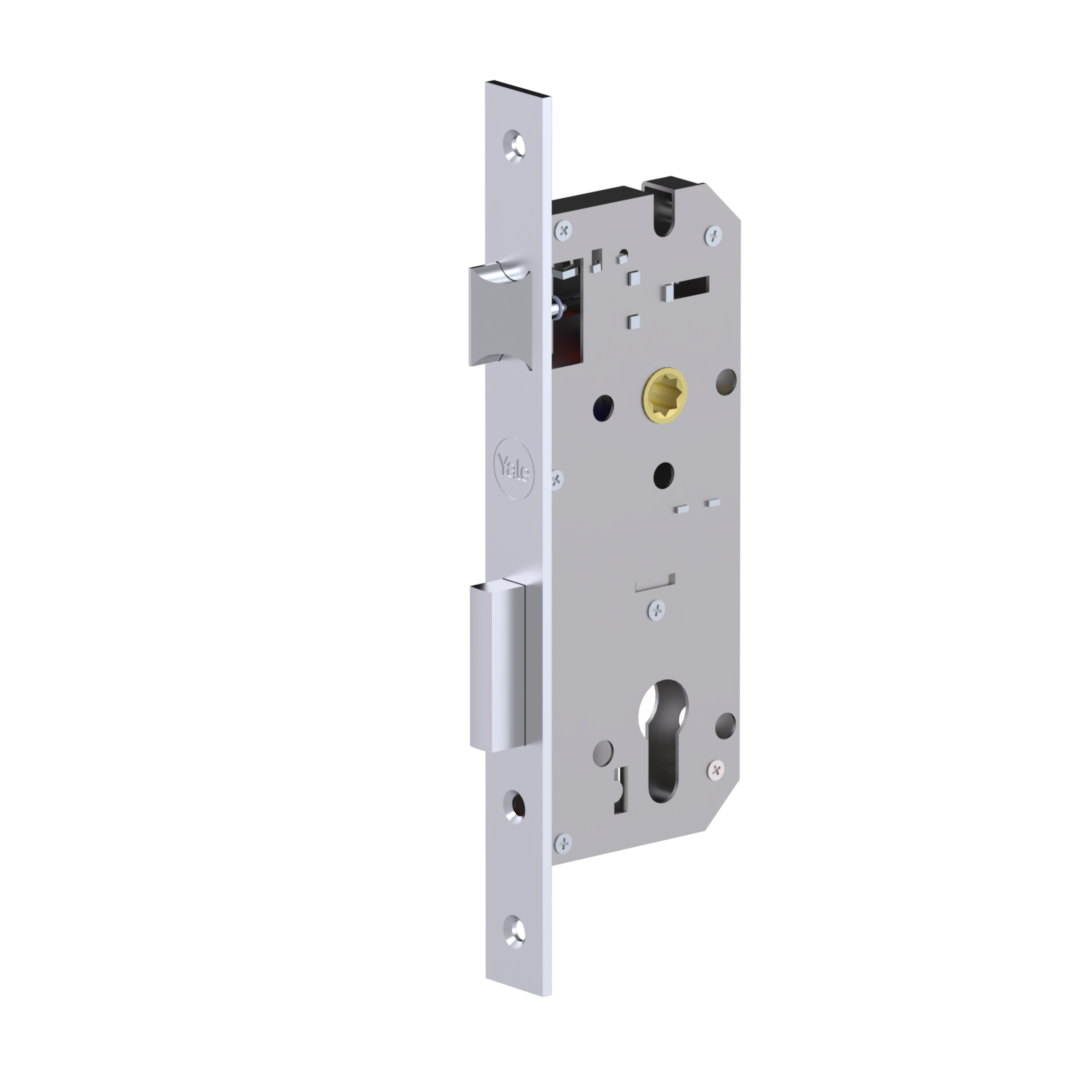

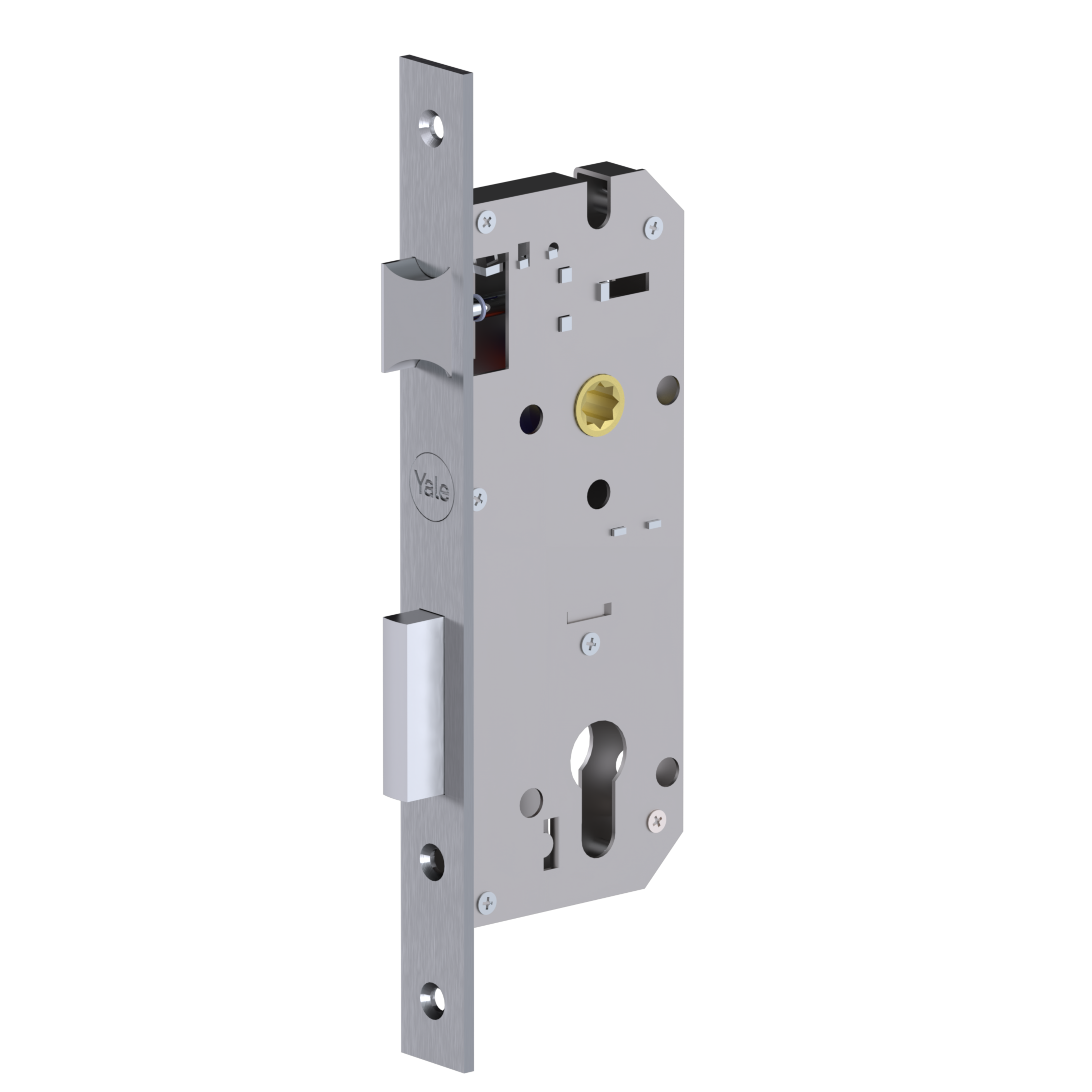

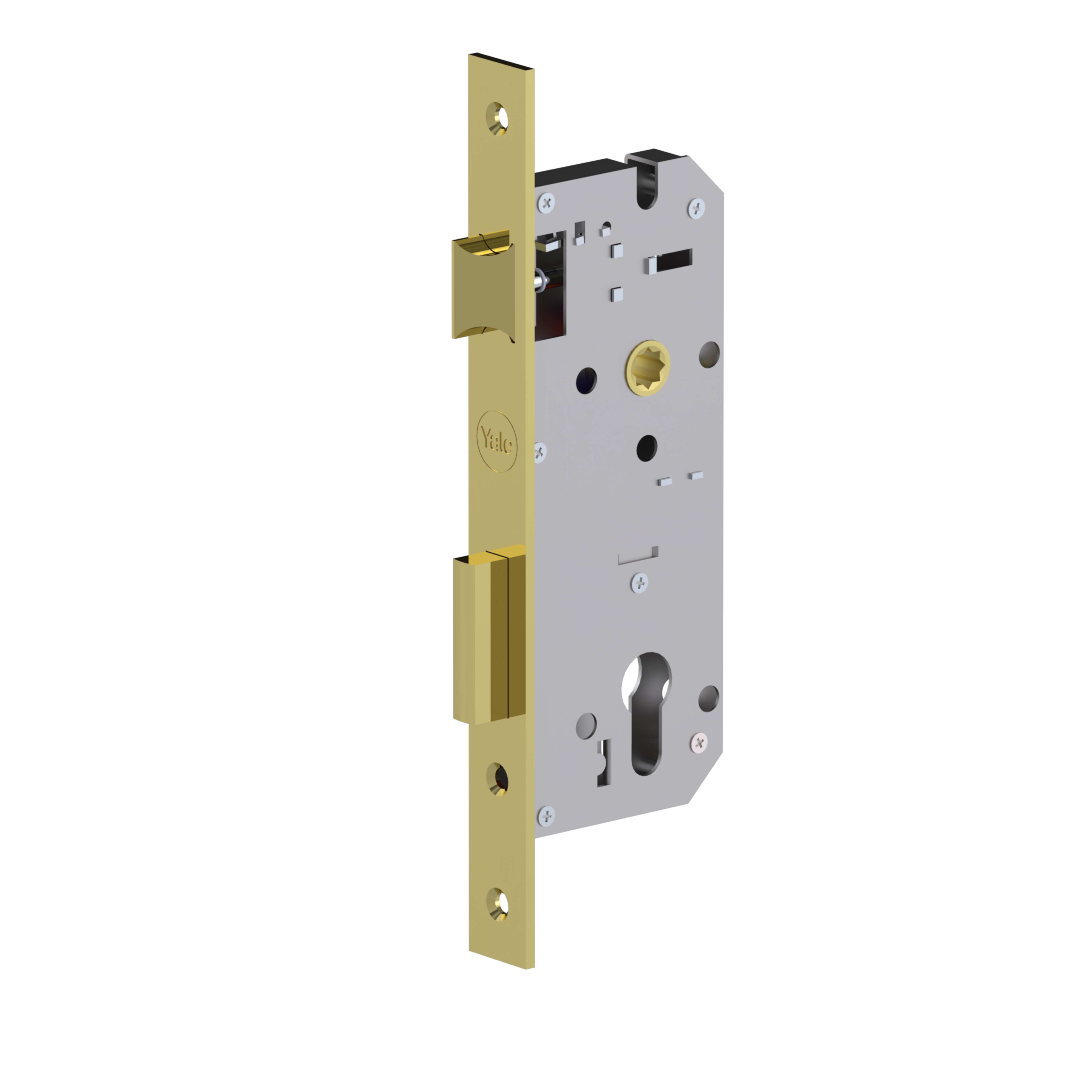

Essential Mortice Lockcase (72mm centre)
Designed with precision and durability in mind, the Yale Essential Mortice Lockcase delivers reliable security and smooth integration into tailored locking systems.
Features:
- Latch operated by handle or cylinder
- Reversible for left or right hand doors
- Forend available in SS201/304/316 grades
Specifications:
- Mortice sash lock with 55mm backset & 72mm centres
- Square front & strike plate
- Forend available in SS 201, 304 & 316 grades
- Latch & deadbolt available in Zamak, Steel & SS 304
Features:
- Reversible latch
- Available in different finishes: Satin Nickel, Polished Brass, Matt Black & Stainless Steel

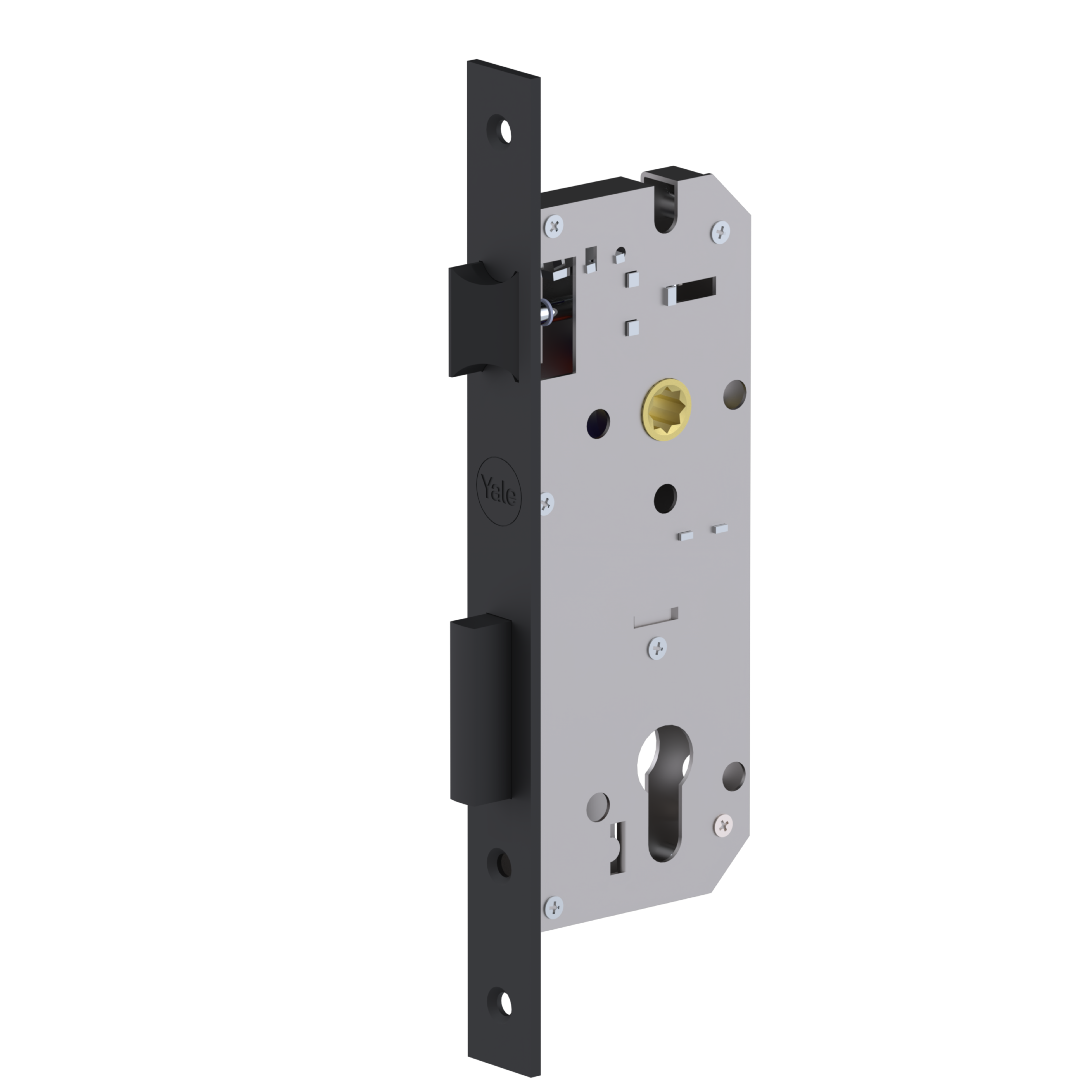

Premium H series Mortice Lockcase
Specifications:
- Heavy-duty mortice sash lock with 55/60mm backset & 72mm centres
- Reversible latch
- Square front and strike plate
- Latch & deadbolt available in SS 304
- 20mm double throw deadbolt
- Certified to EN12209
- CE marked (fire-rated steel & timber)
Features:
- Available in Satin Stainless Steel finish

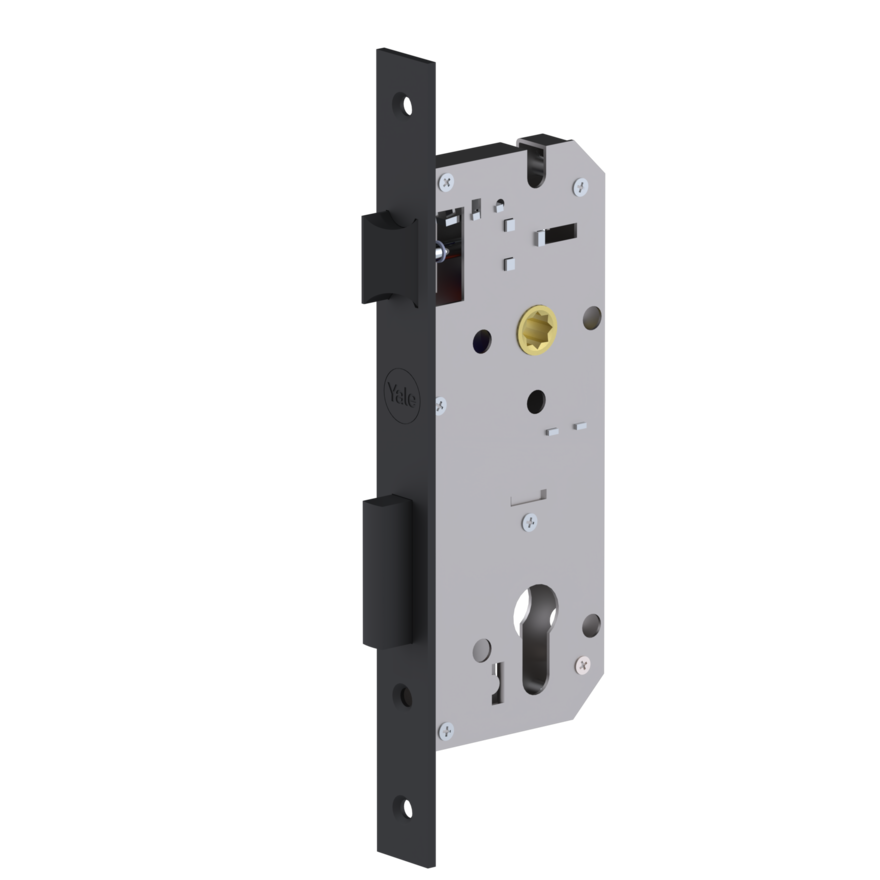

Premium C series Mortice Lockcase
Specifications:
- Medium duty mortice sash lock with 55/60mm backset & 72mm centres
- Conforms to EN12209
- CE marked (fire-rated)
- Follower 8x8mm
- Square front and strike plate
- Latch available in SS 304 & deadbolt in steel
- 20mm double throw deadbolt
- Reversible latch for left or right hand doors
Features:
- Available in Stainless Steel Matt finish
