Yale Linus® Adjustable Cylinder

Make your door smarter with Linus® Smart Lock designed to secure and simplify your life. Depending on what kind of euro profile cylinder is currently in your door, you may need to change it in order to be compatible with the Linus® Smart Lock.

The Linus® Adjustable Cylinder is guaranteed to work with the Linus® Smart Lock.There is no need to measure your door as the adjustable cylinder is designed to expand to fit your door.

Make the Linus® Adjustable Cylinder the same length as your current euro profile cylinder using the appropriate external and internal spacers.

Features:

  • YALE LINUS ADJUSTABLE CYLINDER - Guaranteed to work with the Linus® Smart Lock. Depending on what cylinder lock is currently in your door, you may need to change it in order to be compatible with the Linus® Smart Lock.
  • ONE SIZE FITS ALL - Designed to replace almost any sized cylinder lock. Refer to our compatibility checker below to see if you can install Linus on your existing cylinder lock. Make the Linus® Adjustable Cylinder the same length as your current cylinder lock using the appropriate external and internal spacers.
  • ALLOWS THE YALE LINUS® TO WORK ON THE FOLLOWING DOORS
    - Where the Euro profile cylinder lock has no emergency function, meaning that the cylinder lock can't be operated from the outside when there is a key inserted on the inside of the existing cylinder.
    - Where there is a thumbturn on the existing cylinder lock.
  • SAFE AND SECURE - 6 pin sawn key cylinder with security class 6 1-B-C5A in accordance with DIN EN 13030. Our Linus Adjustable cylinder includes impact protection such as anti-pick, anti-drill, anti-bump and anti-pull cylinder.

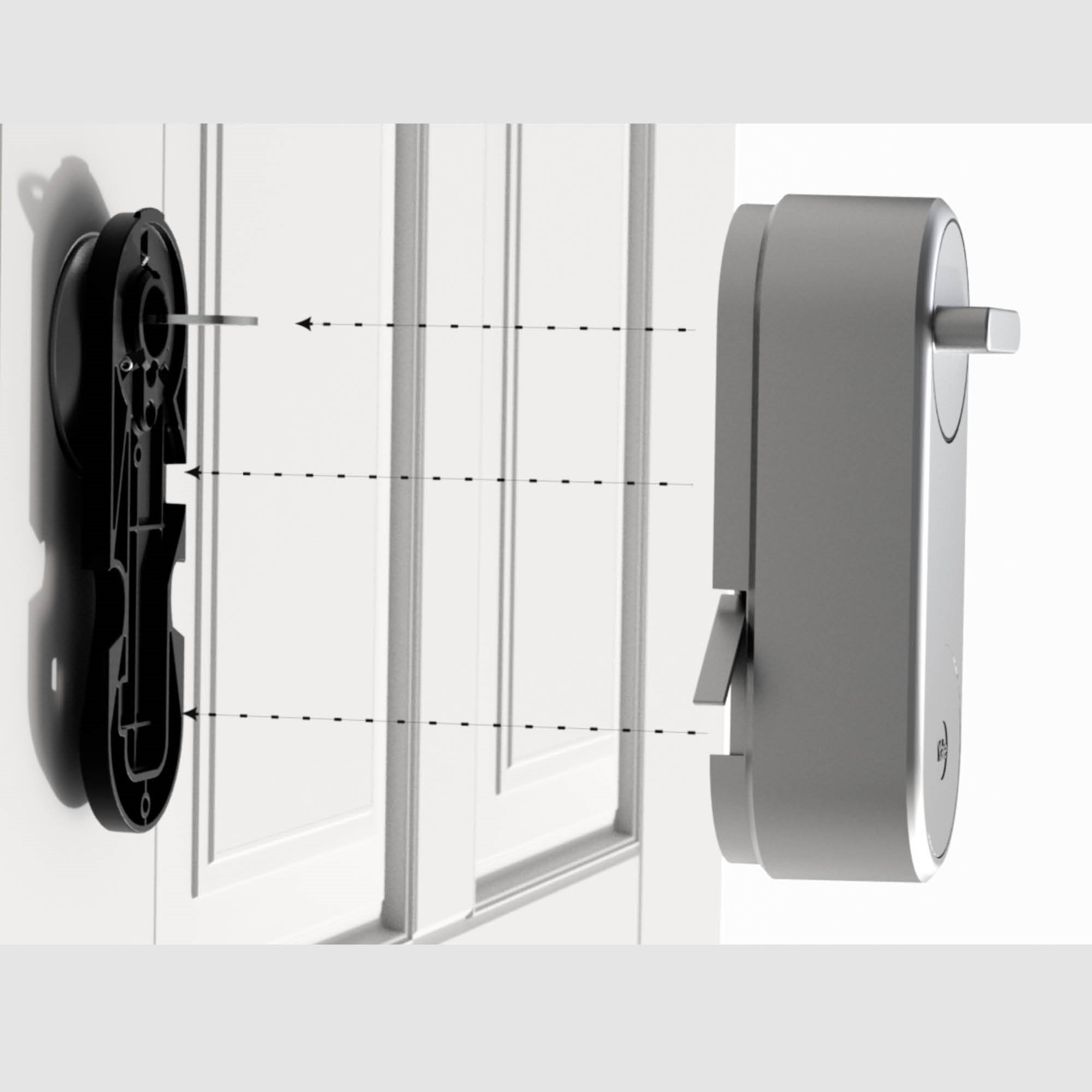

  • EASY TO INSTALL - It takes just 15 minutes on average to install on your door, and 2 allen keys (included) and a screwdriver is all you’ll need. Refer to our how-to-video to install your Linus Smart Lock on the adjustable cylinder below.
  • LENGTH-ADJUSTABLE - Internal cylinder lengths:30mm minimum - 65mm maximum & 5mm size increments.
    External cylinder lengths: 30mm minimum - 60mm maximum
    & 5mm size increments.
  • 2 KEYS INCLUDED - Option to order spare keys on our website through the contact form.

Specifications:

  • EN13030 standard
  • Classification code: 1 6 0 B 0 C 5 D
  • 6 pin sawn key cylinder
  • Anti-pick
  • Anti-drill
  • Anti-bump
  • Anti pull (7kN)



30+30 Shortest cylinder variant:

Internal cylinder lengths:

  • 30mm minimum - 65mm maximum
  • 5mm size increments

60+65 Longest cylinder variant:

External cylinder lengths:

  • 30mm minimum - 60mm maximum
  • 5mm size increments
