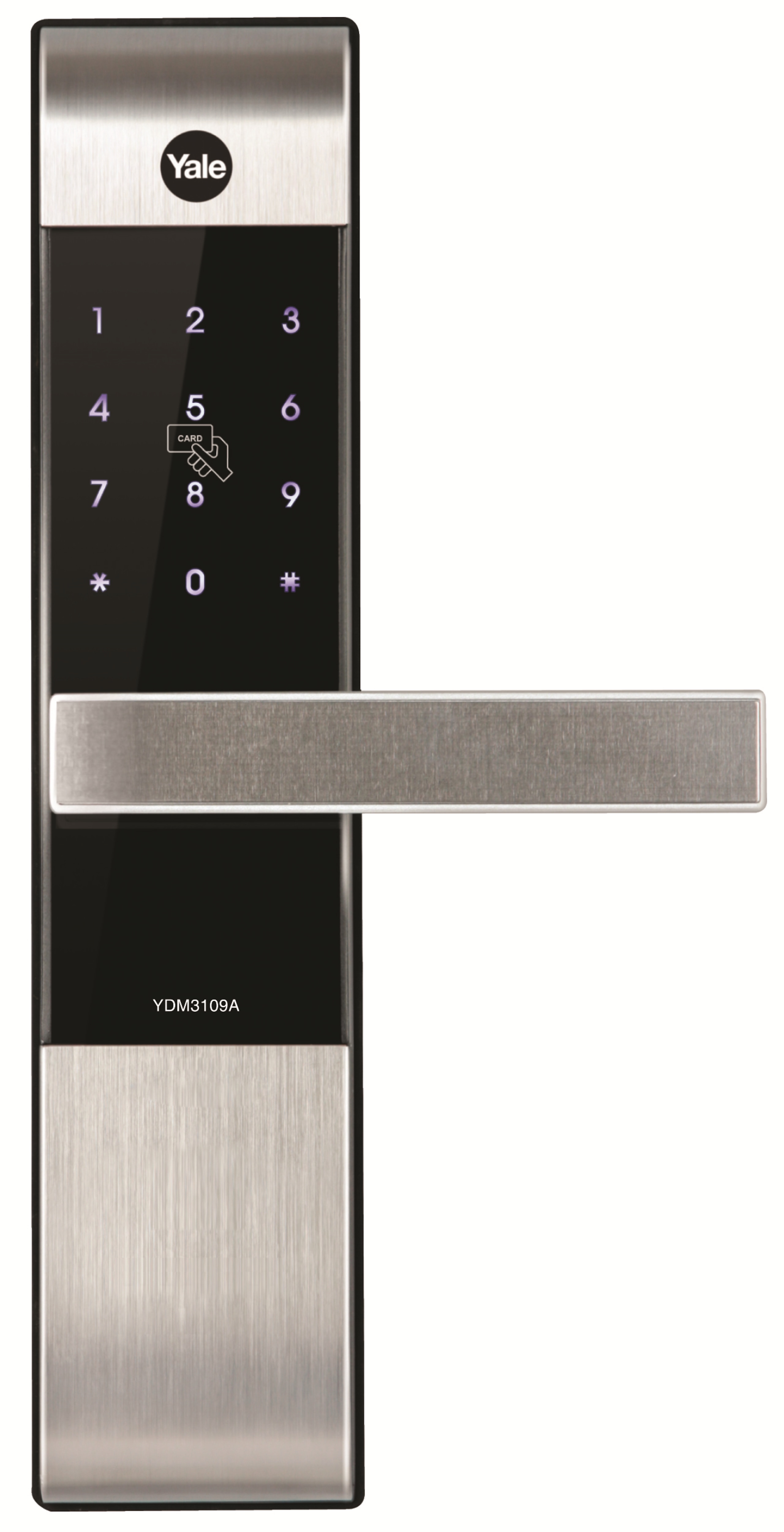

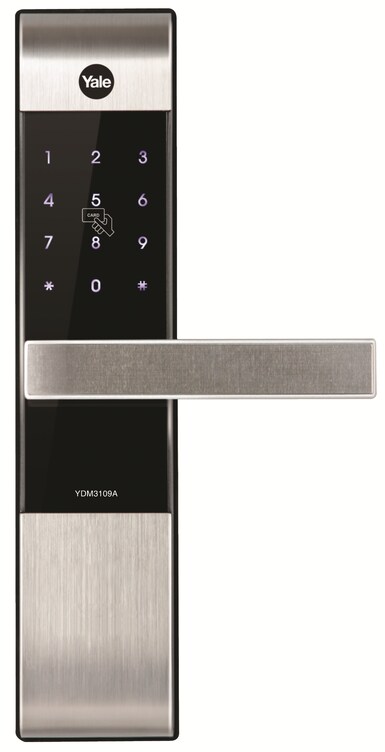

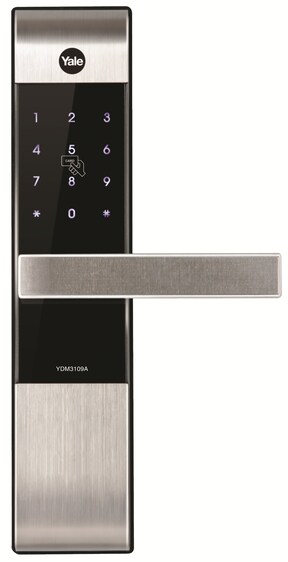

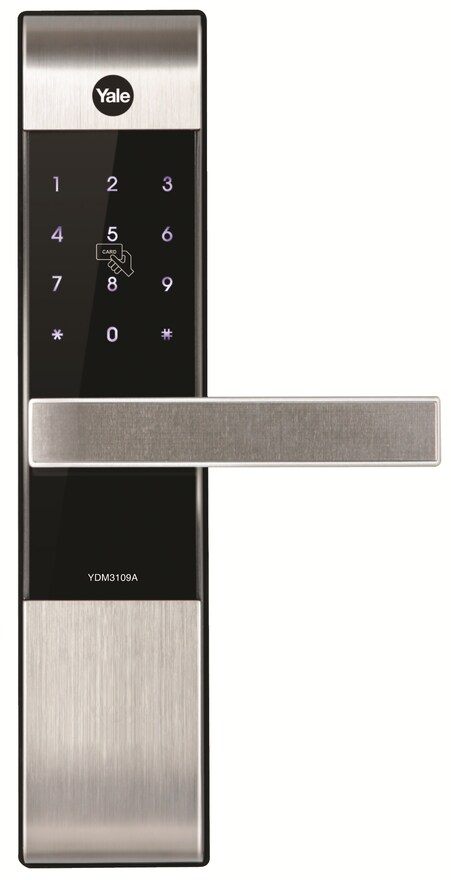

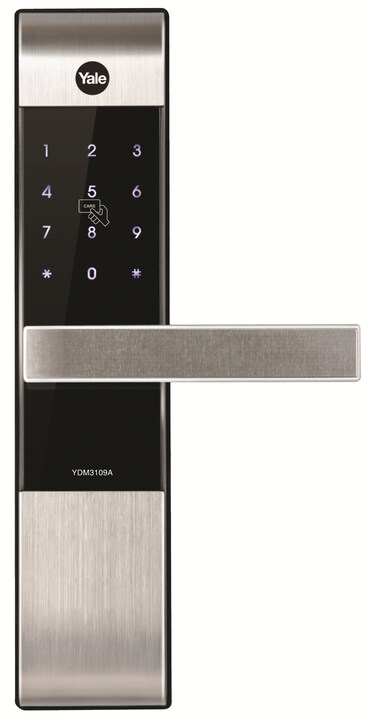

Smart Door Lock YDM3109A

The Yale YDM3109A smart lock is a reliable choice for keyless home entry, making your busy modern life that bit easier.

The secure smart lock allows you to lock and unlock your door, send virtual keys to guests and receive notifications all via the Yale Home App*. You can gain access in a way that suits you, with the options to use
a PIN code or RFID card/tag for simple and convenient access to your home.

• App control - The secure smart lock allows you to lock and unlock your door, send virtual keys to guests and receive notifications all via the Yale Home App*. You can gain access in a way that suits you, with the options to use a PIN code or RFID card/tag for simple and convenient access to your home.
• Access in a way that suits you - Unlock your door with the Yale Home App, a PIN code, or RFID card/tag
• Auto locking - Automatically locks your door when you leave your home
• Remote functionalities (Yale Connect Wi-Fi Bridge required)
• Guest management
• Activity monitoring & notifications
• DoorSense™ technology – know when your door is closed or left ajar
• Tamper alarm
• Low battery warning
• Use your Mechanical key override for emergency access
• Emergency power supply using standard 9V battery

*Requires Yale Access Module for App functionality & Yale Connect Wi-Fi Bridge for locking/unlocking remotely and voice assistants (sold separately)

Specifications

• Type: DIN type mortise lock
• Pin code (6-12 digits)
• RFID (up to 40 users)
• Mechanical key: 2
• Center distance: 72mm
• Backset: 60mm
• Door thickness: 40-80mm
• IP 55
• Operating temperature: -15 to +55 °C
• Suitable for left or right opening

Smart together - Connect your YDM3109A Smart Lock with leading smart home systems, voice assistants and holiday rental platforms for effortless lock control and access management including:

• Google Assistant
• Amazon Alexa
• Airbnb
• IFTTT

Connects with:

• Yale Connect WiFi Bridge - For functionalities such as locking/unlocking your door remotely, instant alerts to your phone and for integrations like voice assistants.
• Yale Access Module - Our Smart Locks can benefit from increased app functionalities and form part of the Yale Home range.
