Yale

Single Cylinder Nightlatch

Features

  • Single cylinder with internal turnknob
  • Operated by key from the outside and turnknob from the inside
  • Inside snib may be used to holdback latchbolt
  • Ease of retrofit to existing doors as a replacement
  • Nightlatch bolt can be put in a hold back position
  • Yale Keyway
  • Can be keyed alike to other Yale products
  • Designed to Yale quality and performance standards
Find a Distributor

  • Finishes

    • Polished Brass
    • Chrome Plate

    Keying
    Yale profile

    No. of keys
    3 nickel plated keys

    Backset
    Standard 60mm

    Door Thickness
    35mm - 55mm (suitable for timber doors)

    Standards
    ANSI - The Yale Rimlocks and Borelocks meet the American National Standard for Bored and Preassembled Locks and Latches to a Grade 3 Level (ANSI/BHMA A156.2-2003)

  • Installation Instructions(PDF, 189 KB)
  • DescriptionPart numberFinish

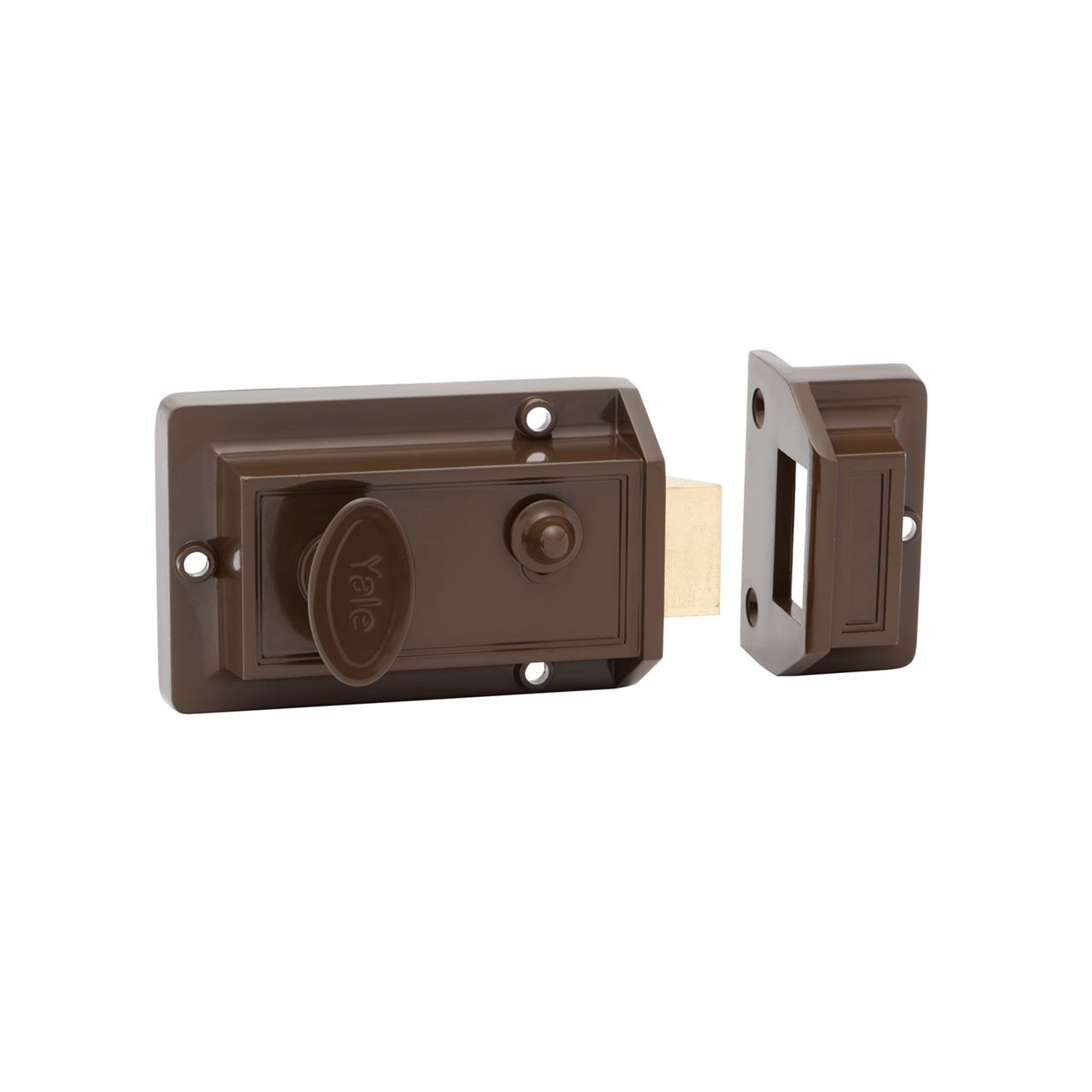

    Yale Keyway, Packaging: DisplaySYNL1/SCYL/BRNBrown

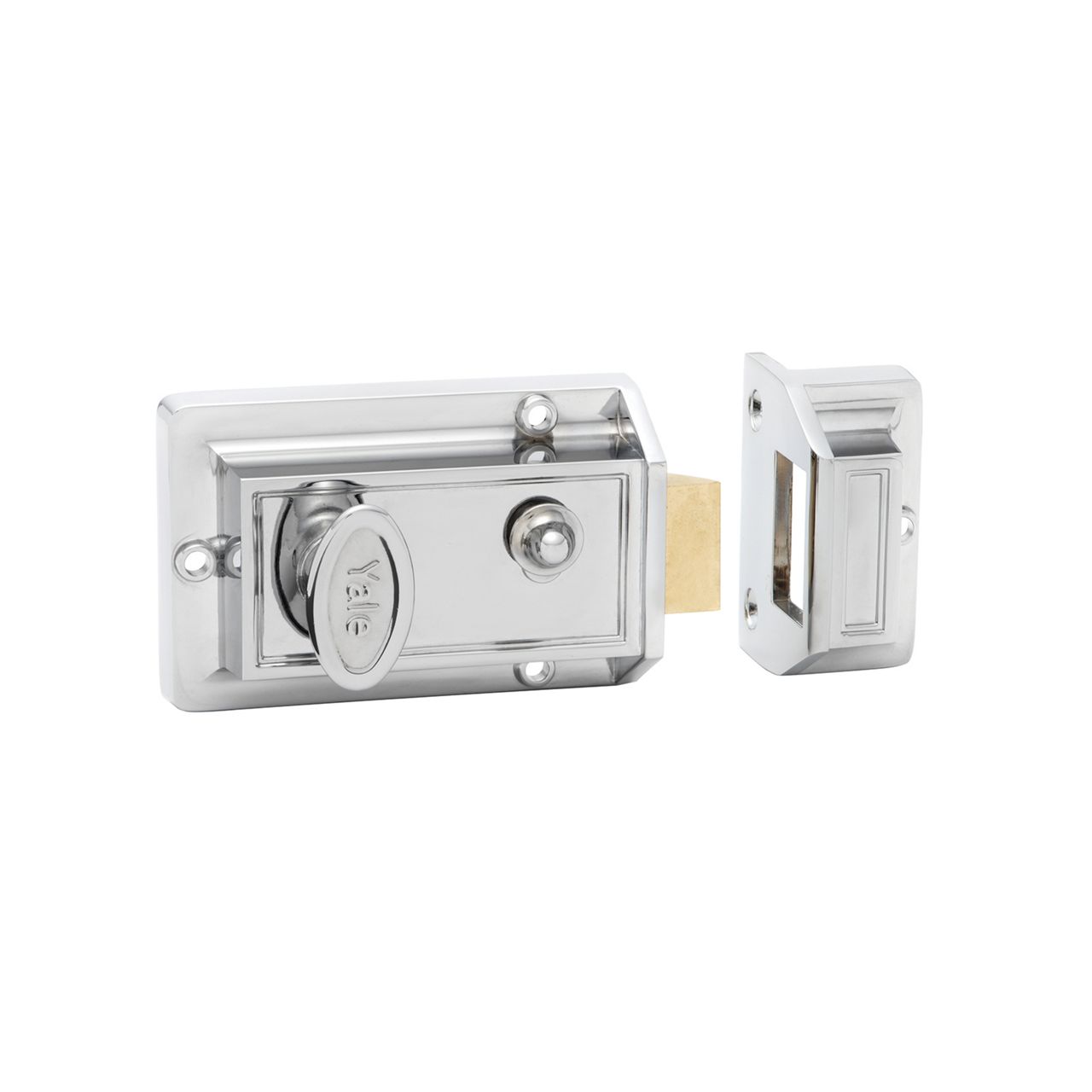

    Yale Keyway, Packaging: DisplaySYNL1/SCYL/CPChrome Plated

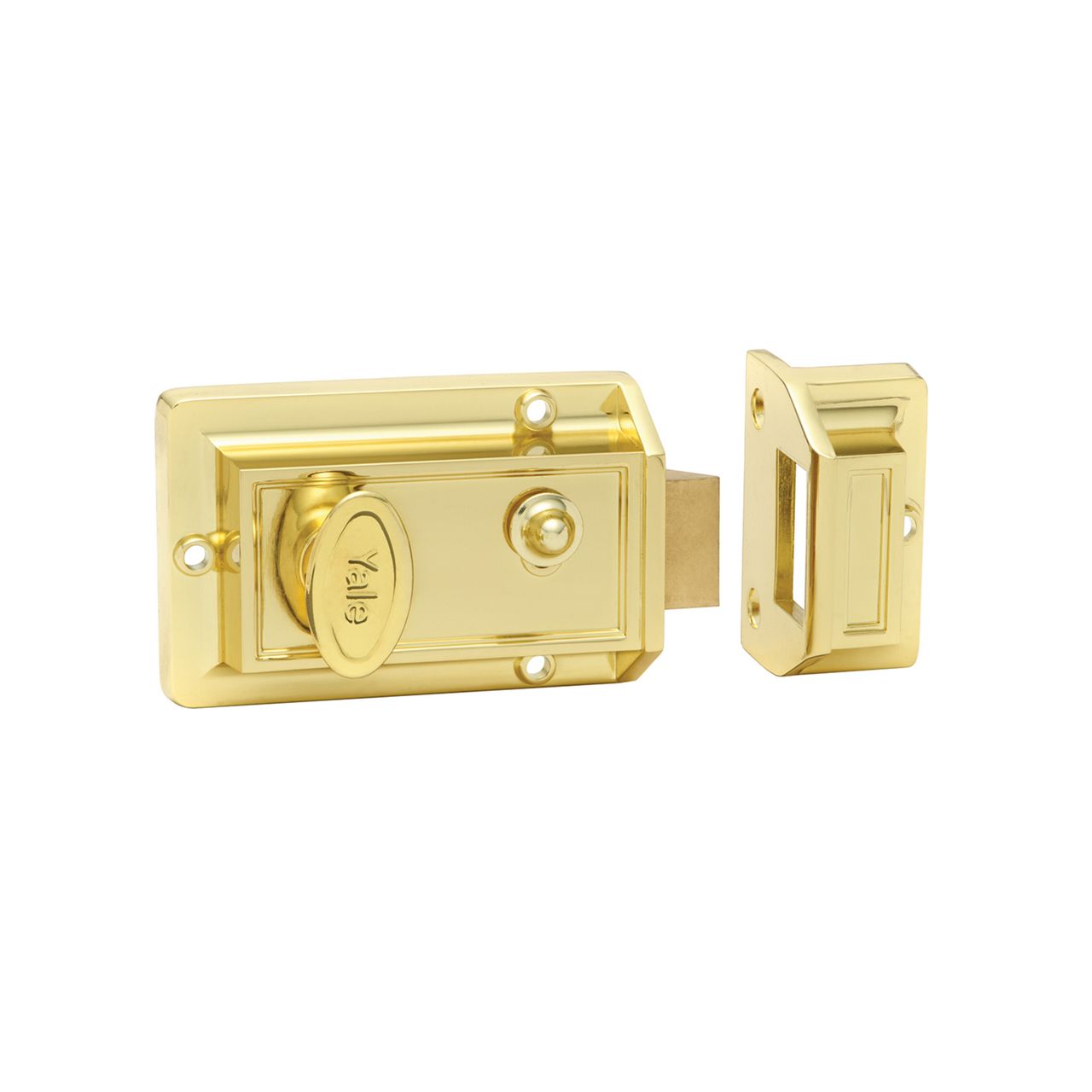

    Yale Keyway, Packaging: DisplaySYNL1/SCYL/GLDGold
    Rim Nightlatch - With Inside Snib and 6-Pin LW4 Keyway
    Florentine Bronze CylinderMC170FBSilver
    Polished Brass CylinderMC170PBSilver
    Satin Chrome CylinderMC170SCSilver
