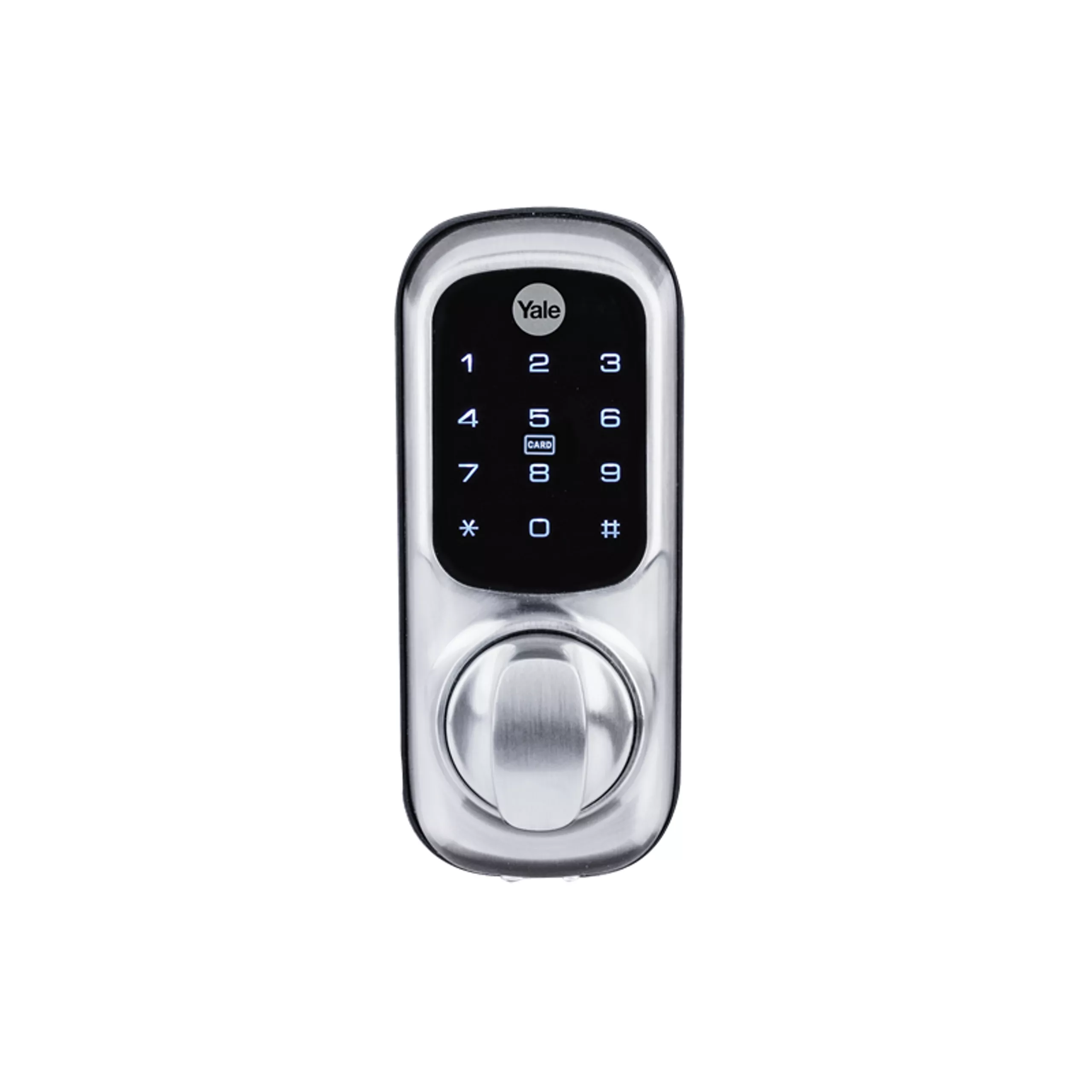

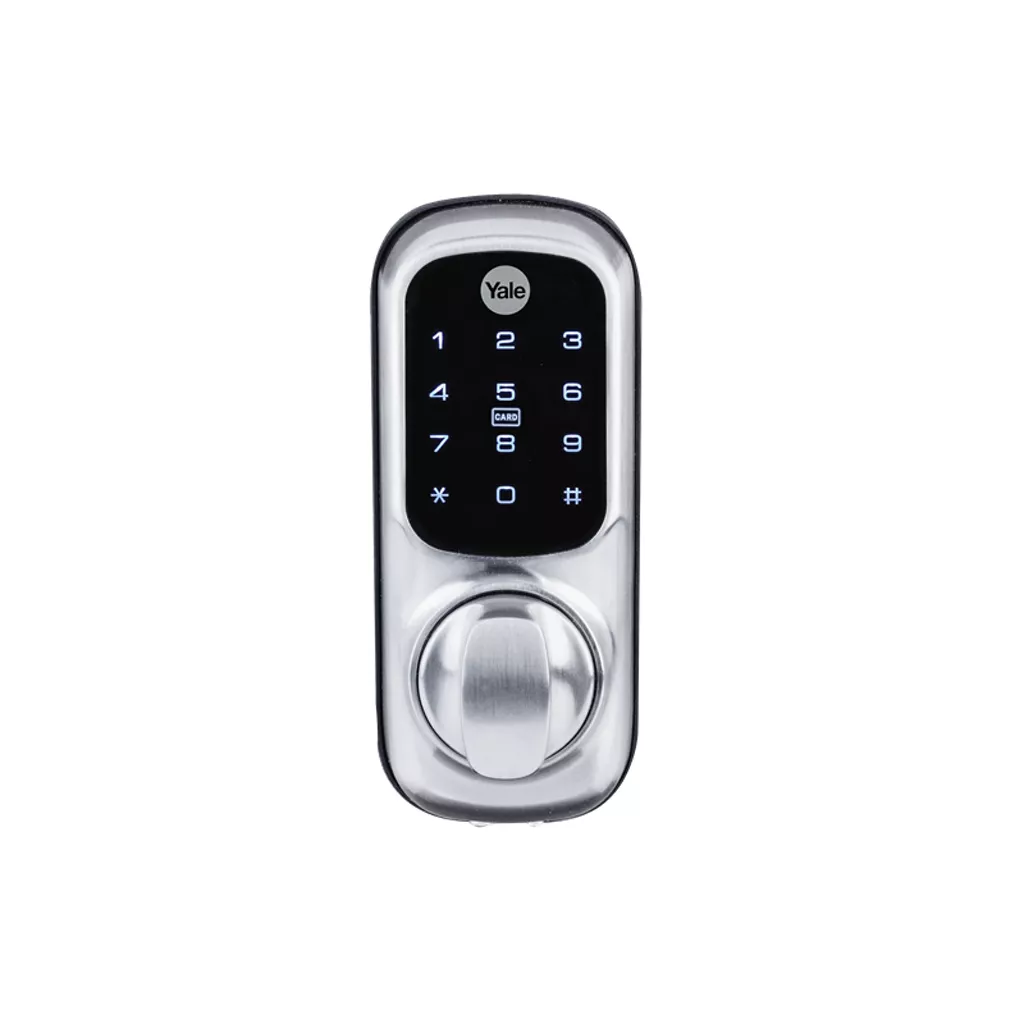

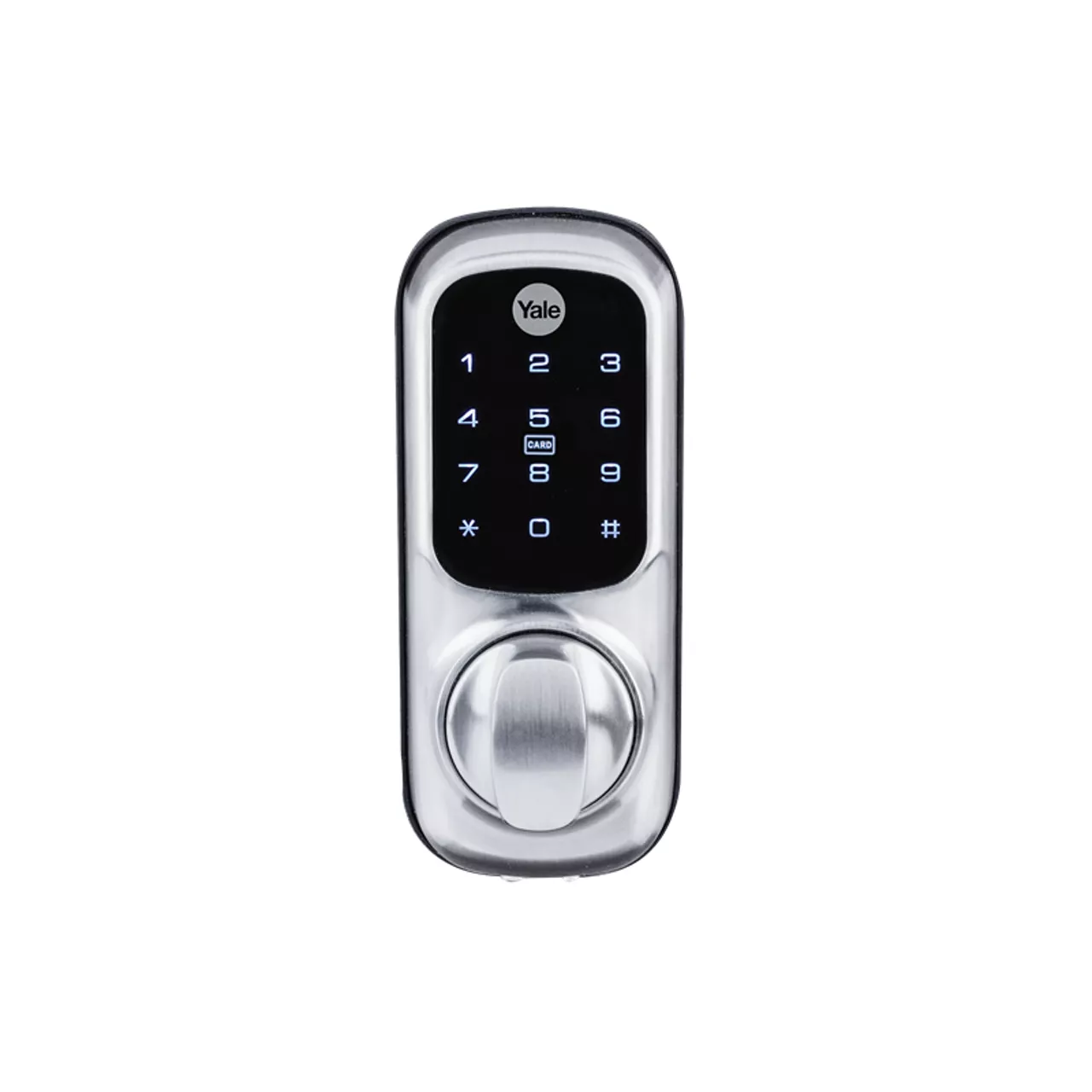

Yale Smart Latch 2 Support

If using the Yale Digital Deadlatch Upgrade Kit you can either:

1. Use the Mastercode: Touch the keypad with the palm of your hand, enter a valid user code, press the ‘*’ key, turn the thumbturn to open the door.
2. Use the Key Card/Tag: Present a valid Key card or Tag to the lock, turn the thumbturn to open the door.
3. Use the Remote fob: Press any button on a registered Remote Fob, Turn the thumbturn to open the door.

How it works?

1. Touch the keypad with the palm of your hand, insert your master code/pincode, followed by the * button and turn the thumbturn 90 degrees clockwise
2. Or present your keycard or tag to the lock and turn the thumbturn 90 degrees clockwise

To add a user code to a Keyless Digital Deadlatch please refer to the steps below.

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Insert your master code and press the # button

Step 3
Press the number 2 button, followed by the # buton

Step 4
Then press the number 1 button, followed by the # button

Step 5
Now select a slot for your user between 1 and 20 and press the # button

Step 6
Insert a 6 digit user code

Step 7
Press the # button to complete the setup

To delete a user code from Keyless Digital Deadlatch please follow the steps below.

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Insert your master code and press the # button

Step 3
Press the number 2 button, followed by the # button

Step 4
Now press the number 3 button, followed by the # button

Step 5
Select the slot that the user was assigned to between 1-20 and then press the # button

The Yale Smart Latch currently does not have a Yale network module enabling home automation connectivity.

The installation guide can be downloaded by clicking the highlighted text.

Recommended Batteries for Yale Smart and Digital Locks

Suggest pairing with Lockwood 001 or 002 Series mechanical deadlatch or Whitco W75 Series.

Please follow the steps below.

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Enter your current master code and then press the # button.

Step 3
Now press the # button

Step 4
Press the number 8 button, followed by the # button

Step 5
Please then select the relevant number button for your preferred volume mode

Step 6
Press the # button to complete the volume setup.

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Insert your master code and press the # button

Step 3
Then press the number 9 button, followed by the # button

Step 4
To turn auto re-lock on press 1, to turn it off press 3

Step 5
Press the # button to complete this setup

Please follow the steps shown below to add a Yale key card or tag to your Yale Digital Deadlatch Upgrade Kit.

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Insert your master code and press the # button

Step 3
Then press the number 1 button, followed by the # button

Step 4
Now press the number 3 button, followed by the # button

Step 5
Please select a slot between 1 and 20 for your key card or tag and then press the # button.

Step 6
Present your card or tag over the lock

Step 7
Press the # button to complete the setup

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Enter your current master code and then press the # button. If your master code hasn't been set, it will be automatically programmed to 123456.

Step 3
Then press the number 1, followed by the # key

Step 4
Enter a new master code, which must contain 6 numbers

Step 5
Press the # key to complete the setup/change of your master code

To remove a key card or tag from your Keyless Digital Deadlatch please follow the steps below.

Step 1
Wake up the keypad by touching it using the palm of your hand

Step 2
Insert your master code and press the # button

Step 3
Press the number 0 button, followed by the # button

Step 4
Now press the number 3 button, followed by the # button.

Step 5
Please select the slot that your card or tag is currently registered to from 1-20 and press the # button

Step 6
Press the # button again to completed the deletion process

Please follow the steps shown below, once the master code has been reset back to factory settings it will be automatically set to 123456, and all codes, Cards/Tags and Fobs will be deleted. To alter the master code, add cards to the keyless or add tags please click the highlighted text.

Step 1
Locate the battery pack above the nightlatch

Step 2
Remove the cover

Step 3
Then remove one battery only and press the R button

Step 4
Continue to press the R button whilst inserting the battery back in. The lock will beep 12 times followed by a three-tone ascending beep. Wait for 10 seconds and a two-tone sound will be heard.The master code is now set to 123456, and all codes, Cards/Tags and Fobs are deleted.

Please take the deadlatch off the inside of the door, you should now see the tailbar coming from the back of the Keyless Digital Deadlatch.

Please use a correct credential on the lock and you should see the following happen:

• The Lock will scroll and play a fanfare (if the screen shows a flashing cross and plays a beeping noise this indicates the credential is wrong)
• You should hear a faint noise of the motor engaging
• By turning the thumbturn on the Yale Digital Deadlatch Upgrade Kit you should see the tailbar moving

If this is the case it is likely that the tailbar is not cut to the correct length for the deadlatch. Please check this against the deadlatch instructions.

This could be due to a couple of reasons:

• If it has always done this since installation, it could be that when the tailbar was cut it is too long and is getting caught on the inside of the deadlatch (especially if there is also friction when the thumbturn is turned). Please check that the tailbar length matches the specified length on the deadlatch manual.
• Please also check that the relock has not been turned off in the settings. To do this please refer to “How do I turn auto relock on/off?” question.

The product uses four alkaline AA batteries. The batteries will last for approximately 1 year, based on the lock being used 10 times a day.

Recommended Batteries for Yale Smart and Digital Locks

To change the batteries on your Yale Smart Latch, you will need to connect a 9-volt battery to the emergency power supply.

Step 1
Please insert a 9v battery into the emergency battery terminal, located at the bottom of the device.

Step 2
Now enter your master code and press the * button. You will now be able to open your door.
