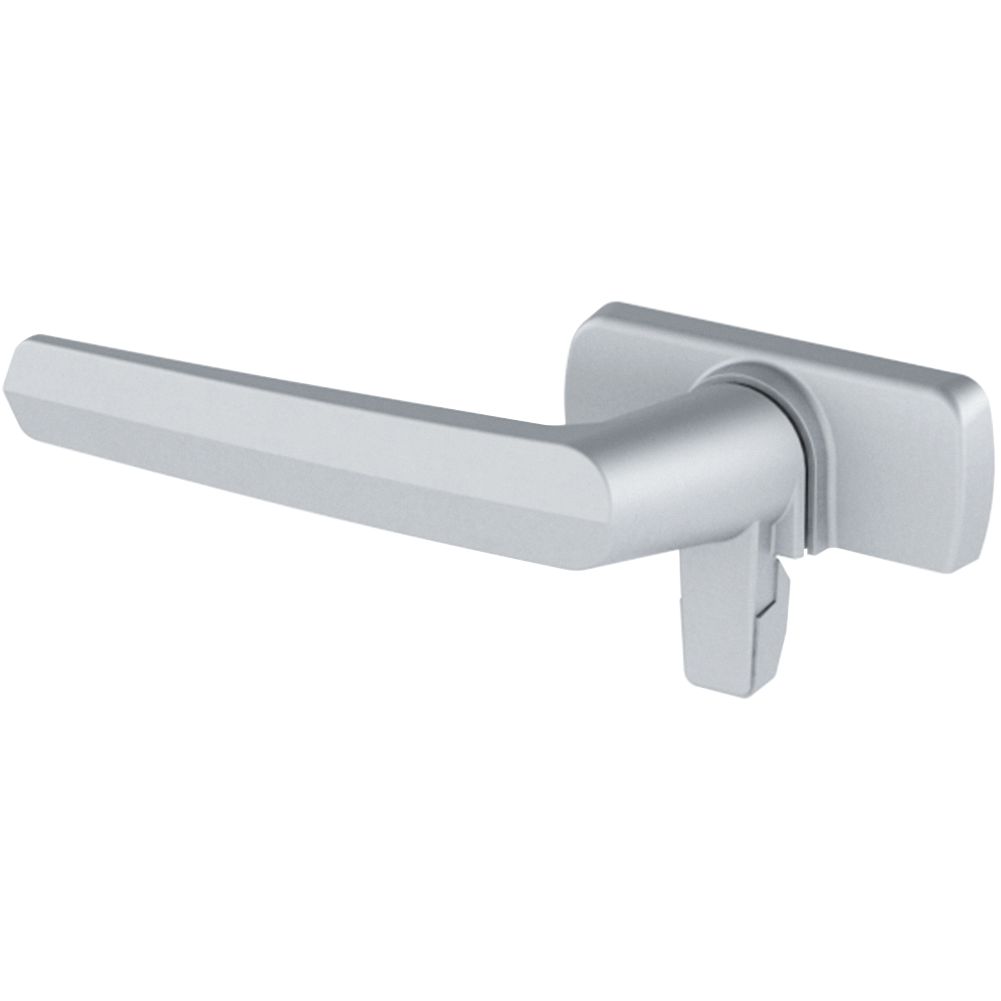

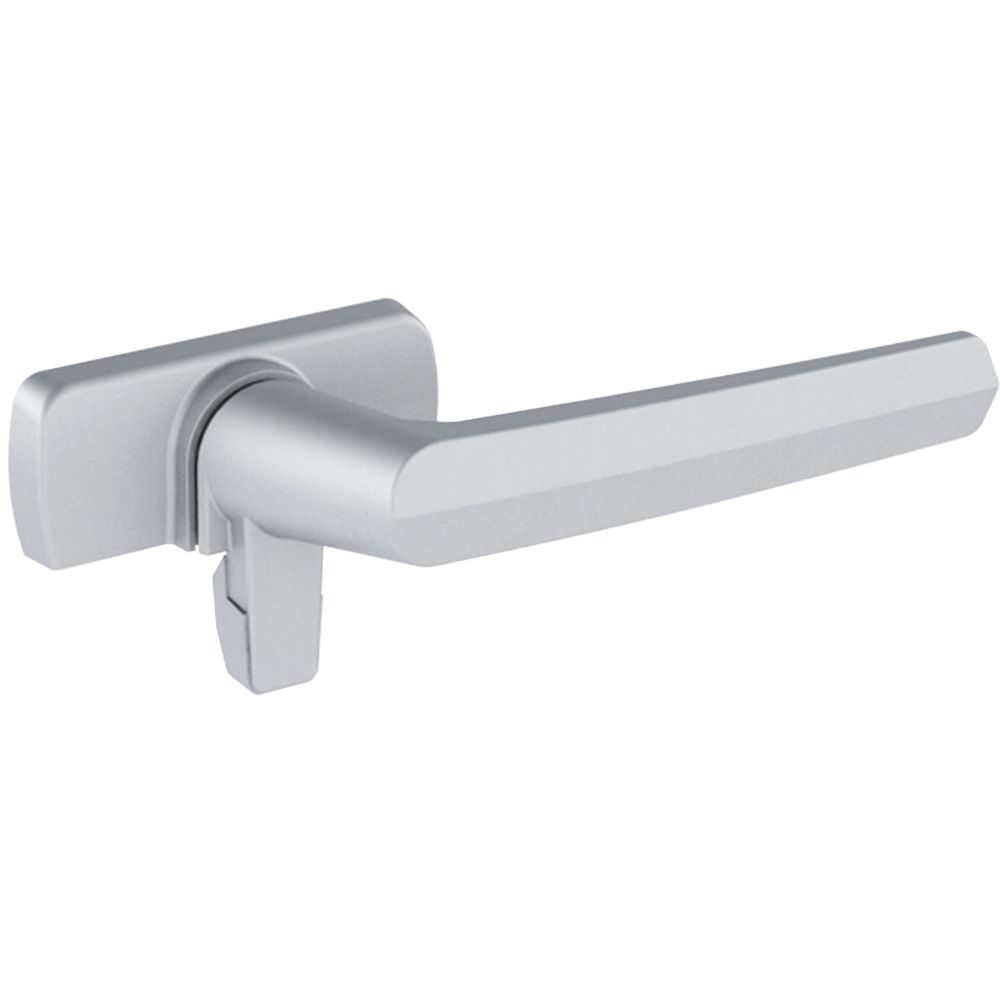

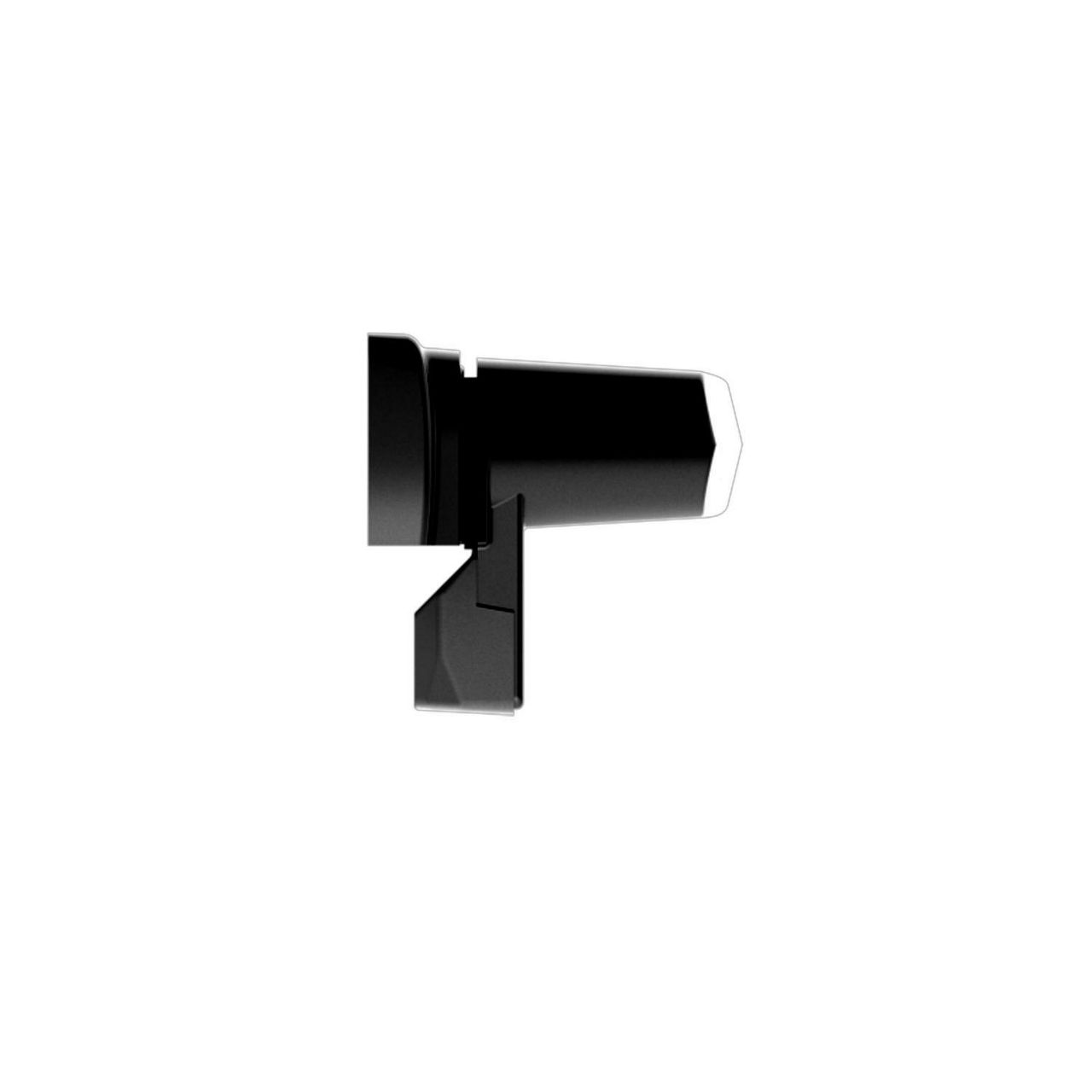

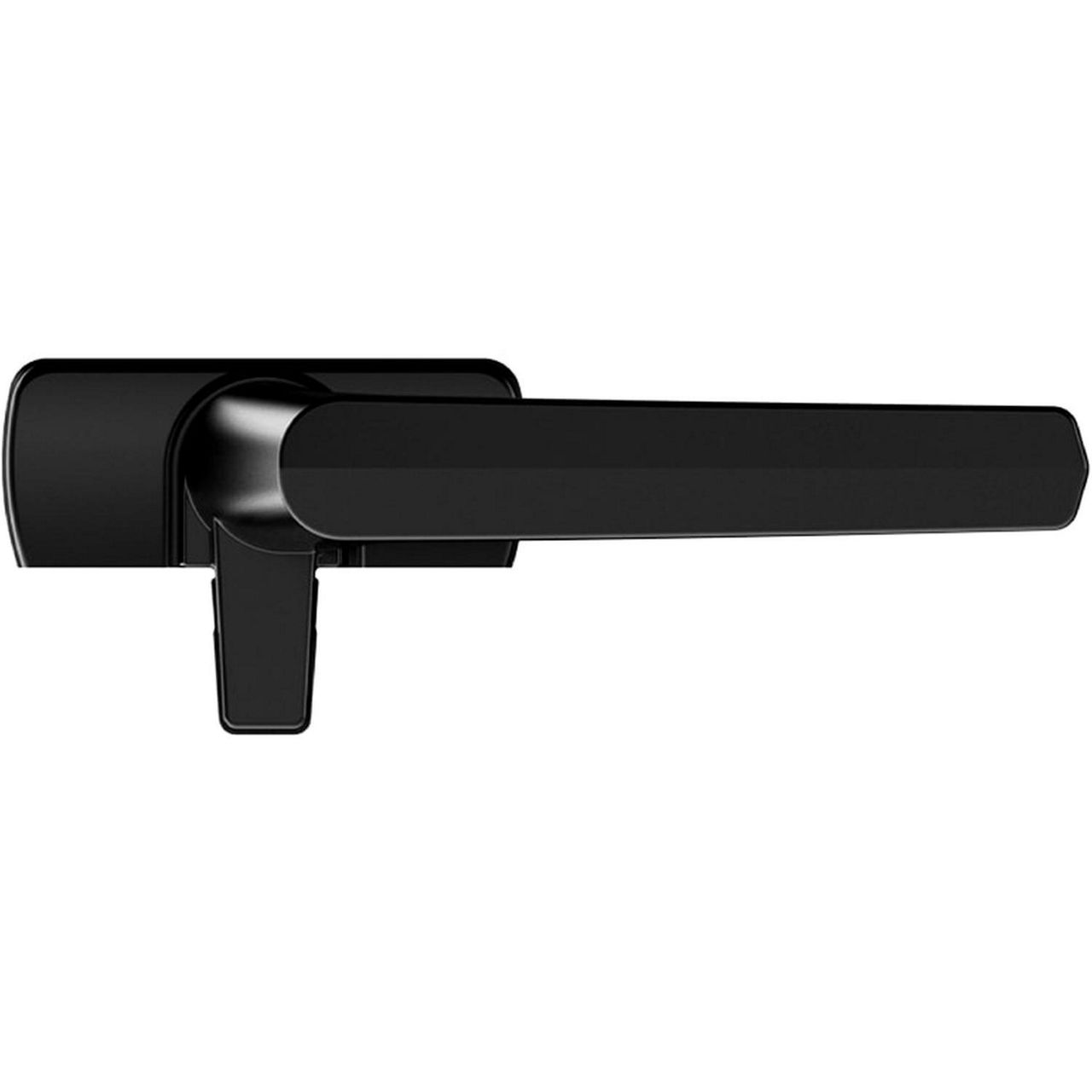

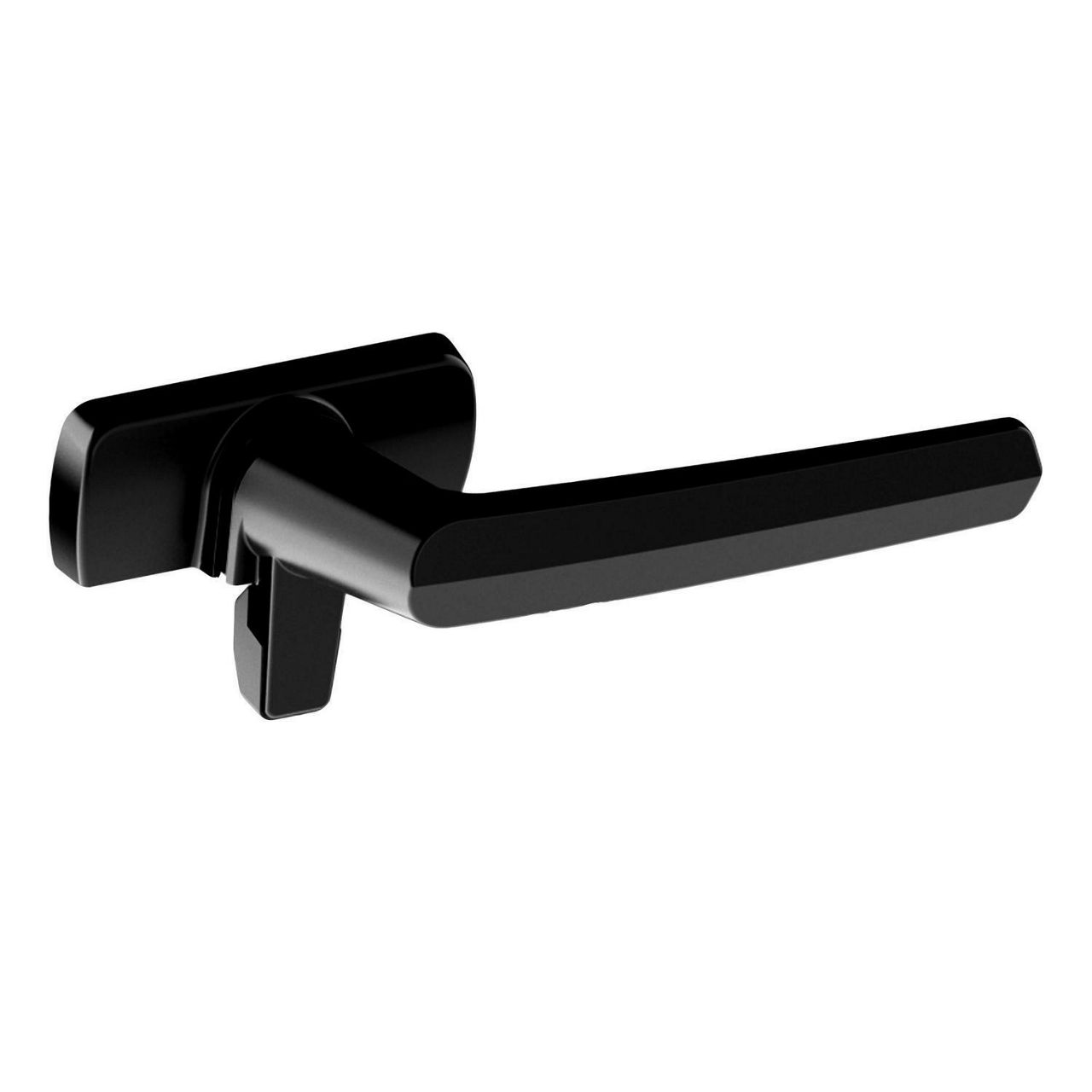

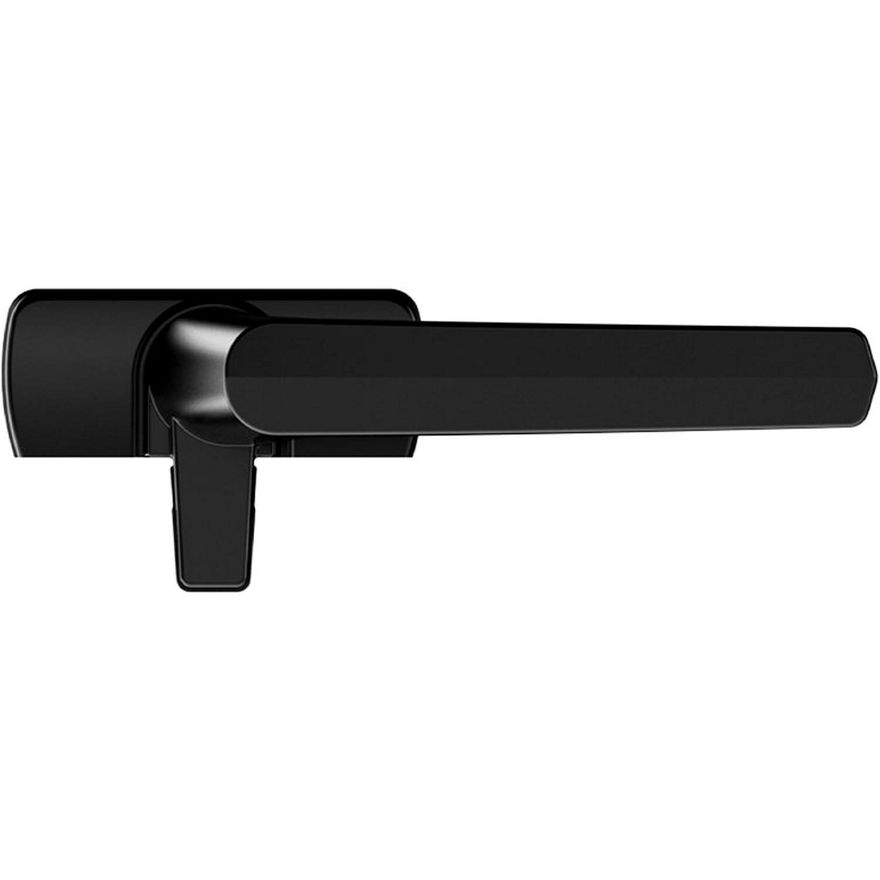

Aria Helix Seal High Profile
The Aria Window Fastener incorporates the patented Helix Seal™ cam action for ease of operation. The integrated tongue shield protects the window frame against marking when opening and closing, while providing enhanced window seal compression on closing.

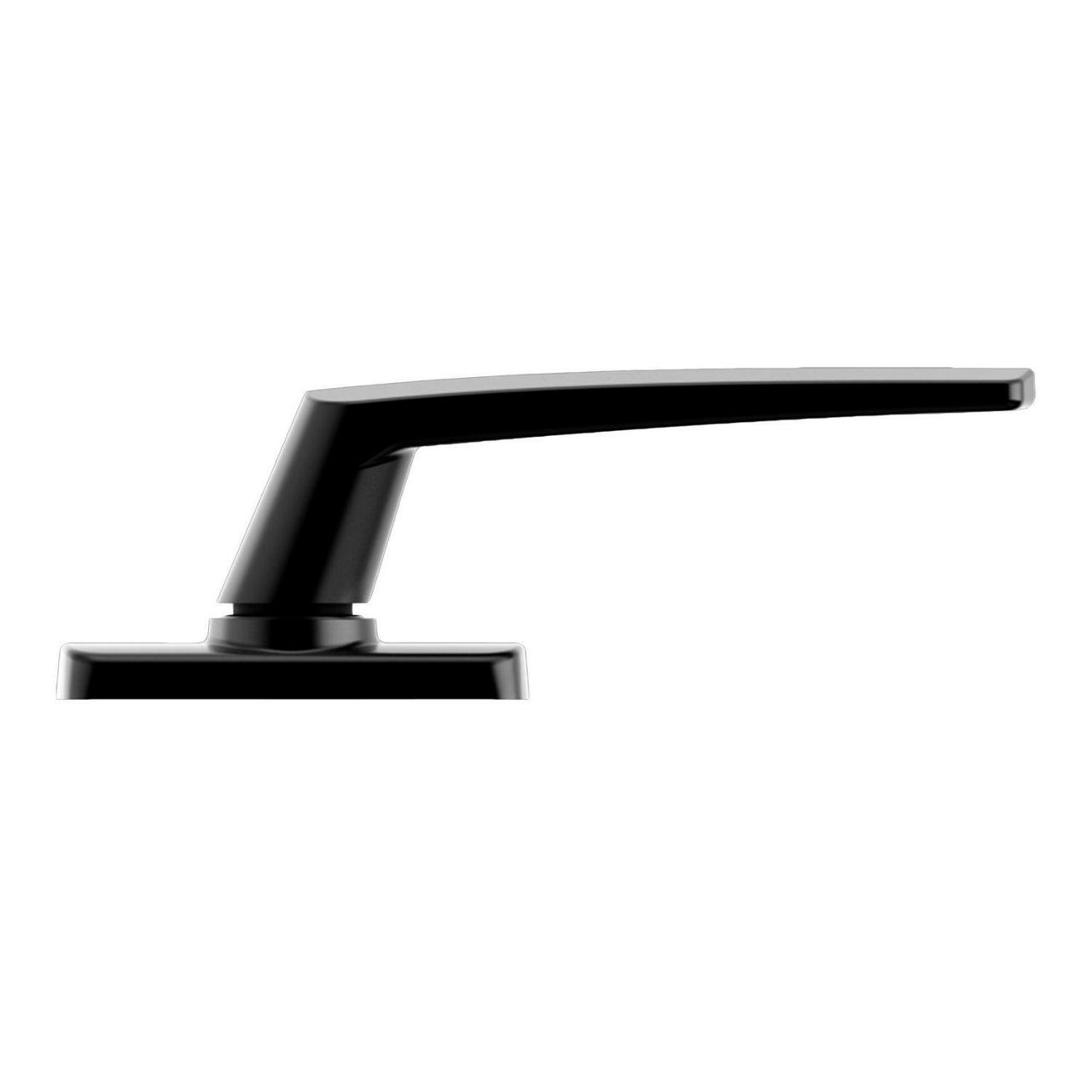

The high profile fastener allows more finger room for easier access to open and close the window.
This fastener blends seamlessly with the full range of Aria furniture, to create a modern and consistent look. It can be used on either aluminium or uPVC, casement or awning windows.
Features
- Helix Seal™ patented 90° cam action
- Enhanced seal compression without the need of a flap or wedge
- Tongue shield with chamfered edge to protect the window frame
- High profile provides more finger room when opeing and closing
- High quality pressure die-cast components with colour matched tongue shield
- Face fixing

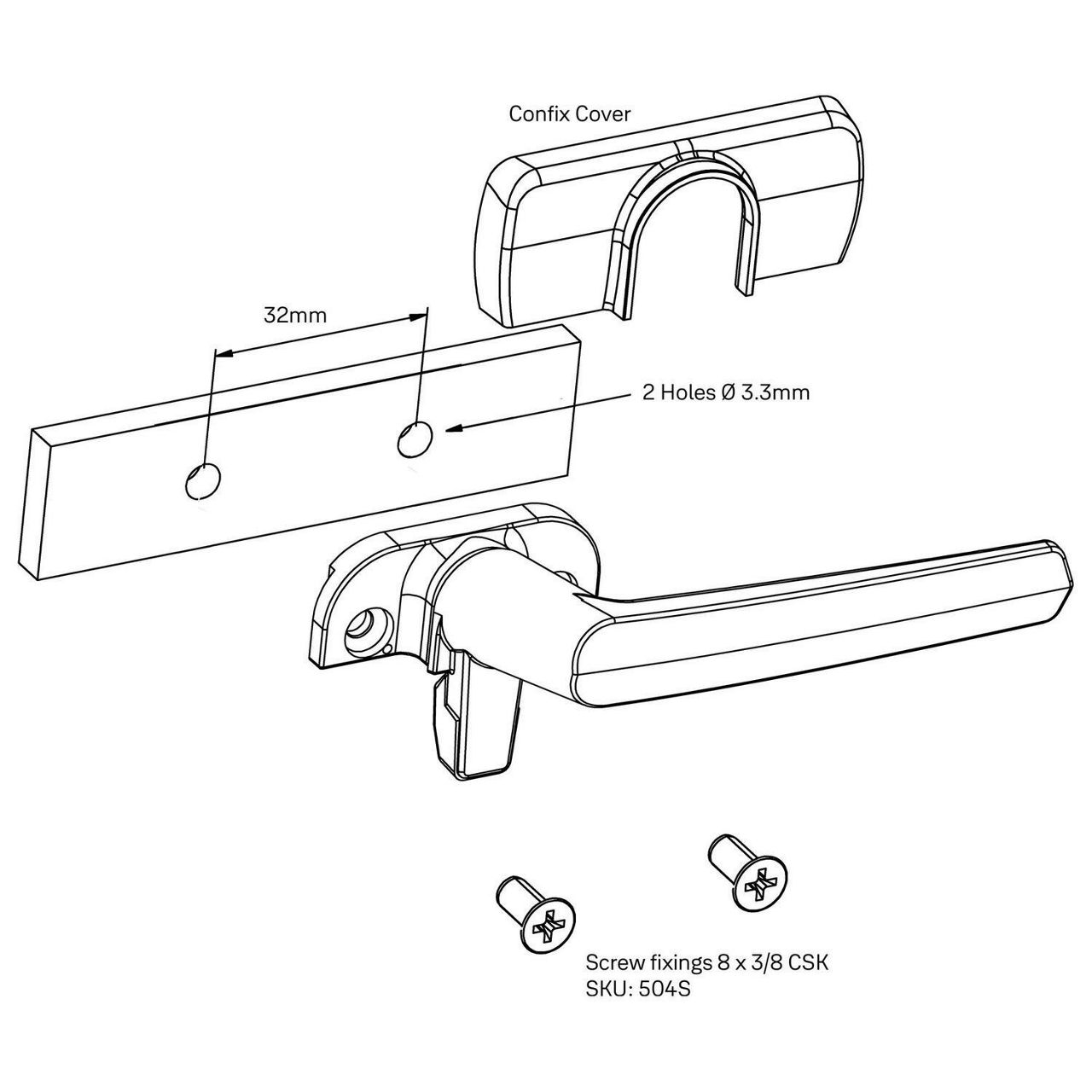

- Concealed fixing
- Quality friction joint providing tested and proven durability
- New Zealand made
Options
- Left and right handed models
- Available in a wide range of powder coat colours or satin chrome finish
Item Part number Finish ARIA HELIXSEAL WINDOW FASTENER HIGH PROFILE RH 630B BLACK ARIA HELIXSEAL WINDOW FASTENER HIGH PROFILE LH 631B BLACK ARIA HELIXSEAL WINDOW FASTENER HIGH PROFILE RH 630SC SATIN CHROME ARIA HELIXSEAL WINDOW FASTENER HIGH PROFILE LH 631SC SATIN CHROME ARIA HELIXSEAL WINDOW FASTENER HIGH PROFILE RH 630P POWDERCOAT ARIA HELIXSEAL WINDOW FASTENER HIGH PROFILE LH 631P POWERCOAT
