Aeron® Window Actuator

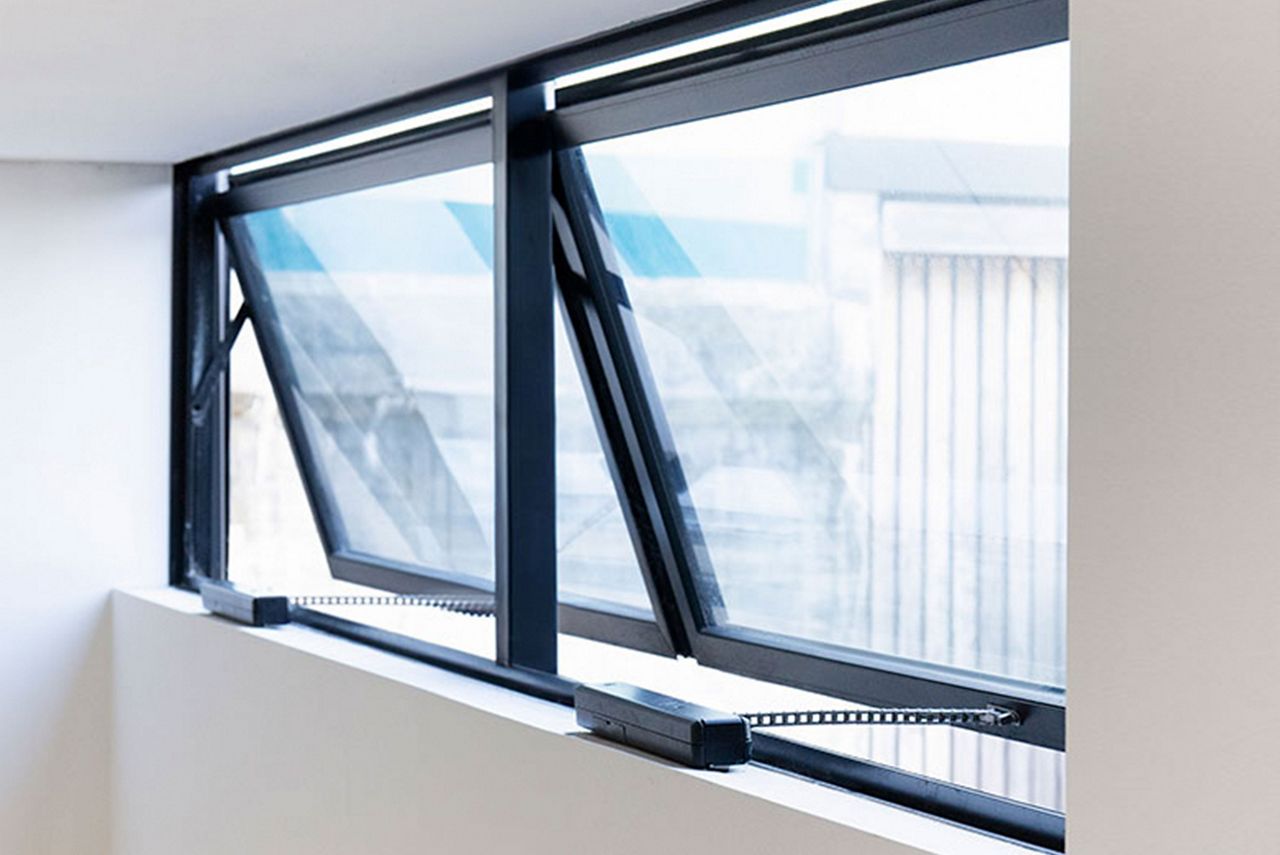

The Aeron® Window Control System can be configured to reflect the unique layout of your home. Groups, such as the kitchen, hall, or bedroom can be set up, providing flexibility when deciding which windows you would like open, half open, closed, or in a venting position.

The Aeron® is the perfect solution for hard-to-reach windows, offering control via a remote and the Yale Home App.* Wide windows are also easily catered for with the installation of a pair of synced actuators that work together to ensure smooth movement and a tight window seal when closed.

The Aeron® allows for a generous window opening but can be easily restricted to a range of distances via an easy-to-use side switch, preventing contact with external objects.

Add a rain sensor to your Aeron® system and your windows will automatically close if rain is detected.

Ultimate control is only one touch away with the option to close all windows at once when leaving the house, or locking up for the night.

*Currently not compatible with Amazon Alexa, Google Home, Apple HomeKit, or Samsung SmartThings.

Find a Distributor
Aeron Actuator

Aeron Actuator

Aeron Actuator

1 of 6

Suitability

  • Suitable for use on sashes with a maximum width of 2400mm and pushing force of 18kg (with two actuators)
  • Suitable for awning or casement windows
  • Aeron Actuators are only to be used on windows with hinges or non-friction stays

Fixing Surfaces

  • Timber
  • Aluminium

Voltage
24V DC

Maximum Current Draw

  • Actuator = 600mA
  • Rain Sensor + Adaptor = 350mA

Operating Force
Opening/Closing Force 9kg

Window Opening
Maximum window opening is 250mm

Stroke Time
Closing time from the maximum opening position is approximately 30 seconds

Environment

  • 0 to 50° Celsius
  • 0 to 95% Humidity

Chain
Stainless Steel (Grade 304)

Finish
Powdercoat colour options (BLK, P, and SPEC)

  • Aeron Yale Home App Handy Tips(PDF, 1 MB)
  • Aeron Selection Chart(PDF, 76 KB)
  • Aeron Synchronised Actuators Wiring Instructions(PDF, 155 KB)
  • aeron-remote-control-user-guide(PDF, 2 MB)
  • Aeron Retrofit Conel Instructions(PDF, 211 KB)
  • Aeron Retrofit Elevation Instructions(PDF, 980 KB)
  • Aeron Installation Instructions(PDF, 789 KB)
  • Yale Connect Plus Hub 2 Flyer(PDF, 2 MB)
  • Aeron Specification Guide(PDF, 1 MB)
  • (Instr)_Q50296_Aeron_RainSensor_180325_V2 (eshop)(PDF, 1 MB)
  • Aeron Window Actuator Flyer(PDF, 2 MB)
  • Aeron Technical Flyer(PDF, 1 MB)
DescriptionPart numberFinish
Aeron Wireless ActuatorYAR/WSWA/1/Black (BLK), Popular (P), or Special (SPEC)
Aeron Power SupplyYAR/SWAA/SPS

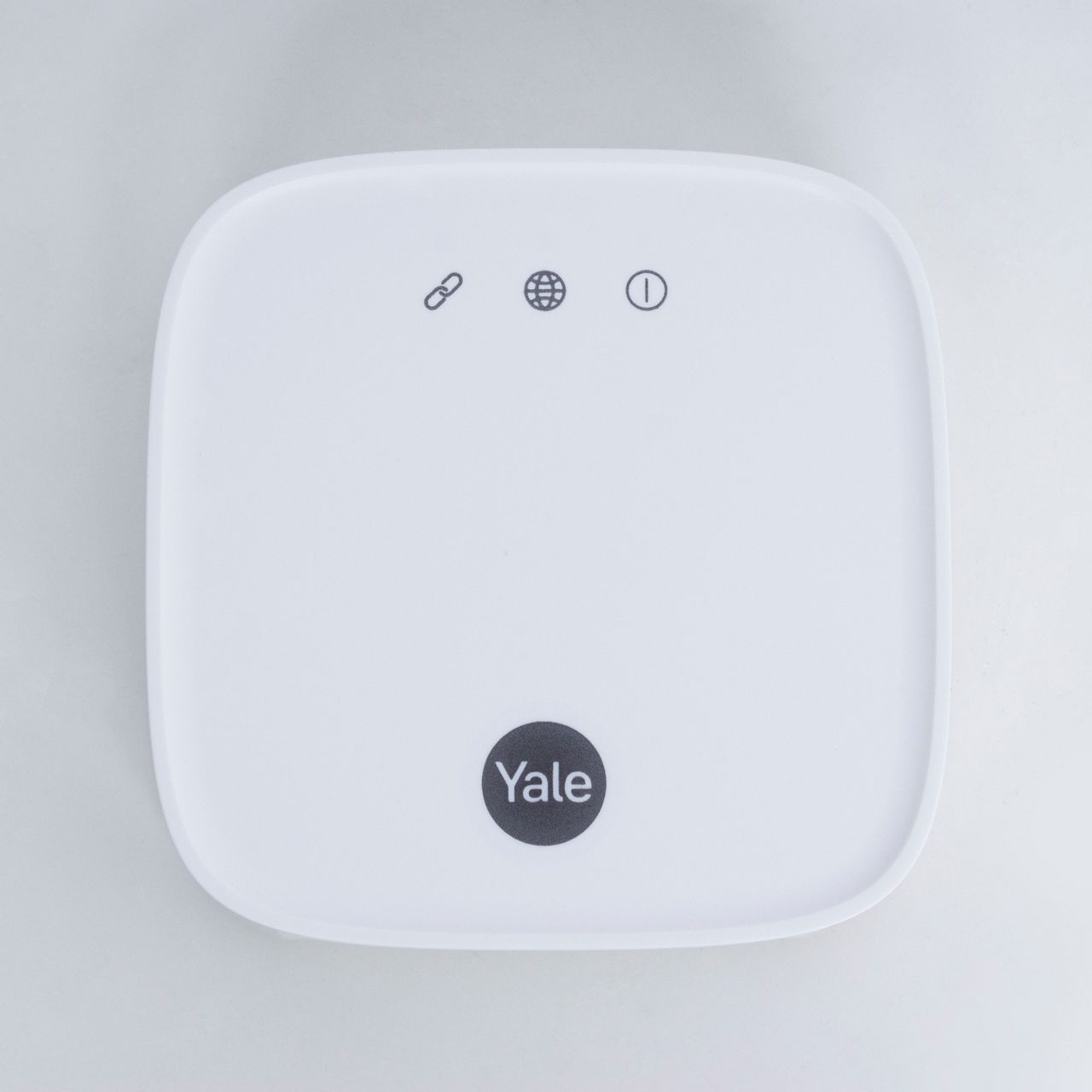

Yale Connect Plus Hub 2YAR/SWAA/HUB/-I-D

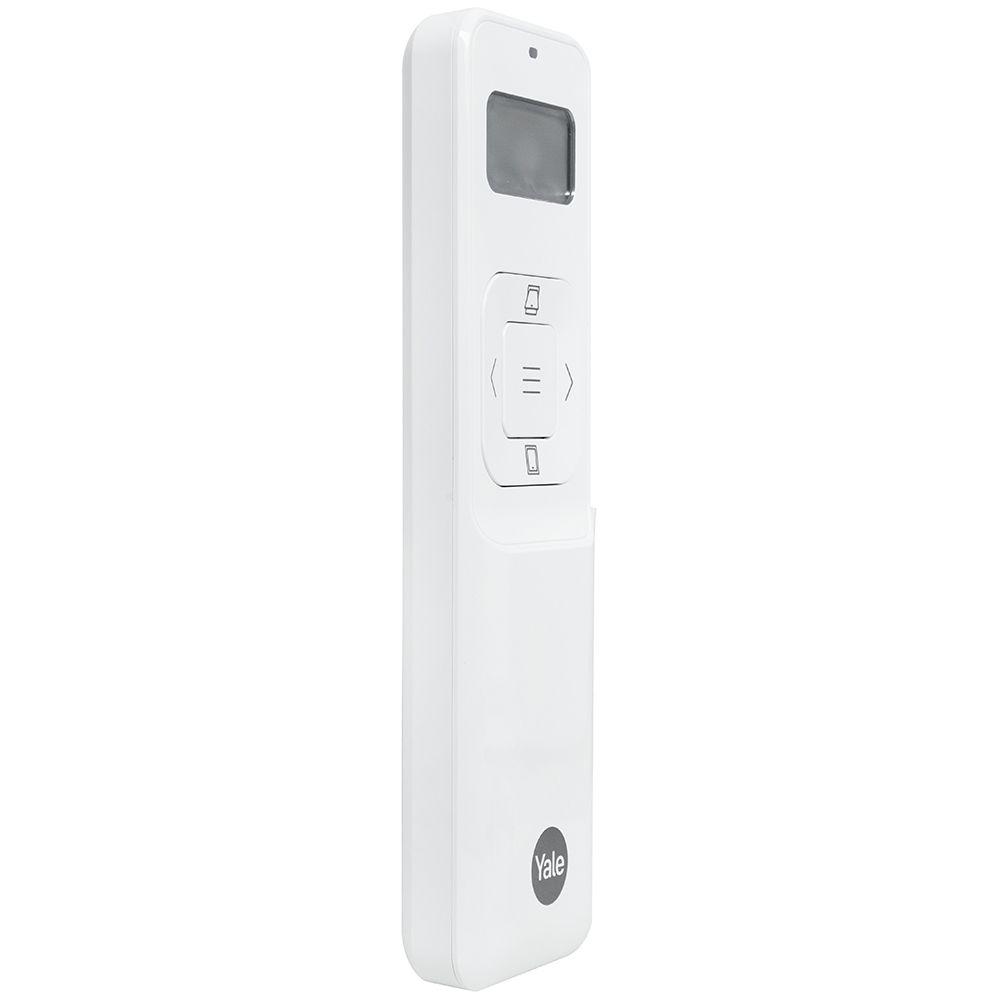

Aeron Zigbee RemoteYAR/SWAA/ZRT
Aeron Sync LoomYAR/SWAA/SSL
Aeron Actuator Accessory PackYAR/SWAA/AP

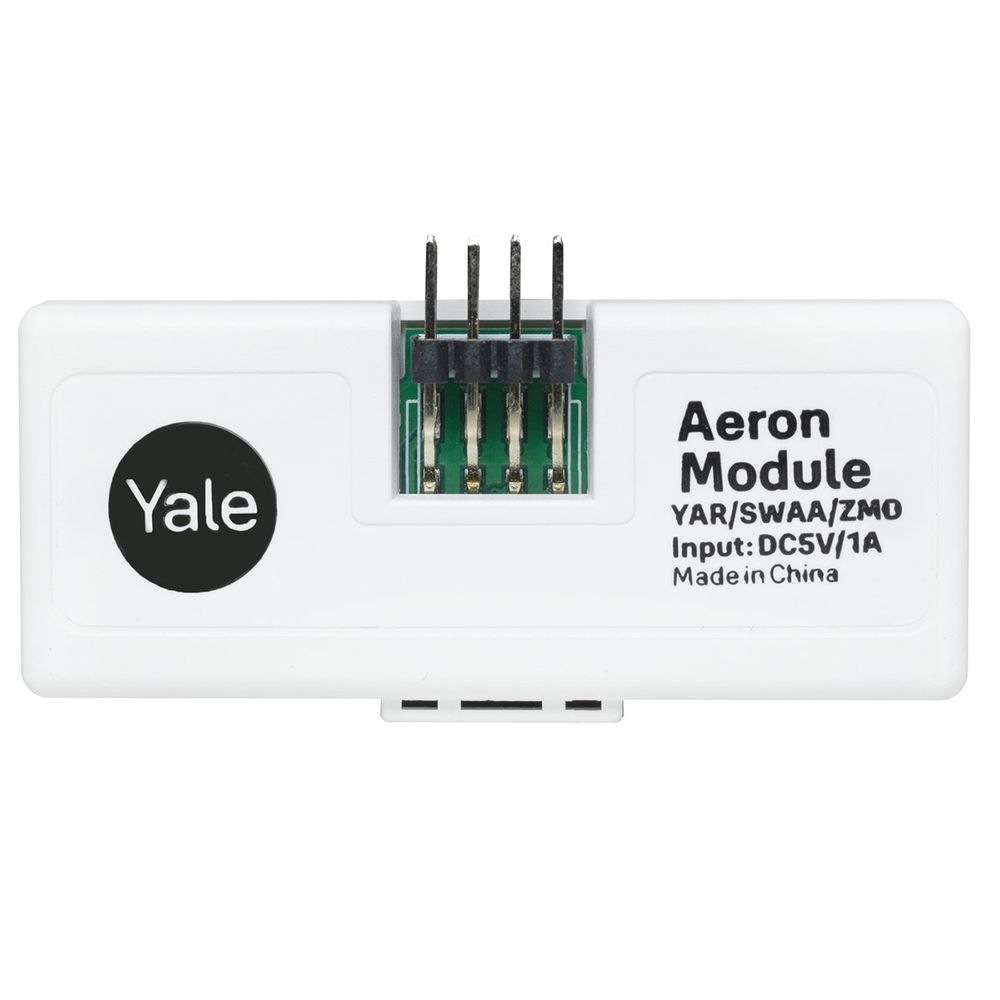

Aeron Zigbee ModuleYAR/SWAA/ZMD
Aeron Actuator End CapYAR/SWAA/EC/Black (BLK), Popular (P), or Special (SPEC)
Aeron Pivot BracketYAR/SWAA/PVT
Aeron Wiring 6 Pin Connector PlugYAR/SWAA/W6CP
