YDME70

Make life easier

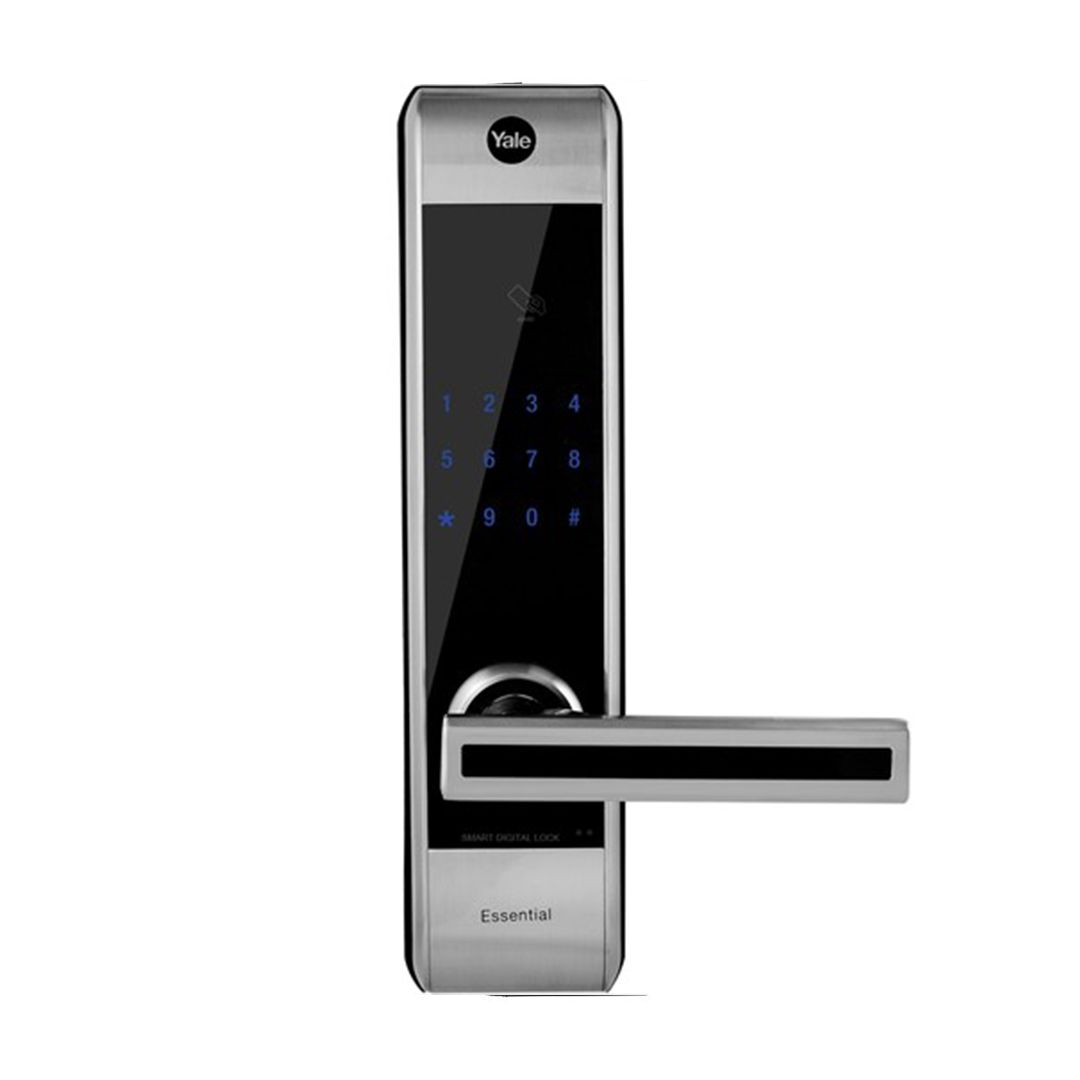

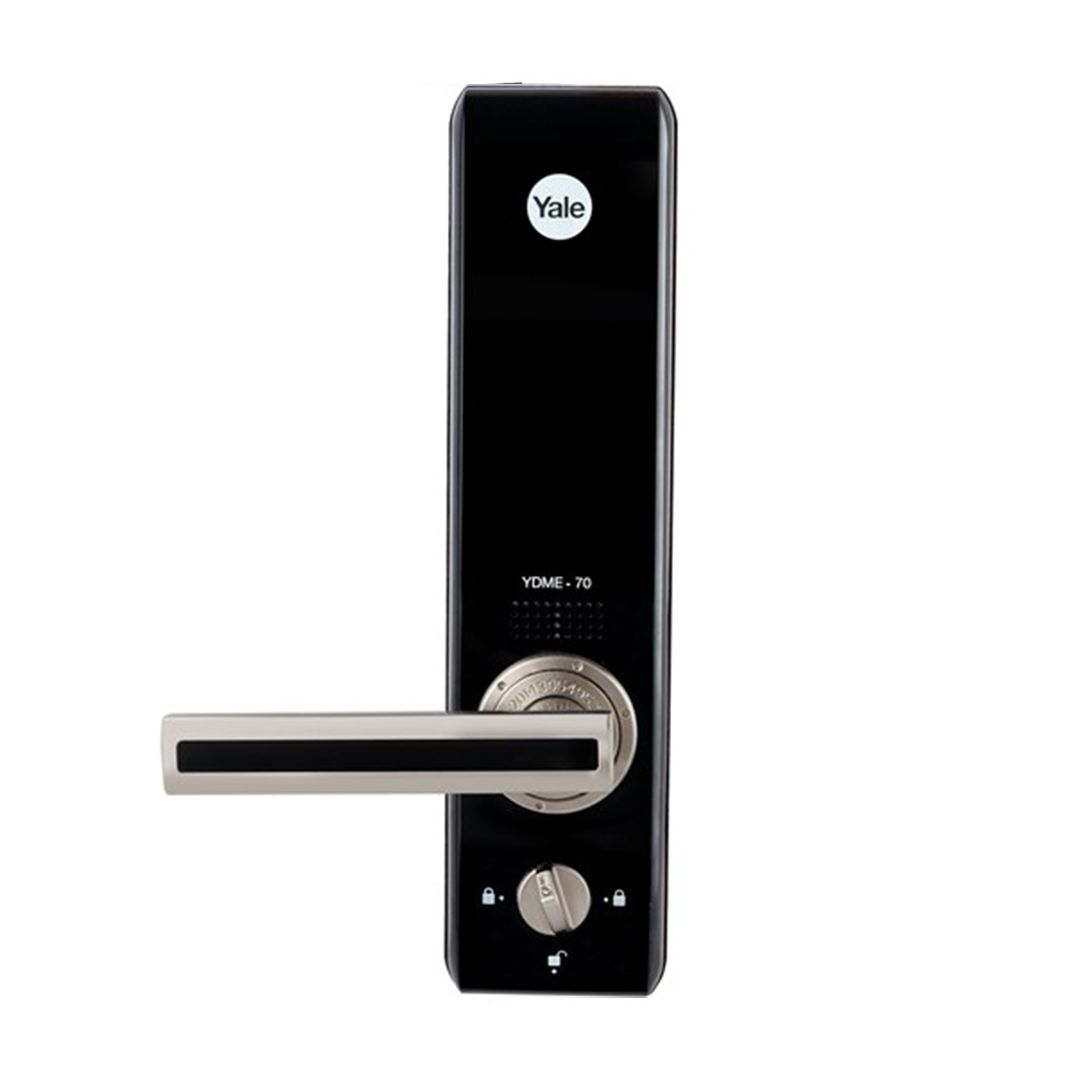

Essential Series RFID Smart Lock

YDME70 is virtually pick proof and only users with proper authority can have all the access. Plus, the built-in mechanical key override function enables user to manually unlock the device in an emergency situation.

Shop YDME70 now

Type	Mortise lock
Fingerprint	None
Card	Up to 32 cards
Mechanical key	3
PIN code	Up to 32 PIN codes
Color	Silver
Thickness	35-55mm
Backset	60mm
Front body dimension	73 (W) x 310 (H) x 22.5 (D) mm
Back body dimension	74.9 (W) x 310.4 (H) x 26 (D) mm
Door Type	Wood
Handling	Non-reversible

c8805-usermanual-ydme70(PDF, 1 MB)

Trust Yale every day

Our passion is to improve everyone’s every day lives, no matter where they are. If you know your home’s safe, it’s easier to enjoy life and be productive. We strive to make day-to-day life easier.

Key Features

Live smart with our home smart lock systems by upgrading your home security system to the all-new Yale Smart Lock. Now you can live smartly by unlocking your door with your fingerprint, RFID key tag, or a pin code.

RFID Card Access
Access using your registered RFID cards. Once you lose a card key, it has no validation as long as you re-register rest of your card keys.
Fake PIN Code
To prevent the PIN Code from being exposed, it allows you to enter fake numbers before or after entering your actual PIN Code.
Alarm (Break-in / Damage)
80dB alarm will be triggered if anyone attempts to damage the lock, force the door open.
Automatic Locking
After the door was closed, Yale smart locks automatically locks after 3 seconds. (Manual operation is also available.)
Low battery alarm and emergency power supply terminal
It warns in case of low battery. And when the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.
Voice Guide Feature
Lets you know the operation status and how to set each features and modes.
