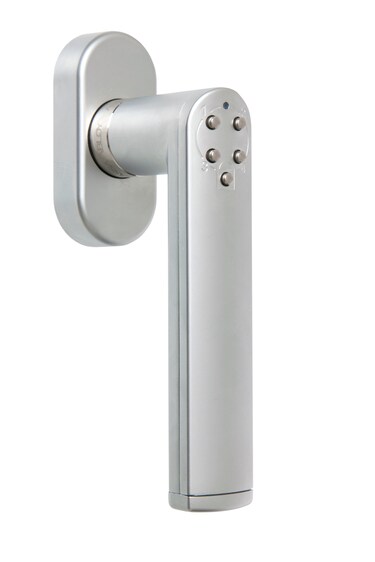

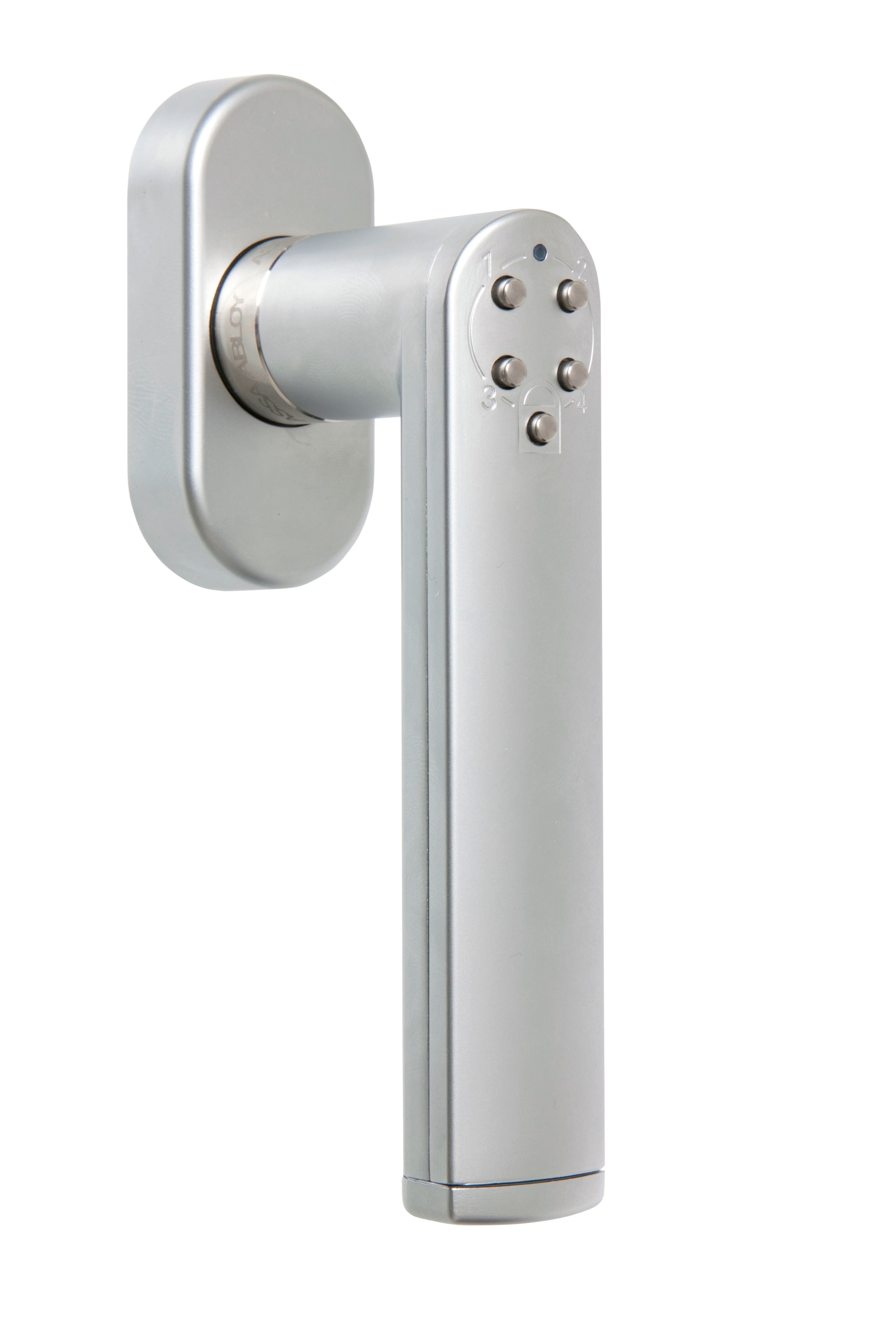

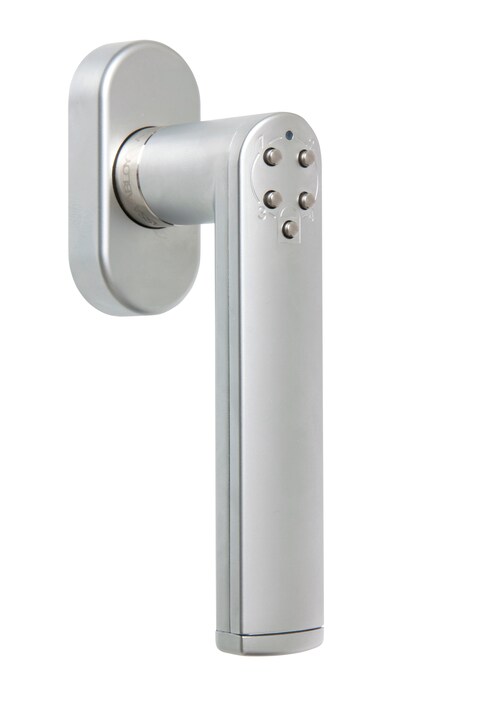

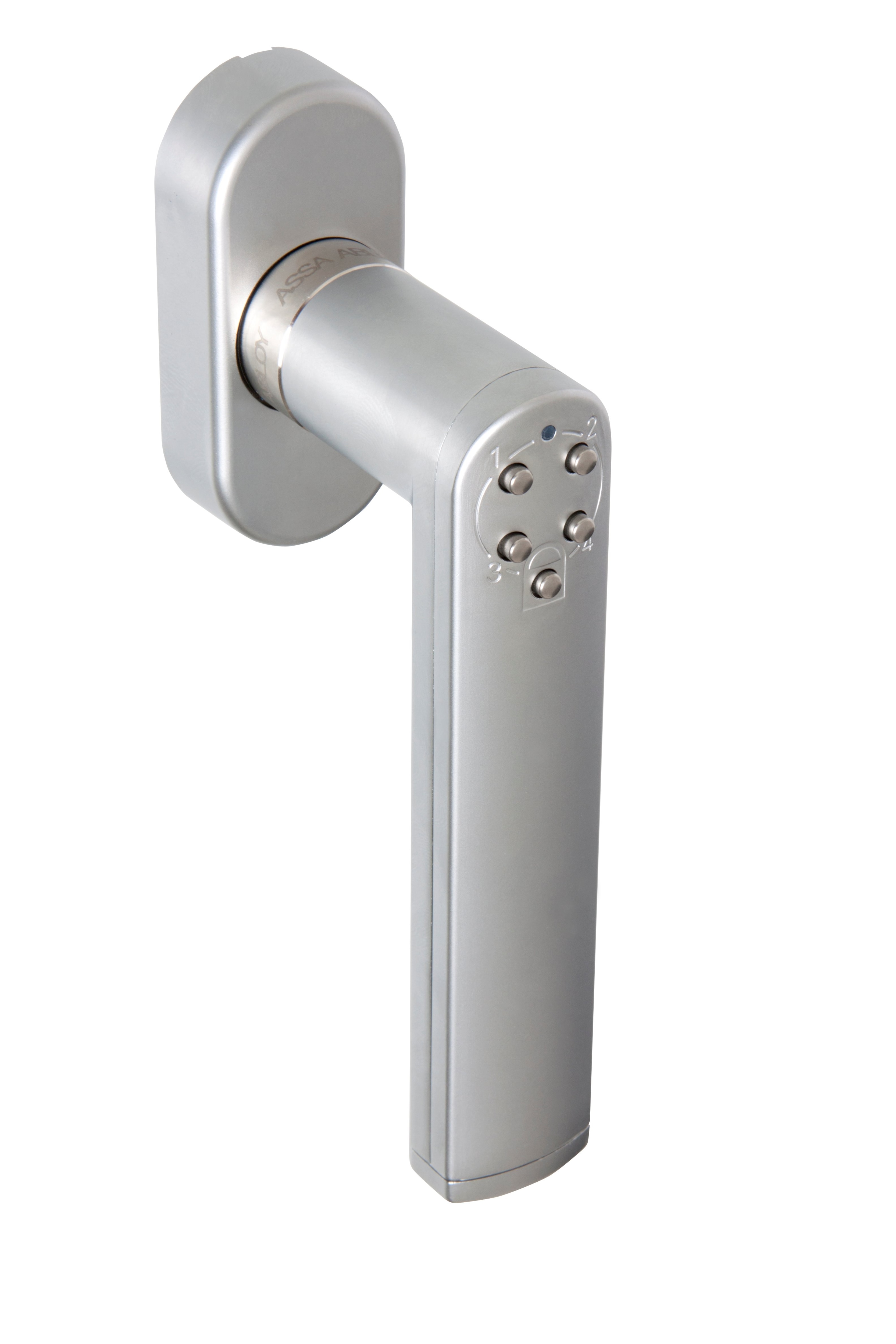

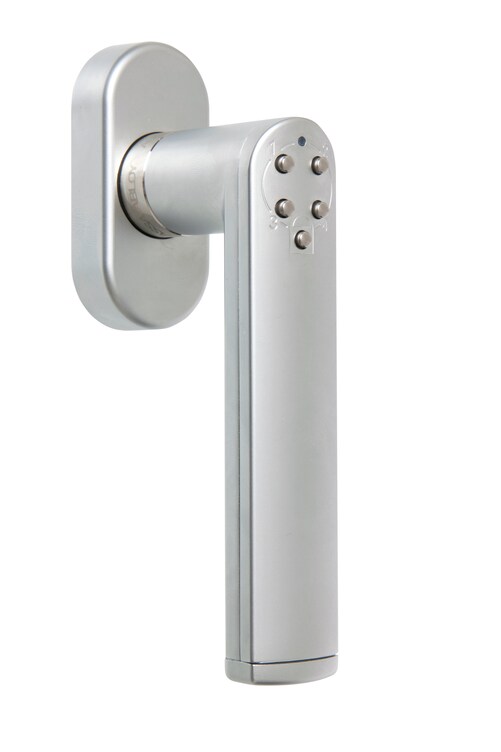

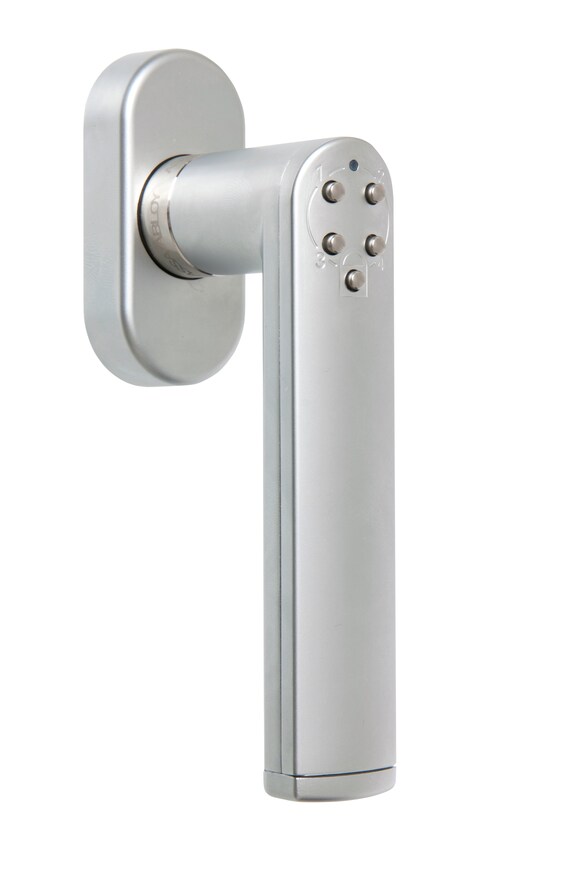

Code Handle - Window

The Yale window code handle is used to lock/unlock your windows and patio/balcony doors with a code. Fits window/doors that open inwards.



Features

  • Lock and unlock by using your personal code without key
  • Locks patio/balcony doors and windows from the inside
  • Possibility to lock in all 90° positions i.e. also in ventilation mode for tilt and turn type doors/windows
  • Enhances child safety
  • Simple installation, no wiring



Specifications

  • The Code Handle is unlocked with a 6 digit code to be based on numbers 1 to 4
  • Separate lock button
  • 1 administrator/user code + 4 additional user codes
  • Blocking function when wrong code is entered repeatedly
  • One combined administrator/user code to enter/change/reset user codes and enable/disable sound
  • The code is not affected by voltage drop/battery change
  • Operated with standard AAA alkaline batteries
  • Battery lifetime is approximately 2 years/15.000 operations
  • Low battery indication
  • Supplied with M5 screws, security screws and 3 interchangeable spindles
  • Fits DIN standard 43 mm c/c
  • Dimensions:
    - Handle length: 126 mm
    - Depth: 70 mm
    - Rosette size: 70 x 32.5 mm
  • 7mm spindle

Where to buy

Similar products

  • Code Handle - Door

    Yale code handle is an innovative solution with an automatic locking mechanism built into the handle, which only allows the door to be opened when entering the correct personal code.







    Features

    • Auto locking function available
    • Master code and up to nine different user codes
    • Visual and acoustic feedback
    • Easy to fit, no cables
    • Indoor use only



    Specifications

    • Locking mechanism is operated with 4 buttons
    • Unique reset functions
    • Master code and user codes can be reset as and when required
    • Two CR2, 3V lithium batteries in outer handle
    • Stainless steel and zinc chrome finish



  • Smart Code Handle

    Enhance Security with a Smart Sliding Door Lock for Your Home.

    The Yale Smart Code Handle enhances security by locking terrace doors and windows, preventing intruders and children from opening them.
    It fits most terrace doors without a latch bolt and is easy to install. This sliding door lock provides an added layer of protection, ensuring safety for your home.

    You can now lock and unlock your door or window with a code or the Yale Home app. The sliding door lock offers convenience and control, allowing you to secure your space effortlessly. With a durable and reliable sliding door lock, you can enhance both security and ease of use.

    Features:

    • Lock and unlock your patio doors and windows remotely from anywhere, using the Yale Home app (Yale Wi-Fi Bridge required)
    • 7mm and 8mm spindle included
    • SBSC certified according to SSF 3620
    • Unlock your terrace door from the outside with Yale Smart Keypad (not included)
    • DoorSense™ technology helps indicate if the door/window is left ajar or unlocked

    Specifications:

    • User code: Up to four 6-digit codes
    • Certification: SBSC certified according to SSF 3620
    • Finish: Satin chrome
    • Power supply: 2 pcs of AAA alkaline batteries included. Automatic low battery warning.
    • Assembly: For indoor use on windows and window doors.
      7mm and 8mm spindle in 53mm & 100mm length included. Spindle can be cut to length
      Fits narrow windows & window doors down to 500mm width
    • Communication frequency: Bluetooth version 5.2-2.4 MHz. Range up to 15m
    • Application: The product is intended for use on the inside of windows and terrace doors made from wood, aluminum, or PVC. The window/door handle movement should be 90° or 180°. The window/door should not have a latch bolt

      Intended usage temperature between 0-50°C. Avoid environments with high humidity
