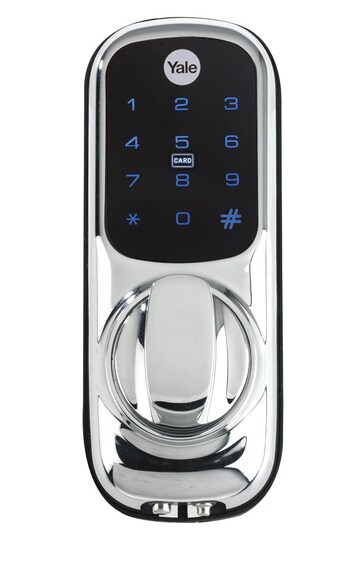

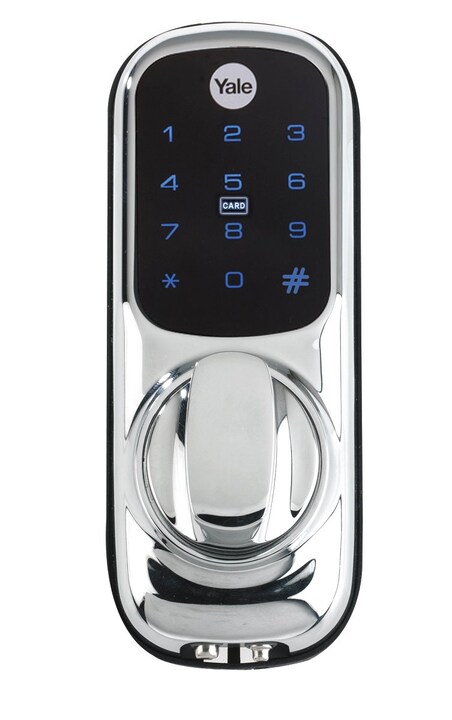

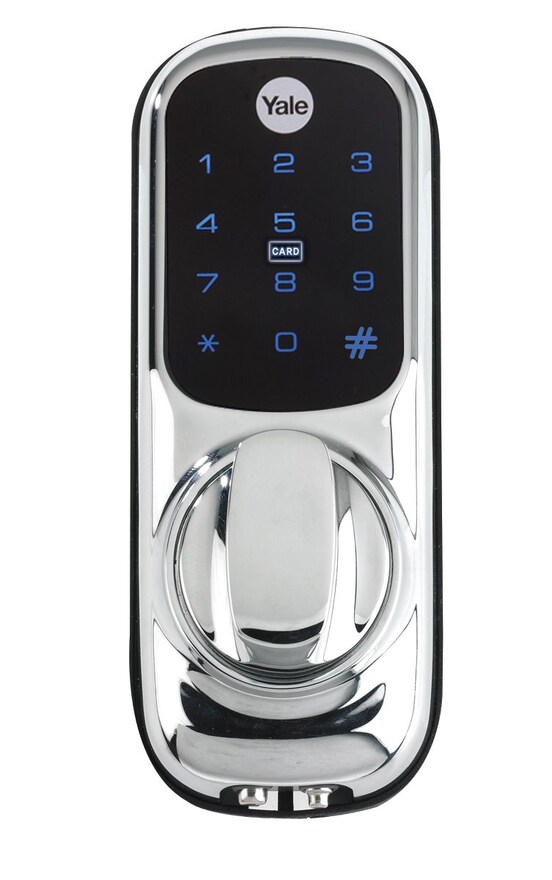

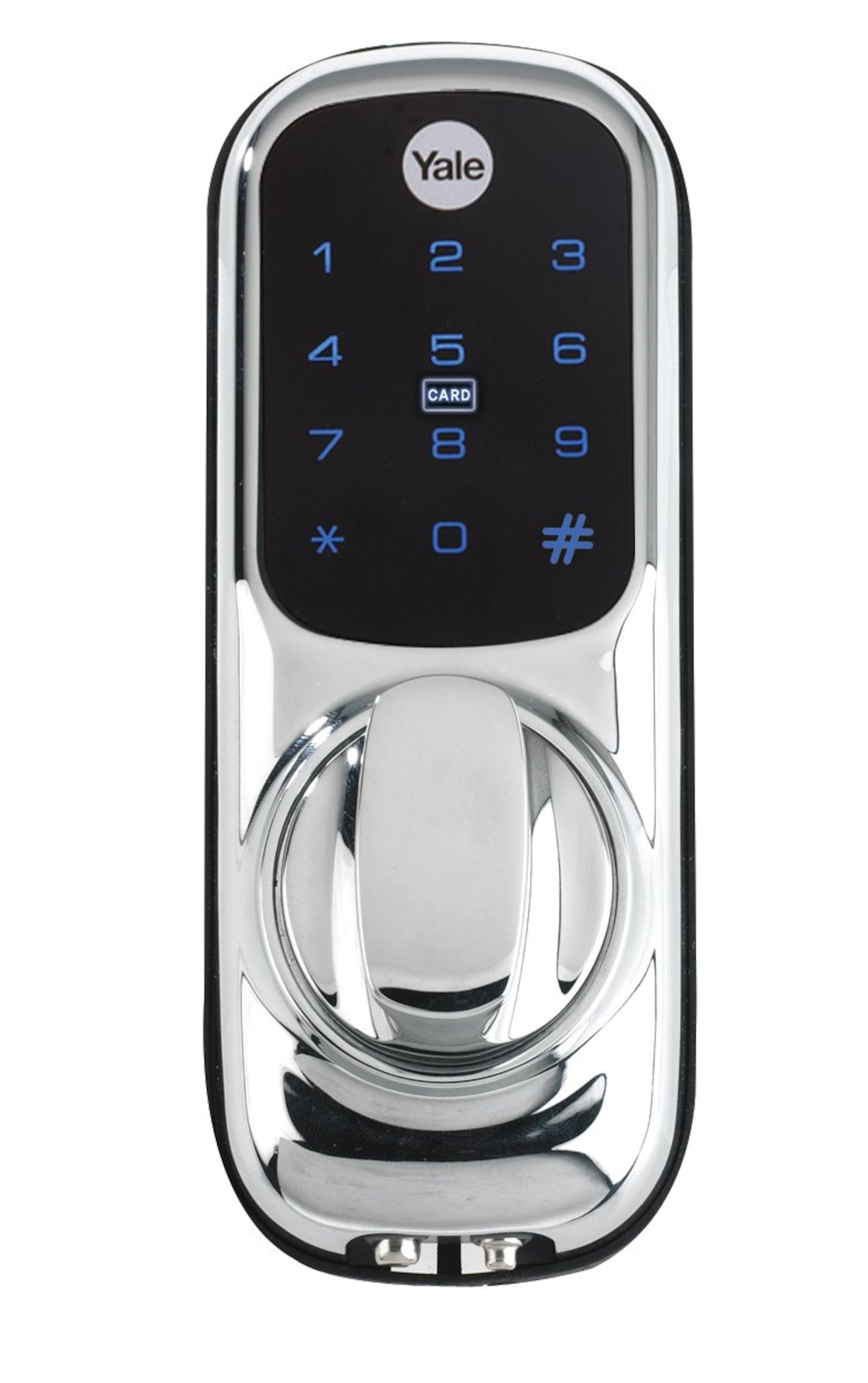

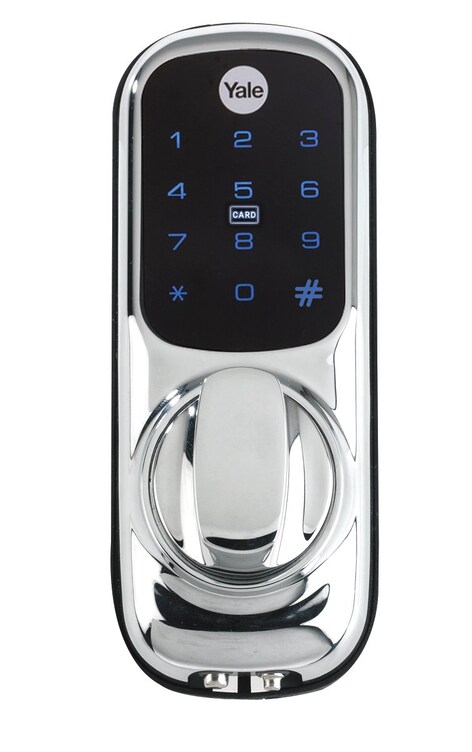

Smart Door Lock Keyless Connected (for wooden & metal doors)

The Yale Keyless Connected smart lock gives you freedom to
secure your home without the need for a key. Simple to use, you now have complete control on how you unlock your door.

What are the benefits of a Yale Keyless Connected Smart Door Lock?

Convenience of a Keyless Connected smart door lock: There’s no need to worry if your children arrive home early, or if you’re stuck at work with friends on your doorstep. You control who and when people have access to your home. For example, you can set a PIN code that works for 24 hours for a family member or your cleaning person.

Simple to use: You choose how you want to open your door. PIN code, key card, key tag, remote fob and even from your smartphone when connected to a smart home system. It is also easy to add and remove users if you need to.

Security as standard: Feeling safe and secure is a must for any homeowner. The smart lock has a tamper alarm and incorrect PIN code feature.

Always On: Don’t worry if the electricity goes down as the smart lock is powered by 4 AA batteries. It will even warn you when the batteries are running low.

Connectivity: Complete your smart home system. The Keyless Connected smart lock can connect to leading smart home systems when the appropriate module is fitted. It also connects to the Yale SmartPhone Alarm and CCTV systems when you use the Yale module.

Features

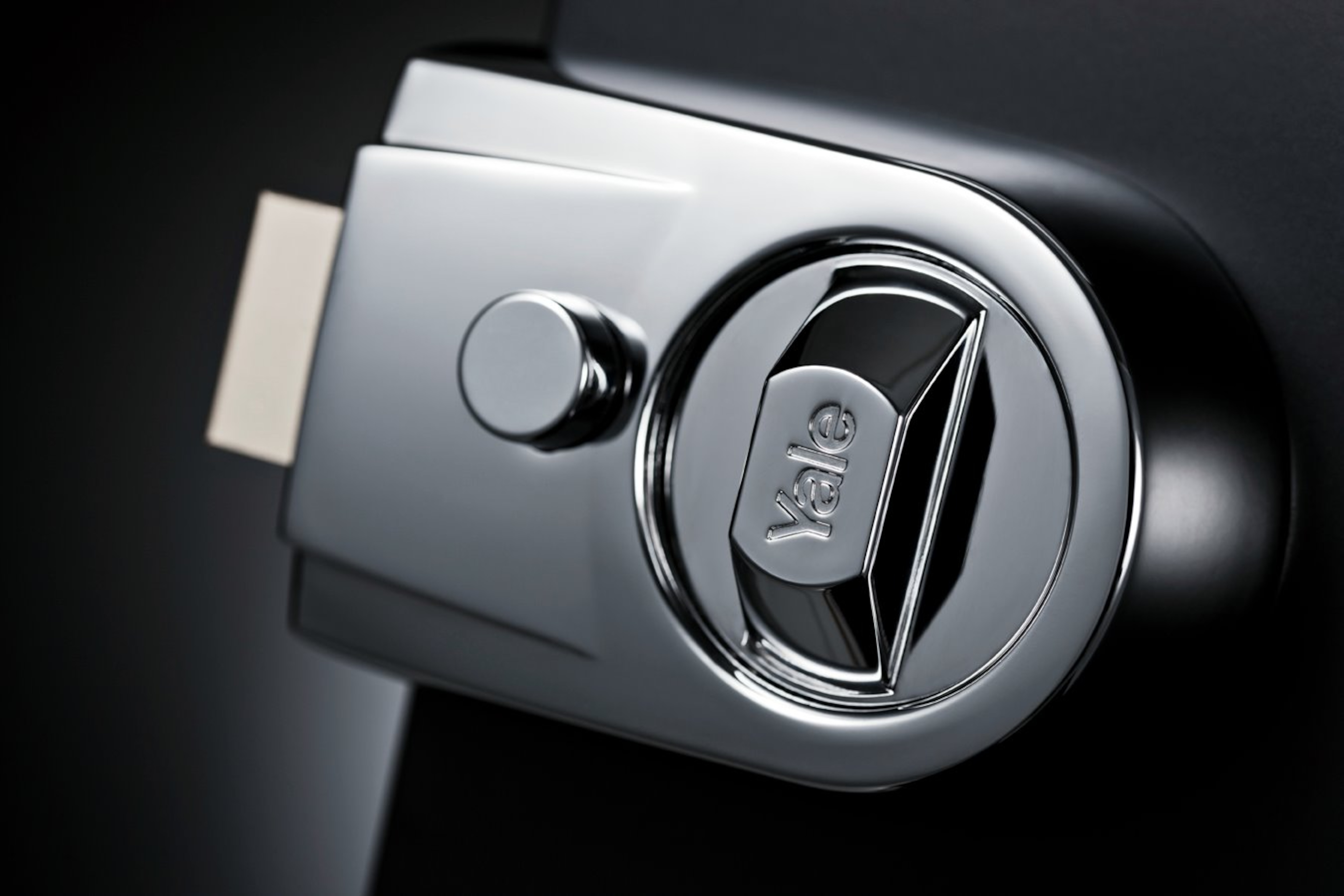

• Replaces existing rim cylinder used on a 60mm backset nightlatch

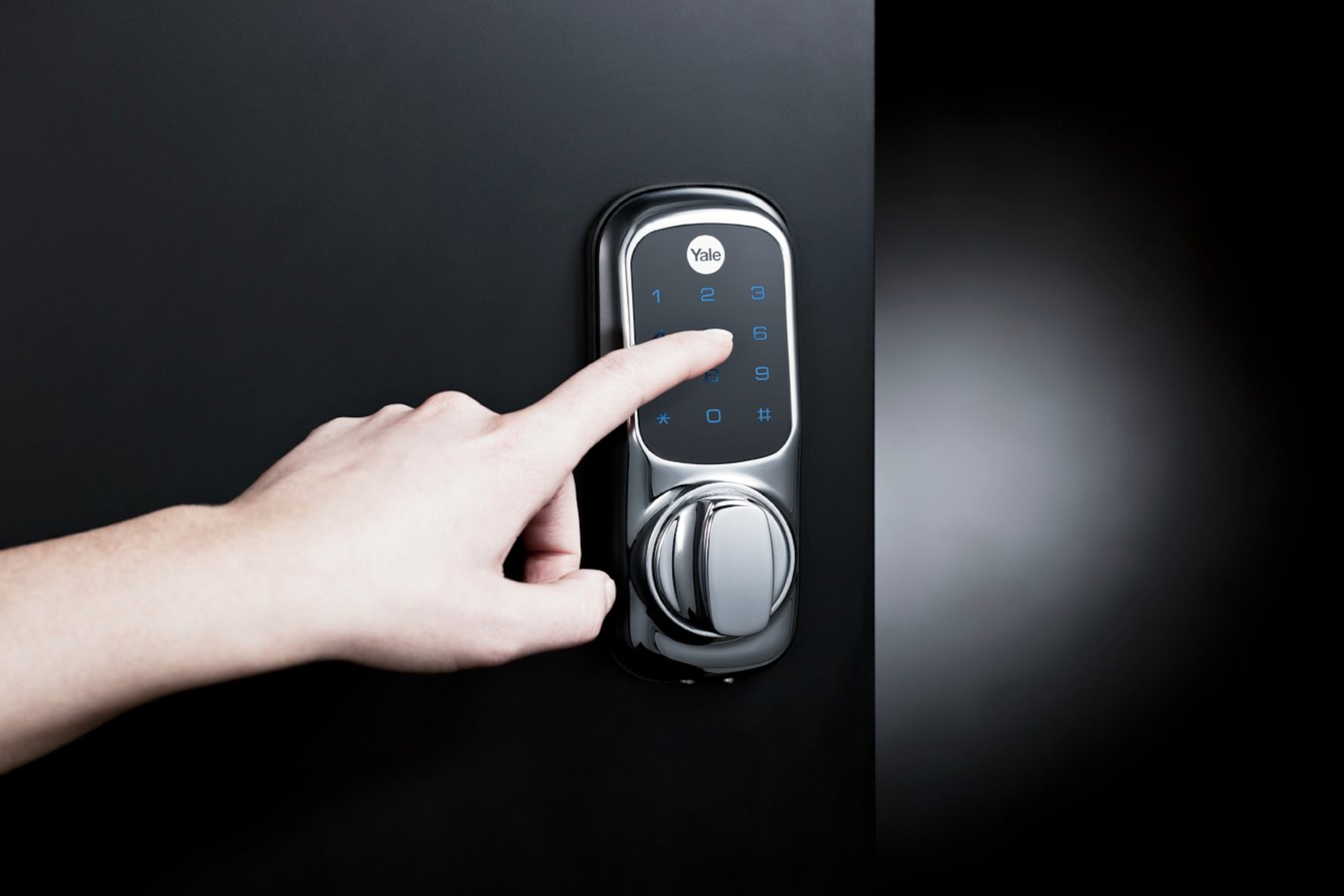

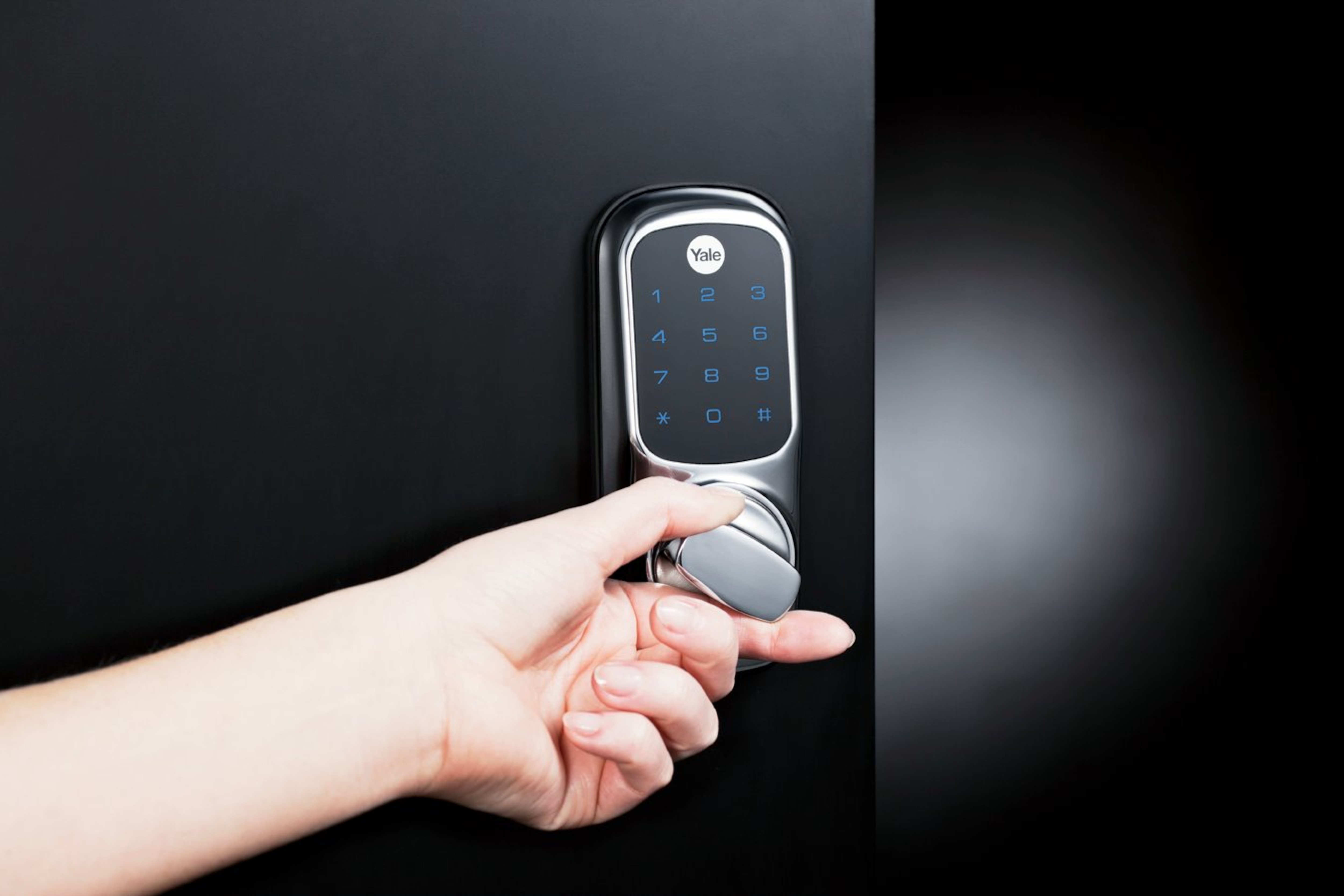

• Touchscreen with backlit keypad

• Battery operated

• Credentials: PIN code (4-12 digits) & RF Card

• Remotely add user credentials

• Remote control (optional)

• Low battery indicator with emergency battery connection

• User schedules

• Audit trails

• 3 minute lock out if code is entered incorrectly 5 times

• Tamper alarm

• Cycle tested to 120,000 cycles

• Low power consumption - unlocks up to 10,000 times with one set of 4 x AA batteries

• 2 year guarantee

• Optional Accessories: Remote Fob Module (includes one fob)
  Additional Remote Fobs
  Yale® Module
  Z-Wave® Module
  Key Card
  Key Tag

• Connectivity:
  Connects to Yale® Smart Alarm and CCTV range (Yale Module).
  Connects to Z-Wave® compatible smart home systems (Z-wave Module)

Specifications

• Type: rim lock
• Credentials: Pin code (4-12 digits) & RFID card
• Backset: 60mm
• Colour: silver
• IP 55 weather resistant
• Door thickness: 40-57mm

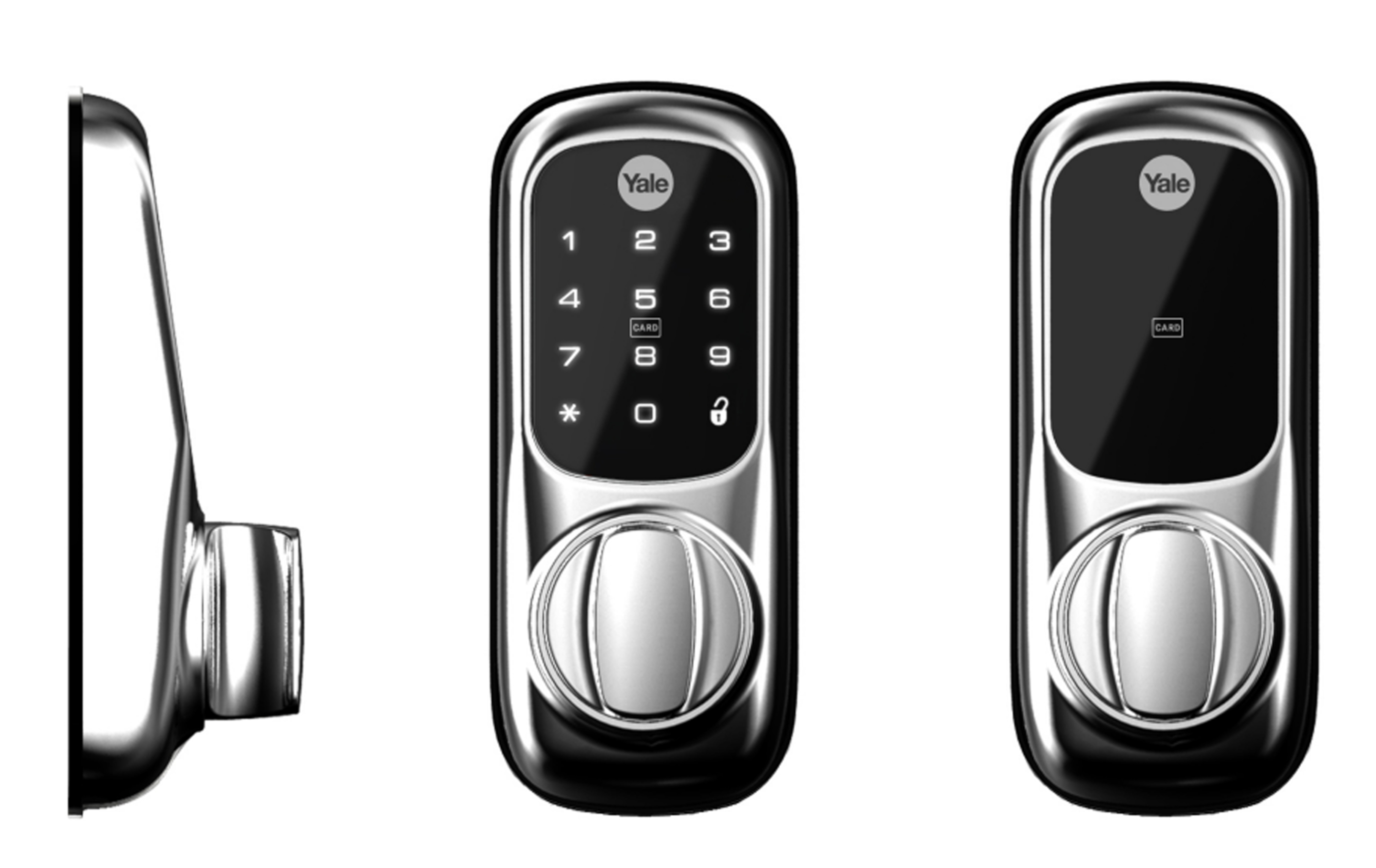

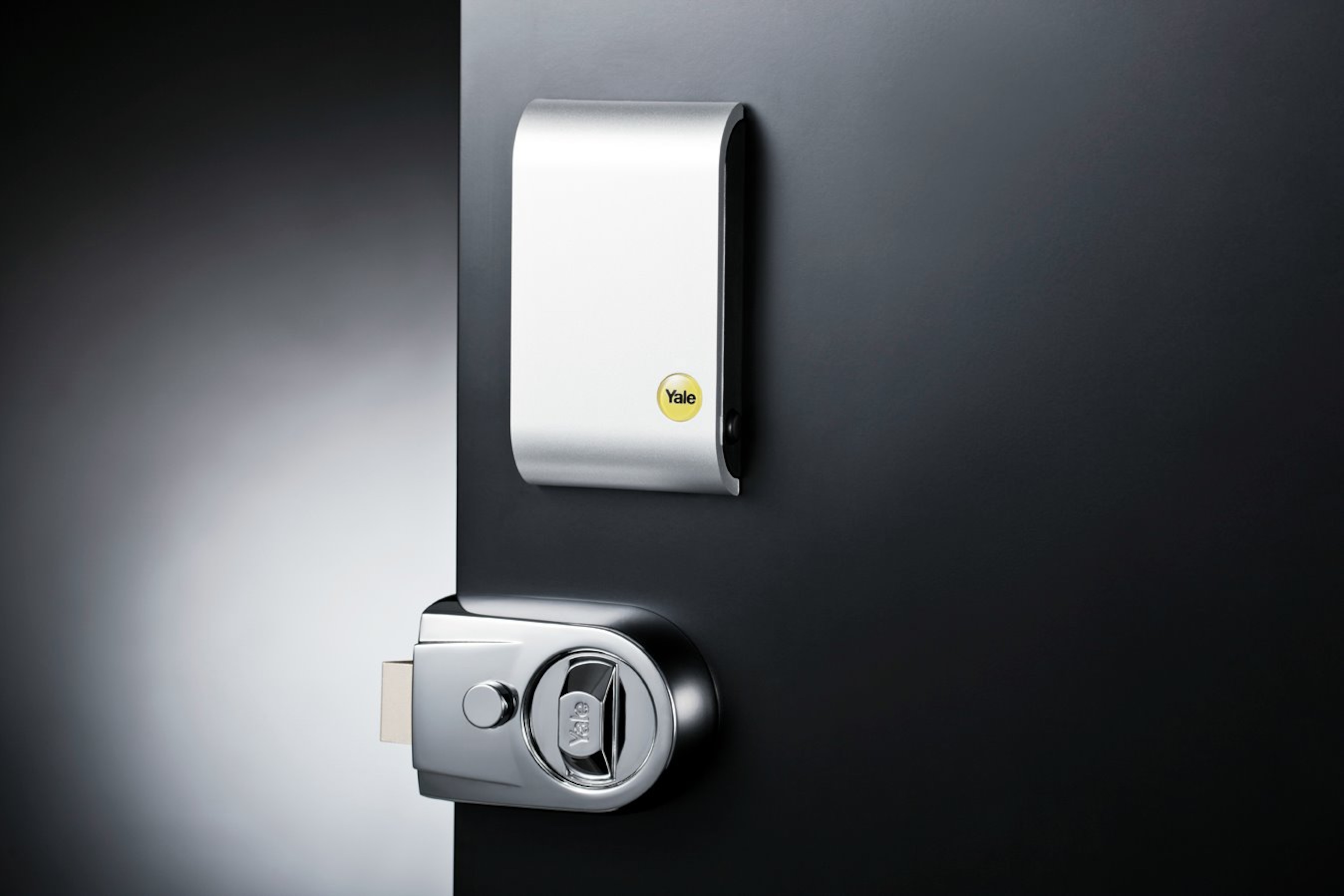

• Dimensions: front body 64(W)x153(H)x51(D)mm; Battery pack 68(W)x120(H)x21(D)mm
• Operating temperature -15oC to 55oC
