Everyday Use with the Yale Electronic Safe L2

Important: Removing the batteries will erase your user code. You must reprogram it after replacing the batteries.

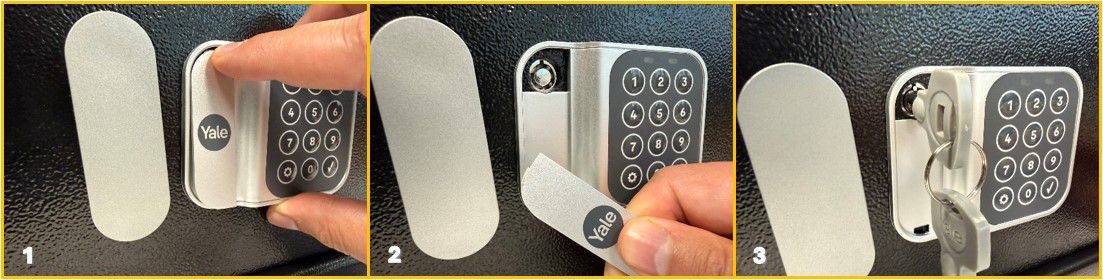

Opening the Safe

1. Press the top of the keyhole cover to remove it.
2. Insert the key into the lock. Turn the key and handle anti-clockwise to open the door.

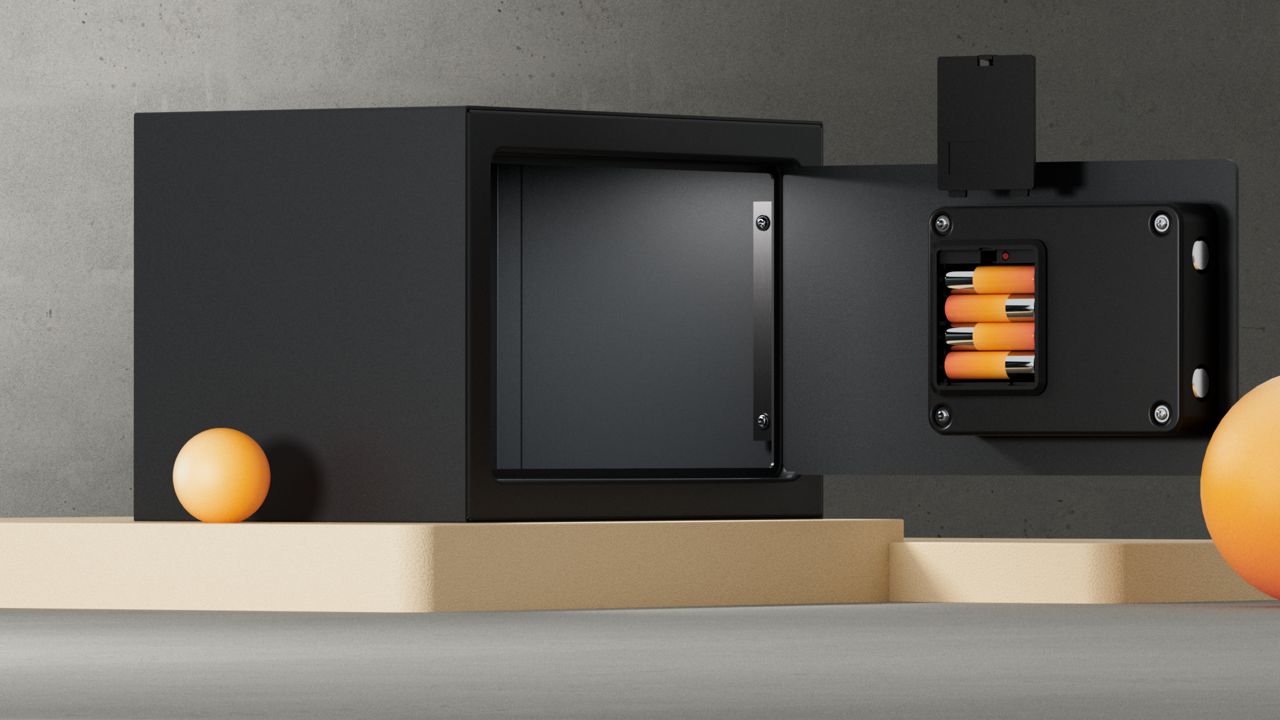

Installing Batteries & Setting a New Code

1. Open the door and remove the battery cover on the back of the door.
2. Insert 4 x AA batteries inside the compartment.
3. Press the red button above the batteries. You will hear two beeps.
4. Enter your chosen code (3–8 digits), then press the confirm (√) button within 15 seconds.
5. When the code is accepted, you will hear a confirmation beep.

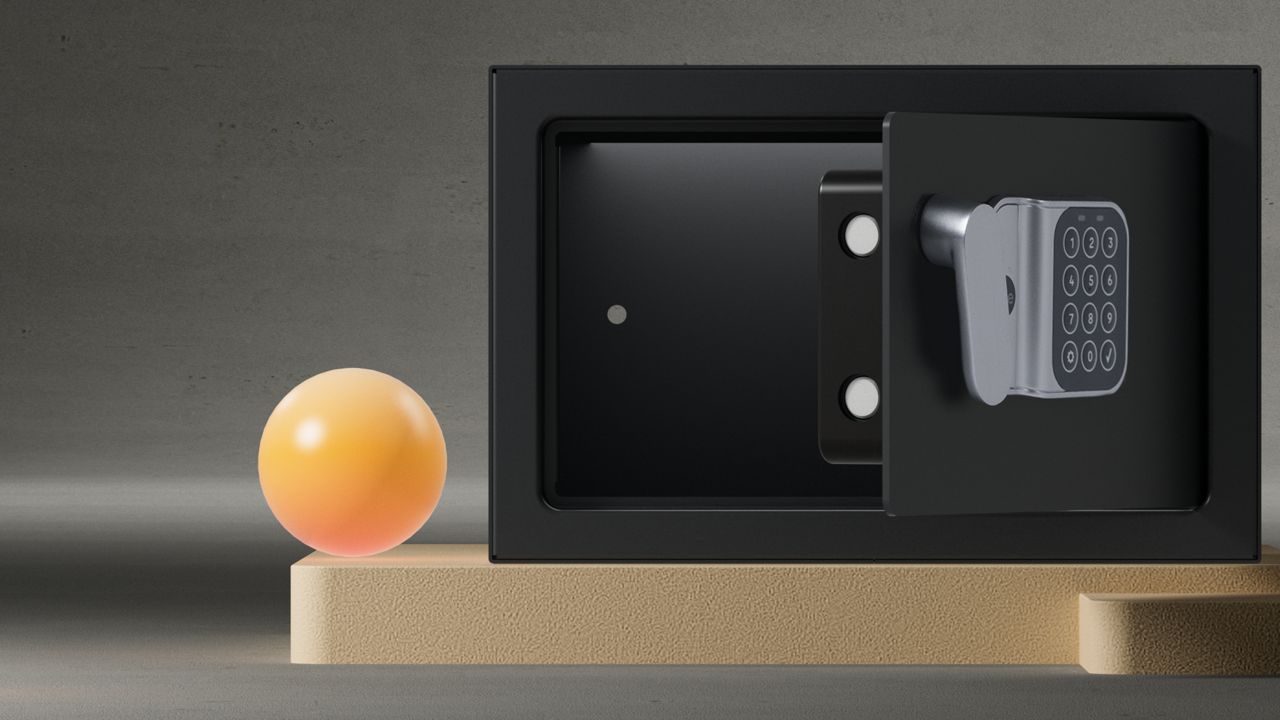

How to open the door

1. Enter your user code, then press the ✔ button.
2. If the code is correct, the green light will stay on.
3. Turn the handle anti-clockwise (counter-clockwise) to open the door.

Tip: If the green light does not stay on, check your code and try again.

To mute the sound, press and hold the Settings button for three seconds. Press and hold the same button again to turn the sound back on.

You can set a PIN (also called a user code) that is between 3 and 8 digits long.

1. Open the door and remove the battery cover on the back of the door.
2. Press the red button above the batteries. You will hear two beeps.
3. Enter your chosen code (3–8 digits), then press the confirm (√) button within 15 seconds.
4. When the code is accepted, you will hear a confirmation beep.

If the safe’s battery level is low, the red LED will flash when you enter your PIN code to open it. This is a warning to replace the batteries soon to ensure continued operation of the safe.
