• Adjustable Power
    Closer spring power is adjustable for sizes 2-4.

    Materials
    High pressure diecast aluminium body. Heat treated steel rack and pinion. Forged steel arms passivated against corrosion.

    Backcheck
    Standard on this model.

    Mechanism
    Rack and pinion design.

    Overload Protection
    A built-in pressure relief valve protects the closer against rough use.

    Slide Arm
    Available in this series.
    Aesthetically appealing with lower opening force.

    Hold-open
    Available in this series. Hold-open between 80° - 180°. Order arm assembly separate.

    Handing
    Non-handed. Suitable for left or right hand doors.

    Adjustment
    Two control valves (latching and closing).

    Drop Plate
    Available in this series. Y2400-180SIL.

    Finish
    Silver Baked Enamel - SIL

    Fire rated
    This Yale Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Door sets.

    NOTE: Hold-open option is not approved on any fire door.

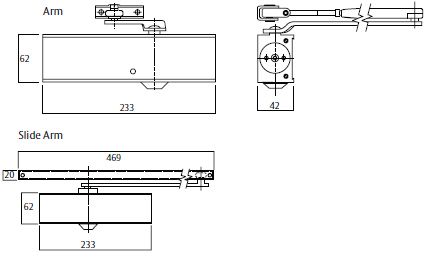

    Dimensions

  • ItemPart number
    Door Closer Size 2-4Y2400SIL
    Slide Arm AssemblyY2400-431SIL
    Hold Open ArmY2400-224SIL
    Drop PlateY2400-180SIL
    "L" Parallel BracketY2400-157SIL
