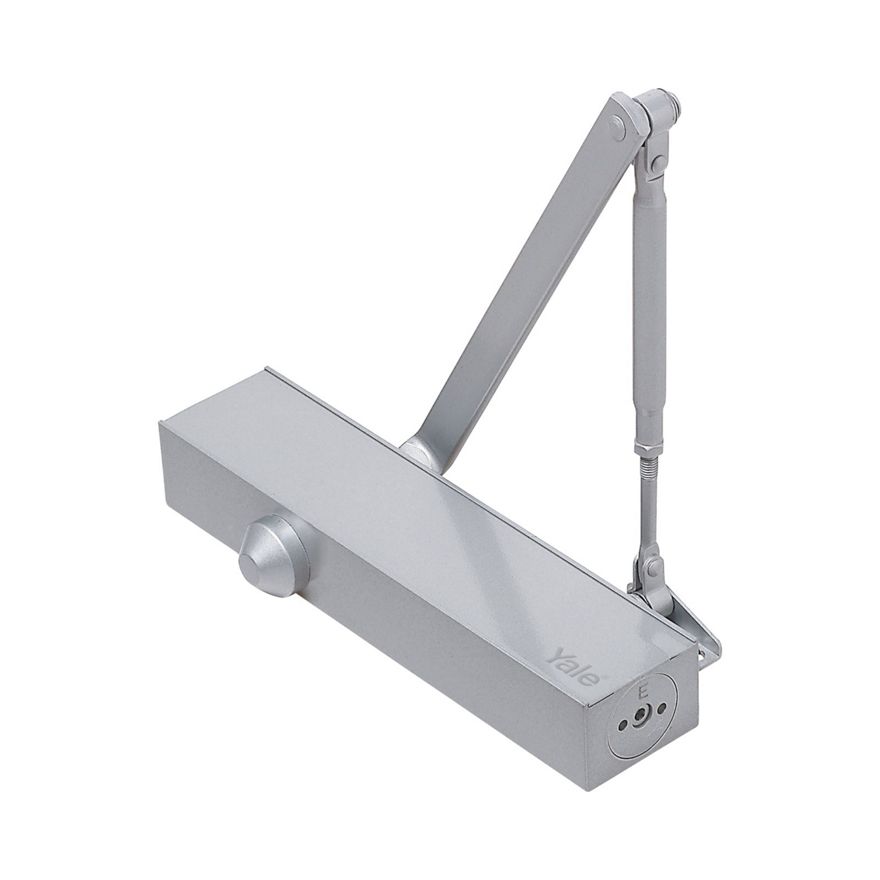

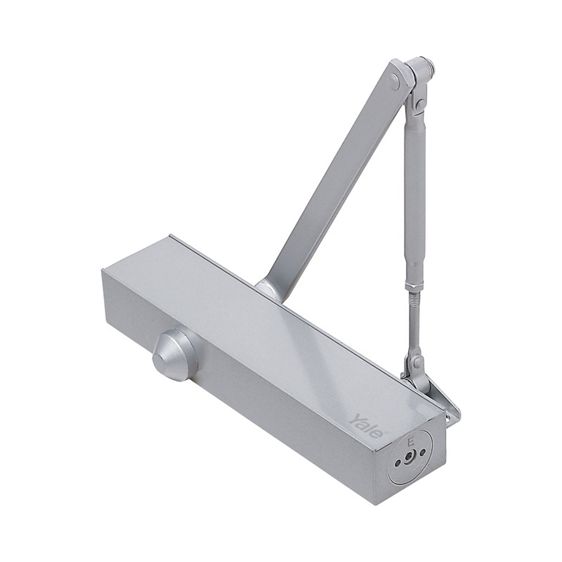

Yale Y2600 Series Power Adjustable Hydraulic Door Closer

Power adjustable 2-6

The Yale Y2600 is the complete door closer in one. It will cater for a wide range of applications, with power adjustment from sizes 2 to 6, fire rated with built-in delayed action and back-check making this door closer ideally suited for exterior doors, high traffic areas and installations affected by adverse weather conditions.

Slim neat design will complement most applications.

Each pack  contains "Z" Parallel Arm Bracket.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Adjustable Power
Closer spring power is adjustable for sizes 2 to 6.

Backcheck
Standard in this series.

Delayed Action
Independent valve control between 180˚ - 80˚ closing. Ideally suited for disabled door applications.

Materials
High pressure diecast aluminium body. Heat treated steel rack and pinion. Forged steel arms passivated against corrosion.

Overload Protection
A built-in pressure relief valve protects the closer against rough use.

Slide Arm
Available in this series.
Aesthetically appealling with lower opening force.

Hold-open
Available in this series.
Hold-open between 80° - 180°. Order arm assembly separate.

Handing
Non-handed.

Adjustment
Two control valves (latching and closing).

Drop Plate
Available in this series. Y2600 - 180SIL.

Finish
Silver Baked Enamel - SIL

Fire Rated
This Yale Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Door sets.

NOTE: Hold-open option is not approved on any fire door.

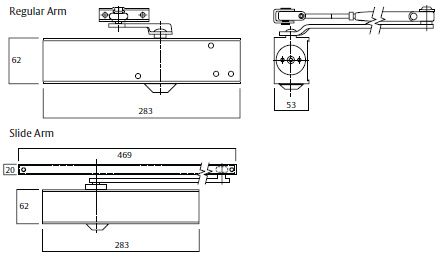

Dimensions

  • Catalogue
  • Yale Door Control Catalogue(PDF, 602 KB)
  • Installation Instructions
  • Y2600SR - Push Side Standard Installation Template(PDF, 674 KB)
  • Y2600 - Standard Installation Template(PDF, 3 MB)
  • Y2400-Y2600 Slide Arm Installation Instruction(PDF, 710 KB)
ItemPart number
Door Closer ADJ 2-6Y2600SIL
Slide Arm AssemblyY2600-431SIL
Hold Open ArmY2600-224SIL
Drop PlateY2600-180SIL
"L" Parallel BracketY2600-157SIL
