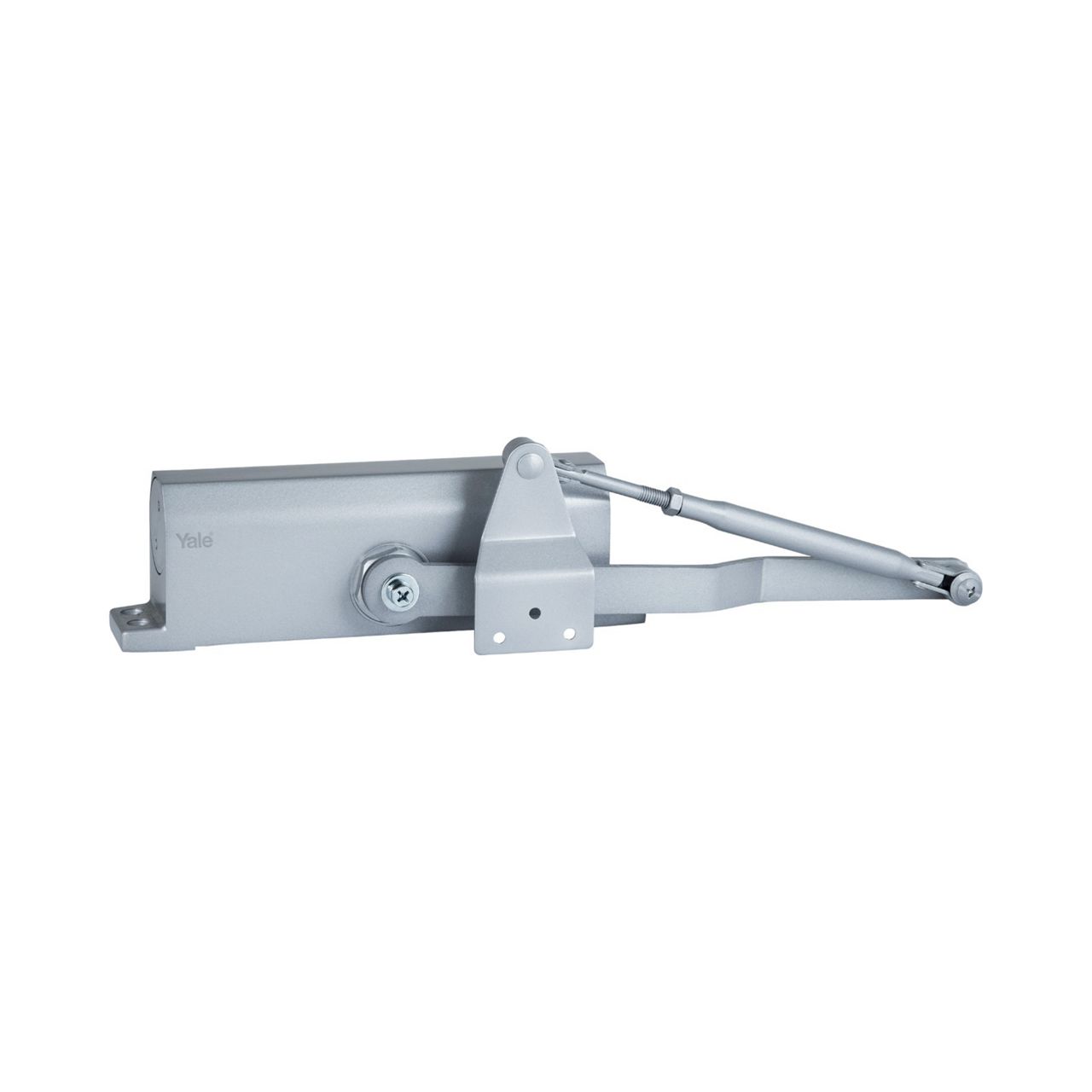

Yale Y300 OP Series Hydraulic Door Closer

Fixed power size range of 2, 3, 4.

The Yale Y300 OP Series provides a full range of economy surface mounted door closers which covers a wide range of applications. Three Power sizes to suit most push side applications where economy and ease of installation is required.


  • Power Sizes
    Closer fixed power size range of 2, 3, 4.

    Materials
    High purity die-cast aluminium body. Heat treated steel rack and pinion. Stable hydraulic oil for consistent climatic operation and constant lubrication. Forged steel arms passivated againstcorrosion.

    Mechanism
    Rack and pinion design.

    Handing
    Non-handed. Suitable for left or right hand doors.

    Adjustment
    Independent valves control closing and latching speeds.

    Closing speed 180° - 10°.
    Latching speed 10° - 0°.

    Offset Parallel Arm
    Suits up to 13mm door stop.

    Finish
    Silver Baked Enamel - SIL

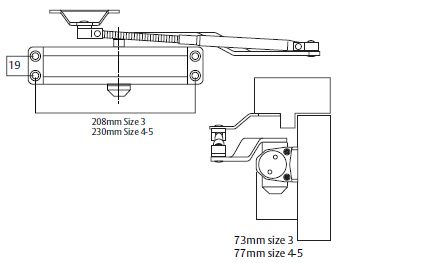

    Dimensions

  • Yale Door Control Catalogue(PDF, 602 KB)
  • ItemPart number
    Size 2 Offset Parallel Arm Door CloserY300-OPSIL
    Size 3 Offset Parallel Arm Door CloserY400-OPSIL
    Size 4 Offset Parallel Arm Door CloserY500-OPSIL
