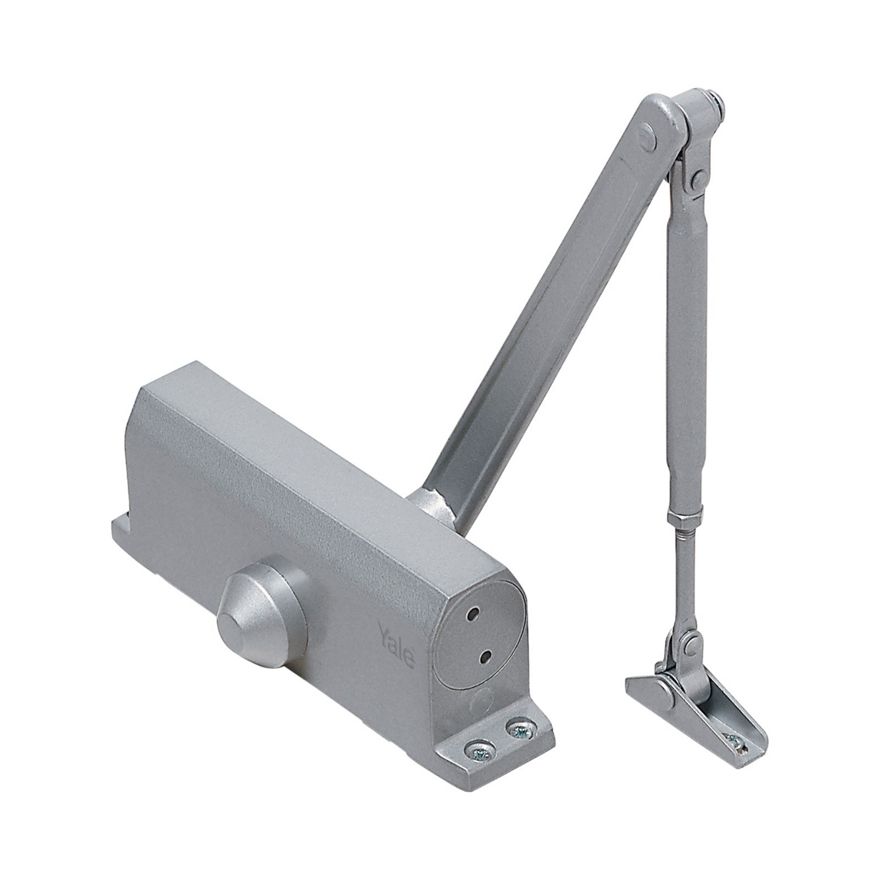

Yale Y300 Series Hydraulic Door Closer

Fixed power size range of 3, 4, 5.

The Yale Y300 Series provides a full range of economy surface mounted door closers which covers a wide range of applications. Three Power sizes to suit most pull side applications where economy and ease of installation is required.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Power Sizes
Closer fixed power size range of 3, 4, 5.

Materials
High purity die-cast aluminium body. Heat treated steel rack and pinion. Stable hydraulic oil for consistent climatic operation and constant lubrication. Forged steel arms passivated against corrosion.

Mechanism
Rack and pinion design.

Hold-open
Available in this series.
Hold-open angle between 80° - 180°.
Order arm assembly separate.

Handing
Non-handed. Suitable for left or right hand doors.

Adjustment
Independent valves control closing and latching speeds.

Closing speed 180° - 10°.
Latching speed 10° - 0°.

Offset Parallel Arm
Available in this series.
Suits up to 13mm door stop.

Finish
Silver Baked Enamel - SIL

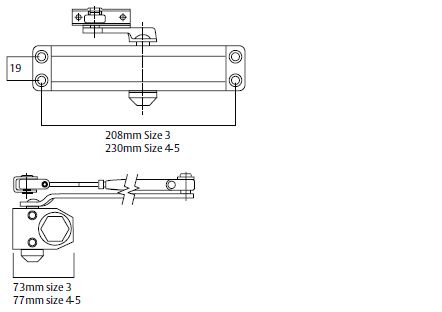

Dimensions

  • Yale Door Control Catalogue(PDF, 602 KB)
ItemPart number
Size 3 Standard Arm Door CloserY300-STSIL
Size 4 Standard Arm Door CloserY400-STSIL
Size 5 Standard Arm Door CloserY500-STSIL
Hold Open Arm Assy to suit Y300-STSIL, Y400-STSIL, Y500-STSILY2600-224SIL
