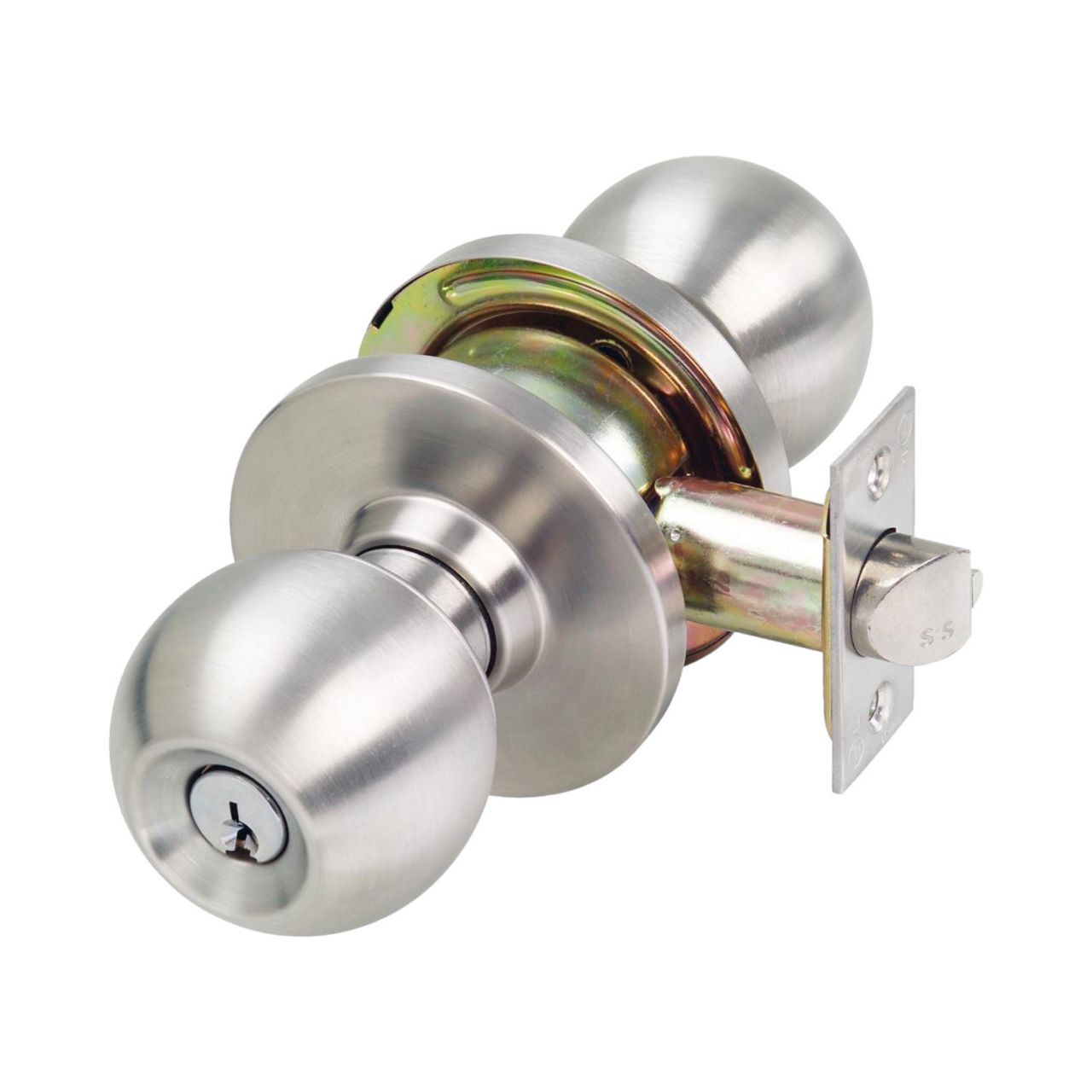

Yale Commercial Key in Knob Lockset – YK16/YK17

Standard "PD" type cylinder keyed to C4 profile.

The Yale Commercial Series Locksets incorporate a cylindrical chassis design housing a PD cylinder. The Yale Commercial Series offers a wide range of functions to accommodate a broad range of applications.

For added security it is recommended that Yale Commercial Series Knob and Lever Locksets are used in conjunction with Yale Commercial Deadbolts.

Fire Rated
Yale Commercial Series cylindrical locksets have been successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS-1905 Part 1, Fire Resistant Doorsets.

Entrance Set
Operated by key from outside and turnsnib from inside.

Privacy Set
Operated by turnsnib inside with outside emergency release.

Passage Set
Outside and inside knob/lever always free.

Backset
Standard 60mm backset for key in knob.

Latch
Stainless steel latch bolt.

Cylinder
Standard “PD” type cylinder keyed to C4 profile with two keys.

Door Thickness
Knob suits door thickness 32 – 46mm.

Finishes
Standard finish Satin Stainless Steel.

Standard Keying
Supplied individually keyed with two keys per lock
78,000 key combinations

Key blanks
V06 5PIN C4 (Standard)

Restricted Special Keying
Yale Semi-Commercial locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Please contact your local sales office or customer service for specific information on keying systems.

Handing
Handing is field changeable.

Part number	Outside	Inside
TRADE PACK
YK16/EXT/SS (Exterior Deadlatch - Satin Stainless Steel)	Opened by handle when unlocked. Key unlocks exterior handle.	Opened by handle at all times. Push button locks exterior handle.
YK16/PAS/SS (Passage Set - Satin Stainless Steel)	Opened by handle at all times.	Opened by handle at all times.
YK16/PRI/SS (Privacy Set - Satin Stainless Steel - Includes anti-lockout function.)	Opened by handle when unlocked. Coin or screwdriver in emergency button unlocks handle.	Opened by handle when unlocked. Push button locks exterior handle.
YK16/GLA/SS (Glass door Lockset - Satin Stainless Steel)	Opened by handle when free. Key locks or unlocks both handles.	Opened by handle when free. Key locks or unlocks both handles.
YK16/DUM/SS (Dummy Trim - Satin Stainless Steel Available with either concealed or wood screw fixing.)	For use where only a door pull is required.	For use where only a door pull is required.
YK16/CLA/SS (Classroom Set - Satin Stainless Steel)	Opened by handle when unlocked. Key locks or unlocks exterior handle.	Opened by handle at all times.
YK16/STO/SS (Storeroom Deadlatch - Satin Stainless Steel)	Opened by key only. Outside handle is rigid at all times.	Opened by handle at all times.
