Yale Short Backset Mortice Locks

A range of 23mm backset deadlocks and sliding door locks.

The Yale Short Backset Mortice Locks are designed and packaged specifically for the commercial metal and frameless glass door fabricator markets.

Application
A range of 23mm backset deadlocks and sliding door locks, suitable for use on aluminium, or frameless glass doors in industrial and commercial buildings, institutions, clubs and similar buildings.

Description

Deadlocks
A single action bolt with steel case and laminated steel bolt. Available in both 22mm bolt throw and 36mm bolt throw variations. The bolt is positively dogged in both the locked and unlocked position before the key can be withdrawn.

Sliding Door Lock
A similar case and mechanism to the deadlock with a 29mm hook bolt designed to engage in a self-latching strike.

Configurations
Each lock is supplied with two escutcheons and is available in double cylinder and single cylinder and turn configurations.

Frameless Glass Doors
Deadlocks may be used with an appropriate patch fitting on frameless glass doors. A trough strike is available for this application.


  • Security
    Conforms with level S1 (Physical Security) Australian Lock Standard (Standard No. AS4145.2-1993).

    Durability
    Conforms with level D3 (Durability) Australian Lock Standard (Standard No. AS 4145.2-1993).

    Door Thickness
    Minimum door thickness is 30mm (due to the width of the face plate). Maximum door thickness using a standard cylinder and cylinder escutcheons and/or turn is 58mm.

    Handing
    All functions are fully reversible. Cylinders and turns are fitted on site to suit door handing.

    Standard Keying
    Supplied individually keyed in "C4" keyway with
    2 keys per lock.

    Finish
    Satin Chrome (SC)

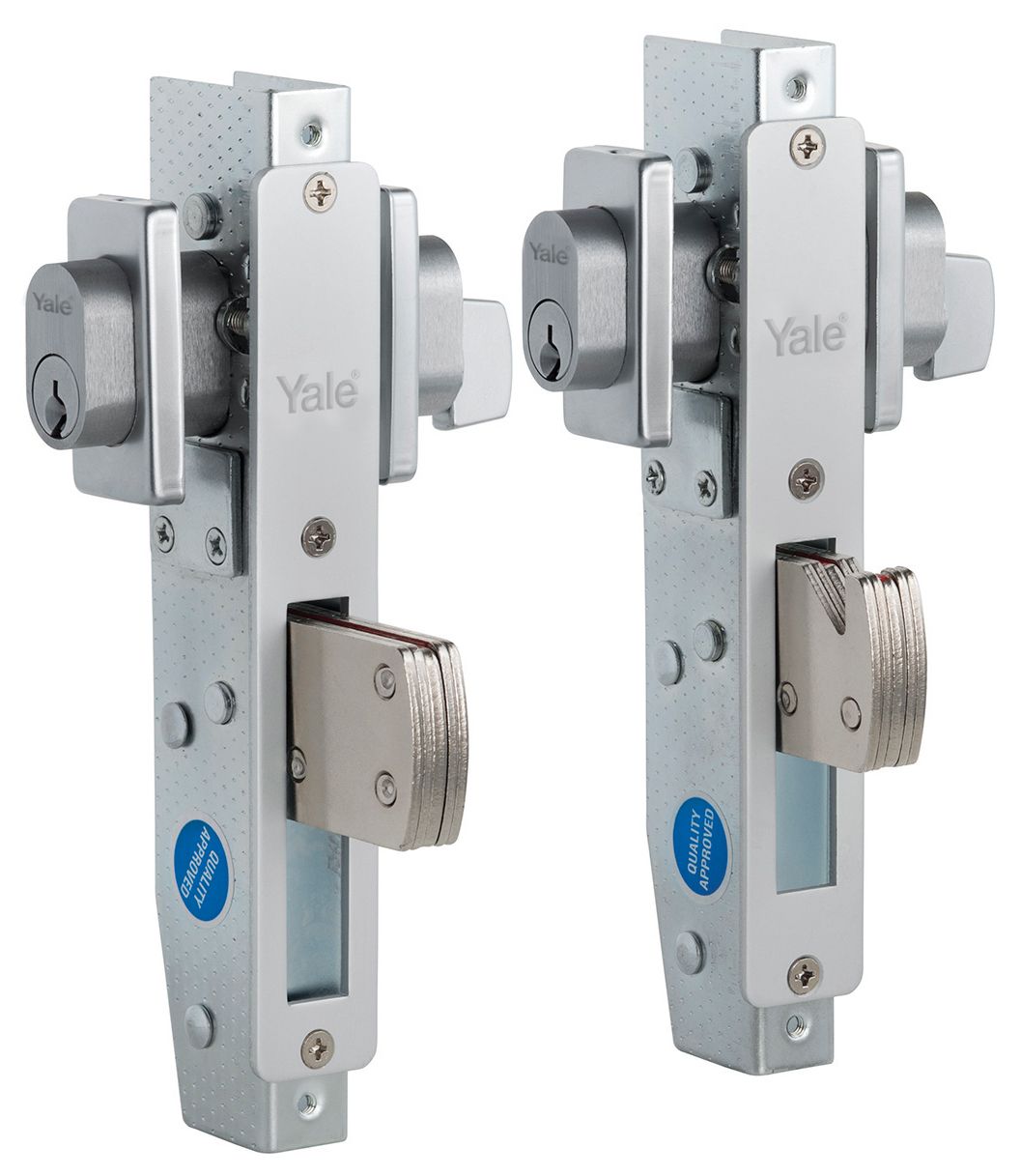

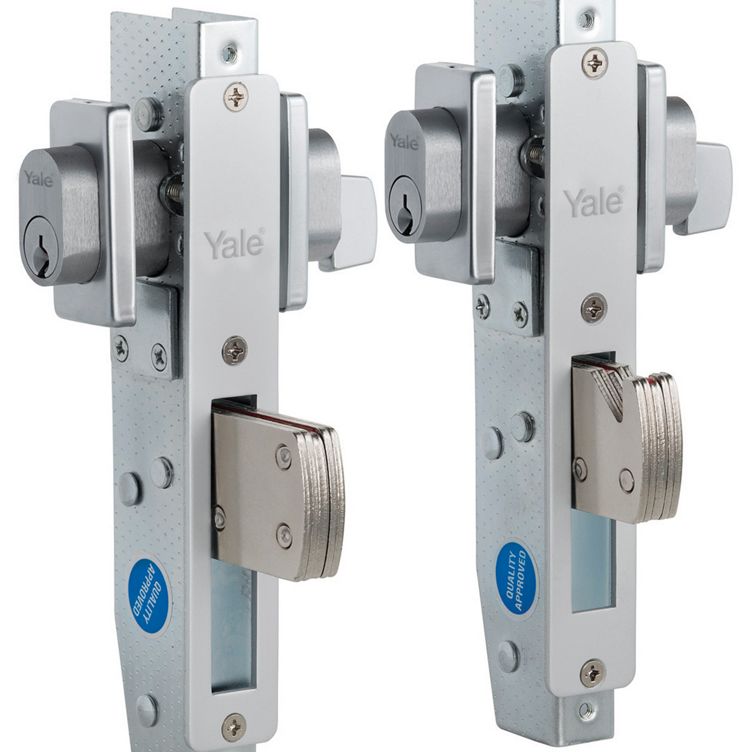

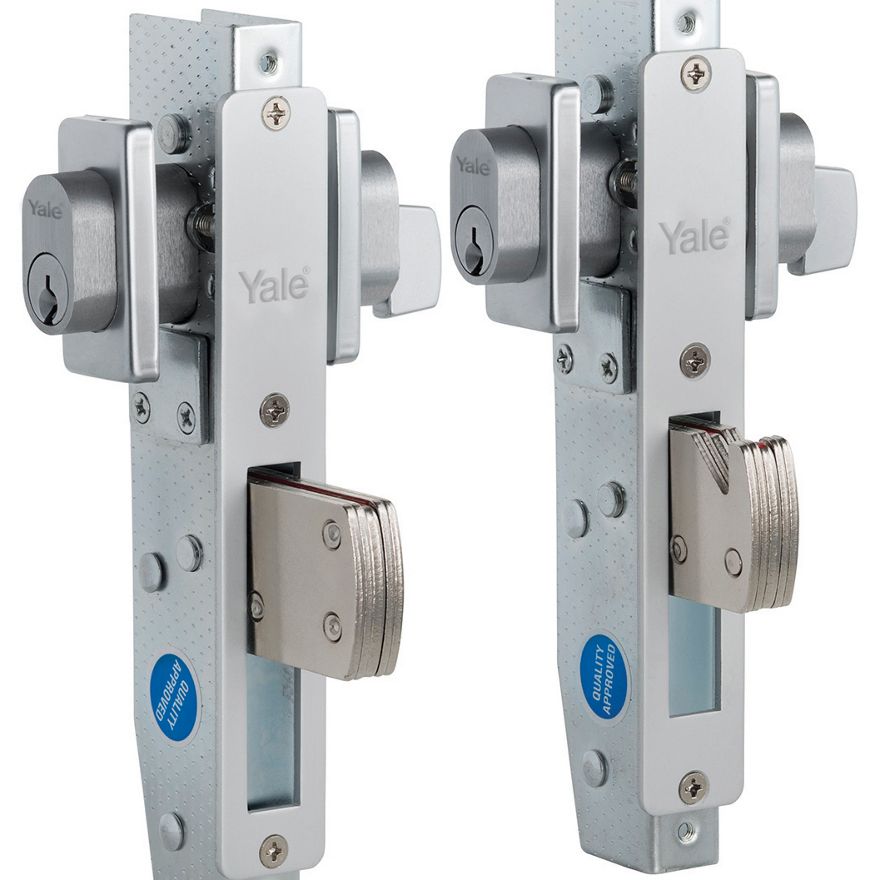

    Hinged Door Deadlocks

    Sliding Door Deadlocks

  • Installation Instructions
    Yale Mortice Locks Catalogue(PDF, 338 KB)
    Installation Instructions - Y590 Escape Lever(PDF, 1 MB)
    Installation Instructions - Y590(PDF, 1 MB)
  • ItemPart numberBarcode
    590 Series - Barrel Lever Pk=100SP590-15ZP9311847452244
    Y590 Mortice Lock Cylinder Escutcheon PairSPY590-CESC9348313004232
    Y590 - Escape Door Lever KitSPY590-ELSC9348313004447
    Y590 Double Cylinder Mortice Lock 22mm Throw BoltY590CCSC9348313004249
    Y590 Cylinder & Turn Mortice Lock 22mm Throw BoltY590CTSC9348313004256
    Y591 Double Cylinder Mortice Lock 28mm Hook Bolt with StrikeY591CCSC9348313004263
    Y591 Cylinder & Turn Mortice Lock 28mm Hook Bolt with StrikeY591CTSC9348313004270
    Y592 Double Cylinder Mortice Lock 35mm Throw BoltY592CCSC9348313004287
    Y592 Cylinder & Turn Mortice Lock 35mm Throw BoltY592CTSC9348313004294
