Aeron® Rain Sensor

Let the Rain Sensor do the thinking for you.

Designed to work seamlessly with the Yale Aeron Window Control System, the Aeron Rain Sensor automatically closes your windows when it detects rain, so you don’t have to.

How it works

Automatic protection – Windows close instantly when rain is detected.

One-touch reopening – Use the Wall switch/Aeron wireless remote/Yale Home app to reopen windows once the rain stops.

Total control – The Rain Sensor controls all windows connected to the hard-wired system.

Stay dry, stay in control, without lifting a finger.

Applications

  • Smart weather response – Automatically closes windows at the first sign of rain.
  • Perfect for any space – Ideal for commercial and residential buildings.
  • Built-in drying power – Integrated heating elements clear away dew and moisture.
Where to buy

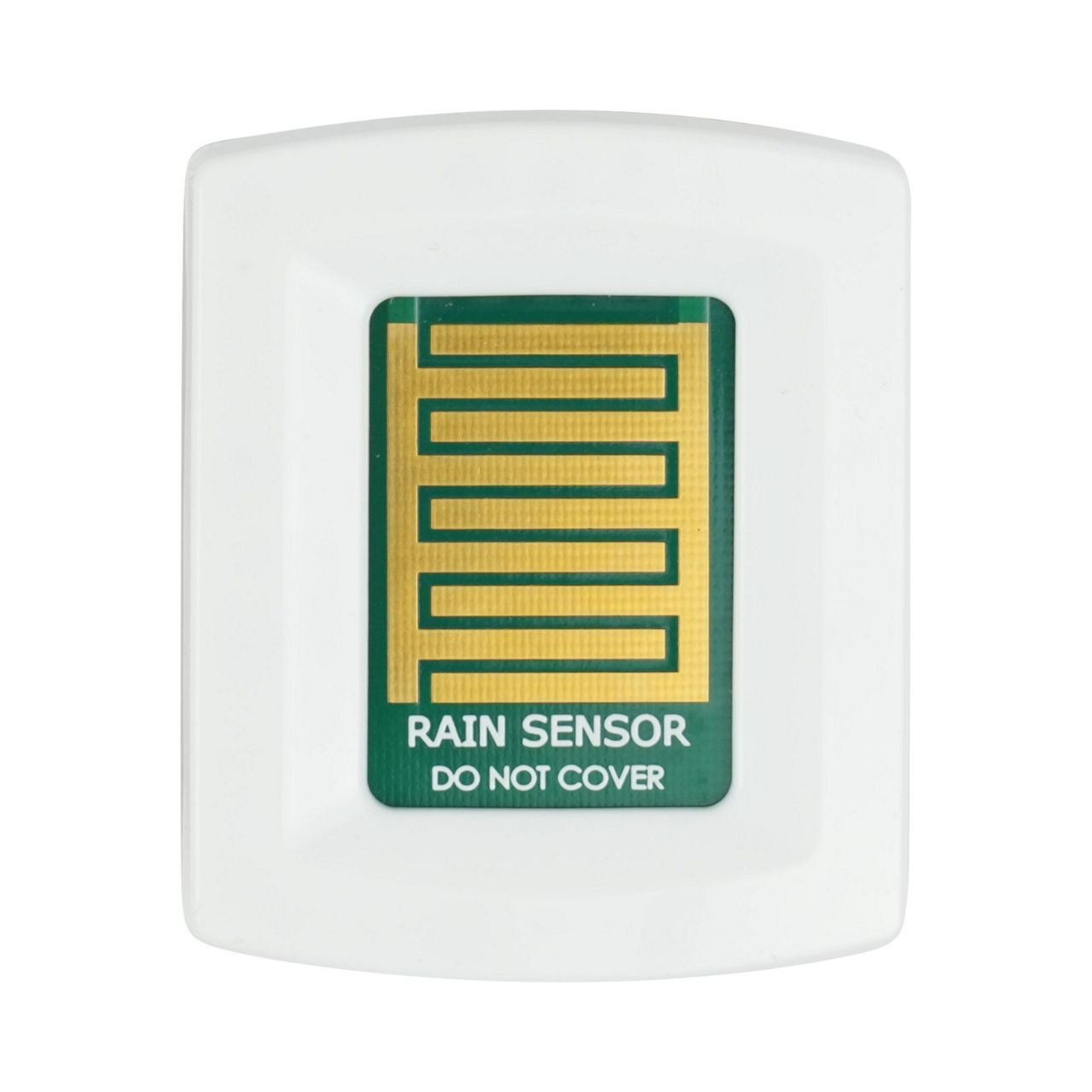

Yale Aeron® Rain Sensor - Front view

Yale Aeron® Rain Sensor - Front view

Yale Aeron® Rain Sensor - Front view

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

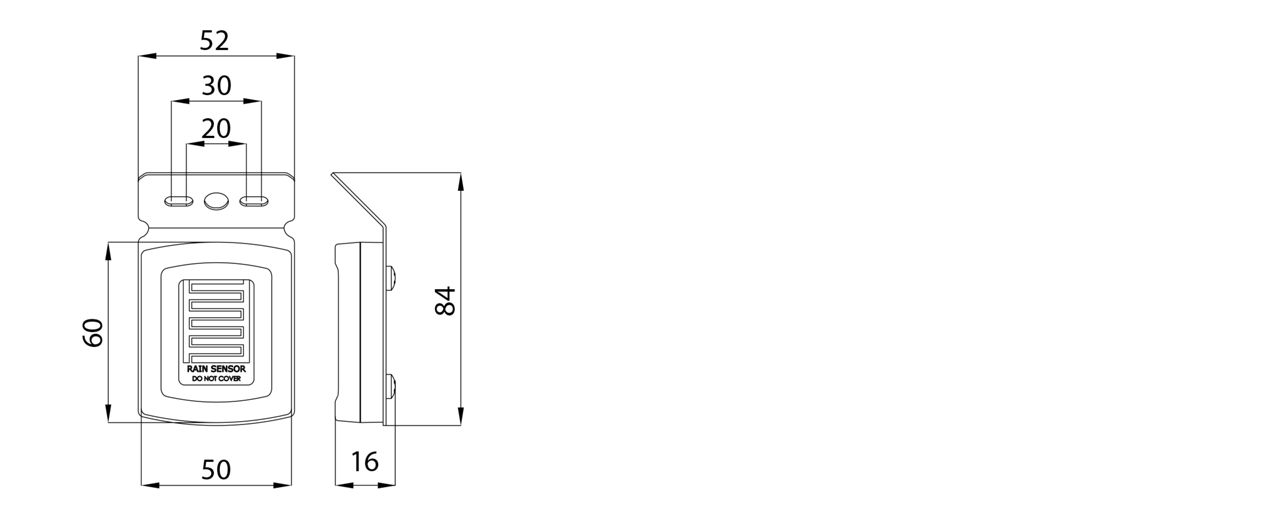

Dimensions
60H x 50W x 16D (dimensions are in mm)

Materials
Body: Durable Acetal UV Stable White Finish (WH)

Bracket
Stainless Steel 304

Voltage
24-32 VDC

Current
Standby Current: 50mA
Operating Current: 350mA

Environment Operational Temperature Range
0° to +60°C

Humidity
90% @ 35°C

Cabling Loom
2m

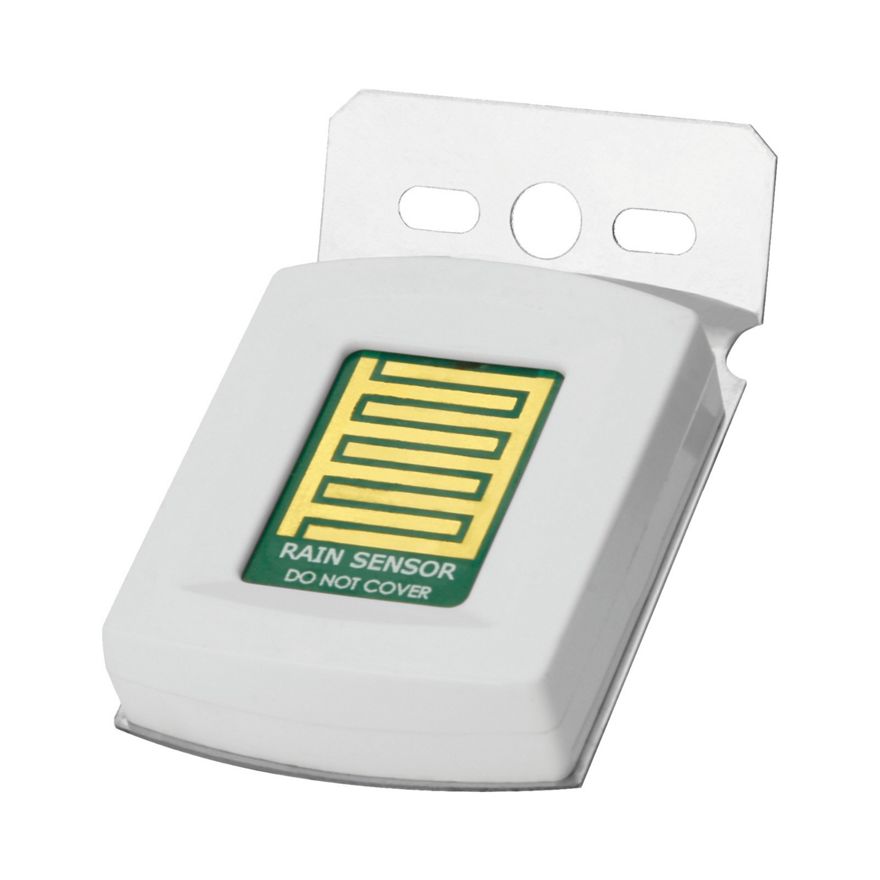

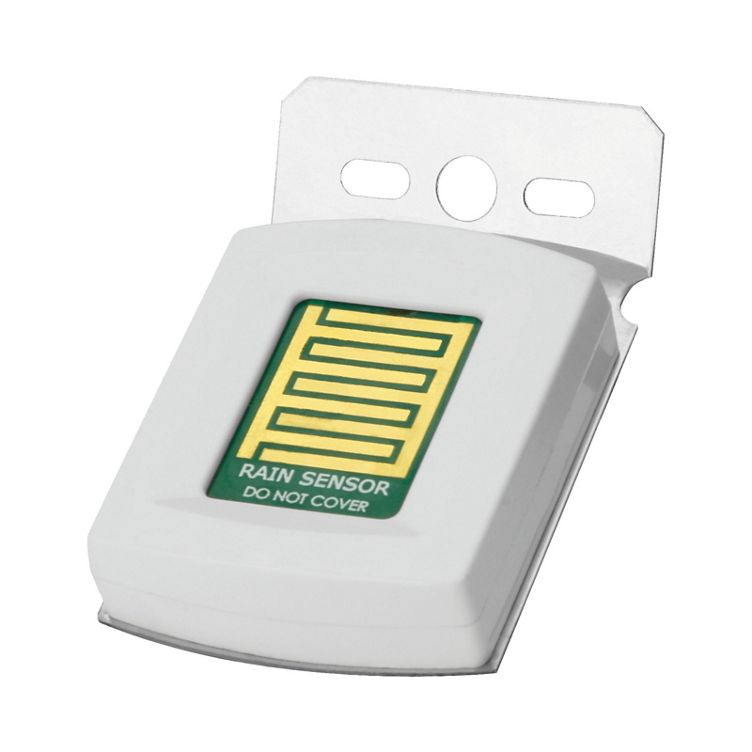

The Yale Aeron Rain Sensor shown above has an inbuilt bracket for easy installation on the exterior of the building. The Rain Sensor is then wired to the Yale Rain Sensor Adaptor module, which is then wired into the hard-wired circuit of Yale Aeron Window Actuators.

  • Yale Smart Locks Catalogue(PDF, 5 MB)
  • Aeron Rain Sensor and Adaptor - Installation Instructions(PDF, 1 MB)
DescriptionPart number
Yale Aeron Rain SensorYAR/SWAA/RS
Yale Aeron Rain Sensor And AdaptorYAR/SWAA/SRS
Ordering NotesOne Rain Sensor and Adaptor is required for each hard-wired wall switch circuit.
