Yale Aeron® Rain Sensor Adaptor

Easily link your Aeron® Window Actuators to the Aeron Rain Sensor using the Aeron® Rain Sensor Adaptor.

Enjoy seamless control and automated weather protection without hassle.

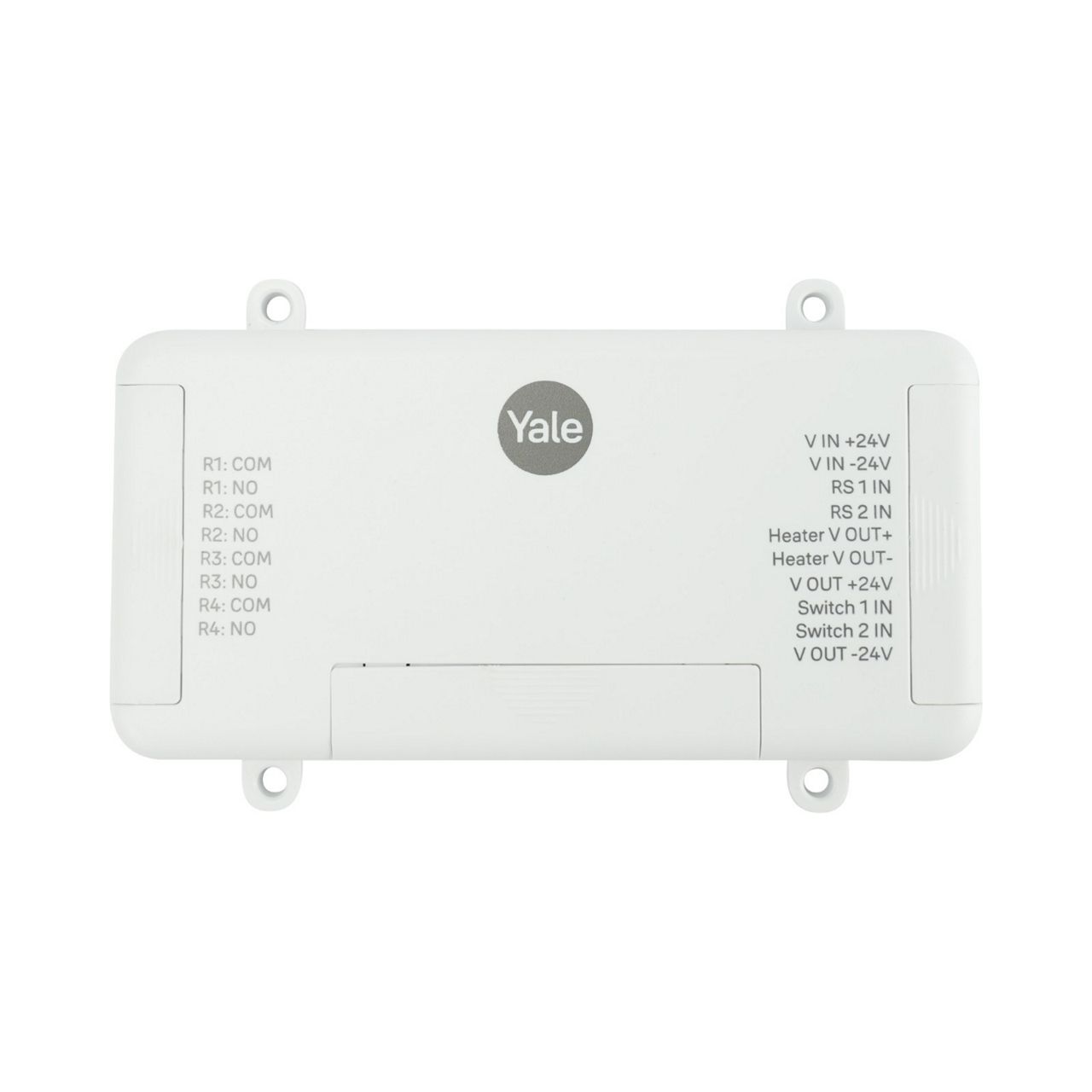

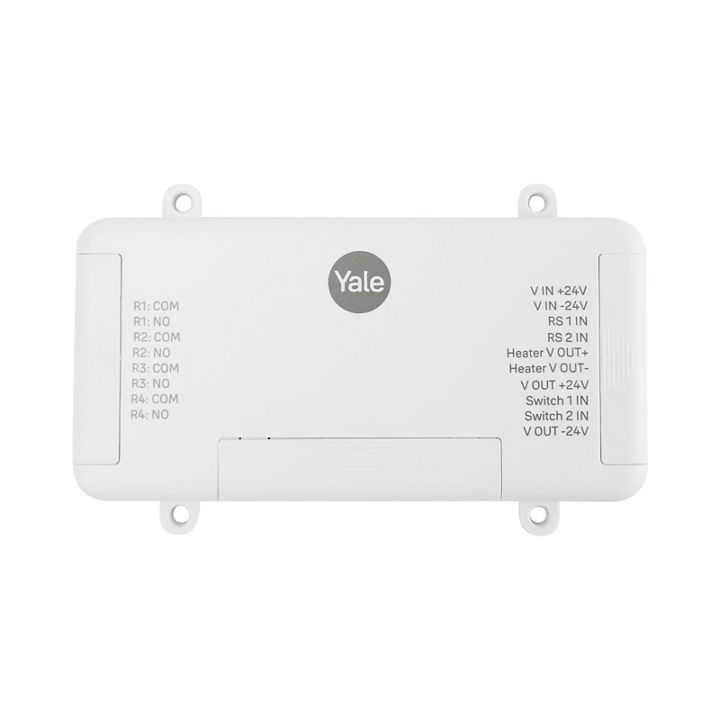

Simple and seamless, the Yale Aeron® Rain Sensor Adaptor connects to the Aeron Rain Sensor, allowing up to 10 windows to be controlled via a standard wall switch. Designed to sit discreetly behind the wall near the switch, it’s ideal for managing windows connected to a wired circuit.

Where to buy

  • Dimensions

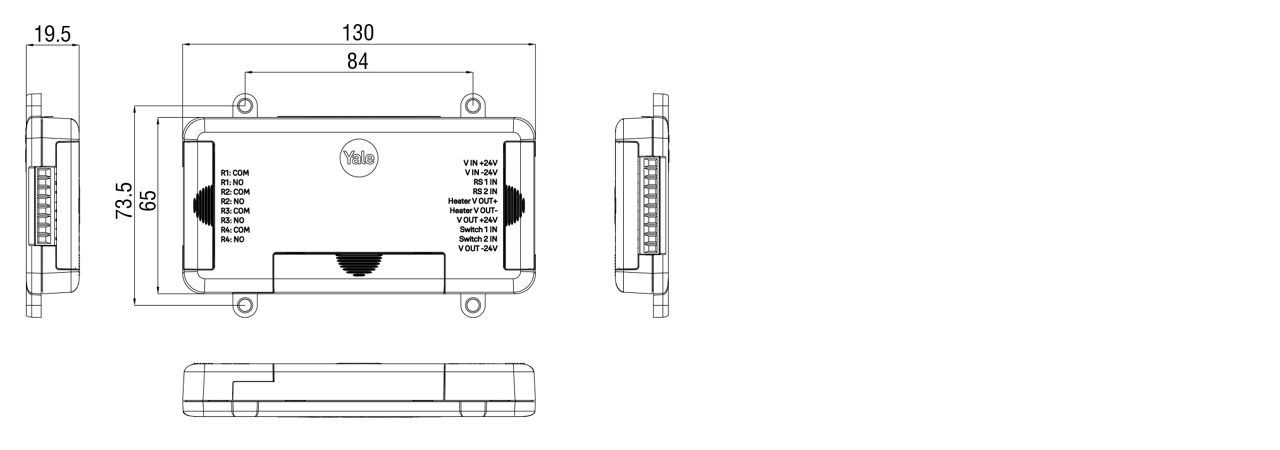

    130H x 82W x 20D (dimensions are in mm)

    Materials Durable
    ABS White Plastic

    Voltage
    24-32 VDC

    Standby Current
    50mA

    Environment Operational Temperature Range
    0° to +60°C

    Humidity
    90% @ 35°C

    Note: Aeron Rain Sensor and Adaptor only works with Hard-wired connection.It does not have wireless functionality.



  • Yale Smart Locks Catalogue(PDF, 6 MB)
    Aeron Rain Sensor and Adaptor - Installation Instructions(PDF, 1 MB)
  • DescriptionPart number
    Yale Aeron Rain Sensor AdaptorYAR/SWAA/RSA
    Yale Aeron Rain Sensor And AdaptorYAR/SWAA/SRS
    Yale Aeron Rain SensorYAR/SWAA/RS
    Ordering NotesOne Rain Sensor and Adaptor is required for each hard-wired wall switch circuit.
