Yale

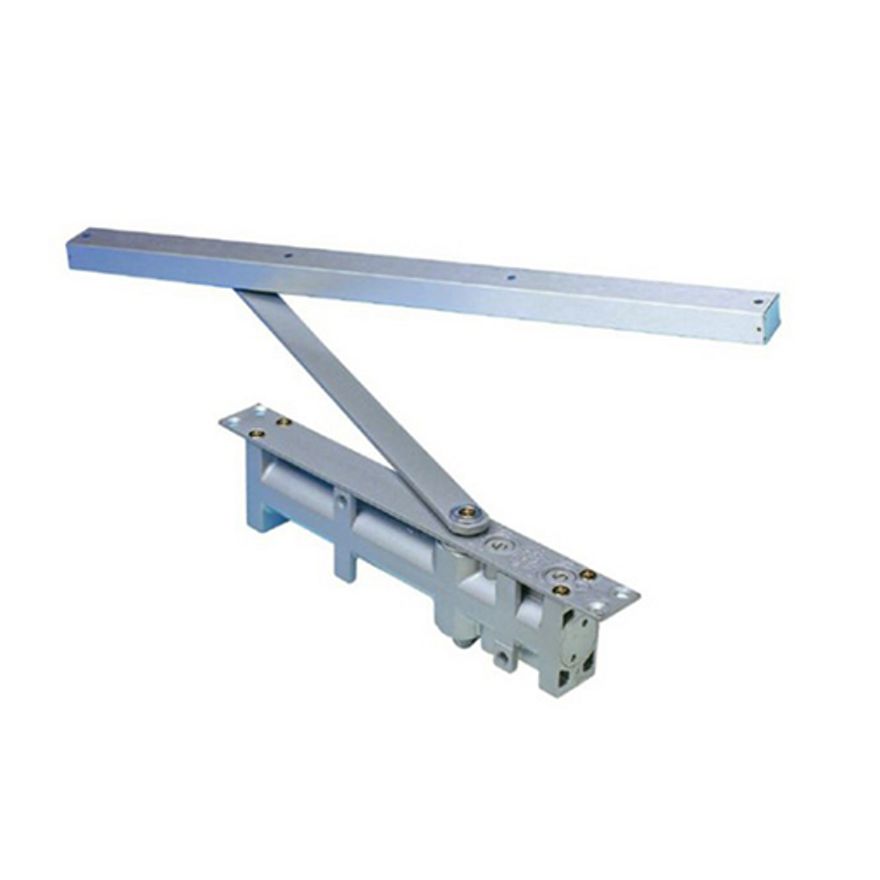

C6000 Series Concealed Door Closer

Slim CE marked Size 3 Concealed Door Closer. Size 2 and 3 available.

Available Models
IC1020
IC1020E
IC1030
IC1030E

Features

  • Medium duty Hydraulic Door Closer - Sliding arm
  • Body dimensions: 230mm x 32 mm x 76.8mm (L,W,H)
  • Opening angle: 180 degree maximum for EN2 & EN3
  • Body material: Cast aluminum
  • Durability: Tested to 500,000 cycles
  • Low temp: Fluid (IC1020E & IC1030E are required as EN, IC1020 & IC1030 are available upon request)
  • EN2 : Door weight <= 40kgs - Door width <= 850mm
  • EN3 : Door weight <= 60kgs - Door width <= 950mm

Finishes
Almond - AL
Black - BL
Brown - BN
Gold - GB
Silver - SB
White - WE

C6000 Series Concealed Door CloserC6000 Series Concealed Door Closer
