5120 Series
Yale economic choice for standard residential purpose. Recomended for use on internal doors.
5120 Series Key-In-Knob
Knob Style
VCA
Model No.
512
Function
1 - Passage Or Closet
2 - Privacy, Bedroom or Bathroom
5 - Storeroom or Closet
7 - Entrance
Finish

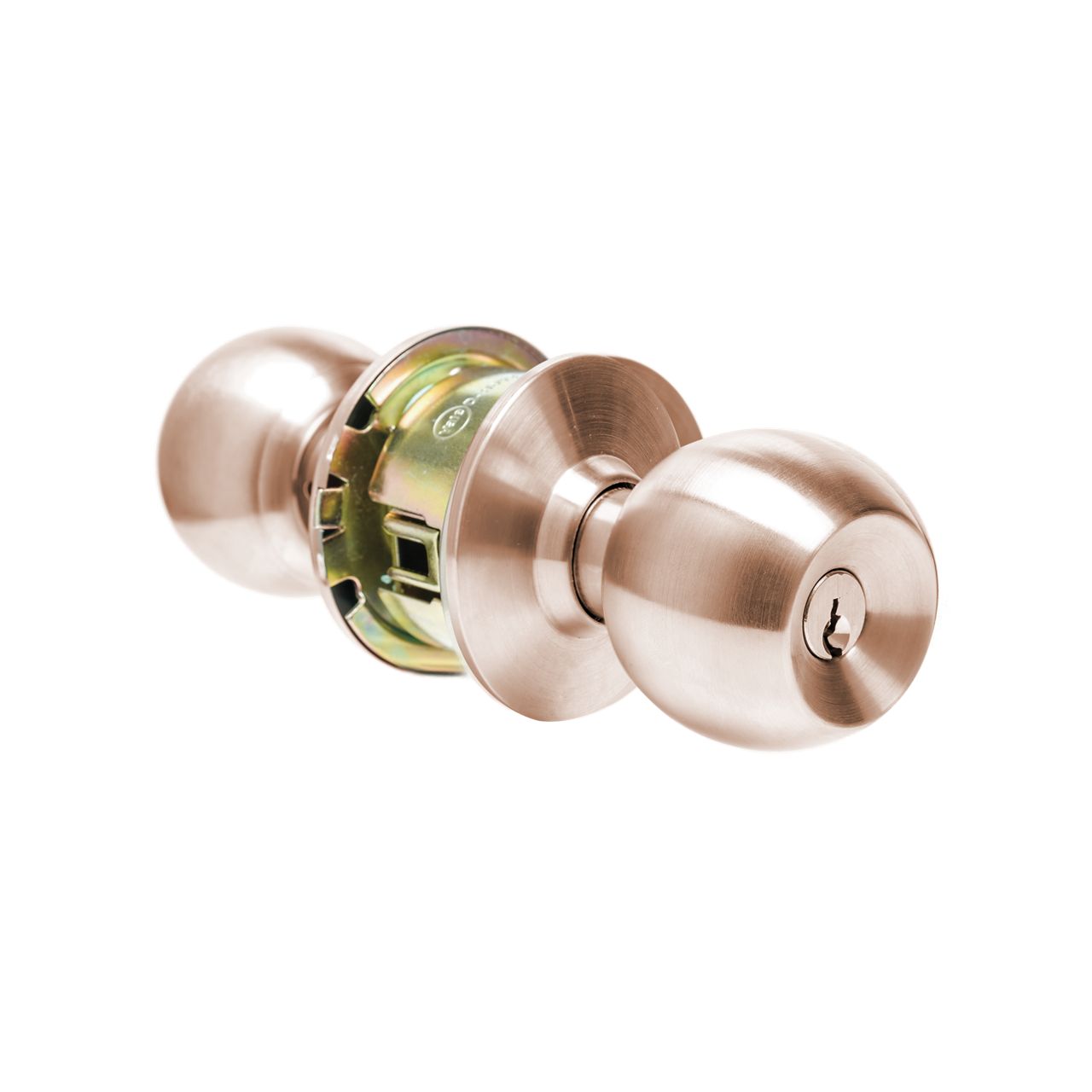

US11 Antique Copper

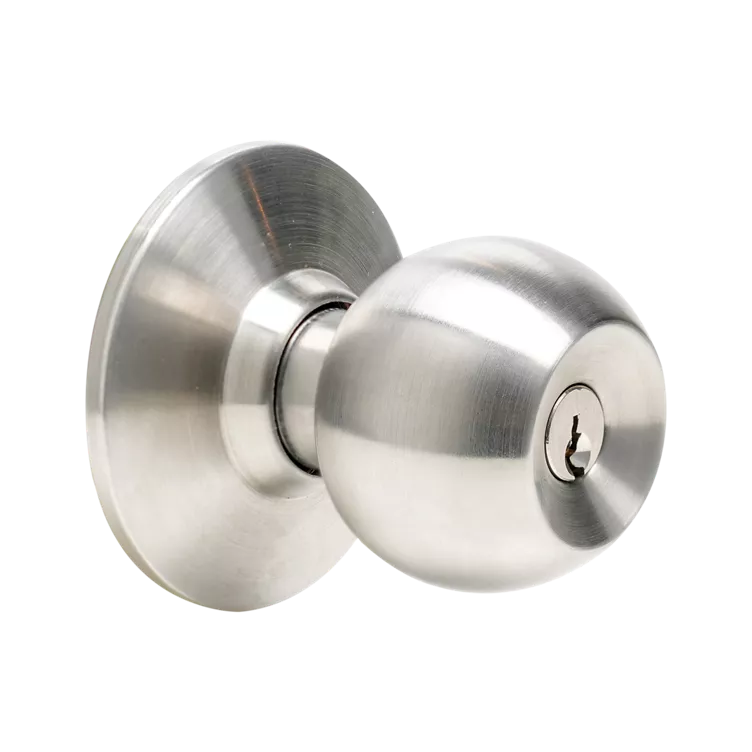

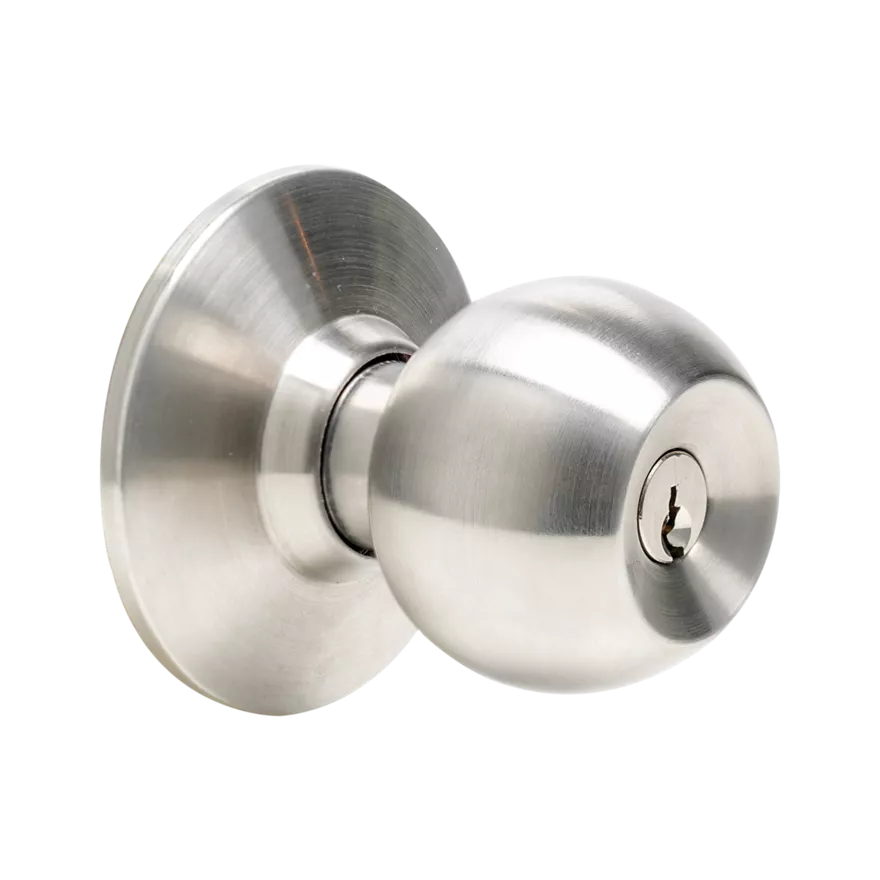

US32D Satin Stainless Steel
Backset Code
B60 = 60mm
B70 = 70mm
Strike Code
S70 Strike Length = 70mm (Standard Offering)

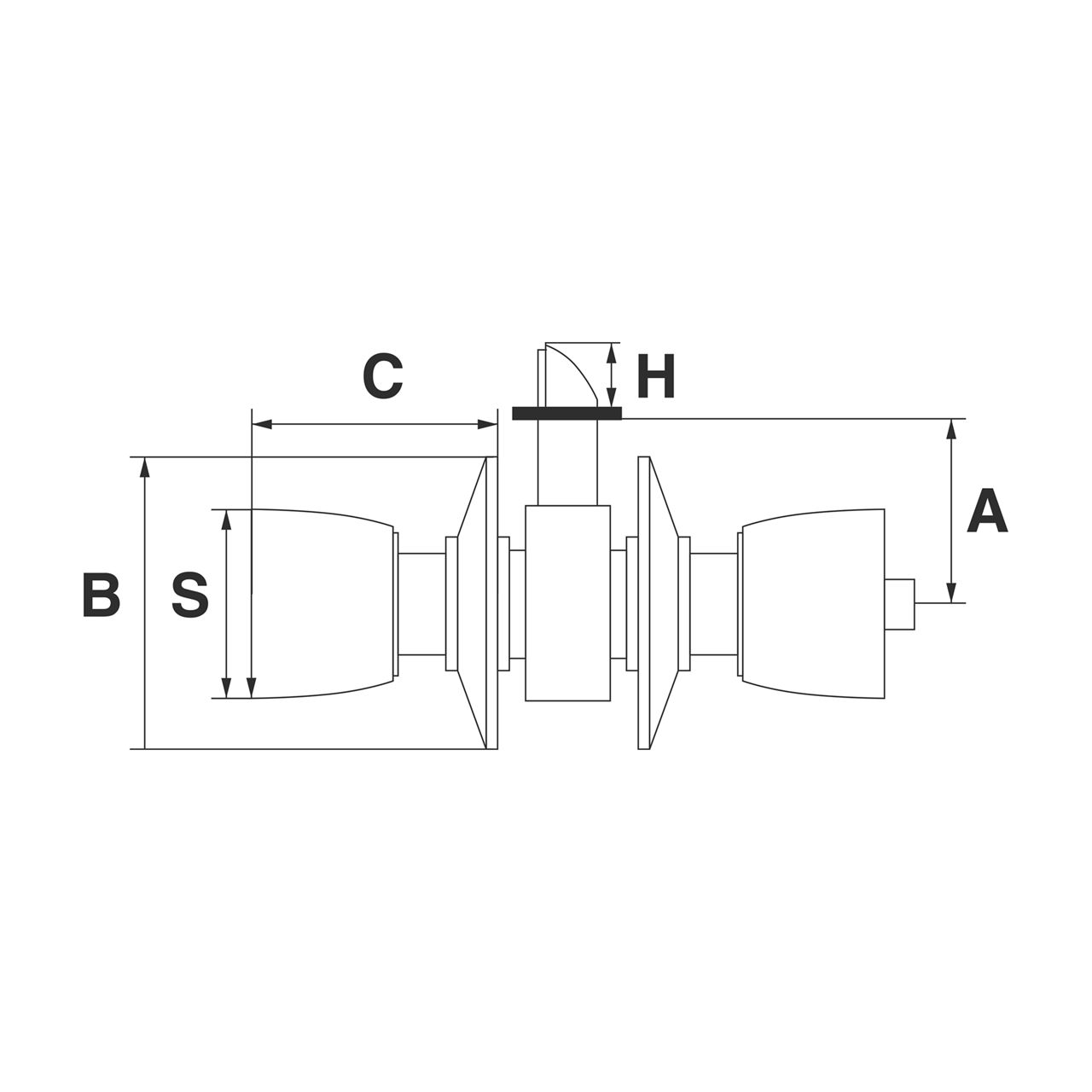

Backset
60 / 70mm
Door Thickness
35 - 50mm
Standard
ANSI / BHMA A 156.2 2003
Testing Cycles
175,000 Cycles Tested Guaranteed
Material
- Chassis: Steel
- Latch and Bolt: Zinc
- Strike: Stainless Steel / Steel
- Knob: Stainless Steel / Brass
- Rose: Stainless Steel / Brass
Cylinder
Solid brass tumble cylinder plugs with zinc housing
No.of Pin
5 Pins
No. of Key
3 pcs of Nickel-Plated Brass Key
