YDR50G
Gate Smart Lock
YDR30G
Gate Smart Lock
Main Feature:
- PIN Code
- RFID Cards
- Mechanical Key Override

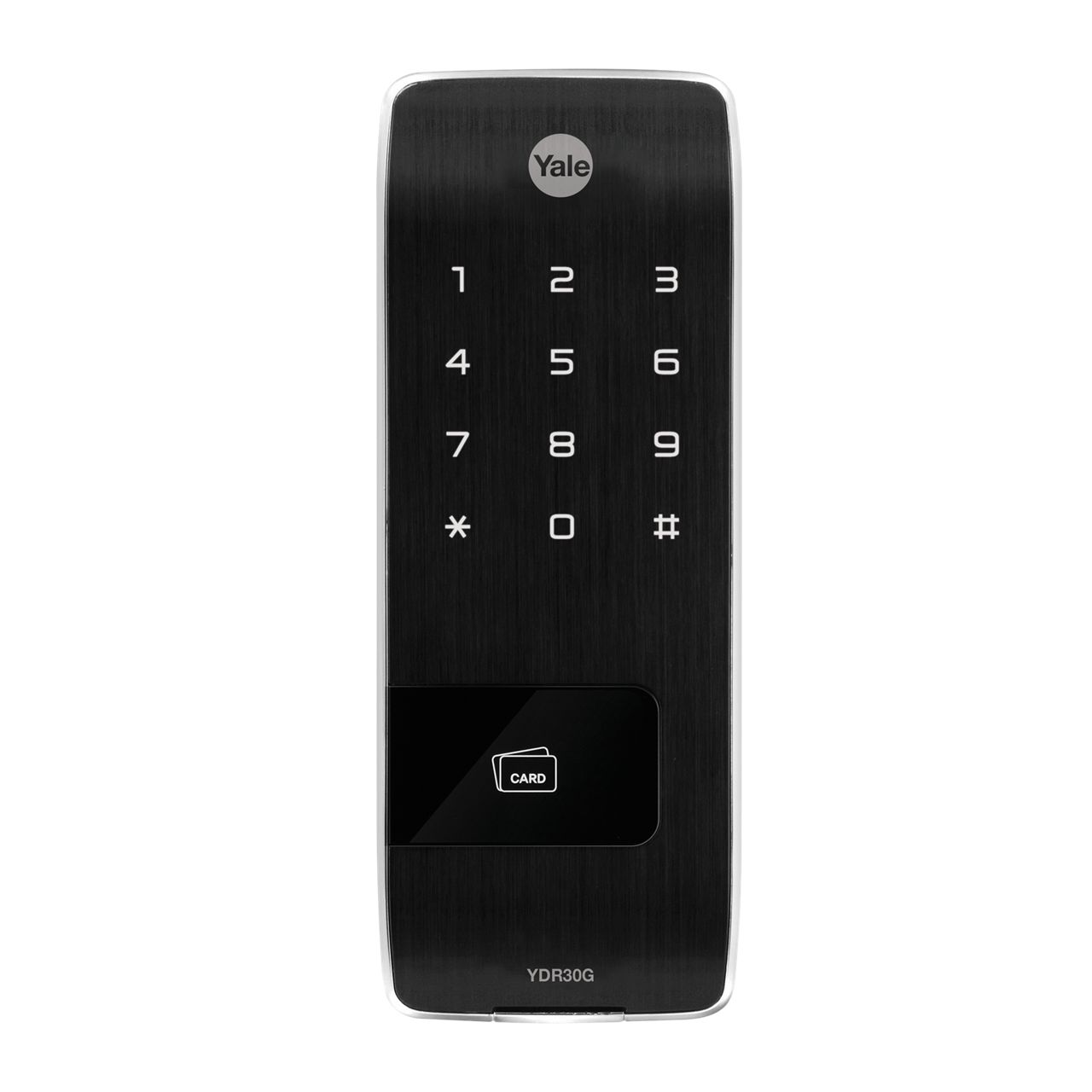

Model: YDR30G
Color: Black
Locking Type: Gate Lock
Backset: 50 - 60 mm
Door Thickness: 25 - 30 mm
Battery: Alkaline (AA x 4)Product Dimension:
- Size (Front): 70(W) x 183(H) x 12(D) mm

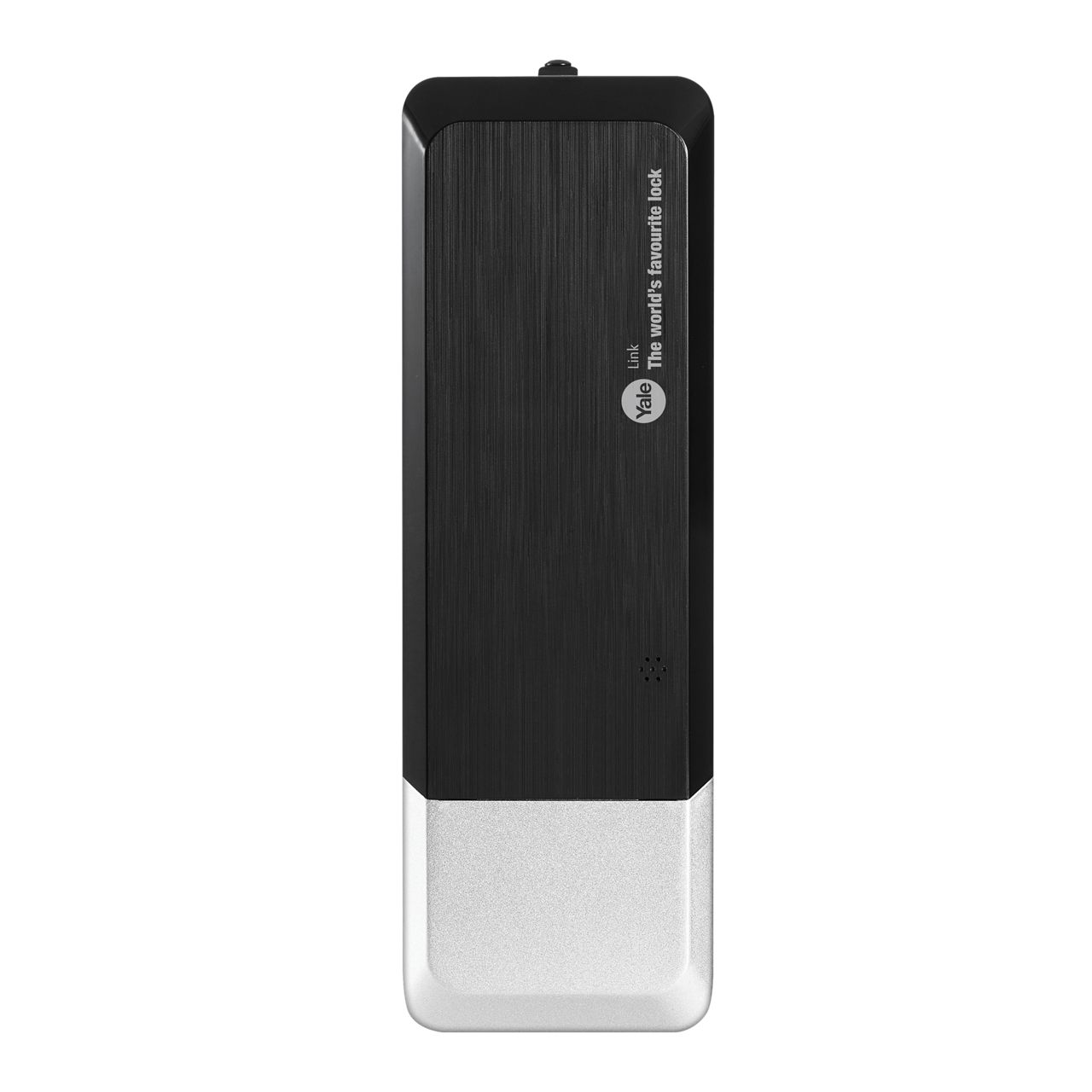

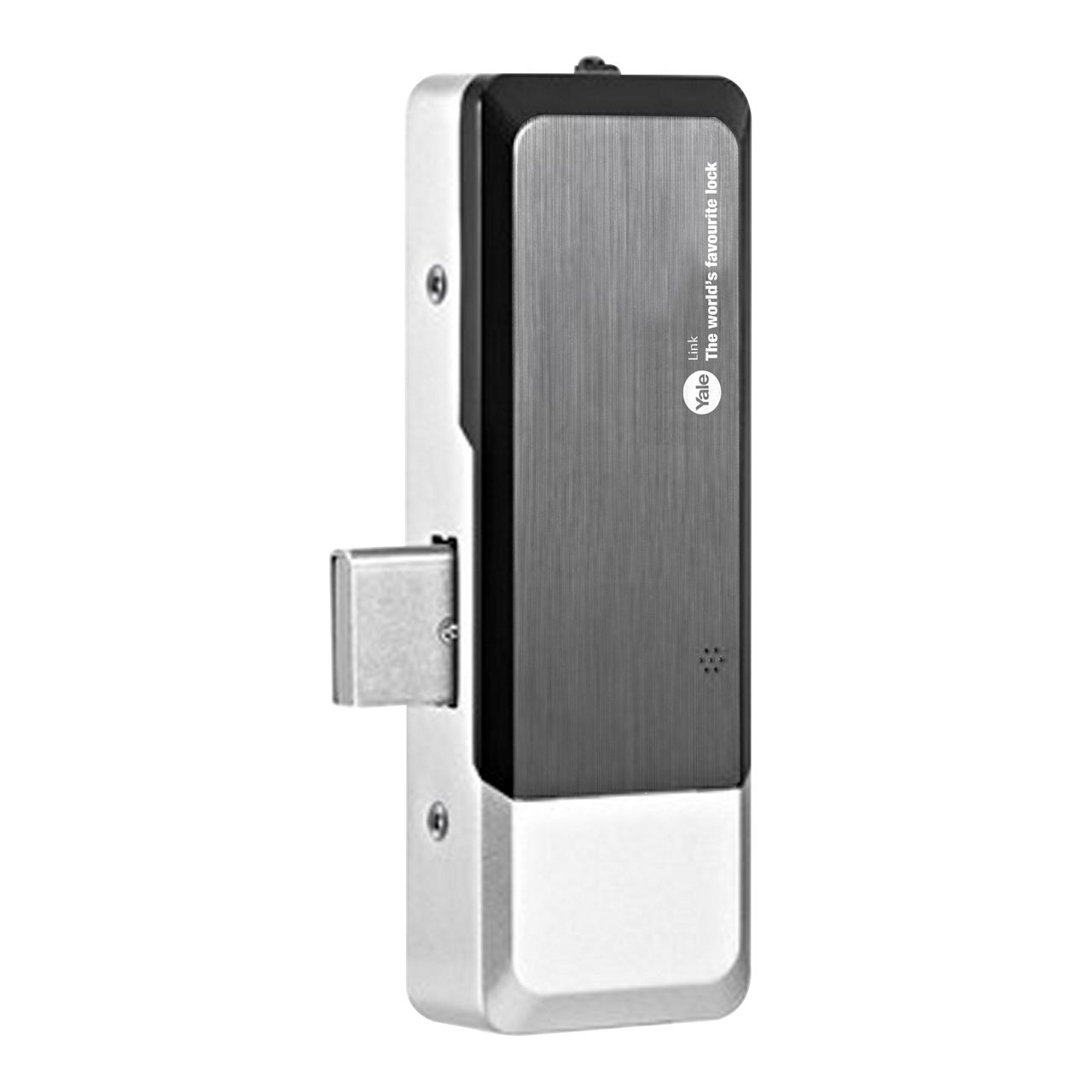

- Size (Back): 77(W) x 220(H) x 40(D) mm
Access Credential:
- Fingerprints: No
- PIN Code: Available
- RFID Card: Available

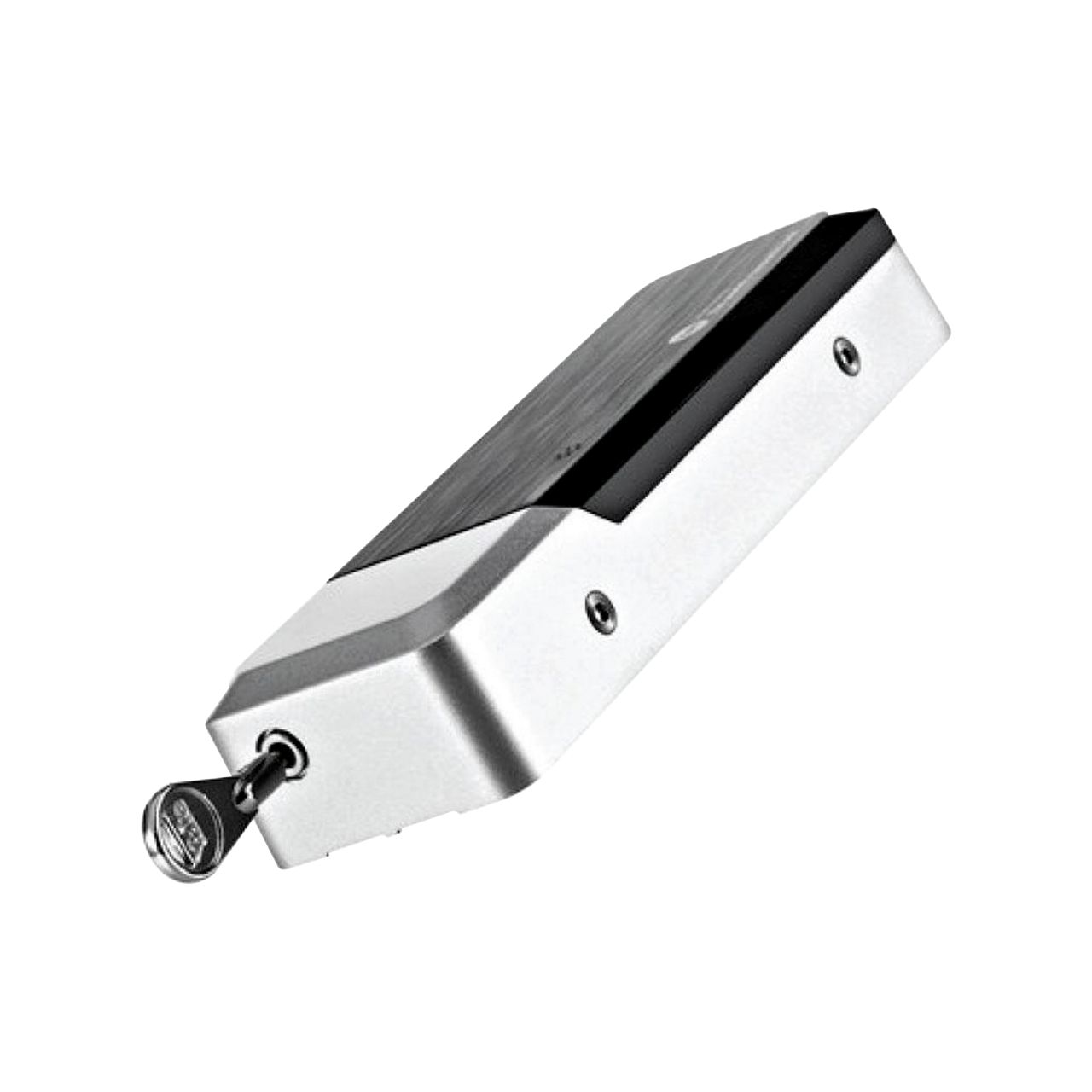

- Mechanical Key Override: Available
- Bluetooth: Available
- WiFi Connection: Available
- Remote Control: Available (Optional - Sold Separately)
Maximum No. of Users:
- Fingerprints: No
- PIN Code: Up to 30 Users
- RFID Card: Up to 40 Users
- Mechanical Key Override: 2 Keys
- One Time Code: 1 Only
Additional Features:
Automatic Locking
The Yale series automatically locks the door after checkinng it is properly closed. (Manual operation is also available.)
Alarm (Break / Damage)
80dB alarm goes off if anyone attempts to damage the lock or force the door open.Fake PIN Code
To prevent the PIN code from being exposed, it allows you to enter Fake numbers before or after entering your PIN Code.
Low Battery and Emergency Power
It warns in case of low battery with alarm and LED. When the battries are completely discharged, you can easily supply emergency power to the lock with the standard 9V battery.
Operation Status Notification
Whenever any operation is made, the keypad informs you what is happend through different alignment of the numbers.
Remote Control (Optional)
Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.
Bluetooth Module (Optional)
Bluetooth communication module allows lock to communicate and be controlled via a Smart Phone (within Bluetooth range of the lock) using the Yale Link Apps.
