Yale

510/520 Mortice lock for wooden doors

Specifications:

  • Latch operated by both key and handle
  • Key operated bolt



Features:

  • Forend 23mm with square (520) and round edge (510)
  • Centre to centre 85mm
  • DIN holes on cylinder
  • Backsets 20-70mm
  • Flat strike plate included
  • Solid brass (510) or painted steel (520) finish
  • Fixing screws for lock and strike plate included
  • ProductProduct IDAttributes
    Round edge, 1 throw5100020
    Finish_IT: Solid brass
    Round edge, 1 throw5100025
    Finish_IT: Solid brass
    Round edge, 1 throw5100030
    Finish_IT: Solid brass
    Round edge, throws = 25100035
    Finish_IT: Solid brass
    Round edge, 2 throws5100040
    Finish_IT: Solid brass
    Round edge, 2 throws5100045
    Finish_IT: Solid brass
    Round edge, 2 throws5100050
    Finish_IT: Solid brass
    Round edge, 2 throws5100060
    Finish_IT: Solid brass
    Round edge, 2 throws5100070
    Finish_IT: Solid brass
    Square end, 1 throw5200020
    Finish_IT: Painted steel
    Square end, 1 throw5200025
    Finish_IT: Painted steel
    Square end, 1 throw5200030
    Finish_IT: Painted steel
    Square end, 2 throws5200035
    Finish_IT: Painted steel
    Square end, 2 throws5200040
    Finish_IT: Painted steel
    Square end, 2 throws5200045
    Finish_IT: Painted steel
    Square end, 2 throws5200050
    Finish_IT: Painted steel
    Square end, 2 throws5200060
    Finish_IT: Painted steel
    Square end, 2 throws5200070
    Finish_IT: Painted steel

Similar products

  • 52X Series

    Specifications:

    • Lock case with 85mm centres
    • Backset options 40,45,50 and 60mm
    • Through fixing holes with 38mm centres for rosette handles
    • Brass latch and steel deadbolt
    • Square or radius front and strike plate
    • Front plate 240x22x3mm
    • Strike plate 238x25x1.5mm
    • 20mm double throw deadbolt


    Features:

    • Satin nickle or polished brass finish
    • Latch and deadbolt finish matched with front plate
    • Latch operated by handle or cylinder
    • Tested to EN12209:2003

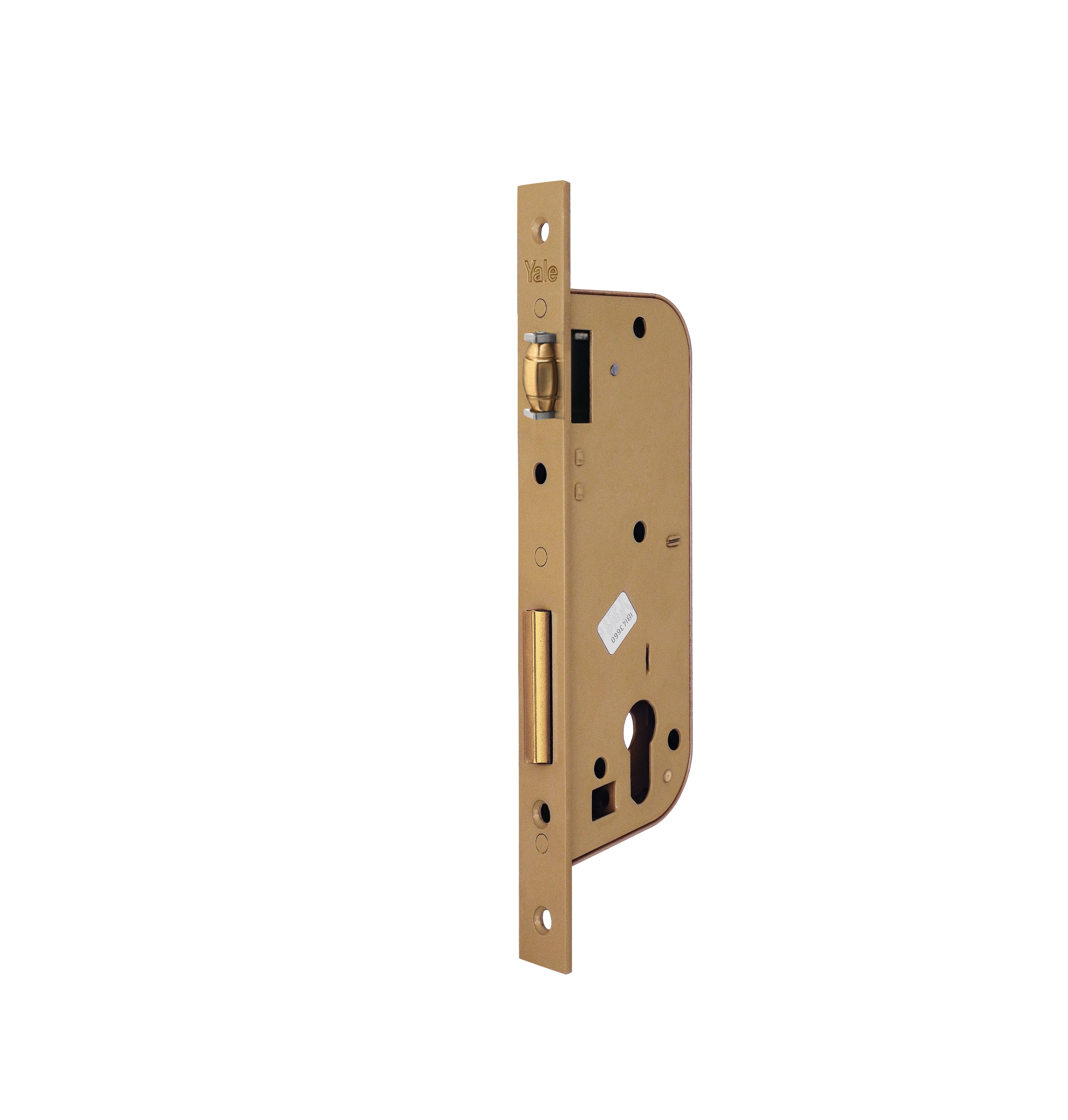

  • 521 Mortice fock for wooden door with adjustable roller

    Specifications:

    • Roller adjustable by screw on the forend
    • Key operated bolt



    Features:

    • Forend 23mm with square edge
    • Centre to centre 85mm
    • DIN holes on cylinder
    • Backsets 20-60mm
    • Flat strike plate included
    • Painted steel finish
    • Fixing screws for lock, strike plate and cylinder included

  • 522 Mortice lock for wooden door

    Specifications:

    • Hook latch operated by both key and handle
    • Key operated bolt



    Features:

    • Forend 23mm with square edge
    • Centre to centre 85mm
    • DIN holes on cylinder
    • Backsets 40, 45 and 50 mm
    • Flat strike plate included
    • Painted steel finish
    • Fixing screws for lock, strike plate and cylinder included
