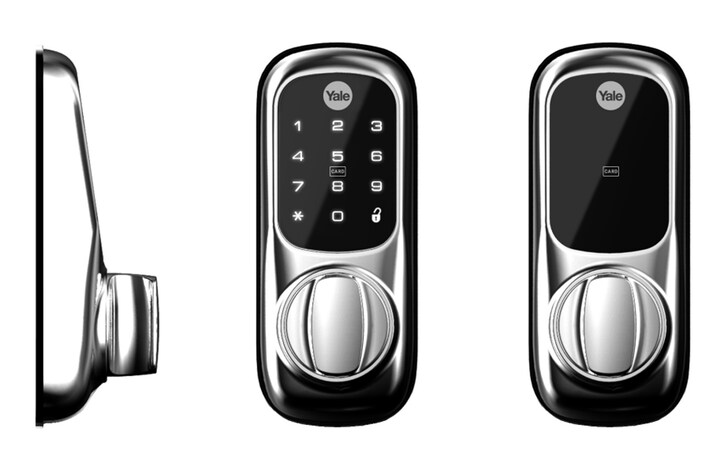

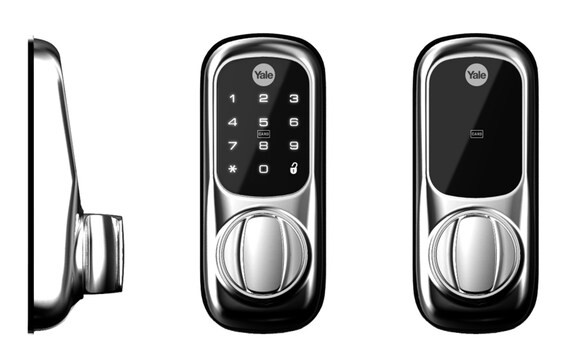

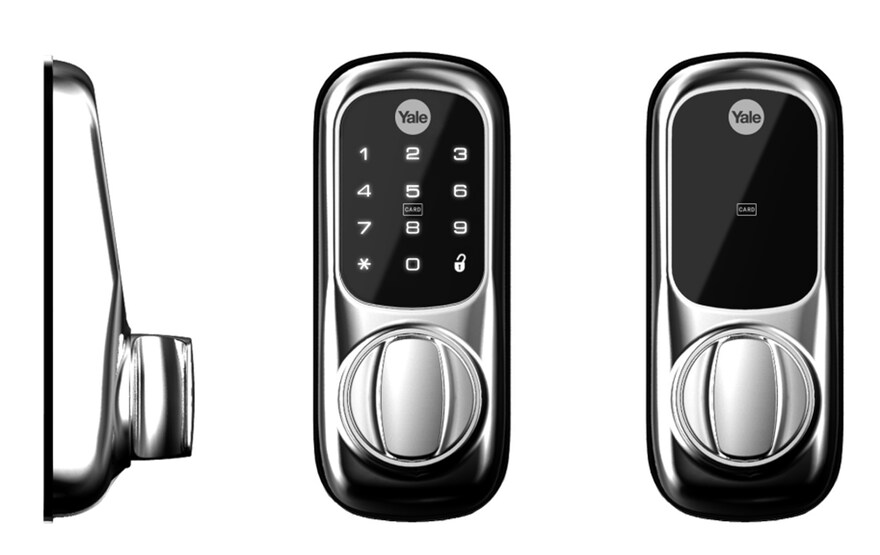

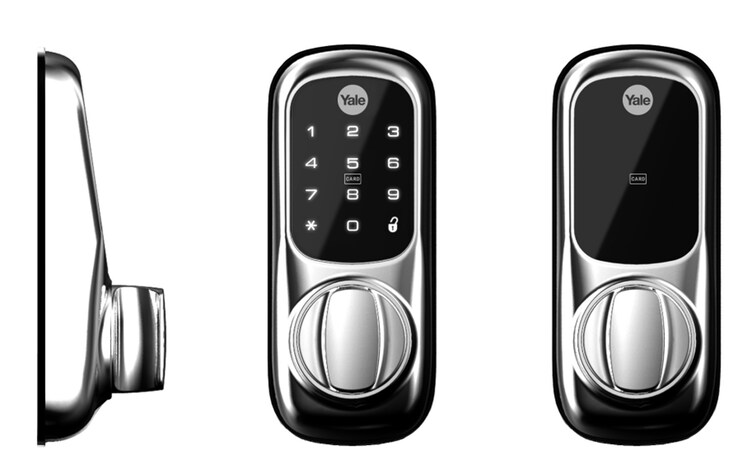

Smart Door Lock Keyless Connected (for wooden & metal doors)

The Yale Keyless Connected smart lock gives you freedom to
secure your home without the need for a key. Simple to use, you now have complete control on how you unlock your door.



Convenience:  There's no need to worry if your children arrive home early, or if you're stuck at work with friends on your doorstep. You control who and when people have access to your home. For example, you can set a PIN code that works for 24 hours for a family member or your cleaning person.

Simple to use:  You choose how you want to open your door. PIN code, key card, key tag, remote fob and even from your smartphone when connected to a smart home system. It is also easy to add and remove users if you need to.

Security as standard:  Feeling safe and secure is a must for any homeowner. The smart lock has a tamper alarm and incorrect PIN code feature.

Always On:  Don't worry if the electricity goes down as the smart lock is powered by 4 AA batteries. It will even warn you when the batteries are running low.

Connectivity:  Complete your smart home system. The Keyless Connected smart lock can connect to leading smart home systems when the appropriate module is fitted. It also connects to the Yale SmartPhone Alarm and CCTV systems when you use the Yale module.



Features

  • Replaces existing rim cylinder used on a 60mm backset nightlatch

  • Touchscreen with backlit keypad

  • Battery operated

  • Credentials: PIN code (4-12 digits) & RF Card

  • Remotely add user credentials

  • Remote control (optional)

  • Low battery indicator with emergency battery connection

  • User schedules

  • Audit trails

  • 3 minute lock out if code is entered incorrectly 5 times

  • Tamper alarm

  • Cycle tested to 120,000 cycles

  • Low power consumption - unlocks up to 10,000 times with one set of 4 x AA batteries

  • 2 year guarantee

  • Optional Accessories: Remote Fob Module (includes one fob)
    Additional Remote Fobs
    Yale® Module
    Z-Wave® Module
    Key Card
    Key Tag

  • Connectivity:
    Connects to Yale® Smart Alarm and CCTV range (Yale Module).
    Connects to Z-Wave® compatible smart home systems (Z-wave Module)



Specifications

  • Type: rim lock
  • Credentials: Pin code (4-12 digits) & RFID card
  • Backset: 60mm
  • Colour: silver
  • IP 55 weather resistant
  • Door thickness: 40-57mm
  • Dimensions: front body 64(W)x153(H)x51(D)mm; Battery pack 68(W)x120(H)x21(D)mm
  • Operating temperature -15oC to 55oC

1 of 5

Similar products

  • Smart Door Lock YDR3110 (for wooden & metal doors)

    YDR3110 rim lock is a smart solution for residential & light commercial applications. 2 access solutions to open your door: RF Card key & PIN code. The innovative features, such as alarms, fake code or automatic locking will provide comfort and will increase your feeling of security.



    Specifications:

    • Type: rim lock
    • Credentials:
    • Pin code (4 to 12 digits)
    • RF Card key: 4 (up to 20 users)
    • Backset: 60-90mm
    • Colour: black
    • Door thickness: 35-45mm
    • Dimensions: front body 19(D)x 65 (W)x160(H); Back body 36(D)x158 (W)x 85(H) mm
    • Integration: available upon request-RF link
    • Options: extra remote controls & card keys
    • Suitable for left or right opening



    Features:

    • Various access (PIN code & RF Card key)
    • Smart touchpad
    • Operation status notification
    • Missing key invalidation
    • Automatic locking
    • Alarm (break-in/damage)
    • Low battery alarm & emergency power with 9v battery

  • Smart Door Lock YDR4110 (for wooden & metal doors)

    YDR4110 rim lock is a smart solution for residential & light commercial applications. It offers two access solutions to open your door: fingerprint & PIN code. The innovative features, such as alarms, fake code or automatic locking provide secure access and peace of mind.



    Specifications:

    • Type: rim lock
    • Credentials:
    • Pin code (4 to 12 digits)
    • Fingerprint reader (up to 20 users)
    • Mechanical key: no
    • Backset: 60-90mm
    • Colours: black
    • Door thickness: 35-45mm
    • Dimensions: front body 19(D)x 65 (W)x163(H); Back body 36(D)x158 (W)x 85(H)
    • Integration: available upon request-RF link
    • Options: extra remote controls
    • Suitable for left or right opening



    Features:

    • Various access (PIN code & fingerprint)
    • Smart touchpad
    • Operation status notification
    • Voice guide feature
    • Automatic locking
    • Alarm (break-in/damage)
    • Low battery alarm & emergency power with 9v battery

  • Smart Door Lock YDR323 (for wooden & metal doors)

    The Yale Digital Door Lock Collection offers Smarter Keyless Access Solutions for residential and commercial applications.

    Specifications:

    • Motorized Rim Lock
    • Backset: 70mm to 90mm
    • Door Thickness: 35 to 45mm
    • 4 x AA batteries
    • Operation Temperature: -15 to +55C


    Features:

    • PIN Code: 4 -12 digits
    • Promixity Cards: up to 20 users
    • Optional remote control
    • Elegant mirror style touch pad
    • Easy installation
    • Available in silver finish











  • Smart Door Lock YDG313 Shine (for glass doors)

    YDG313 is a Digital Door Lock product designed for glass doors, with a patented touchpad called "Magic mirror" which gives the product a very modern look and feel.



    Features:

    • Pin code: 4-12 digits
    • Proximity cards: up to 20 users
    • Elegant mirror style touch pad
    • Clip type bracket - no drilling required
    • Easy installation
    • Available in silver finish
    • Low battery alarm & emergency power with 9v battery
    • Automatic locking



    Specifications

    • Type: rim lock
    • Door thickness: 10 to 12mm
    • Door Gap: 2.5 to 5mm
    • 4x AA batteries
    • Automatic lock mode
    • Suitable for left or right opening
