Mechanical Range

Explore Yale's extensive traditional security products range, including: Cylinders, Nightlatches, Padlocks, Mortice Locks, Safes and additional door and window security.

Products

  • Raffaello Series - Grade 3

    Specifications

    • Forged brass handle and deadbolt cylinder rosette
    • Adjustable 60-70mm backset latch and deabolt
    • Security deadbolt with anti-saw pins.
    • Latch operated by handle from outside and knob from inside
    • Deadbolt operation by key from outside and turn from inside



    Features

    • Conforms to ANSI grade 3 requirements
    • Suitable for door thickness 35-50mm

  • Leonardo Series

    Specifications

    • Forged brass handle and deadbolt cylinder rosette
    • Adjustable 60-70mm backset latch and deabolt
    • Security deadbolt with anti-saw pins.
    • Latch operated by handle from outside and knob from inside
    • Deadbolt operation by key from outside and turn from inside



    Features

    • Conforms to ANSI grade 3 requirements
    • Suitable for door thickness 35-50mm

  • Michelangelo Series

    Specifications

    • Forged brass handle and deadbolt cylinder rosette
    • Adjustable 60-70mm backset latch and deadbolt
    • Security deadbolt with anti-saw pins
    • Latch operated by handle from outside and knob from inside
    • Deadbolt operation by key from outside and turn from inside
    • ANSI grade 3

  • Donatello Series

    Specifications

    • Forged brass handle and deadbolt cylinder rosette
    • Adjustable 60-70mm backset latch and deadbolt
    • Security deadbolt with anti-saw pins
    • Latch operated by handle from outside and knob from inside
    • Deadbolt operation by key from outside and turn from inside
    • ANSI grade 3

  • 304 Series

    High quality stainless steel butt hinges.



    Specifications

    • Butt hinge with ball bearings
    • Stainless steel AISI 304
    • Square corners
    • Can be used on doors up to 120 kg



    Features

    • CE marked
    • Tested to EN1935:2002 class 13
    • Suitable for fire and smoke resistant doors, tested to EN1634-1:2014
    • Available in Stainless Steel Matt, Stainless Steel Polish and Polish Brass finishes

  • 316 Series

    High quality stainless steel butt hinges.


    Specifications
    • Butt hinge with ball bearings
    • Stainless steel 316
    • Square corners
    • Can be used on doors up to 120 kg



    Features
    Available in satin, antique brass,
    polished gold finishes

  • 201 Series

    High quality stainless steel butt hinges.



    Specifications
    • Butt hinge with ball bearings
    • Stainless steel 201
    • Square corners
    • Can be used on doors up to 120 kg



    Features
    • Available in satin, antique brass, polished gold finishes

  • Rim Lock with Roller Latch



    Specification





    • Fail secure - power to open
    • Power supply 10-16V AC
    • Fixed backset 70mm
    • 5 nickle plated brass keys
    • Fixed cylinder


    Features





    • 50mm or 70mm cylinder length
    • Black painted or satin nickle finish
    • Suitable for wooden and metal doors
    • Reverisble for left or right hand doors















  • Security Cable 1200m

    Features

    • Extra flexible steel cables for ease of use
    • Vinyl coatings protect paint and finishes
    • Attached Velcro straps to contain cable



    Specification

    • Dimensions:
      • Cable: 1200mm
      • Length: 10mm
    • Weight: 0.3kg
    • Part no. YC1/10/120/1

  • Security Cable 2200m

    Features

    • Extra flexible steel cables for ease of use
    • Vinyl coatings protect paint and finishes
    • Attached Velcro straps to contain cable



    Specification

    • Dimensions:
      • Cable: 2200mm
      • Length: 10mm
    • Weight: 0.474kg
    • Part no. YC1/10/220/1

  • Standard Security Combination Cable Lock

    Features

    • Twin lock secures cable to lock head in two places
    • Protective vinyl coating to prevent painted surfaces from scratches
    • Steel ball click gear system that resists picking and pulling
    • Integrated phosphorescent 4 digit resettable combination lock
    • 2 Year Guarantee



    Specification

    • Yale Rating: 6/10
    • Number of keys : combination
    • Dimensions:
      • Cable: 1800mm
      • Diameter: 10mm
    • Weight: 0.4kg
    • Part no. YCC1/10/185/1

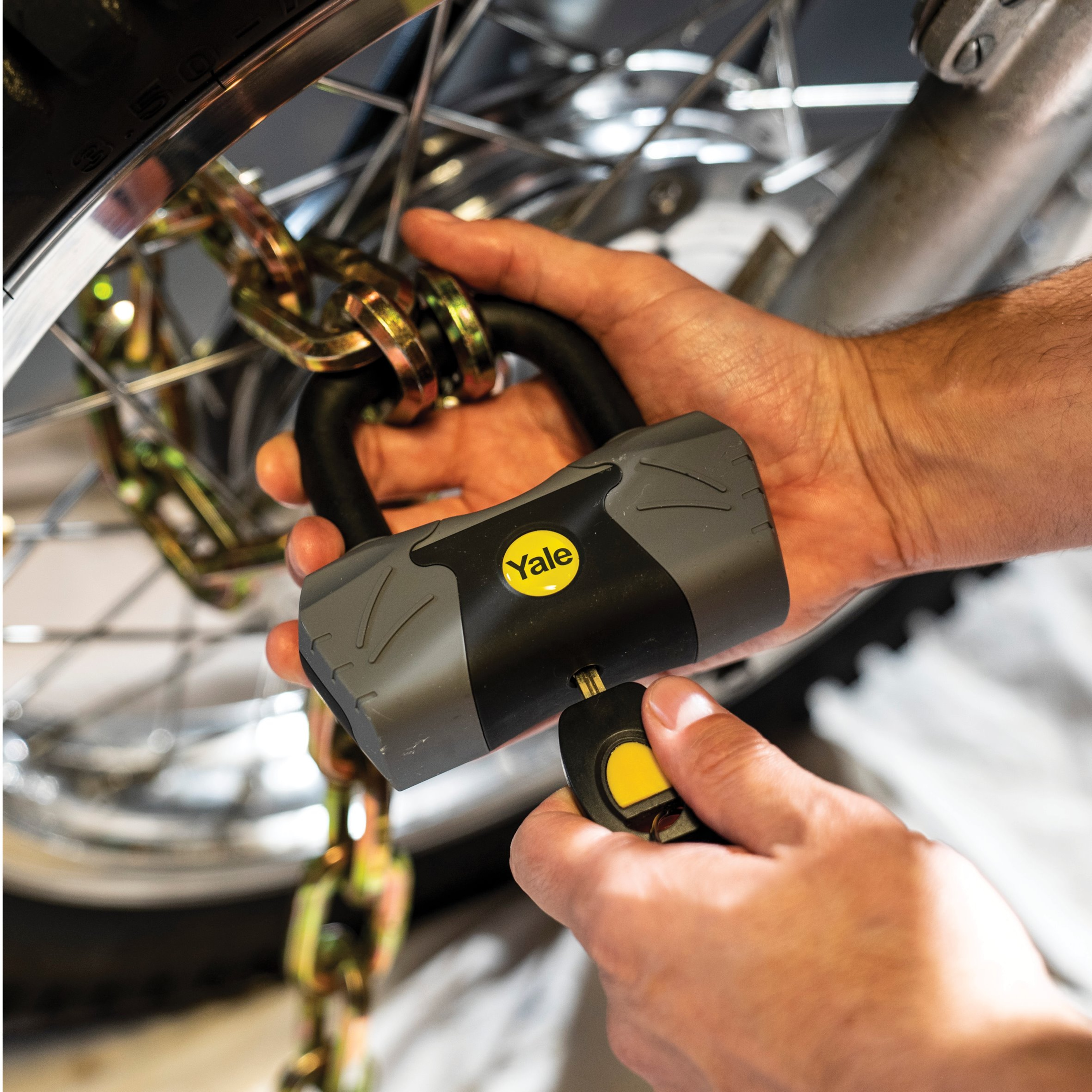

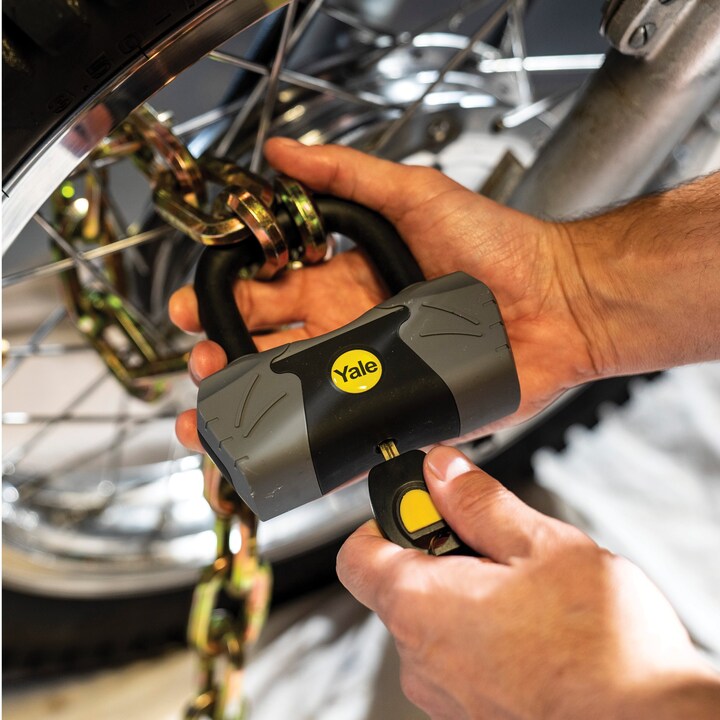

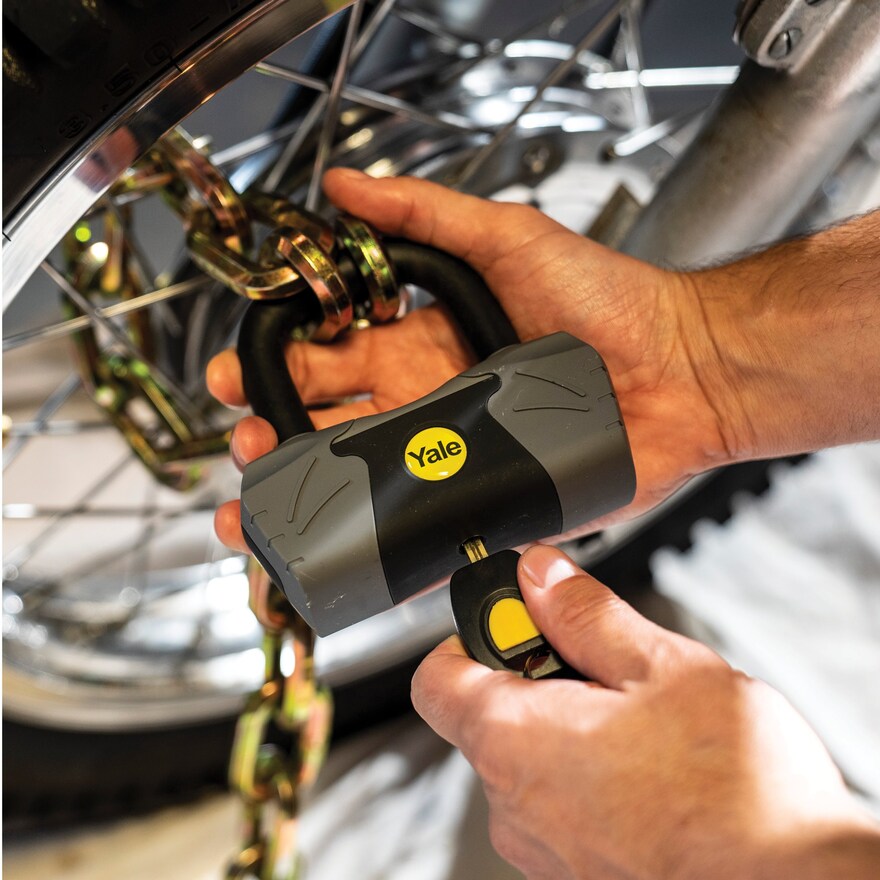

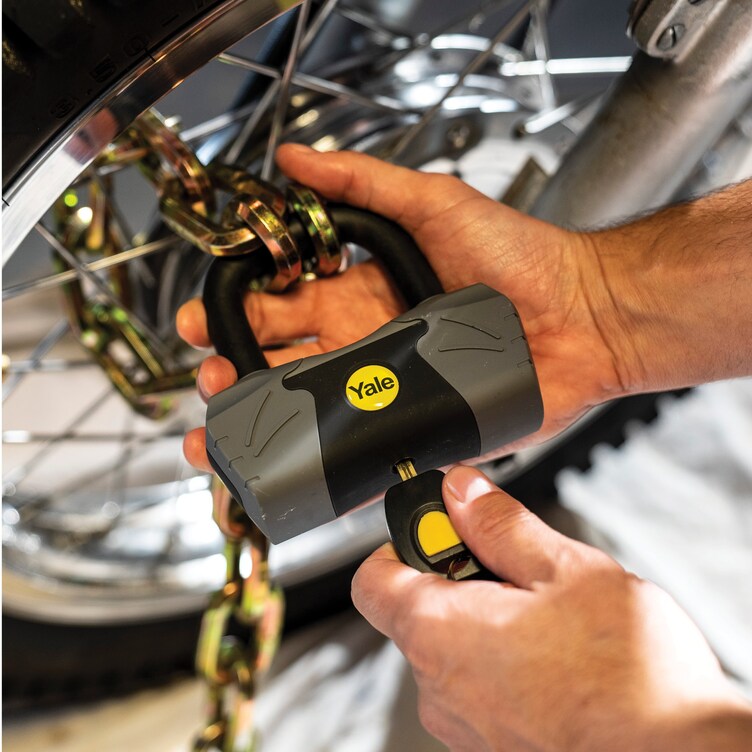

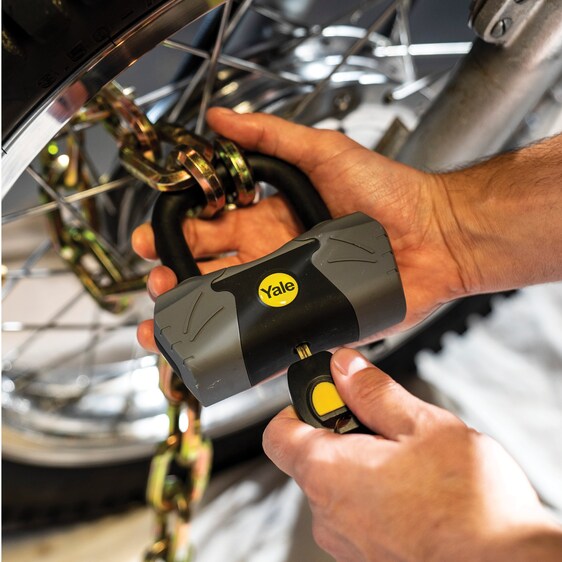

  • High Security U-Lock with Cable

    Features

    • Ultra hardened shackle for maximum cut and impact resistance
    • Double point locking heavy duty crossbar provides high pull protection
    • High Security lock provides resistance from pick, pull, bump and drill attacks
    • Double rubber bumper for protection against scratches
    • Independently rated Sold Secure Silver
    • 4 laser cut keys including 1 with micro-light
    • 5 Year Guarantee



    Specification

    • Yale Rating: Maximum 8/10
    • Sold Secure Rating: Silver
    • Dimensions:
      • H: 230mm
      • W: 115mm
      • D: 13mm
      • Cable: 1200mm
      • Diameter: 10mm
    • Weight: 1.48kg
    • Bike bracket for storage : Yes
    • Number of keys: 4 laser cut keys including 1 with a micro-light
    • Part no. YUL2C/13/230/1
