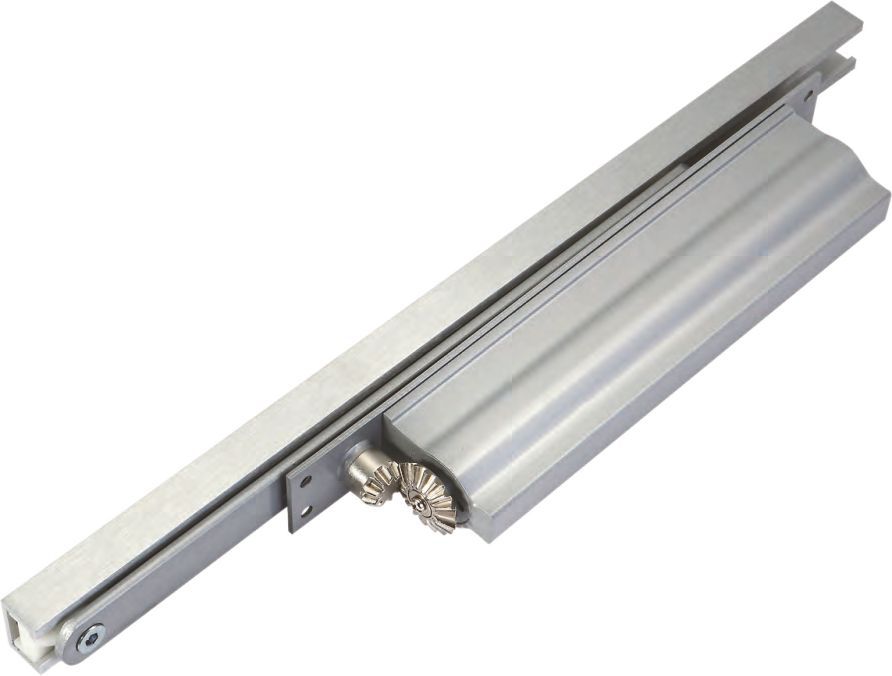

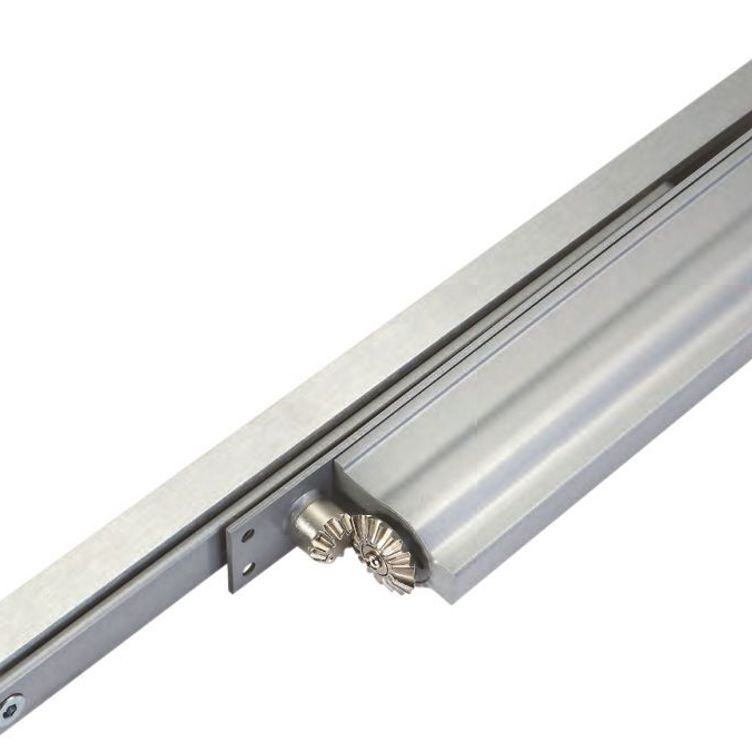

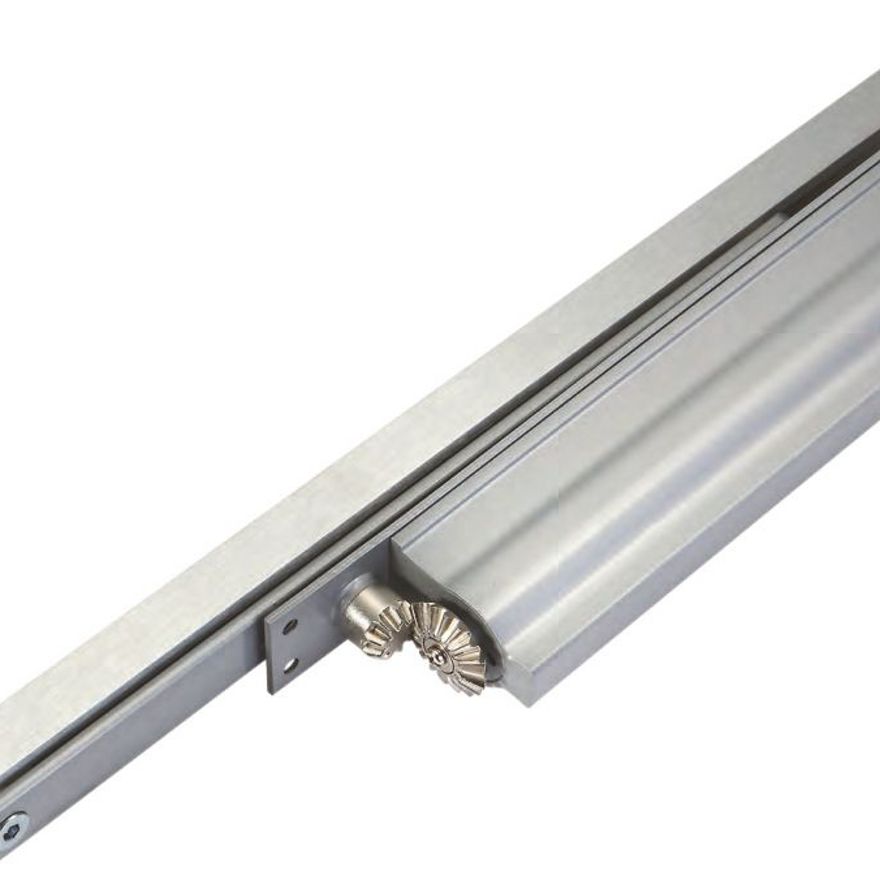

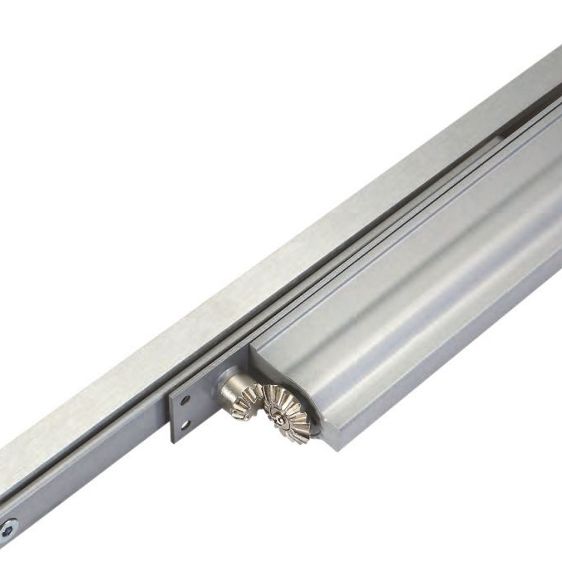

YIC 5124 HO

Concealed Door Closer

Product Description

Yale YIC 5124 HO door closer suits all types of doors and requirements. It comes with speed control and ﬁre rating for best performances under all circumstances.

Features:

Designed to meet EN 1154 performance
Tested to 500,000 cycles
Yale Concealed Cam Action Door Closer
Area of Application - Wooden Doors or Metal Doors
3 Years Warranty
Noise Free operation

Product Specification:

Closer Force - Spring Strength: EN2 to EN4 (Template adjustable)
Arm Type Standard: Concealed Slide Rail - Hold Open Type
Door installation width: 750mm-1100mm
Latching Speed Angle: adjustable
Closing Speed Angle: adjustable
Maxium door weight: 80kg
Finishes: Silver
