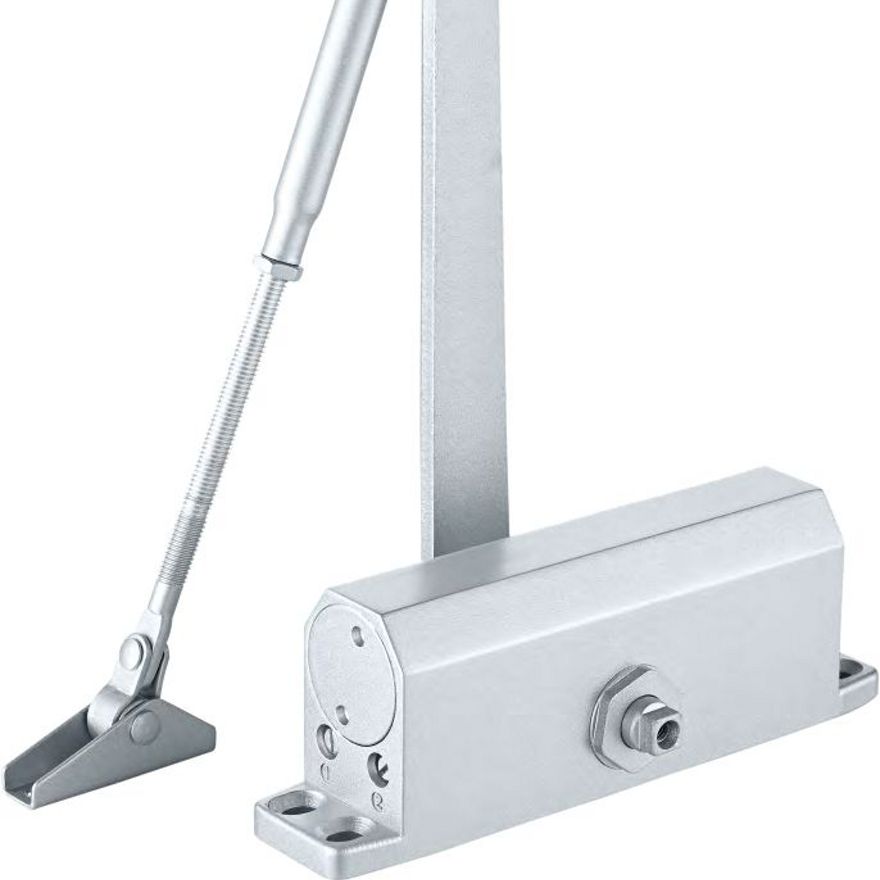

DCR 504
Surface Mounted Door Closer
Product Description
Yale DCR504 door closer has been designed to meet the optimum closing requirements of most of the doors used at home or your office space. CE Marked and tested for durability.
Technical Specifications
- Suitable for din left and Grade 2 din right handed doors
- Conforms to EN 1154
- Conforms to CE
- 3 Year Warranty
- 5,00,000 Cycle Tested
- Grade 2
| Details | Features |
| Type | R & P |
| Spring Sizes | EN 4 |
| Arm Assembly Type (Standard / Slide Channel Arm / Hold Open Type) | Std. Arm |
| Adjustments Facility | ✓ |
| Area of Application | Wooden or Metal Doors |
| Back Check | ✖ |
| Hold Open / Slide Arm / Parallel Arm | ✖ |
| Standards | EN 1154 |
| CE Marked | ✓ |
| Suitable for door width | Upto 1100 mm |
| Suitable for door weights | 80 kgs |
| Cycle Tested | 500000 |
| Finishes | Silver |
