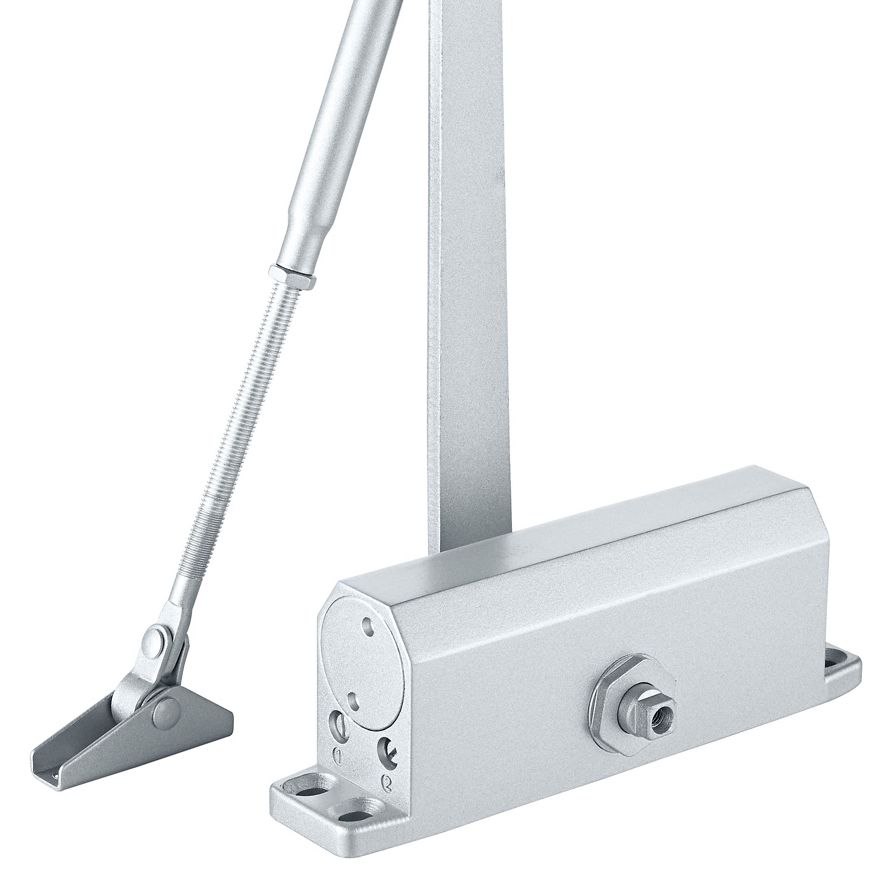

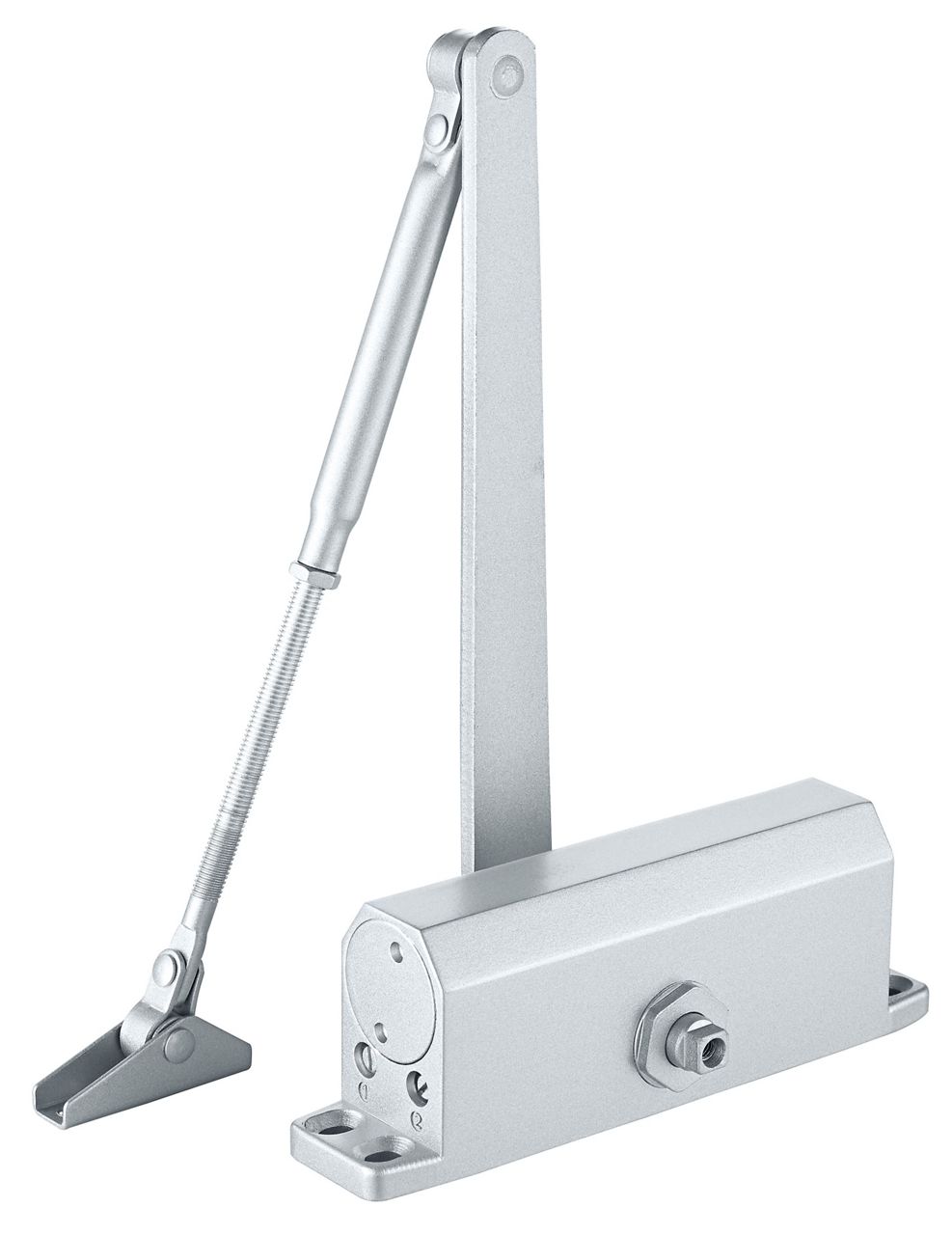

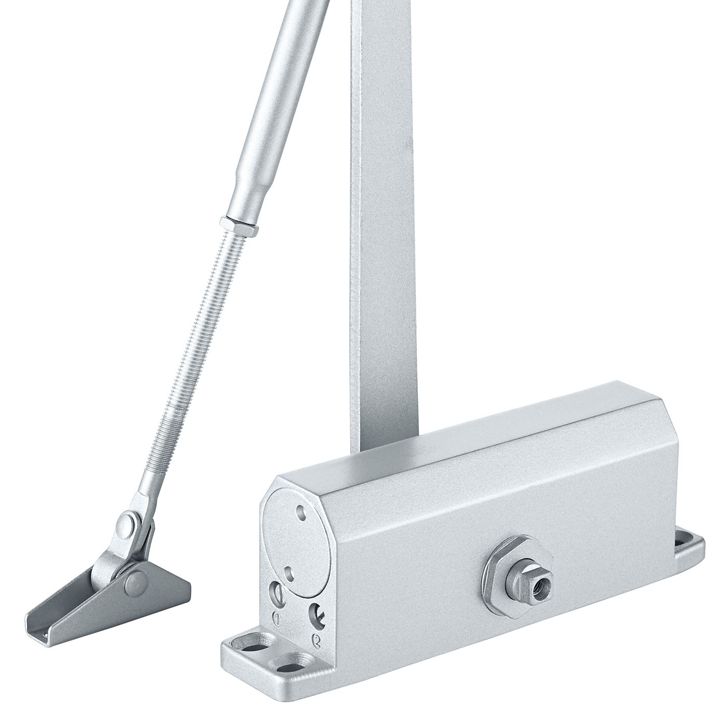

DCR 504 R Premium
Door Closer EN Size 2-4, Standard Arm (Surface Mounted) (No Hold Open) upto 80kg
Product Description
Yale surface mounted door closer applicable for EN Size 2-4, manufactured as per the European standard 1154. Aluminium die cast body with standard arm. Suitable for wooden and aluminium frame doors. With adjustable closing and latching speed .
Technical Specifications
- Suitable for din left and Grade 2 din right handed doors
- Conforms to EN 1154
- 3 Year Warranty
- 5,00,000 Cycle Tested
- Grade 2
| Details | Features |
| Type | R & P |
| Spring Sizes | EN 2 - 4 |
| Arm Assembly Type (Standard / Slide Channel Arm / Hold Open Type) | Std. Arm |
| Adjustments Facility | ✓ |
| Area of Application | Wooden or Metal Doors |
| Back Check | ✖ |
| Hold Open / Slide Arm / Parallel Arm | ✖ |
| Standards | EN 1154 |
| CE Marked | ✖ |
| Suitable for door width | 750 - 1100mm |
| Suitable for door weights | 80 kgs |
| Cycle Tested | 500000 |
| Finishes | Silver |
