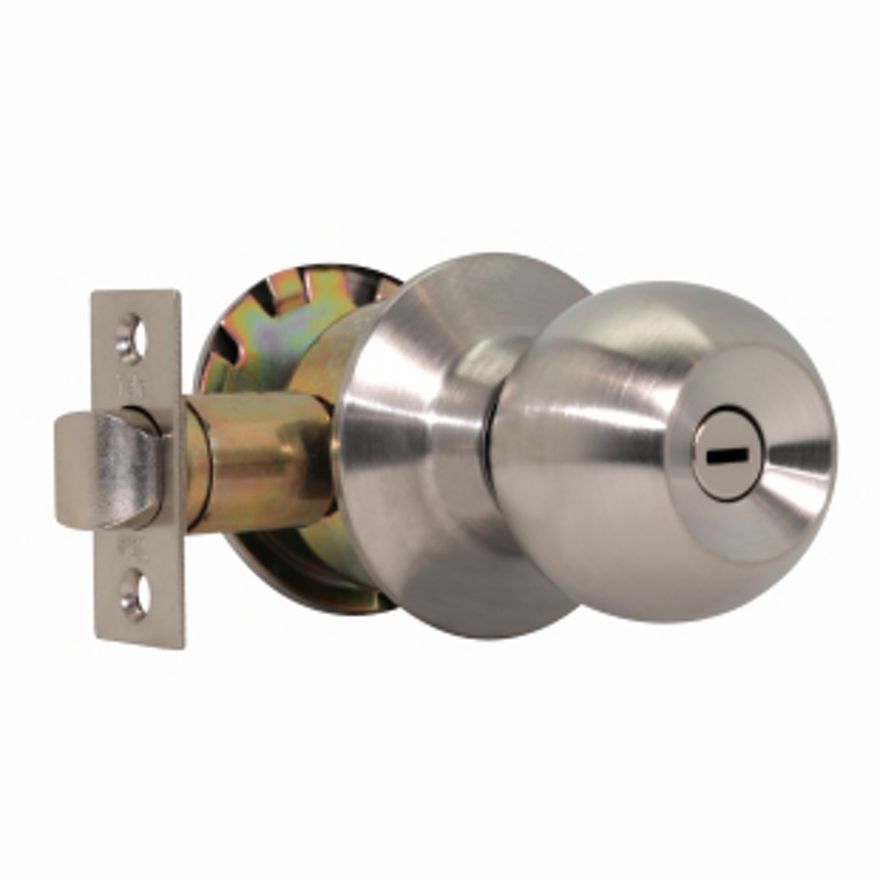

Knob Lockset 5142 Series
Cylindrical Knobset - Bathroom/Entrance
Features
- Suitable for 35mm – 45mm thick door.
- Backset: fixed 60mm or 70mm.
Technical Features
- Conforms to EN 12209
- 5 pin
- 3 Number of Keys
Material Specifications
- Material for strike plate and face plate: steel.
- Material for knob and rose: US32D-stainless steel; US3,US5,US11-brass.
- Rose diameter: 65mm
- Strike type: T shape
- Material for cylinder plug: Zinc alloy
- Material for cylinder housing: zinc alloy
| SKU Code | Type | Finish |
| CA5142 US32D 60BS | Cylindrical Knobset - Bathroom - 60mm B/S (US32) | Satin Steel |
| CA5142 US3 60BS | Cylindrical Knobset - Bathroom - 60mm B/S (US3) | Antique Brass |
| CA5142 US5 60BS | Cylindrical Knobset - Bathroom - 60mm B/S (US5) | Satin Steel |
| CN5142 US32D 60BS | Cylindrical Knobset - Bathroom - 60mm B/S (US32) | Antique Brass |
| CN5142 US3 60BS | Cylindrical Knobset - Bathroom - 60mm B/S (US3) | Satin Steel |
| CN5142 US5 60BS | Cylindrical Knobset - Bathroom - 60mm B/S (US5) | Satin Steel |
| CN5142 US32D 60/70BS | Bathroom - 60/70mm B/S (SSS) | Satin Steel |
