C-77EN2

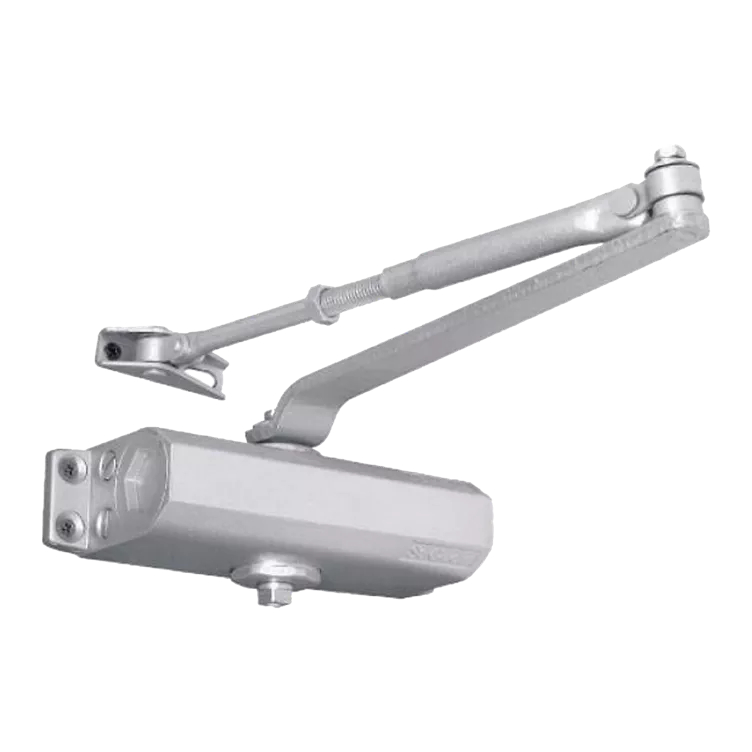

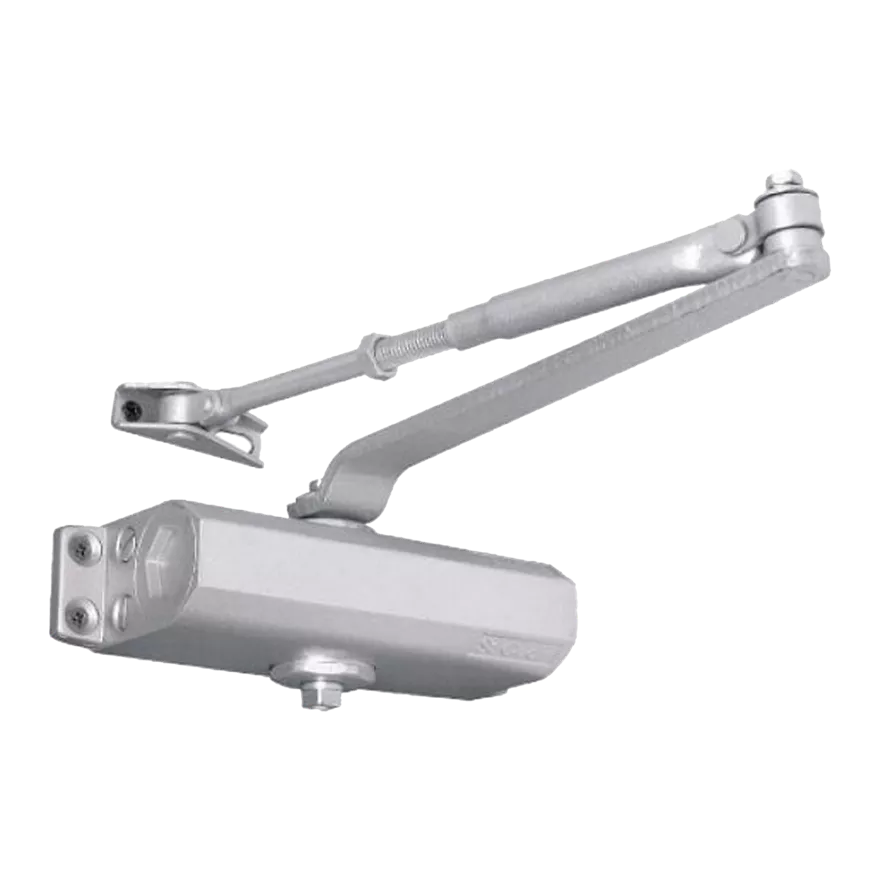

Surface Mounted Adjusted Fire Rated Door Closer
Yale surface mounted door closer applicable for EN Size 4, manufactured as per the European standard 1154. Aluminium die cast body with standard arm. Suitable for Wooden and Aluminium frame doors. Non Handed door closer with adjustable closing and latching speed .
Model No. | EN4 |
Dimension: | 182(L) x 53(W) x 60.5(H) mm |
Max. Width of Door (mm) | 1100 |
Max. Weight of Door (kg) | 80 |
Arm Type | 12 Hold Open Arm |
Torque Max | 37 NM |
Option Features | BC Backcheck |
Finishing | SB Silver |
Certification:
Passed Durability Test:
Two Speed Valves:
Quantity / Ctn: 10 pcs
