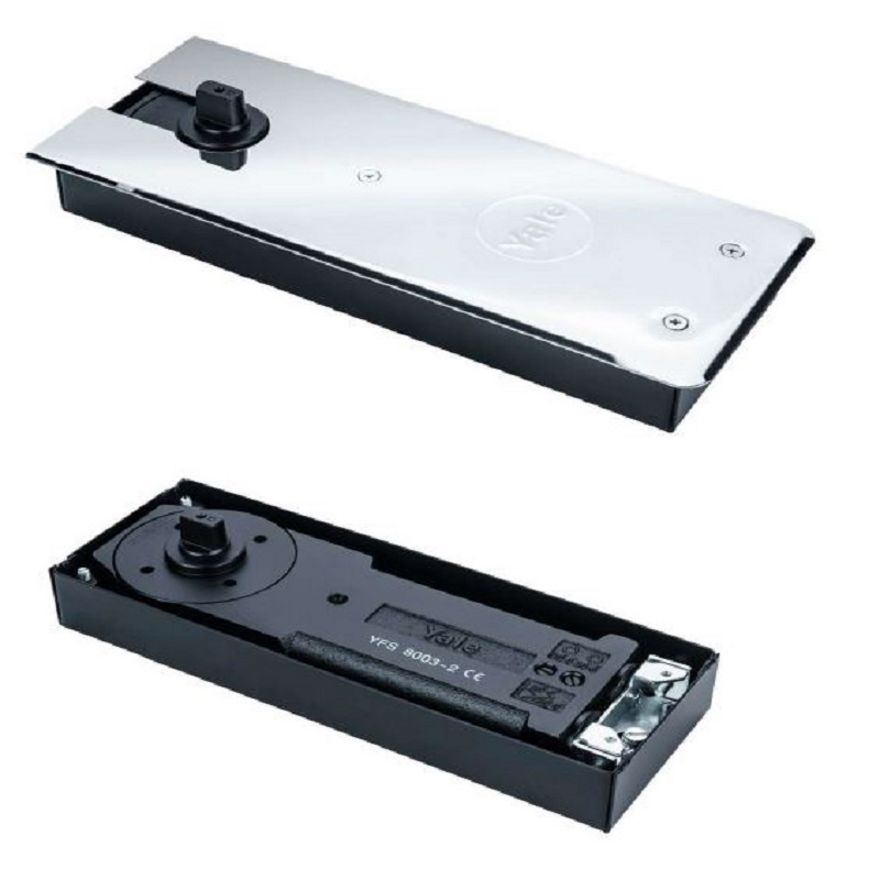

      YFS 8003 Floor Spring

      The Yale floor spring range has been specifically designed to meet

      most situations where pivoted single or double action doors required

      positive and consistent operation.

      Innovative design enables flexibility over a wide range of applications.

      Designed and manufactured to world class standards ensures the highest

      possible quality, efficient and reliable performance.

      Features:

      - For single or double action doors.

      - Hydraulic latching action valve adjustable.

      - Closing speed valve adjustable.

      - With hold-open function 90º.

      - Applicable for timber, glass and aluminum doors.

      - Closing force according to CE, EN 1154:1996 + A1:2002.

      - Closing force according to ANSI/BHMA A156.4.

      Technical data:

      - For fixed size EN2, 3, 4.

      - Max. oor width size 850 - 1,200mm.

      - Max. door weight 80 - 120 kg.

      - Max. door opening angle approx. 130º.

      Supplied with:

      - 1 Floor spring.

      - 1 Cover plate, polished stainless steel.

      Note:

      - Max. door height: =< 2400 mm.



      CodeDoor WeightDoor Width
      YFS 8003-280kg750-850mm
      YFS 8003-380-105kg850-950mm
      YFS 8003-4105-120kg950-1100mm
      YFS-8003YFS-8003
      • YFS 8003-2 US32
        YFS 8003-3 US32
        YFS 8003-4 US32
