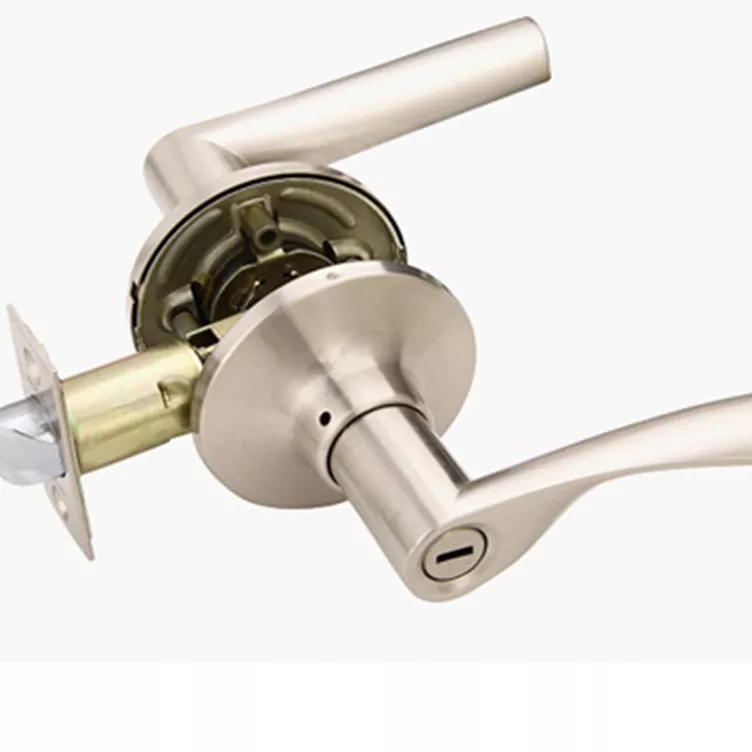

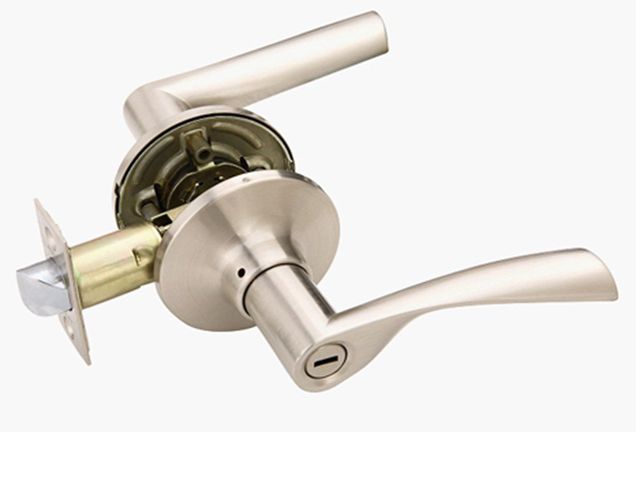

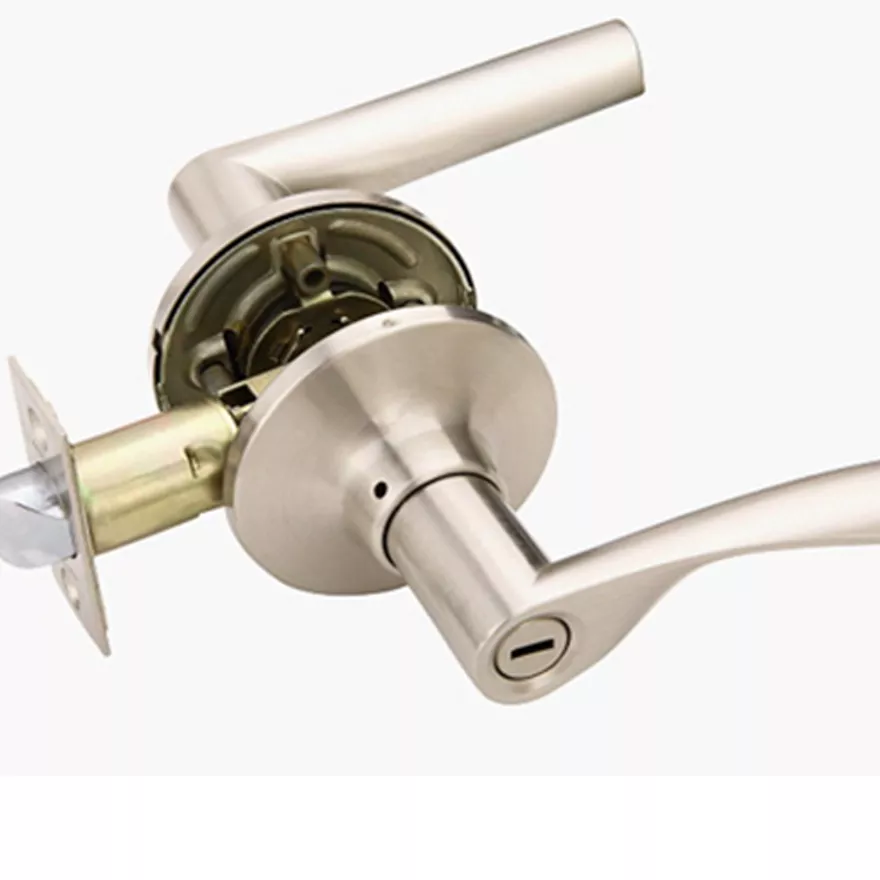

L5377/L5372/L5371

Steel radius or square corner faceplate and strike plate
Grade 3 standard leverset, tested to 200k cycles, 96 hrs neutral salt spray test for exterior parts
Unlock lever torque at 20 Nm and locked lever torque at 25Nm
Levers turn angles 45 deg. to unlock except L531x and L532x turns 75 degree to unlock

Dimension	415 x 380 x 440mm
Backset	60mm - 70mm
Door thickness	35 - 45mm
Roses diameter	65mm
Material for strike plate & face plate	Steel
Material for lever	Zinc alloy
Material for rose	Brass
No. of keys	3 pcs of nickel kesys - per keyed enterance
Material for cylinder housing	Zinc alloy
