Yale

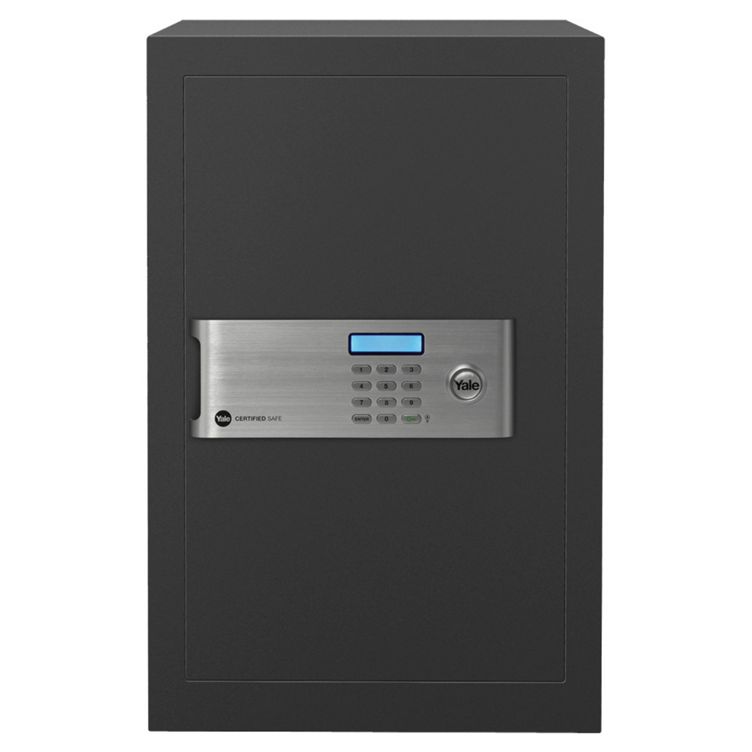

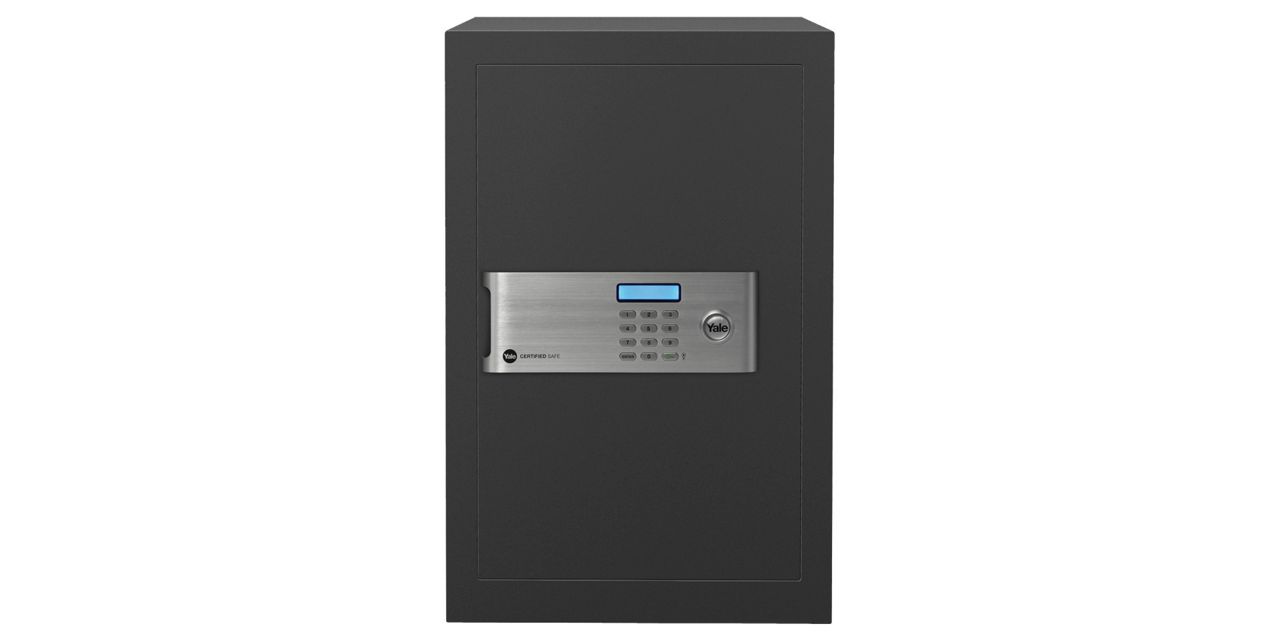

YSM/520/EG1

Features and Benefits

  • Electronic Lock with digital keypad
  • Blue backlight display
  • Laser cut steel door, with auto-opening function (when Correct code is entered)
  • Reinforced steel hinge
  • Brushed aluminum face plate
  • Concealed fixing points and mounting bolts included
  • Interior finish with full felt lining
  • Internal light source
  • Armored steel plates protecting locking mechanism
  • Box packaging

Certificate

  • Certified by Sold Secure "Silver" accreditations. Approved by Secure by Design
Shop now
f2591-ysm520eg1
f2591-ysm520eg1

1 of 2

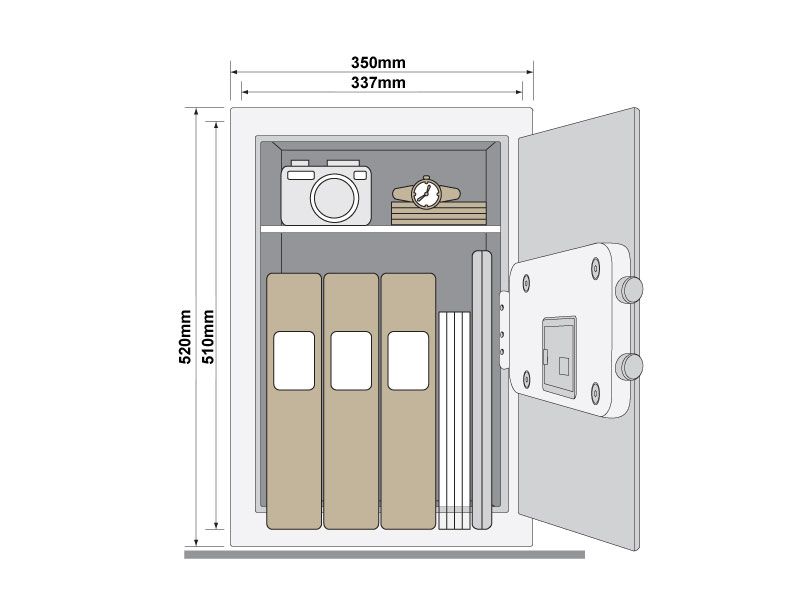

Exterior dimensions H x W x D (mm) 520 x 350 x 360 mm
Interior dimensions H x W x D (mm) 510 x 337 x 290 mm
Net weight (kg) 30
Volume (liters) 49.8
Others
  • 22mm diameter motorized locking bolts
  • 6 lever double-bitted override locking system
  • 2 original Yale override keys supplied
  • 4 AA size batteries (1.5V each, total 6V)
  • Pre-drilled holes with fixing bolts and felt feet pads
  • Certified - Sold Secure "Silver", Secure by Design
  • Full operating, installation instructions and fixing guide included
