Tulip design - Rosette 65mm | Yale

Specifications

Stainless steel or brass knobs
65mm diameter rose
5 pins cylinder, brass plug and zinc alloy housing (3 keys)
Entrance knobset, storeroom knobset and passage knobset with adjustable latch
Privacy function knobset wtih fixed latch, 60mm backset or 70 mm backdset on request
Suitable for door 35~45mm thickness
Square faceplace and strike in 304 stainless Steel material
Zinc alloy latch bolt

Features

Conforms to ANSI Grade 3 requirements

SS-Satin Stainless Steel(US32D), PB-Polished Brass(US3), AB-Antique Brassl(US5), AC-Antique Copper(US11), DC-Satin Nickel(US15), SP-Polished Stainless Steel(US32)

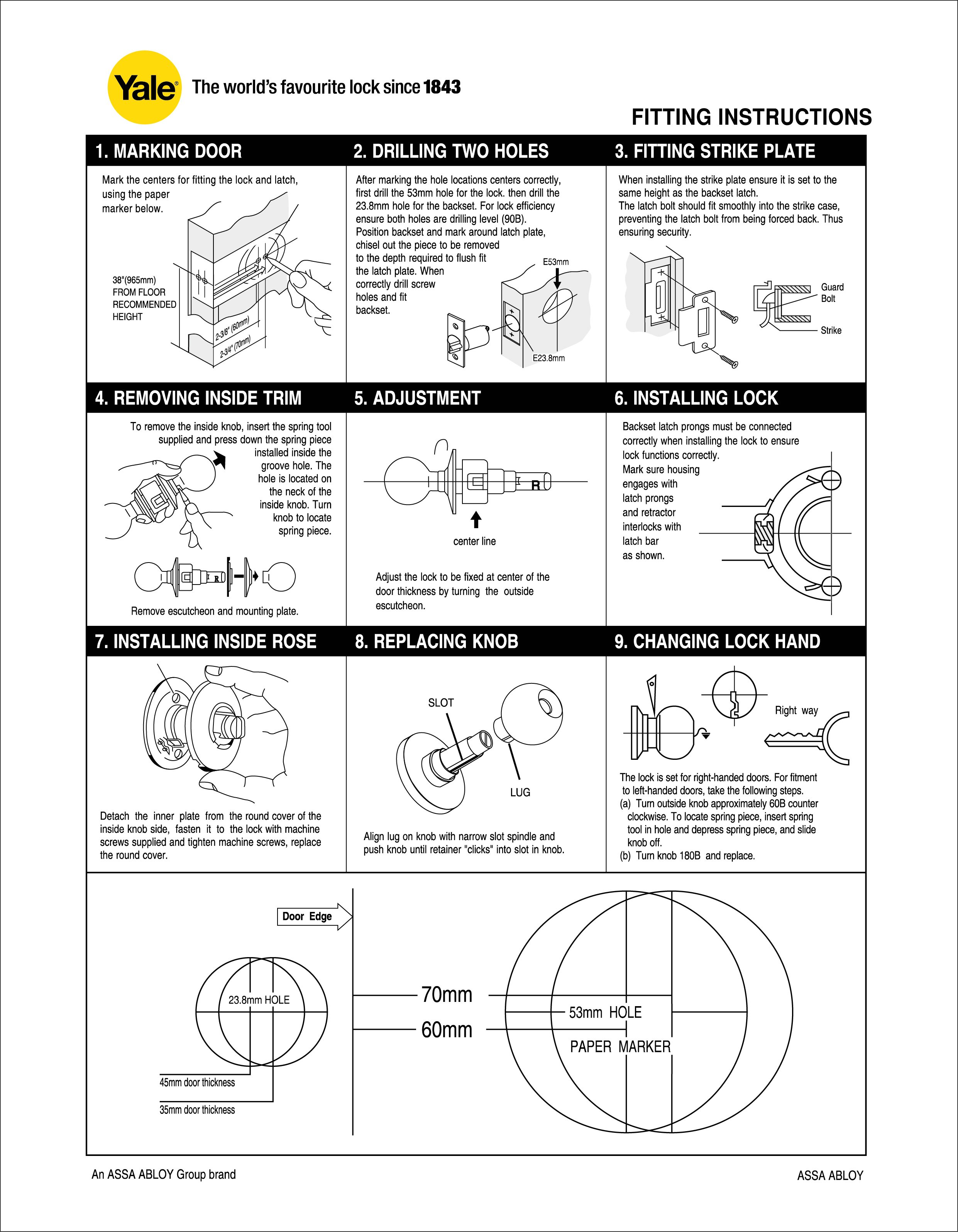

Fitting instruction - for launch pack

Product	Product ID	Attributes
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-BK-0201	C-Function-knobsets: Entrance D-Packaging: Blister Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-BK-0211	C-Function-knobsets: Entrance D-Packaging: Blister Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-BK-0901	C-Function-knobsets: Entrance D-Packaging: Blister Finish_IT: Antique brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-BK-0911	C-Function-knobsets: Privacy D-Packaging: Blister Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-BK-3101	C-Function-knobsets: Privacy D-Packaging: Blister Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-BK-3111	C-Function-knobsets: Privacy D-Packaging: Blister Finish_IT: Antique brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ET-0201	C-Function-knobsets: Passage D-Packaging: Blister Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ET-0211	C-Function-knobsets: Passage D-Packaging: Blister Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ET-0901	C-Function-knobsets: Passage D-Packaging: Blister Finish_IT: Antique brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ET-0911	C-Function-knobsets: Entrance D-Packaging: Box Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ET-3101	C-Function-knobsets: Entrance D-Packaging: Box Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ET-3111	C-Function-knobsets: Entrance D-Packaging: Box Finish_IT: Antique brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-PS-0201	C-Function-knobsets: Privacy D-Packaging: Box Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-PS-0211	C-Function-knobsets: Privacy D-Packaging: Box Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-PS-0901	C-Function-knobsets: Privacy D-Packaging: Box Finish_IT: Antique brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-PS-0911	C-Function-knobsets: Passage D-Packaging: Box Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-PS-3101	C-Function-knobsets: Passage D-Packaging: Box Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-PS-3111	C-Function-knobsets: Passage D-Packaging: Box Finish_IT: Antique brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ST-0211	C-Function-knobsets: Storeroom D-Packaging: Box Finish_IT: Satin stainless steel
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ST-0911	C-Function-knobsets: Storeroom D-Packaging: Box Finish_IT: Polished brass
Grade 3 Cylindrical Knobset, Tulip design	40-CY3-5716-ST-3111	C-Function-knobsets: Storeroom D-Packaging: Box Finish_IT: Antique brass

Brandy glass design - Rosette 65mm
Specifications
Stainless steel or brass knobs
65mm diameter rose
5 pins cylinder, brass plug and zinc alloy housing (3 keys)
Entrance knobset, storeroom knobset and passage knobset with adjustable latch
Privacy function knobset wtih fixed latch, 60mm backset or 70 mm backdset on request
Suitable for door 35~45mm thickness
Square faceplace and strike in 304 stainless Steel material
Zinc alloy latch bolt

Features
Conforms to ANSI Grade 3 requirements
SS-Satin Stainless Steel(US32D), PB-Polished Brass(US3), AB-Antique Brassl(US5), AC-Antique Copper(US11), DC-Satin Nickel(US15), SP-Polished Stainless Steel(US32)
Carolina design - Rosette 65mm
Specifications
Stainless steel or brass knobs
65mm diameter rose
5 pins cylinder, brass plug and zinc alloy housing (3 keys)
Entrance knobset, storeroom knobset and passage knobset with adjustable latch
Privacy function knobset wtih fixed latch, 60mm backset or 70 mm backdset on request
Suitable for door 35~45mm thickness
Square faceplace and strike in 304 stainless Steel material
Zinc alloy latch bolt

Features
Conforms to ANSI Grade 3 requirements
SS-Satin Stainless Steel(US32D), PB-Polished Brass(US3), AB-Antique Brassl(US5), AC-Antique Copper(US11), DC-Satin Nickel(US15), SP-Polished Stainless Steel(US32)
Brandy glass design - Rosette 75mm
Specifications
Stainless steel or brass knobs
75mm diameter rose
5 pins cylinder, brass plug and zinc alloy housing (3 keys)
Entrance knobset and passage knobset with adjustable latch
Privacy function knobset wtih fixed latch, 60mm backset or 70 mm backdset on request
Suitable for door 35~45mm thickness
Square faceplace and strike in 304 stainless Steel material
Zinc alloy latch bolt
Features
Conforms to ANSI Grade 3 requirements
SS-Satin Stainless Steel(US32D), PB-Polished Brass(US3), AB-Antique Brassl(US5), AC-Antique Copper(US11), DC-Satin Nickel(US15), SP-Polished Stainless Steel(US32)
Carolina design - Rosette 75mm
Specifications
Stainless steel or brass knobs
75mm diameter rose
5 pins cylinder, brass plug and zinc alloy housing (3 keys)
Entrance knobset and passage knobset with adjustable latch
Privacy function knobset wtih fixed latch, 60mm backset or 70 mm backdset on request
Suitable for door 35~45mm thickness
Square faceplace and strike in 304 stainless Steel material
Zinc alloy latch bolt
Features
Conforms to ANSI Grade 3 requirements
SS-Satin Stainless Steel(US32D), PB-Polished Brass(US3), AB-Antique Brassl(US5), AC-Antique Copper(US11), DC-Satin Nickel(US15), SP-Polished Stainless Steel(US32)
