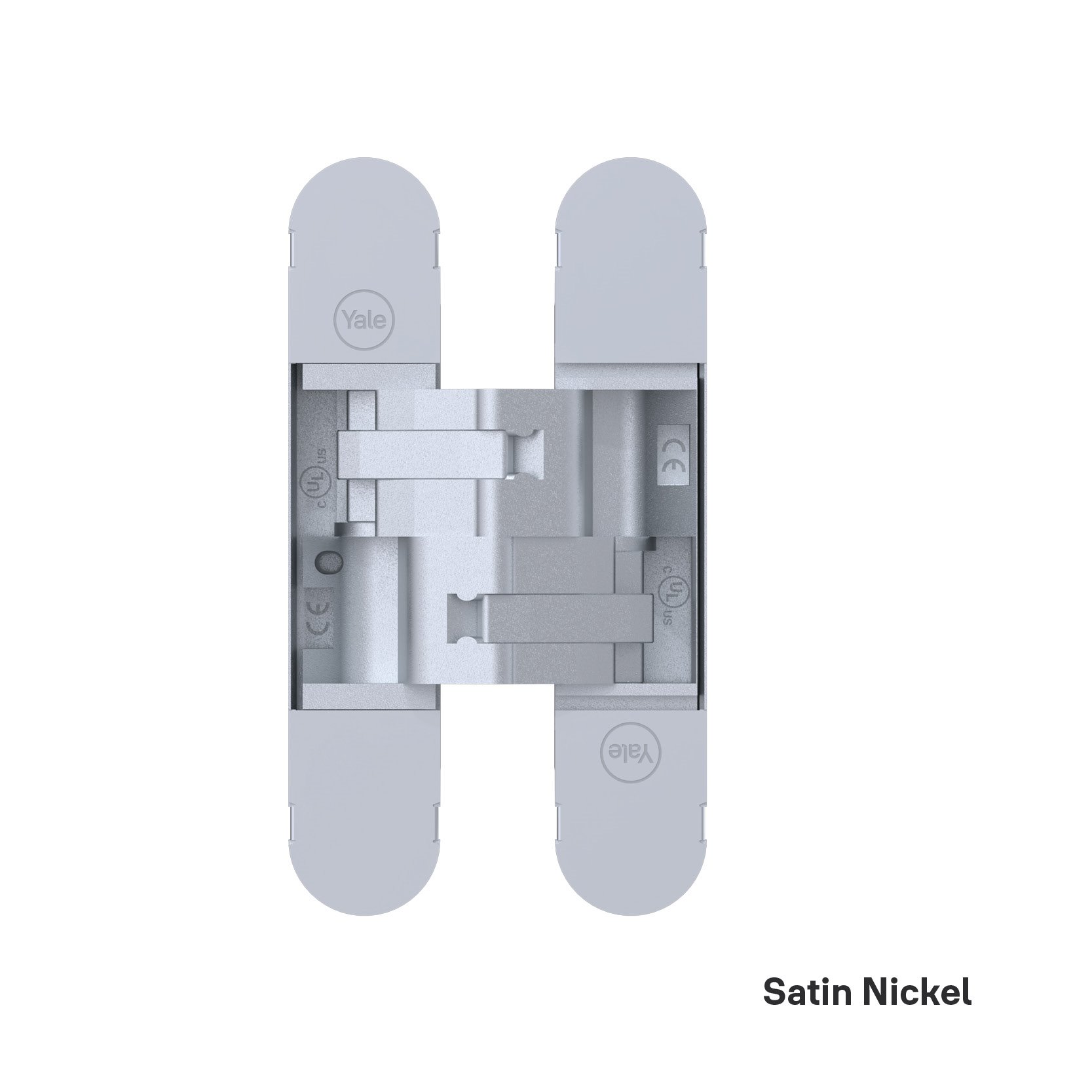

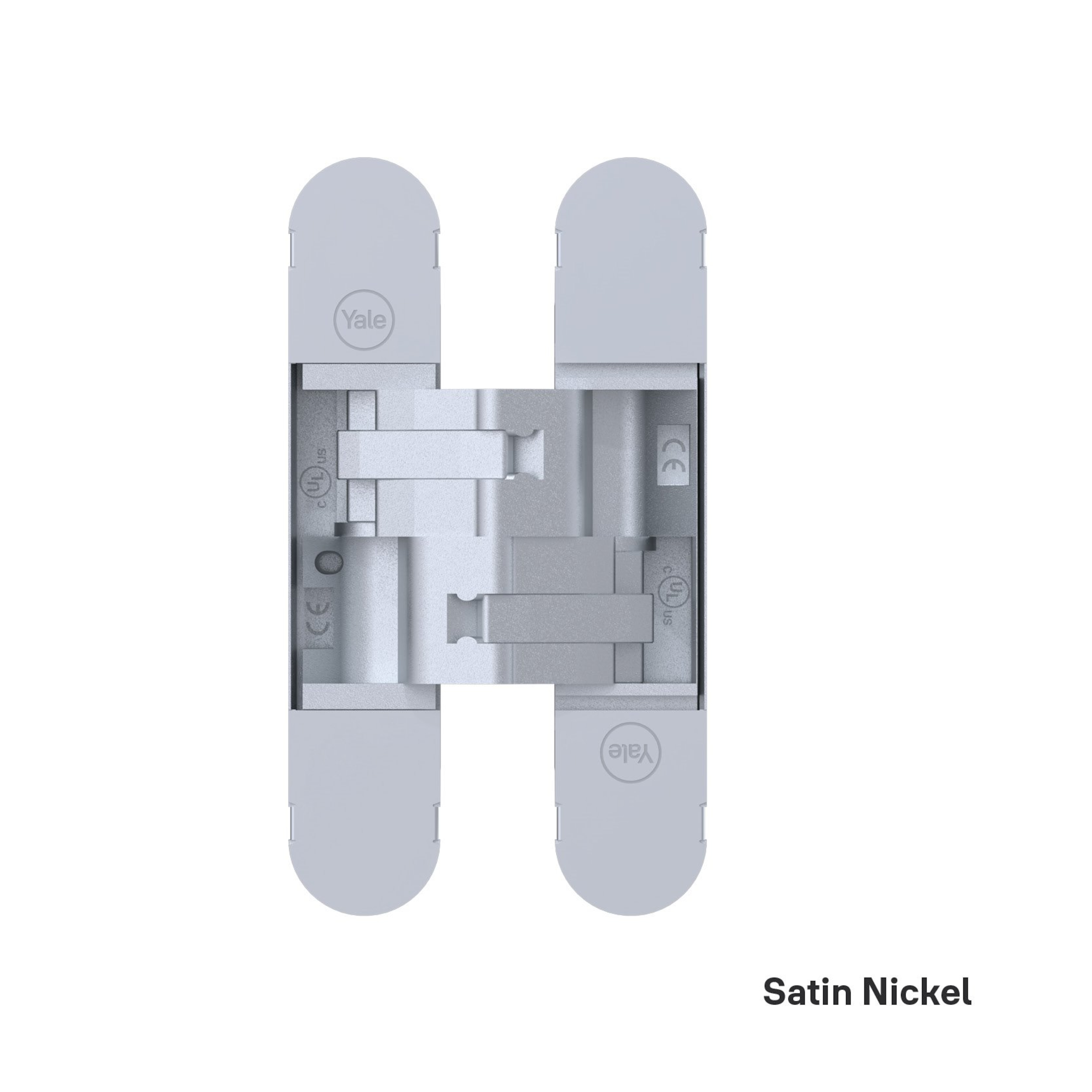

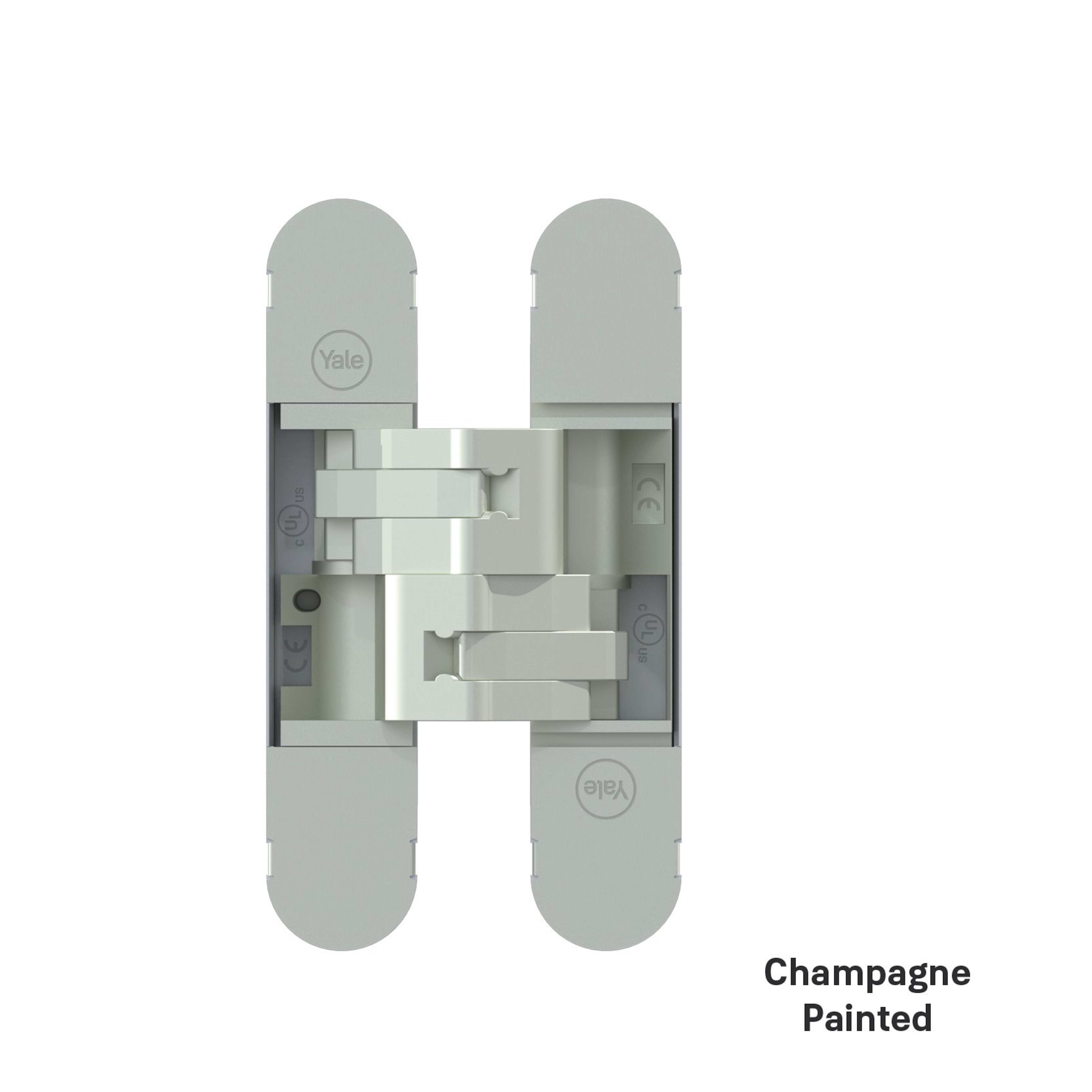

1131s Hinges

Specifications:

• Certified for doors of up to 1000mm width
• Minimum door thickness: 38mm
• Suitable for doors up to 120kgs
• Tested for 200,000 cycles
• Reversible for 38 to 46mm thick

Features:

• Patented, 3 dimensional hinges
• Suitable for aluminium, metal and timber doors
• Fire rated and CE certified
• Symmetric design (reversible)
• Galvanized steel covers
• Zinc alloy internal and external body
• Resistant to oxidation due to the external zinc zamak case
• Fluid sliding mechanism and 3D adjustable with a 3mm allen key and 10mm hexagonal key
